XZU722-TKFQX3 (2019)
Toyota Dyna/Toyoace

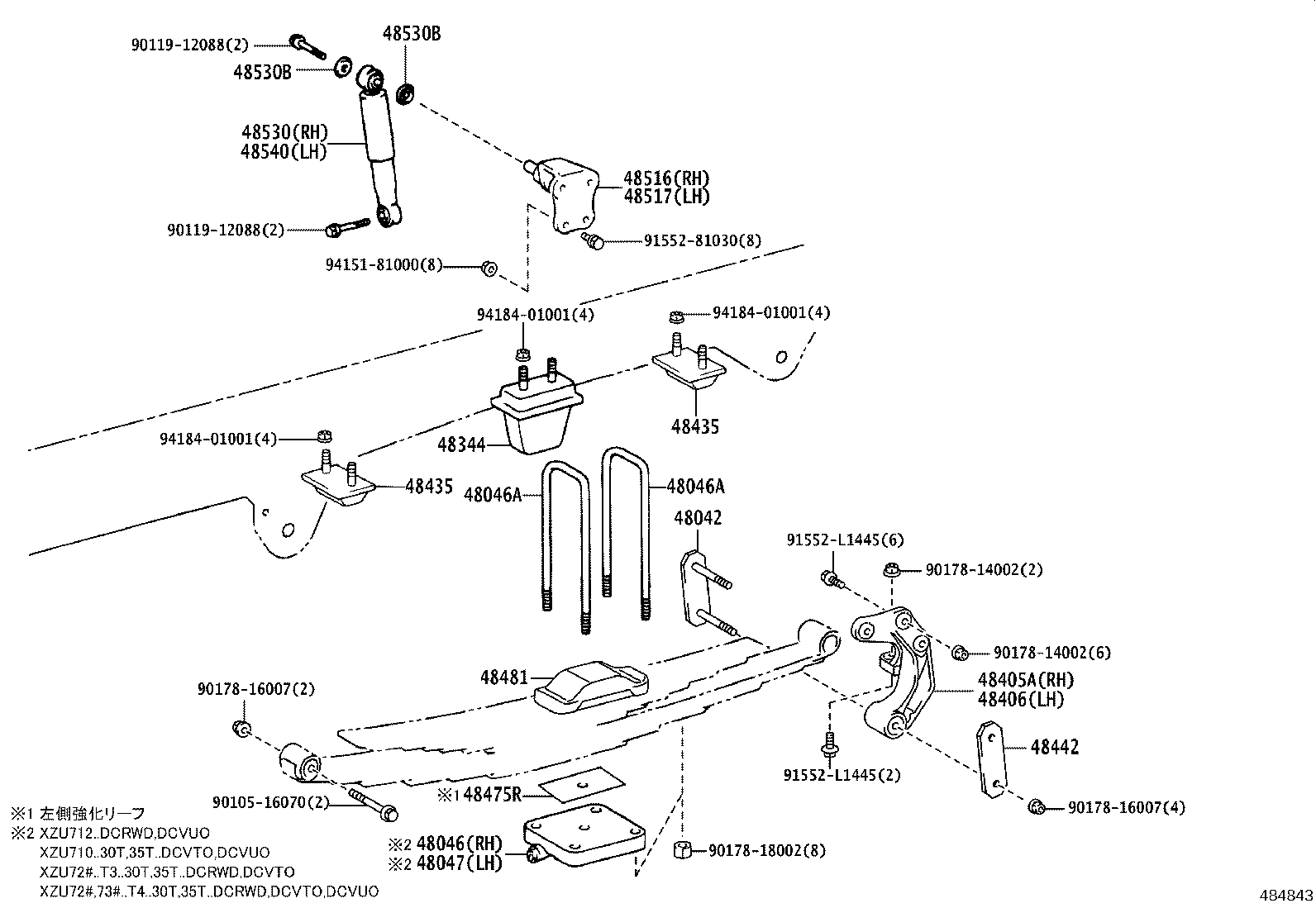

ILLUST NO. 1 OF 2(1905- )XZU71#,72#,73#..30T,35T,40T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37060 |
XZC710,XZU71#,72#..DCRWD,DCVTO |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37111 |
XZC710,XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(20T,30T,35T)..(DCRWD,DCVTO) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18016 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU 長さ=340,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 90117-18014 |
XZU722..SCB..30T..DCRWD;XZU70#..T3..6F..(DCRWD,DCVTO);XZC710,XZU71#,720..(20T,30T)..(DCRWD,DCVTO) 長さ=320 |
4 | ||
| 90117-18015 |
XZU720..6FC..DCRWD..CBU;XZC710,XZU71#,72#..SCB..(20T,30T)..(DCRWD,DCVTO)..IV3 長さ=330,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18016 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU 長さ=340,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 90117-18014 |
XZU722..SCB..30T..DCRWD;XZU70#..T3..6F..(DCRWD,DCVTO);XZC710,XZU71#,720..(20T,30T)..(DCRWD,DCVTO) 長さ=320 |
4 | ||
| 90117-18015 |
XZU720..6FC..DCRWD..CBU;XZC710,XZU71#,72#..SCB..(20T,30T)..(DCRWD,DCVTO)..IV3 長さ=330,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37111 |
XZC710,XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(20T,30T,35T)..(DCRWD,DCVTO) |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XZU712,722..T3..30T..DCRWD;XZU70#..T3..6F..(DCRWD,DCVTO);XZC710,XZU700,710,720..(T3,T4)..(20T,30T)..(DCRWD,DCVTO) |
2 | ||
| 48405A - BRACKET SUB-ASSY, SPRING, NO.4 RH | ||||
| 48405-37010 |
XZC710,XZU71#,72#..DCRWD,DCVTO |
1 | ||
| 48406 - BRACKET SUB-ASSY, SPRING, NO.4 LH | ||||
| 48406-37010 |
XZC710,XZU71#,72#..DCRWD,DCVTO |
1 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
XZU71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
XZU71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48442-37080 |
XZC710,XZU71#,72#..DCRWD,DCVTO |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37090 |
XZU712..DCRWD..IV3;XZU720..6FC..DCRWD..CBU;XZC710,XZU710,72#..SCB..(20T,30T,35T)..(DCRWD,DCVTO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37120 |
XZC710,XZU70#,712..DCRWD,DCVTO,DCVUO;XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU72#,73#..(T4,T5)..(DCRWD,DCVTO,DCVUO);XZU710..(20T,30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37052 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37052 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37331 |
XZU71#,72#..(30T,35T)..(DCRWD,DCVTO) ﾏｰｸ 48531−37331 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37331 |
XZU71#,72#..(30T,35T)..(DCRWD,DCVTO) ﾏｰｸ 48531−37331 |
1 | ||
| Common parts | ||||
| 90105-16070 | ||||
| 90119-12088 | ||||
| 90178-14002 | ||||
| 90178-16007 | ||||
| 90178-18002 | ||||
| 91552-81030 | ||||
| 91552-L1445 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||

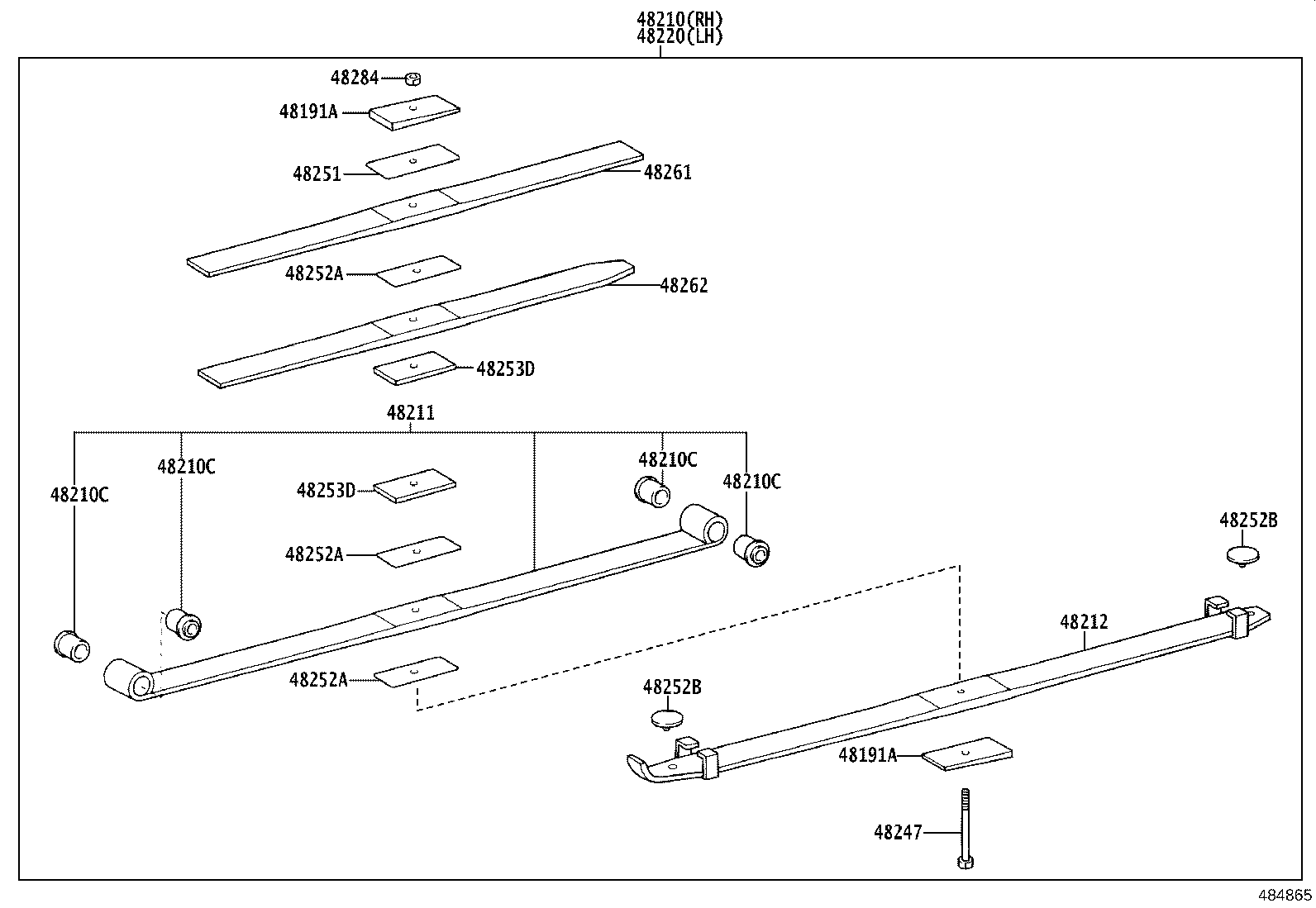

ILLUST NO. 2 OF 2(1905- )XZU71#..30T,35T ; (1905- )XZU72#,73#..T4..30T,35T ; (1905- )XZU72#
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37X40 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) |
2 | ||
| 48201-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37X40 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V50 |
XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU71#..(30T,35T)..(DCRWD,DCVTO,DCVUO);XZU70#,72#,73#..T4..(30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48247-37J81 |
XZU712,722..T3..30T..(DCRWD,DCVUO)..CBU;XZU71#,72#..30T..(DCRWD,DCVTO,DCVUO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO,DCVUO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48264-37N60 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48282-37V50 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48264-37N60 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48282-37V50 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48261-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) |
2 | ||
| 48261-37X40 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) |
2 | ||
| 48262-37X40 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
ILLUST NO. 2 OF 2(1905- )XZU71#,72#..30T..IV3 ; (1905- )XZU712,722..SCB..T3..30T..CBU
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37X40 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) |
2 | ||
| 48201-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37X40 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V50 |
XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU71#..(30T,35T)..(DCRWD,DCVTO,DCVUO);XZU70#,72#,73#..T4..(30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48247-37J81 |
XZU712,722..T3..30T..(DCRWD,DCVUO)..CBU;XZU71#,72#..30T..(DCRWD,DCVTO,DCVUO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO,DCVUO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48264-37N60 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48282-37V50 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48261-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) |
2 | ||
| 48261-37X40 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J51 |
XZU71#,72#..30T..(DCRWD,DCVTO)..IV3;XZU712,722..SCB..T3..30T..DCRWD..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262-37V60 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) |
2 | ||
| 48262-37X40 |
XZU71#,72#..SCB..T3..30T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
