XZU722-TKFQX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )XZC710,XZU70#,71#,72#,73#..SCB

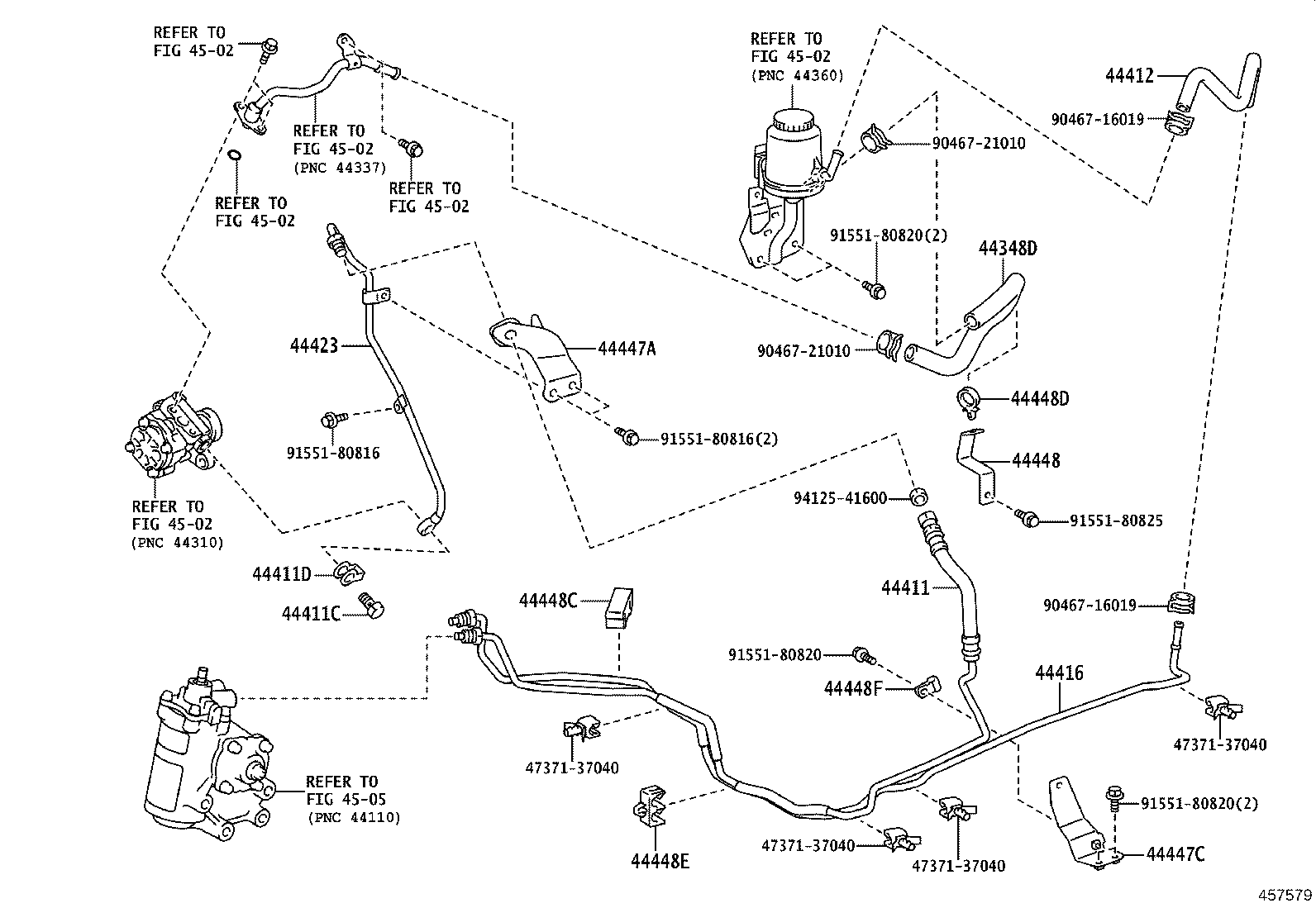

Click highlighted areas on diagram

diagram 44348D 44411 44411C 44411D 44412 44416 44423 44447A 44447C 44448 44448C 44448D 44448E 44448F 4502 4502 4502 4502 4502 4502 4505 4737137040 4737137040 4737137040 4737137040 9046716019 9046716019 9046721010 9046721010 9155180816 9155180816 9155180820 9155180820 9155180820 9155180825 9412541600
Part # Description Qty Price
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37540

XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO)

 1
44411 - HOSE, PRESSURE FEED
44411-37740

XZC710,XZU70#,71#,72#,73#

 1
44411-37741

XZC710,XZU70#,71#,72#..DCRWD,DCVTO

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30030

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
44412 - HOSE, RETURN
44412-37360

XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO)

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37890

XZC710,XZU70#,71#,72#..DCRWD,DCVTO

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37170

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37420

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
44447C - BRACKET, HOSE SUPPORT NO.2
44447-37352

XZC710,XZU70#,71#,72#..DCRWD,DCVTO

 1
44447-37351

XZC710,XZU70#,71#,72#,73#

 1
44447-37350

XZC710,XZU70#,71#,72#,73#

 1
44448 - BRACKET, PRESSURE FEED HOSE SUPPORT, NO.1
44447-37321

XZC710,XZU70#,71#,72#..DCRWD,DCVTO

 1
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37030

XZC710,XZU70#,71#,72#..DCRWD,DCVTO

 1
44448D - CLAMP, PRESSURE FEED, NO.1
44448-37090

XZC710,XZU70#,71#,72#..DCRWD,DCVTO

 1
44448E - CLAMP, PRESSURE FEED, NO.3
44448-37080

XZC710,XZU70#,71#,72#..DCRWD,DCVTO

 1
44448F - CLAMP, PRESSURE FEED, NO.4
44448-37060

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
Common parts
47371-37040
90467-16019
90467-21010
91551-80816
91551-80820
91551-80825
94125-41600
Linked diagrams
4502
4505
