XZU722-TKFQX3 (2019)
Toyota Dyna/Toyoace

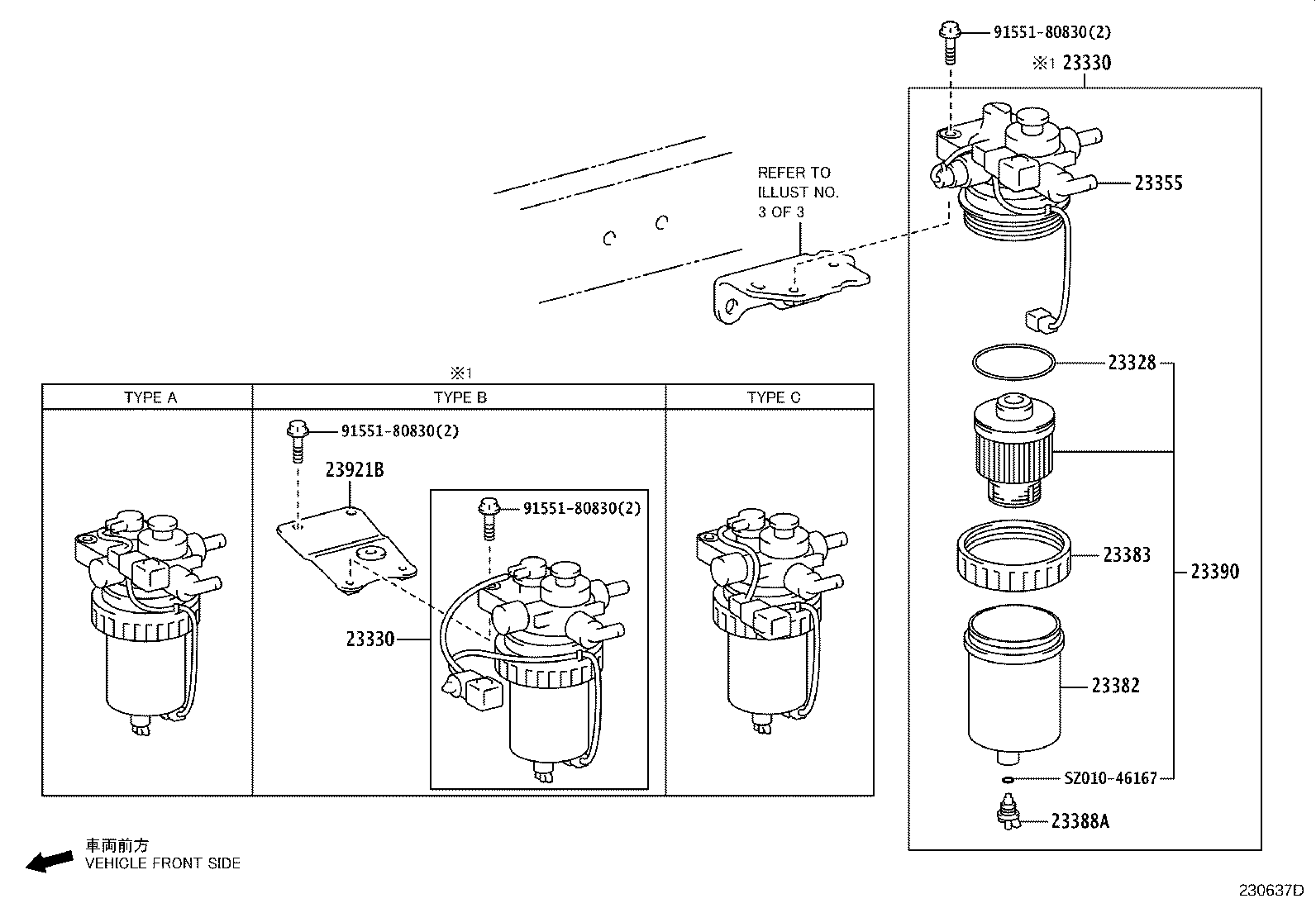

ILLUST NO. 1 OF 3(1905- )
ﾌﾚｰﾑｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23328 - GASKET(FOR FUEL FILTER) | ||||
| 23385-78150 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 23330 - PREFILTER ASSY, FUEL | ||||
| 23330-78161 |
N04C..XZU720,730..IV3;N04C..XZU720..20T..CBU;N04C..XZU710..DCVTO..IV3;N04C..XZU710..40T..DCVUO..IV3;N04C..XZC710,XZU70#,712,722,732..SCB;N04C..XZU710..SCB..(20T,35T)..(DCRWD,DCVUO) ﾌｭｰｴﾙﾋｰﾀ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 23330-78231 |
N04C..XZU712..CBU;N04C..XZU722,732..35T;N04C..XZU710..T4..35T..IV3;N04C..XZU712..(35T,40T)..DCRWD..IV3;N04C..XZU720,730..(30T,35T,40T)..IV3;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,720..(T3,T5)..(20T,30T)..DCRWD..IV3;N04C..XZU710,722..T3..(30T,40T)..(DCRWD,DCVUO)..IV3;N04C..XZC710,XZU710,72#..SCB..(20T,30T)..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 23330-78241 |
N04C..XZU712..CBU;N04C..XZU722,732..35T;N04C..XZU710..T4..35T..IV3;N04C..XZU712..(35T,40T)..DCRWD..IV3;N04C..XZU720,730..(30T,35T,40T)..IV3;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,720..(T3,T5)..(20T,30T)..DCRWD..IV3;N04C..XZU710,722..T3..(30T,40T)..(DCRWD,DCVUO)..IV3;N04C..XZC710,XZU710,72#..SCB..(20T,30T)..DCRWD..CBU ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE B:ｲﾗｽﾄQ照 |
1 | ||
| 23330-78242 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE B:ｲﾗｽﾄQ照 |
1 | ||
| 23330-78151 |
N04C..XZU720,730..IV3;N04C..XZU720..20T..CBU;N04C..XZU710..DCVTO..IV3;N04C..XZU710..40T..DCVUO..IV3;N04C..XZC710,XZU70#,712,722,732..SCB;N04C..XZU710..SCB..(20T,35T)..(DCRWD,DCVUO) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 23330-78162 |
N04C..XZU720..DCRWD..CBU;N04C..XZU720..(DCRWD,DCVTO)..IV3;N04C..XZU710..(35T,40T)..DCVTO..IV3;N04C..XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);N04C..XZC710,XZU70#,712,722..SCB..(DCRWD,DCVTO) ﾌｭｰｴﾙﾋｰﾀ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 23330-78232 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 23330-78152 |
N04C..XZU720..DCRWD..CBU;N04C..XZU720..(DCRWD,DCVTO)..IV3;N04C..XZU710..(35T,40T)..DCVTO..IV3;N04C..XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);N04C..XZC710,XZU70#,712,722..SCB..(DCRWD,DCVTO) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 23330 - PREFILTER ASSY, FUEL | ||||
| 23330-78161 |
N04C..XZU720,730..IV3;N04C..XZU720..20T..CBU;N04C..XZU710..DCVTO..IV3;N04C..XZU710..40T..DCVUO..IV3;N04C..XZC710,XZU70#,712,722,732..SCB;N04C..XZU710..SCB..(20T,35T)..(DCRWD,DCVUO) ﾌｭｰｴﾙﾋｰﾀ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 23330-78231 |
N04C..XZU712..CBU;N04C..XZU722,732..35T;N04C..XZU710..T4..35T..IV3;N04C..XZU712..(35T,40T)..DCRWD..IV3;N04C..XZU720,730..(30T,35T,40T)..IV3;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,720..(T3,T5)..(20T,30T)..DCRWD..IV3;N04C..XZU710,722..T3..(30T,40T)..(DCRWD,DCVUO)..IV3;N04C..XZC710,XZU710,72#..SCB..(20T,30T)..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 23330-78241 |
N04C..XZU712..CBU;N04C..XZU722,732..35T;N04C..XZU710..T4..35T..IV3;N04C..XZU712..(35T,40T)..DCRWD..IV3;N04C..XZU720,730..(30T,35T,40T)..IV3;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,720..(T3,T5)..(20T,30T)..DCRWD..IV3;N04C..XZU710,722..T3..(30T,40T)..(DCRWD,DCVUO)..IV3;N04C..XZC710,XZU710,72#..SCB..(20T,30T)..DCRWD..CBU ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE B:ｲﾗｽﾄQ照 |
1 | ||
| 23330-78242 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE B:ｲﾗｽﾄQ照 |
1 | ||
| 23330-78151 |
N04C..XZU720,730..IV3;N04C..XZU720..20T..CBU;N04C..XZU710..DCVTO..IV3;N04C..XZU710..40T..DCVUO..IV3;N04C..XZC710,XZU70#,712,722,732..SCB;N04C..XZU710..SCB..(20T,35T)..(DCRWD,DCVUO) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 23330-78162 |
N04C..XZU720..DCRWD..CBU;N04C..XZU720..(DCRWD,DCVTO)..IV3;N04C..XZU710..(35T,40T)..DCVTO..IV3;N04C..XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);N04C..XZC710,XZU70#,712,722..SCB..(DCRWD,DCVTO) ﾌｭｰｴﾙﾋｰﾀ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 23330-78232 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 23330-78152 |
N04C..XZU720..DCRWD..CBU;N04C..XZU720..(DCRWD,DCVTO)..IV3;N04C..XZU710..(35T,40T)..DCVTO..IV3;N04C..XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);N04C..XZC710,XZU70#,712,722..SCB..(DCRWD,DCVTO) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 23355 - ELEMENT, PREFILTER | ||||
| 23355-78150 |
N04C..XZU720,730..IV3;N04C..XZU720..20T..CBU;N04C..XZU710..DCVTO..IV3;N04C..XZU710..40T..DCVUO..IV3;N04C..XZC710,XZU70#,712,722,732..SCB;N04C..XZU710..SCB..(20T,35T)..(DCRWD,DCVUO) |
1 | ||
| 23355-78160 |
N04C..XZU720,730..IV3;N04C..XZU720..20T..CBU;N04C..XZU710..DCVTO..IV3;N04C..XZU710..40T..DCVUO..IV3;N04C..XZC710,XZU70#,712,722,732..SCB;N04C..XZU710..SCB..(20T,35T)..(DCRWD,DCVUO) ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23355-78230 |
N04C..XZU712..CBU;N04C..XZU722,732..35T;N04C..XZU710..T4..35T..IV3;N04C..XZU712..(35T,40T)..DCRWD..IV3;N04C..XZU720,730..(30T,35T,40T)..IV3;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,720..(T3,T5)..(20T,30T)..DCRWD..IV3;N04C..XZU710,722..T3..(30T,40T)..(DCRWD,DCVUO)..IV3;N04C..XZC710,XZU710,72#..SCB..(20T,30T)..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 23355-78240 |
N04C..XZU712..CBU;N04C..XZU722,732..35T;N04C..XZU710..T4..35T..IV3;N04C..XZU712..(35T,40T)..DCRWD..IV3;N04C..XZU720,730..(30T,35T,40T)..IV3;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,720..(T3,T5)..(20T,30T)..DCRWD..IV3;N04C..XZU710,722..T3..(30T,40T)..(DCRWD,DCVUO)..IV3;N04C..XZC710,XZU710,72#..SCB..(20T,30T)..DCRWD..CBU ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 23355-78161 |
N04C..XZU720..DCRWD..CBU;N04C..XZU720..(DCRWD,DCVTO)..IV3;N04C..XZU710..(35T,40T)..DCVTO..IV3;N04C..XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);N04C..XZC710,XZU70#,712,722..SCB..(DCRWD,DCVTO) ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23355-78241 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 23355-78231 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 23355-78151 |
N04C..XZU720..DCRWD..CBU;N04C..XZU720..(DCRWD,DCVTO)..IV3;N04C..XZU710..(35T,40T)..DCVTO..IV3;N04C..XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);N04C..XZC710,XZU70#,712,722..SCB..(DCRWD,DCVTO) |
1 | ||
| 23382 - CASE, FUEL FILTER | ||||
| 23382-78152 |
N04C..XZU720,730..IV3;N04C..XZU720..20T..CBU;N04C..XZU710..DCVTO..IV3;N04C..XZU710..40T..DCVUO..IV3;N04C..XZC710,XZU70#,712,722,732..SCB;N04C..XZU710..SCB..(20T,35T)..(DCRWD,DCVUO) ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23382-78151 |
N04C..XZU720,730..IV3;N04C..XZU720..20T..CBU;N04C..XZU710..DCVTO..IV3;N04C..XZU710..40T..DCVUO..IV3;N04C..XZC710,XZU70#,712,722,732..SCB;N04C..XZU710..SCB..(20T,35T)..(DCRWD,DCVUO) |
1 | ||
| 23382-78152 |
N04C..XZU712..CBU;N04C..XZU722,732..35T;N04C..XZU710..T4..35T..IV3;N04C..XZU712..(35T,40T)..DCRWD..IV3;N04C..XZU720,730..(30T,35T,40T)..IV3;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,720..(T3,T5)..(20T,30T)..DCRWD..IV3;N04C..XZU710,722..T3..(30T,40T)..(DCRWD,DCVUO)..IV3;N04C..XZC710,XZU710,72#..SCB..(20T,30T)..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 23382-78152 |
N04C..XZU712..CBU;N04C..XZU722,732..35T;N04C..XZU710..T4..35T..IV3;N04C..XZU712..(35T,40T)..DCRWD..IV3;N04C..XZU720,730..(30T,35T,40T)..IV3;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,720..(T3,T5)..(20T,30T)..DCRWD..IV3;N04C..XZU710,722..T3..(30T,40T)..(DCRWD,DCVUO)..IV3;N04C..XZC710,XZU710,72#..SCB..(20T,30T)..DCRWD..CBU ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 23382-78152 |
N04C..XZU720..DCRWD..CBU;N04C..XZU720..(DCRWD,DCVTO)..IV3;N04C..XZU710..(35T,40T)..DCVTO..IV3;N04C..XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);N04C..XZC710,XZU70#,712,722..SCB..(DCRWD,DCVTO) |
1 | ||
| 23383 - UNION, FUEL FILTER | ||||
| 23383-78150 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 23388A - PLUG, FUEL FILTER DRAIN | ||||
| 23388-EV060 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23304-78150 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 23921B - BRACKET(FOR FUEL FILTER) | ||||
| 23921-78710 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 23921-78710 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| Common parts | ||||
| 91551-80830 | ||||
| SZ010-46167 | ||||

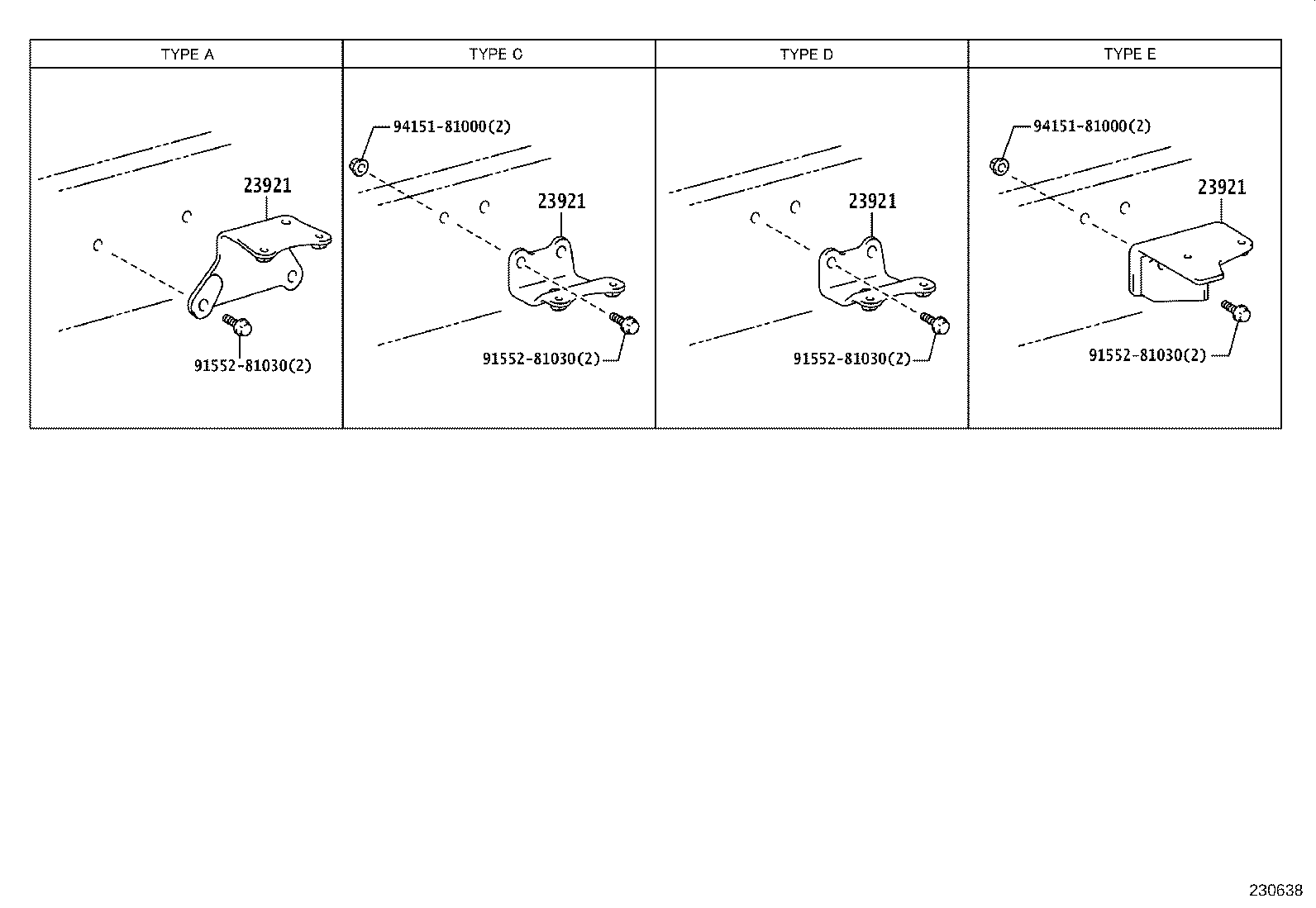

ILLUST NO. 3 OF 3(1905- )
ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78670 |
N04C..XZU720..DCRWD..CBU;N04C..XZU720..(DCRWD,DCVTO)..IV3;N04C..XZU710..(35T,40T)..DCVTO..IV3;N04C..XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);N04C..XZC710,XZU70#,712,722..SCB..(T3,T4)..(DCRWD,DCVTO) TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 23921-78690 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78670 |
N04C..XZU720..DCRWD..CBU;N04C..XZU720..(DCRWD,DCVTO)..IV3;N04C..XZU710..(35T,40T)..DCVTO..IV3;N04C..XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);N04C..XZC710,XZU70#,712,722..SCB..(T3,T4)..(DCRWD,DCVTO) TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 23921-78690 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78670 |
N04C..XZU720..DCRWD..CBU;N04C..XZU720..(DCRWD,DCVTO)..IV3;N04C..XZU710..(35T,40T)..DCVTO..IV3;N04C..XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);N04C..XZC710,XZU70#,712,722..SCB..(T3,T4)..(DCRWD,DCVTO) TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 23921-78690 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78670 |
N04C..XZU720..DCRWD..CBU;N04C..XZU720..(DCRWD,DCVTO)..IV3;N04C..XZU710..(35T,40T)..DCVTO..IV3;N04C..XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);N04C..XZC710,XZU70#,712,722..SCB..(T3,T4)..(DCRWD,DCVTO) TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 23921-78690 |
N04C..XZU720..DCVTO..IV3;N04C..XZU710..T4..DCVTO..IV3;N04C..XZU712,722..(35T,40T)..DCRWD..IV3;N04C..XZC710,XZU71#,72#..SCB..DCRWD..CBU;N04C..XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;N04C..XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側),TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 91552-81030 | ||||
| 94151-81000 | ||||

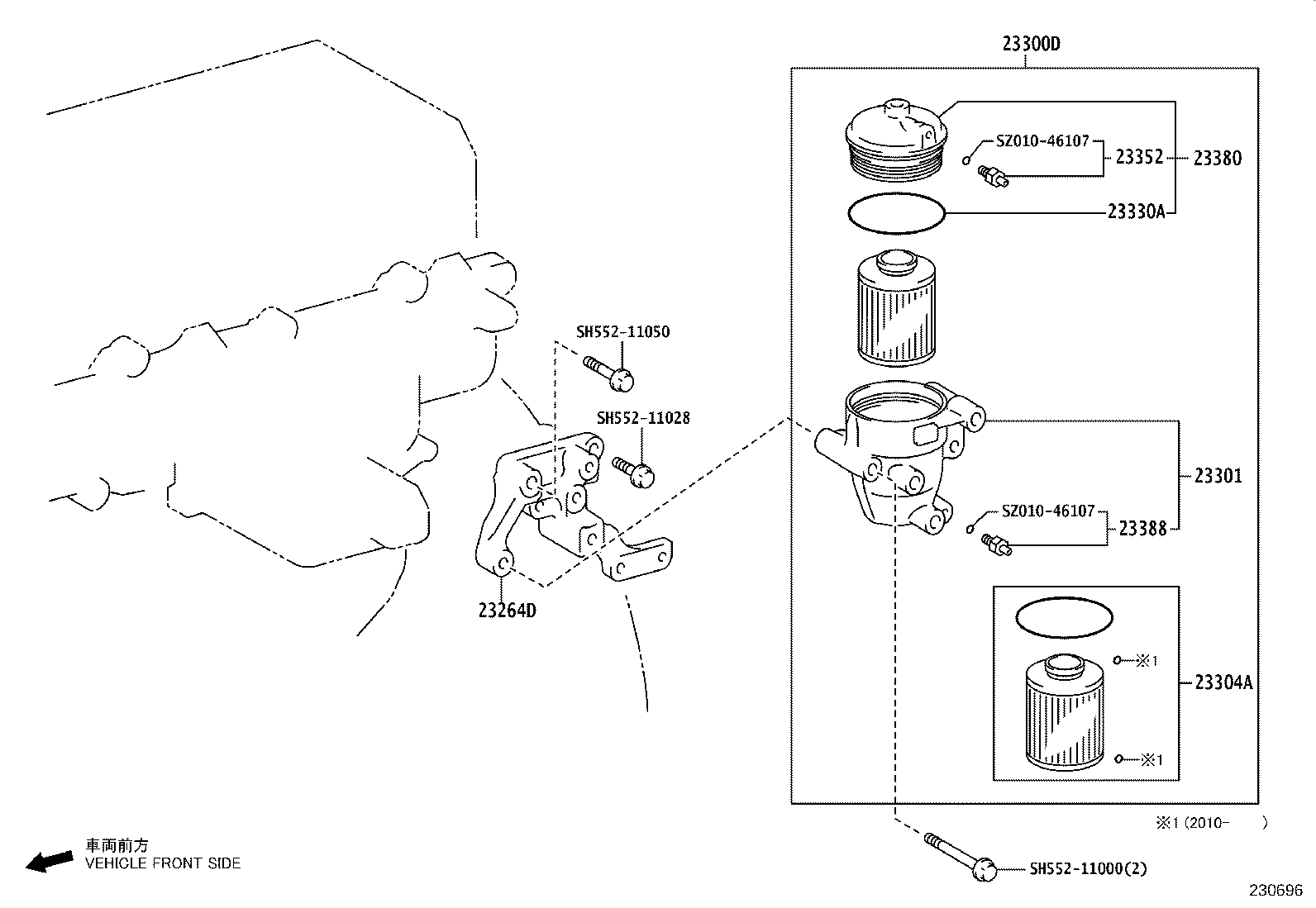

ILLUST NO. 2 OF 3(1905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23264D - BRACKET, FUEL FILTER | ||||
| 23264-78090 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-78501 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 23300-78500 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 23301 - BODY SUB-ASSY, FUEL FILTER | ||||
| 23301-78500 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 23301-78501 |
N04C..XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO |
1 | ||
| 23304A - ELEMENT SET, FUEL FILTER | ||||
| 23304-EV570 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 23304-78500 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 23330A - GASKET | ||||
| SZ010-46251 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 23386-78500 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 23352 - PLUG, BLEEDER | ||||
| 23388-EV020 |
N04C..XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-78500 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 23380-78501 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-EV020 |
N04C..XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO |
1 | ||
| Common parts | ||||
| SH552-11000 | ||||
| SH552-11028 | ||||
| SH552-11050 | ||||
| SZ010-46107 | ||||
