XZU722-TKFQX (2019)
Toyota Dyna/Toyoace

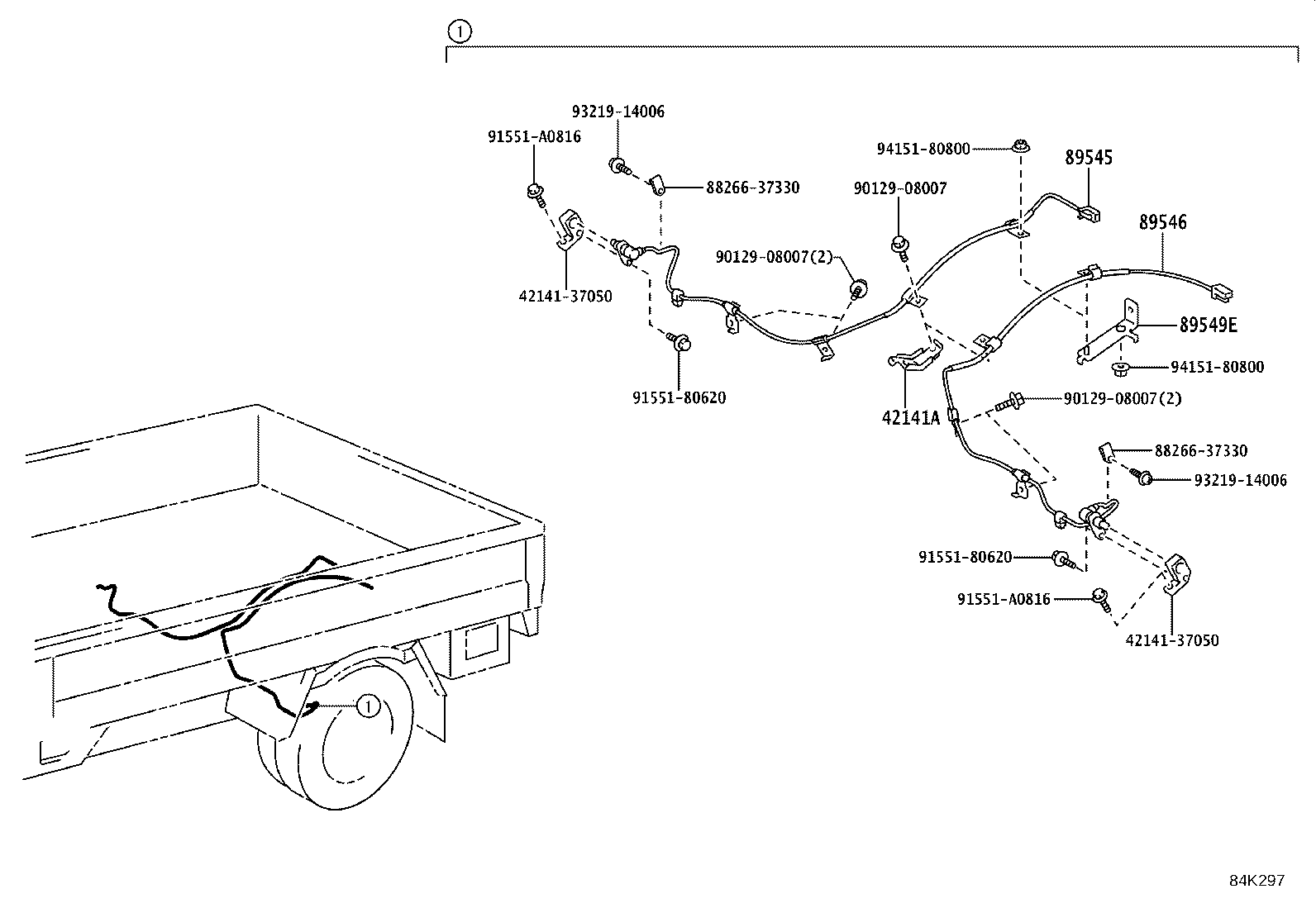

ILLUST NO. 3 OF 3(1905- )XZU700,710..30T,35T..DCVTO,DCVUO ; (1905- )XZU72#..T3..30T,35T..DCRWD
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 42141-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 42141-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 42141-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 42141-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89545-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89545-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89545-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89545-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89546-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89546-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89546-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89546-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82716-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
1 | ||
| 82716-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
1 | ||
| 82716-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
1 | ||
| 82716-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
1 | ||
| 82716-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 94151-80800 | ||||
ILLUST NO. 3 OF 3(1905- )XZU72#,73#..T3..DCVUO ; (1905- )XZU710..40T..DCWDO..CBU ; (1905- )
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 42141-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89545-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89546-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82716-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
1 | ||
| 82716-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 94151-80800 | ||||

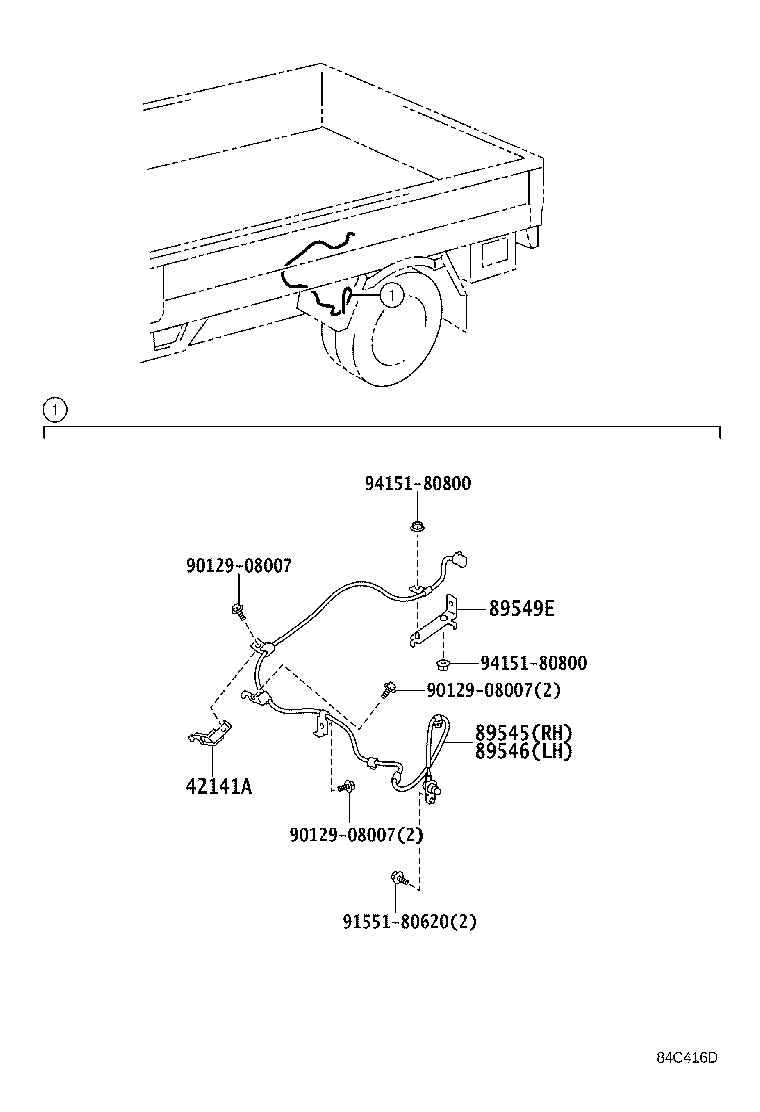

ILLUST NO. 3 OF 3(1905- )DM6,DM7..DCVUO,DCWDO ; (1905- )XZU700,710..40T..DCWDO..IV3 ; (1905-
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37210 |
XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(30T,35T)..DCVTO |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82716-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
1 | ||
| Common parts | ||||
| 42141-37050 | ||||
| 88266-37330 | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 91551-A0816 | ||||
| 93219-14006 | ||||
| 94151-80800 | ||||
