XZU722-TKFQC3 (2017)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10043 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10043 | ||||
ILLUST NO. 2 OF 2(8808- )
8-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8808- )
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10043 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(7708- )JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-14003 | ||||
| 90170-16139 | ||||
| 91611-41020 | ||||
| 93220-18030 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94115-41400 | ||||
| 94115-41600 | ||||
| 94115-51400 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||
| 94531-01200 | ||||

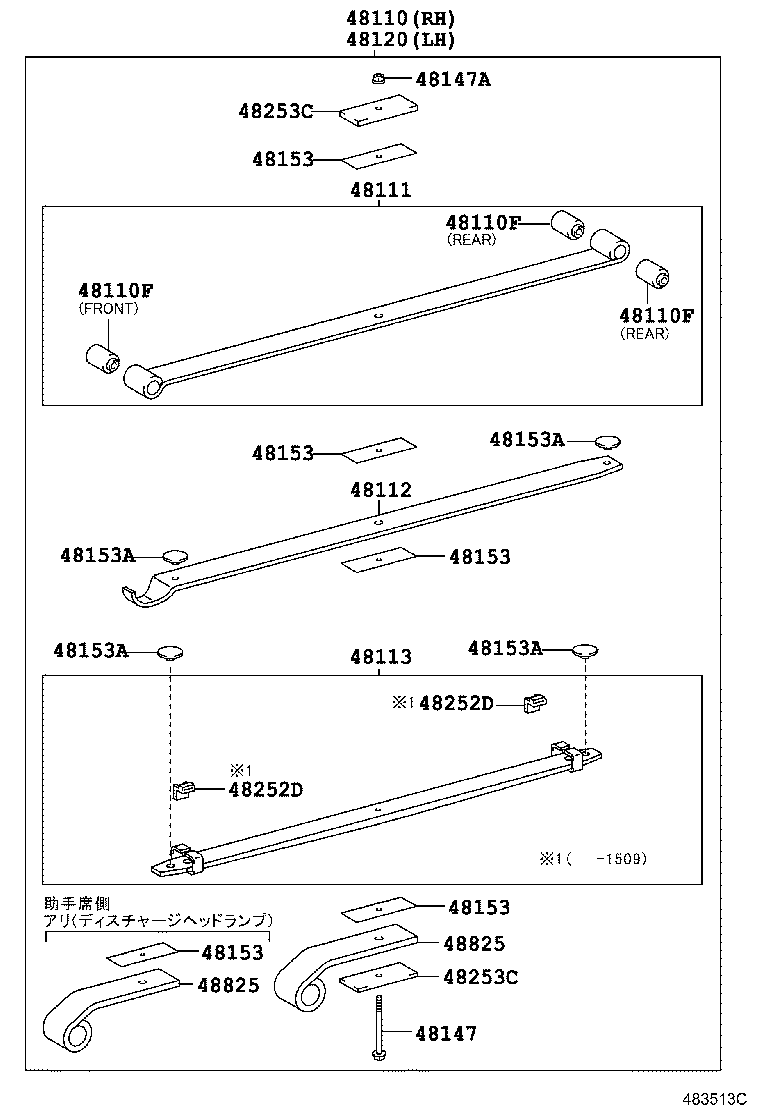

ILLUST NO. 2 OF 2(1107- )XZU71#,72#,73#..30T,35T..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37J62 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 3枚ﾘｰﾌ |
1 | ||
| 48110-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-37X51 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
1 | ||
| 48110-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37X71 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 3枚ﾘｰﾌ,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37X71 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 3枚ﾘｰﾌ,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
1 | ||
| 48110-37X51 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)父wｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾘﾔ |
4 | ||
| 90389-16029 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾘﾔ |
4 | ||
| 90389-16029 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾘﾔ |
4 | ||
| 90389-16029 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37J71 |
XZU71#,72#,73#..30T,35T 助手席側 |
1 | ||
| 48101-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48101-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48101-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),助手席側 |
1 | ||
| 48101-37L61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48101-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48101-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48101-37X71 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 運転席側 |
1 | ||
| 48101-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),運転席側 |
1 | ||
| 48101-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48102-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),助手席側 |
1 | ||
| 48102-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48102-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48102-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),運転席側 |
1 | ||
| 48102-37L61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48102-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48102-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48112-37J71 |
XZU71#,72#,73#..30T,35T 助手席側 |
1 | ||
| 48112-37X71 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-37J71 |
XZU71#,72#,73#..30T,35T 助手席側 |
1 | ||
| 48102-37X71 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37K11 |
XZU71#,72#,73#..30T,35T 3枚ﾘｰﾌ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37J71 |
XZU71#,72#,73#..30T,35T 3枚ﾘｰﾌ |
1 | ||
| 48110-37K61 |
XZU71#,72#,73#..30T,35T 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-37L01 |
XZU71#,72#,73#..30T,35T 3枚ﾘｰﾌ,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37K81 |
XZU71#,72#,73#..30T,35T 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37L41 |
XZU71#,72#,73#..30T,35T 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
1 | ||
| 48110-37L61 |
XZU71#,72#,73#..30T,35T 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)父wｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37N21 |
XZU71#,72#,73#..30T,35T 3枚ﾘｰﾌ,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37J81 |
XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48147-37J81 |
XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48147-37J81 |
XZU710,720,730..40T..CBU;XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T |
2 | ||
| 48147-37K11 |
XZU70#,71#,72#,73#..30T,35T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48147-37K11 |
XZU70#,71#,72#,73#..30T,35T ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#,73#..T3,T4,T5 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48114-37J81 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48114-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
2 | ||
| 48114-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),運転席側 |
2 | ||
| 48114-37J81 |
XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
2 | ||
| 48114-37J81 |
XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T |
4 | ||
| 48114-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
3 | ||
| 48115-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
2 | ||
| 48253-37631 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
2 | ||
| 48253-37631 |
XZU70#,71#,72#,73#..30T,35T ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48114-37J81 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48114-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
2 | ||
| 48114-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),運転席側 |
2 | ||
| 48114-37J81 |
XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
2 | ||
| 48114-37J81 |
XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T |
4 | ||
| 48114-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
3 | ||
| 48115-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
2 | ||
| 48253-37631 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
2 | ||
| 48253-37631 |
XZU70#,71#,72#,73#..30T,35T ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48114-37J81 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48114-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
2 | ||
| 48114-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),運転席側 |
2 | ||
| 48114-37J81 |
XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
2 | ||
| 48114-37J81 |
XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T |
4 | ||
| 48114-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
3 | ||
| 48115-37J81 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
2 | ||
| 48253-37631 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
2 | ||
| 48253-37631 |
XZU70#,71#,72#,73#..30T,35T ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48113-37J81 |
XZU710,720,730..DCRVT,DCRVU;XZU70#,712,722,732..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRVT) |
2 | ||
| 48113-37J81 |
XZU70#,71#,72#,73#..30T,35T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 48113-37J81 |
XZU70#,71#,72#,73#..30T,35T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
ILLUST NO. 2 OF 2(1107- )XZU71#,72#,73#..30T,35T..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU
3-LEAF,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37J62 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 3枚ﾘｰﾌ |
1 | ||
| 48110-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-37X51 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
1 | ||
| 48110-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37X71 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 3枚ﾘｰﾌ,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37X71 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 3枚ﾘｰﾌ,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
1 | ||
| 48110-37X51 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)父wｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾘﾔ |
4 | ||
| 90389-16029 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾘﾔ |
4 | ||
| 90389-16029 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾘﾔ |
4 | ||
| 90389-16029 |
XZU710,720..20T,30T,35T;XZU710,720,730..40T..CBU;XZC710,XZU700,712,722,73#..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU) ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37J71 |
XZU71#,72#,73#..30T,35T 助手席側 |
1 | ||
| 48101-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48101-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48101-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),助手席側 |
1 | ||
| 48101-37L61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48101-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48101-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48101-37X71 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 運転席側 |
1 | ||
| 48101-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),運転席側 |
1 | ||
| 48101-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48102-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),助手席側 |
1 | ||
| 48102-37K61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48102-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48102-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),運転席側 |
1 | ||
| 48102-37L61 |
XZU71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48102-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48102-37X41 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48112-37J71 |
XZU71#,72#,73#..30T,35T 助手席側 |
1 | ||
| 48112-37X71 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-37J71 |
XZU71#,72#,73#..30T,35T 助手席側 |
1 | ||
| 48102-37X71 |
XZU712,722,73#..30T,35T;XZU710,720..(30T,35T)..IV3 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37K11 |
XZU71#,72#,73#..30T,35T 3枚ﾘｰﾌ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37J71 |
XZU71#,72#,73#..30T,35T 3枚ﾘｰﾌ |
1 | ||
| 48110-37K61 |
XZU71#,72#,73#..30T,35T 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-37L01 |
XZU71#,72#,73#..30T,35T 3枚ﾘｰﾌ,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37K81 |
XZU71#,72#,73#..30T,35T 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37L41 |
XZU71#,72#,73#..30T,35T 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
1 | ||
| 48110-37L61 |
XZU71#,72#,73#..30T,35T 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)父wｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48110-37N21 |
XZU71#,72#,73#..30T,35T 3枚ﾘｰﾌ,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37J81 |
XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48147-37J81 |
XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,運転席側 |
1 | ||
| 48147-37J81 |
XZU710,720,730..40T..CBU;XZU710,720..(30T,35T)..IV3;XZU70#,712,722,73#..30T,35T |
2 | ||
| 48147-37K11 |
XZU70#,71#,72#,73#..30T,35T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48147-37K11 |
XZU70#,71#,72#,73#..30T,35T ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,助手席側 |
1 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#,73#..T3,T4,T5 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48282-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T |
8 | ||
| 48252-37521 |
XZU70#,71#,72#,73#..30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48113-37J81 |
XZU710,720,730..DCRVT,DCRVU;XZU70#,712,722,732..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRVT) |
2 | ||
| 48113-37J81 |
XZU70#,71#,72#,73#..30T,35T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 48113-37J81 |
XZU70#,71#,72#,73#..30T,35T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48113-37J81 |
XZU710,720,730..DCRVT,DCRVU;XZU70#,712,722,732..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRVT) |
2 | ||
| 48113-37J81 |
XZU70#,71#,72#,73#..30T,35T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 48113-37J81 |
XZU70#,71#,72#,73#..30T,35T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZC710,XZU70#,71#,72#,73#..SCB ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#,73#..SCB..(20T,30T,35T) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#,73#..20T,30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZC710,XZU70#,71#,72#,73#..SCB ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#,73#..SCB..(20T,30T,35T) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#,73#..20T,30T,35T ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
