Toyota Dyna/toyoace XZU722 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU722-PKTQX (2019)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

XZU722-PKTQX (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1905- )DCVUO ; (1905- )DCB..DCRWD

Click highlighted areas on diagram

ﾊﾟｲﾋﾟﾝｸﾞ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-37150	XZC710,XZU70#,71#,72#..DCRWD,DCVTO	05/2019 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37C40	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37F30	XZC710,XZU70#,71#,72#..DCRWD,DCVTO	05/2019 - 12/2999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37470	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37C30	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88716-37F30	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-37550	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88717-37560	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88721A - HOSE, LIQUID, A
88721-37E70	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88721-37E60	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
Common parts
88688-37C10
88688-37C20
88688-37C90
88688-37F50
88718-37730
88718-37750
88718-3V190
88718-3V210
90099-00264
90099-14119
90099-14120
90099-14121
91511-B0630
91511-J0625
91551-80814
91551-80820
91551-80835
91651-60614
91651-60616
91651-60840
93385-15010
Linked diagrams
8714
8719

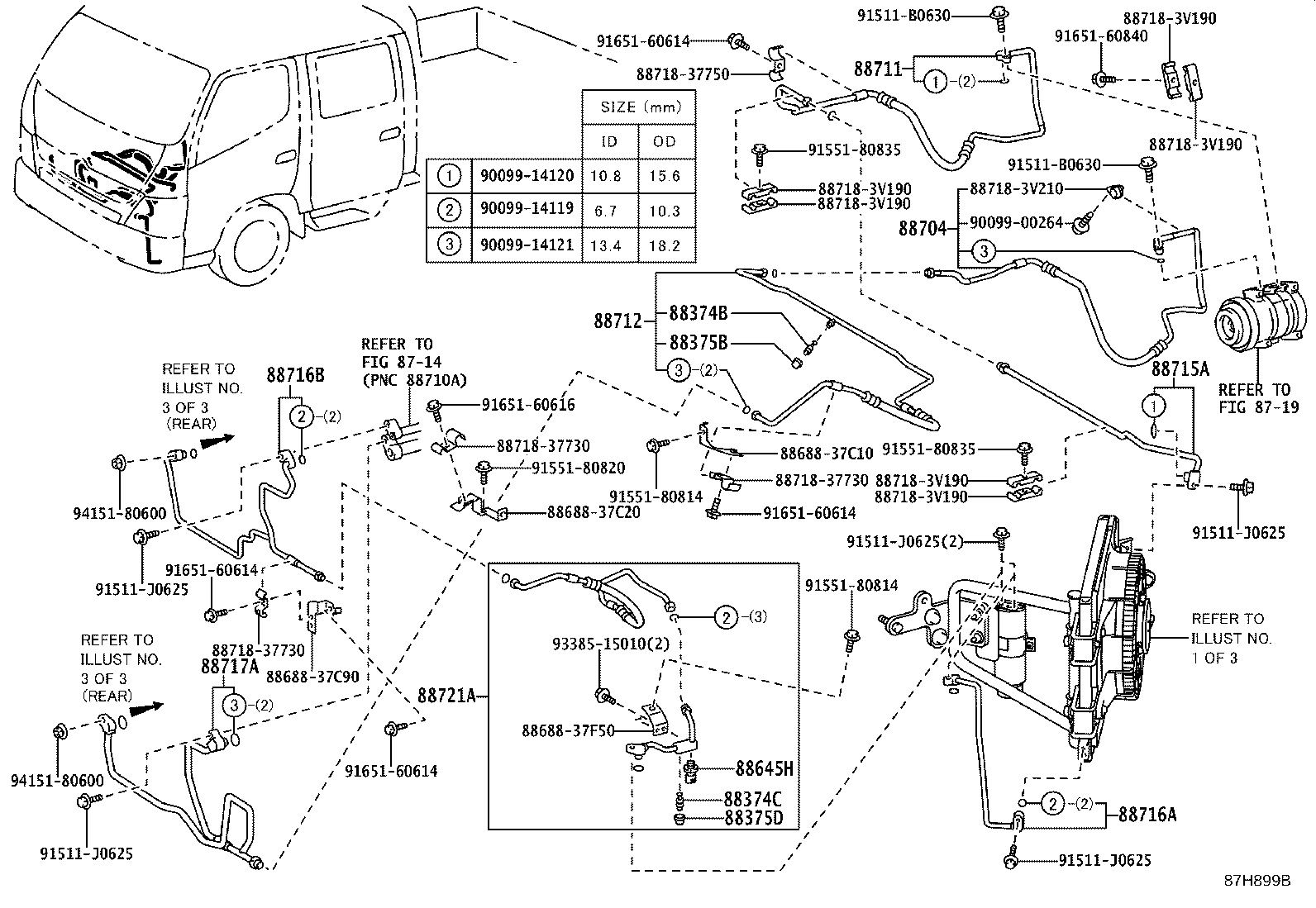

ILLUST NO. 2 OF 3(1905- )DCB

Click highlighted areas on diagram

ﾌﾛﾝﾄﾊﾟｲﾋﾟﾝｸﾞ---ｱﾘ(ﾘﾔｸｰﾗ)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-37150	XZC710,XZU70#,71#,72#..DCRWD,DCVTO	05/2019 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37C40	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37F30	XZC710,XZU70#,71#,72#..DCRWD,DCVTO	05/2019 - 12/2999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37470	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37C30	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88716-37F30	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-37F40	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-37550	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88717-37560	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88721A - HOSE, LIQUID, A
88721-37E70	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88721-37E60	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
Common parts
88688-37C10
88688-37C20
88688-37C90
88688-37F50
88718-37730
88718-37750
88718-3V190
88718-3V210
90099-00264
90099-14119
90099-14120
90099-14121
91511-B0630
91511-J0625
91551-80814
91551-80820
91551-80835
91651-60614
91651-60616
91651-60840
93385-15010
94151-80600
Linked diagrams
8714
8719

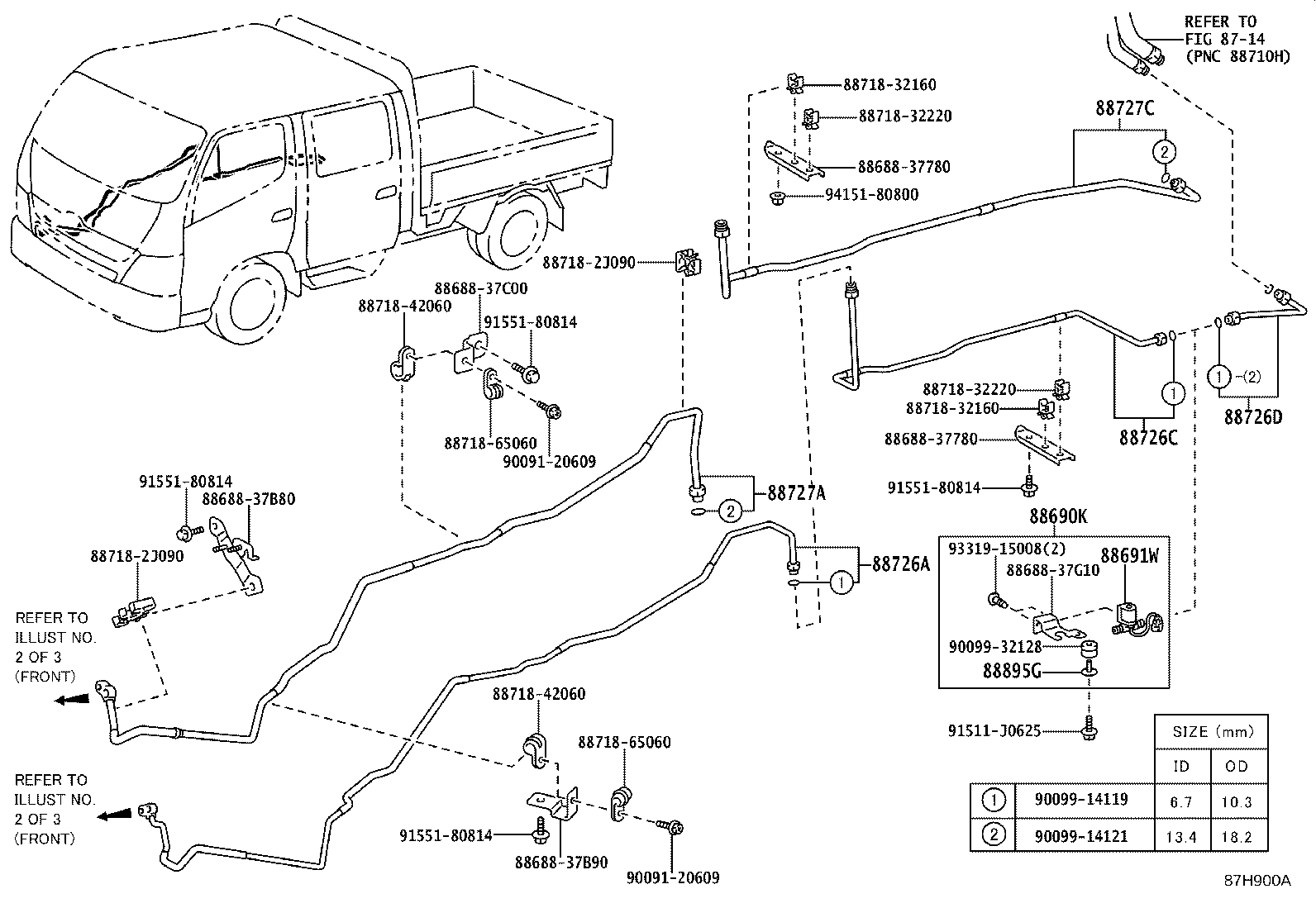

ILLUST NO. 3 OF 3(1905- )DCB

Click highlighted areas on diagram

ﾘﾔﾊﾟｲﾋﾟﾝｸﾞ---ｱﾘ(ﾘﾔｸｰﾗ)

Part #	Description	Period	Qty
88690K - VALVE ASSY, MAGNET
88690-37030	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88691W - VALVE, MAGNET
88690-37050	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37B90	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-37C10	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88726D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-37C60	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-37460	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-37480	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88895G - BUSH
88895-89102	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
Common parts
88688-37780
88688-37B80
88688-37B90
88688-37C00
88688-37G10
88718-2J090
88718-32160
88718-32220
88718-42060
88718-65060
90091-20609
90099-14119
90099-14121
90099-32128
91511-J0625
91551-80814
93319-15008
94151-80800
Linked diagrams
8714

ILLUST NO. 1 OF 3(1905- )DCVUO ; (1905- )DCB..DCRWD ; (2103- )DCVUO ; (2103- )DCB..DCWDO

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ & ﾚｼｰﾊﾞ

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-37030	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88454A - SHROUD, FAN
88454-37160	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-37A00	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88461A - CORE, COOLER CONDENSER
88461-37150	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-37D80	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88688-37D90	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88688-37E00	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88463C - BRACKET, COOLER CONDENSER, NO.4
88688-37E10	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88463D - BRACKET, COOLER CONDENSER, NO.5
88688-37D40	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88474 - DRYER, COOLER
88474-12030	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37140	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-37280	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88648E - WIRING, COOLER
88648-37140	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88733 - LABEL, COOLER SERVICE INFORMATION
88733-37010	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88733-28010	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88899Q - PLATE, COVER
88899-30840	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	2
88899Q - PLATE, COVER
88899-30840	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	2
Common parts
90091-20619
90091-20641
90099-04119
90099-05164
90119-10522
90178-14008
90179-06115
91552-01445

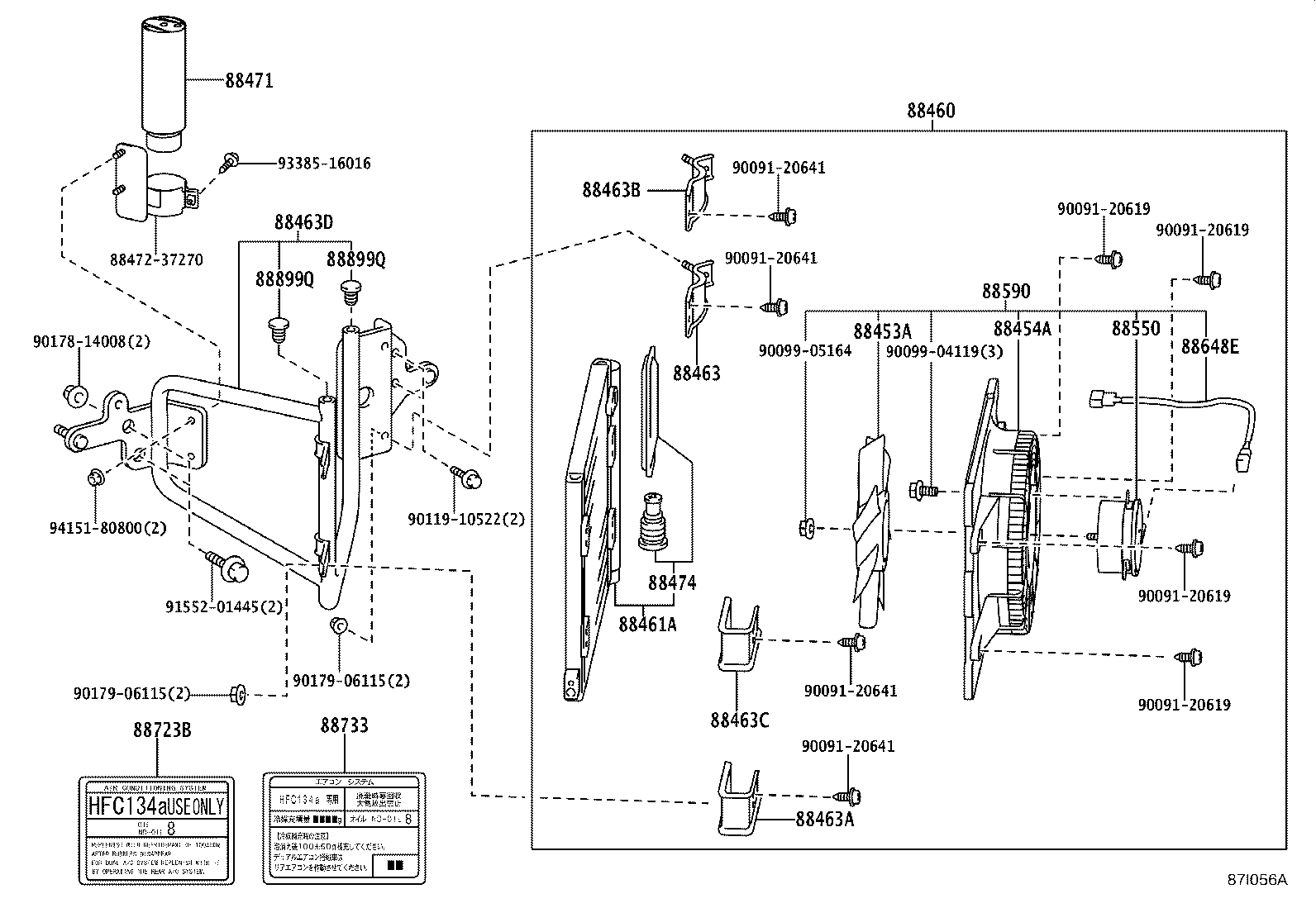

ILLUST NO. 1 OF 3(1905- )DCB

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ & ﾚｼｰﾊﾞ

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-37030	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88454A - SHROUD, FAN
88454-37160	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-37A00	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88461A - CORE, COOLER CONDENSER
88461-37150	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-37D80	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88688-37D90	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88688-37E00	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88463C - BRACKET, COOLER CONDENSER, NO.4
88688-37E10	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88463D - BRACKET, COOLER CONDENSER, NO.5
88688-37D40	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88474 - DRYER, COOLER
88474-12030	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37140	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-37280	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88648E - WIRING, COOLER
88648-37140	XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-28220	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88733 - LABEL, COOLER SERVICE INFORMATION
88733-37010	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	1
88733-28010	XZU710,722..DCB..DCRWD ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF)&有り(POF&*RECO)	05/2019 - 12/2999	1
88899Q - PLATE, COVER
88899-30840	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	2
88899Q - PLATE, COVER
88899-30840	XZU775..DCRWD;XZU710,722..DCB..DCRWD	05/2019 - 12/2999	2
Common parts
88472-37270
90091-20619
90091-20641
90099-04119
90099-05164
90119-10522
90178-14008
90179-06115
91552-01445
93385-16016
94151-80800
