XZU722-PKTQX (2019)
Toyota Dyna/Toyoace

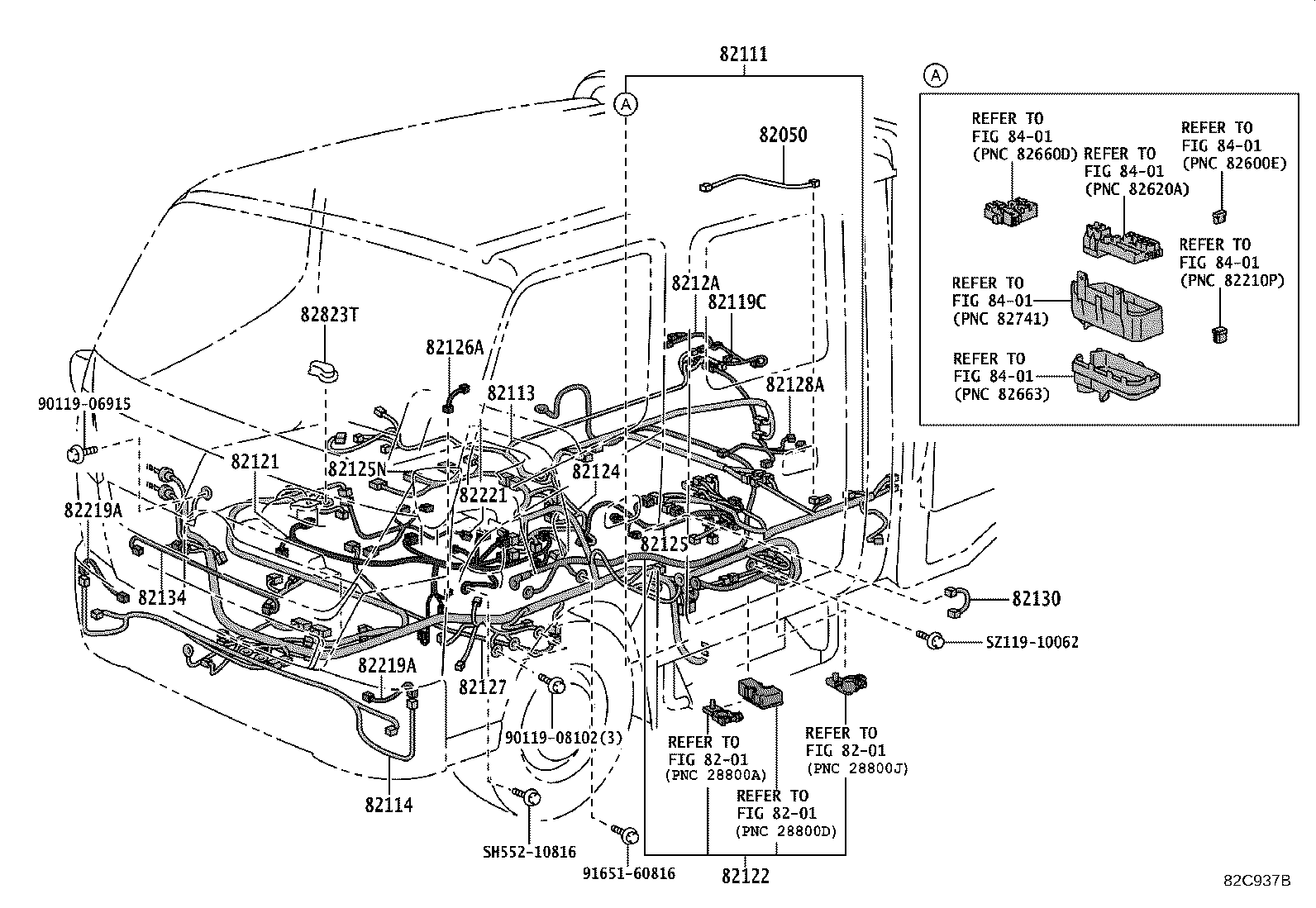

ILLUST NO. 1 OF 8(1905- )DCB
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ) |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-37N70 |
XZU710,722..DCB..6F;XZU710,720,730..(35T,40T)..CBU |
1 | ||
| 82116-37N80 |
XZU710,722..DCB..6FC..DCRWD |
1 | ||
| 82116-37N71 |
XZU710,722..DCB..6F..DCRWD;XZU710,720,730..(35T,40T)..(DCVTO,DCVUO)..CBU |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-37Q80 |
XZU710,722..DCB..DCRWD |
1 | ||
| 82113-37Q81 |
XZU710,722..DCB..DCRWD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37310 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82114-37330 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82114-37330 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 82114-37320 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-37040 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-37K20 |
XZC710,XZU70#,71#,72#,775..DCRWD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-37M60 |
XZU710,722..DCB..DCRWD |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82121-37K60 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82121-37K70 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 寒冷地仕様 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-37630 |
XZC710,XZU70#,71#,72#..6F..(DCRWD,DCVTO) |
1 | ||
| 82125-37462 |
XZC710,XZU70#,71#,72#..6FC..(DCRWD,DCVTO) |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82121-37L50 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82121-37M00 |
XZC710,XZU70#,71#,72#,775..DCRWD |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-37010 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 82130 - HARNESS ASSY, CHASSIS WIRE | ||||
| 82130-37020 |
XZC710,XZU70#,71#,72#..(T3,T4,T5)..6FC..(DCRWD,DCVTO) ﾊﾟﾜｰﾃｲｸｵﾌ−ｵｲﾙﾎﾟﾝﾌﾟ分離式 |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-37020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82134-37020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 82219-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
2 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 82219-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
2 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-37221 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08102 | ||||
| 91651-60816 | ||||
| SH552-10816 | ||||
| SZ119-10062 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
