XZU722-PKTQX (2019)
Toyota Dyna/Toyoace
(1905- )XZU722..DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

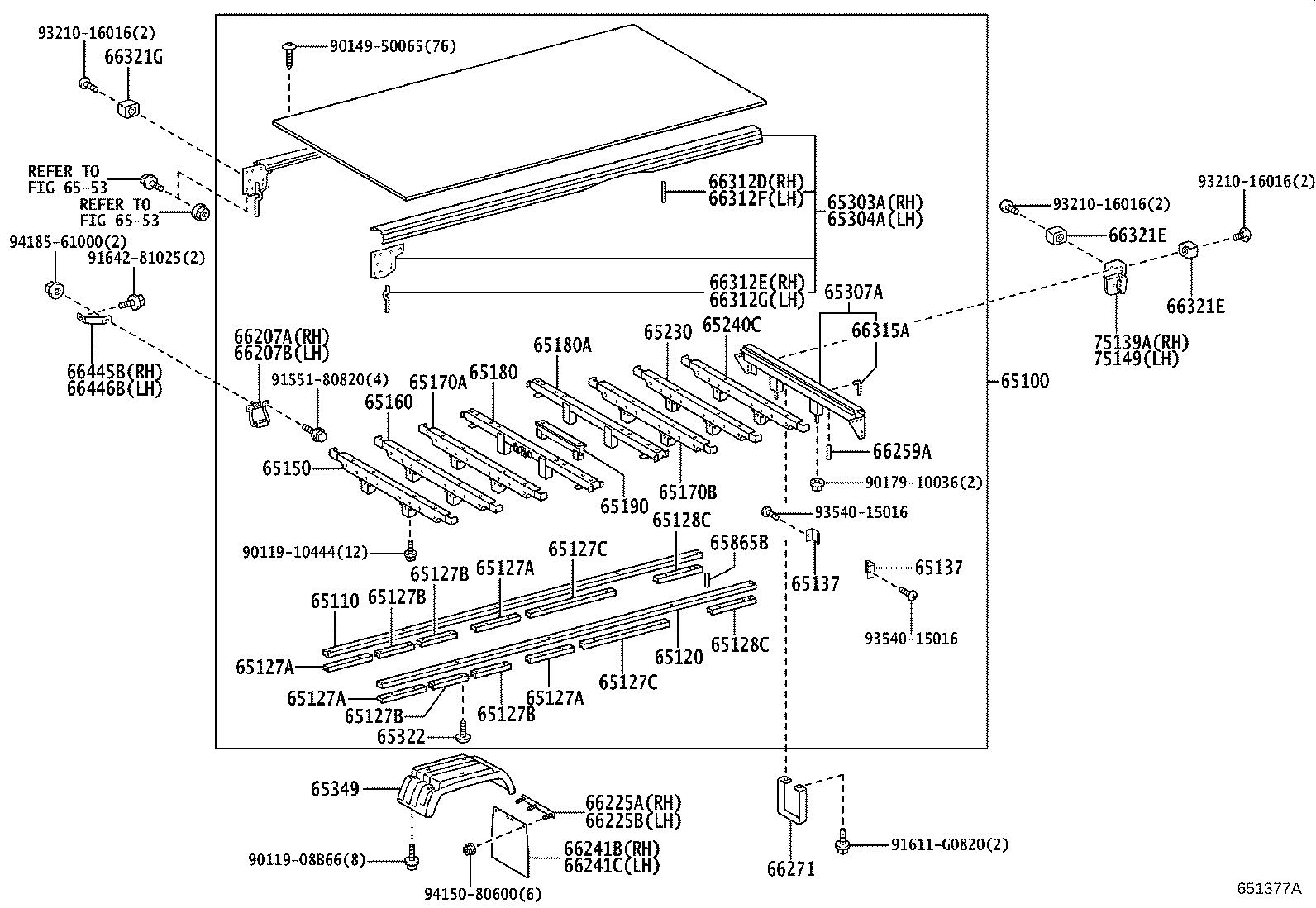

| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VU40 |
XZU722..DCB..DCRWD |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37L00 |
XZU722..DCB..DCRWD |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37K90 |
XZU722..DCB..DCRWD |
1 | ||
| 65127A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37880 |
XZU722..DCB..DCRWD |
4 | ||
| 65127A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37880 |
XZU722..DCB..DCRWD |
4 | ||
| 65127A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37880 |
XZU722..DCB..DCRWD |
4 | ||
| 65127A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37880 |
XZU722..DCB..DCRWD |
4 | ||
| 65127B - SHIM, MAIN SILL, LOWER NO.2 | ||||
| 65127-37760 |
XZU722..DCB..DCRWD |
4 | ||
| 65127B - SHIM, MAIN SILL, LOWER NO.2 | ||||
| 65127-37760 |
XZU722..DCB..DCRWD |
4 | ||
| 65127B - SHIM, MAIN SILL, LOWER NO.2 | ||||
| 65127-37760 |
XZU722..DCB..DCRWD |
4 | ||
| 65127B - SHIM, MAIN SILL, LOWER NO.2 | ||||
| 65127-37760 |
XZU722..DCB..DCRWD |
4 | ||
| 65127C - SHIM, MAIN SILL, LOWER NO.3 | ||||
| 65127-37850 |
XZU700..DCRWD..CBU;XZU710..DCB..DCRWD..CBU;XZU702,72#..(T3,T5)..(DCRWD,DCVTO)..CBU |
2 | ||
| 65127C - SHIM, MAIN SILL, LOWER NO.3 | ||||
| 65127-37850 |
XZU700..DCRWD..CBU;XZU710..DCB..DCRWD..CBU;XZU702,72#..(T3,T5)..(DCRWD,DCVTO)..CBU |
2 | ||
| 65128C - SHIM, MAIN SILL, LOWER NO.4 | ||||
| 65128-37700 |
XZU700..DCRWD..CBU;XZU702,72#..(T3,T5)..(DCRWD,DCVTO)..CBU |
2 | ||
| 65128C - SHIM, MAIN SILL, LOWER NO.4 | ||||
| 65128-37700 |
XZU700..DCRWD..CBU;XZU702,72#..(T3,T5)..(DCRWD,DCVTO)..CBU |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37060 |
XZU72#,775..(DCRWD,DCVTO)..CBU;XZU702,71#..(T3,T5)..(DCRWD,DCVTO)..CBU |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37060 |
XZU72#,775..(DCRWD,DCVTO)..CBU;XZU702,71#..(T3,T5)..(DCRWD,DCVTO)..CBU |
2 | ||
| 65150 - SILL ASSY, CROSS, NO.1 | ||||
| 65170-37440 |
XZU722..DCB..DCRWD |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37440 |
XZU702,71#,72#..T3..(DCRWD,DCVTO)..CBU |
1 | ||
| 65170A - SILL ASSY, CROSS, NO.3 | ||||
| 65170-37440 |
XZU722..DCB..DCRWD |
4 | ||
| 65170B - SILL ASSY, CROSS, NO.7 | ||||
| 65170-37440 |
XZU722..DCB..DCRWD |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37B61 |
XZU702,71#,72#..T3..(DCRWD,DCVTO)..CBU |
1 | ||
| 65180A - SILL ASSY, CROSS, NO.6 | ||||
| 65180-37851 |
XZU722..DCB..DCRWD;XZU71#..40T..(DCRWD,DCVTO)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37410 |
XZU702,71#,72#..(T3,T5)..(DCRWD,DCVTO)..CBU |
1 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65160-37620 |
XZU722..DCB..DCRWD |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65160-37620 |
XZU702,71#,72#..T3..(DCRWD,DCVTO)..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37L80 |
XZU722..DCB..DCRWD |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37L60 |
XZU722..DCB..DCRWD |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37A81 |
XZU702,71#,72#..T3..(DCRWD,DCVTO)..CBU |
1 | ||
| 65322 - NAIL | ||||
| 65322-92820 |
XZU72#..CBU;XZU710..20T..DCVUO..CBU;XZU71#,775..SCB..(T3,T5)..(20T,30T,35T)..CBU |
24 | ||
| 90290-05004 |
XZU710..20T..DCVUO..CBU;XZU72#..(DCRWD,DCVTO,DCVUO)..CBU;XZU71#,775..SCB..(T3,T5)..(20T,30T,35T)..(DCRWD,DCVTO,DCVUO)..CBU |
24 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37070 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU 右側 |
1 | ||
| 65349-37080 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU 左側 |
1 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37020 |
XZU710..T4..DCVTO..CBU;XZU710..DCB..T4..DCRWD..CBU;XZU710..(T3,T5)..(DCRWD,DCVTO)..CBU;XZU70#,712,72#,775..(DCRWD,DCVTO)..CBU |
1 | ||
| 66207A - STEP SUB-ASSY, REAR BODY, RH | ||||
| 66207-37010 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
1 | ||
| 66207B - STEP SUB-ASSY, REAR BODY, LH | ||||
| 66207-37010 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37281 |
XZU775..DCRWD..CBU;XZU702,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37281 |
XZU775..DCRWD..CBU;XZU702,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37C32 |
XZU775..DCRWD..CBU;XZU702,71#,72#..T3..(DCRWD,DCVTO)..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37C32 |
XZU775..DCRWD..CBU;XZU702,71#,72#..T3..(DCRWD,DCVTO)..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU722..DCB..DCRWD |
5 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU722..DCB..DCRWD |
5 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
2 | ||
| 66445B - BRACE, FRAME TO REAR BODY | ||||
| 65365-37010 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
1 | ||
| 66446B - BRACE, FRAME TO REAR BODY, NO.2 | ||||
| 65366-37010 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
1 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37080 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37080 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..CBU |
1 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90119-10444 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 91551-80820 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 6553 | ||||
