XZU722-PKTQX (2019)
Toyota Dyna/Toyoace

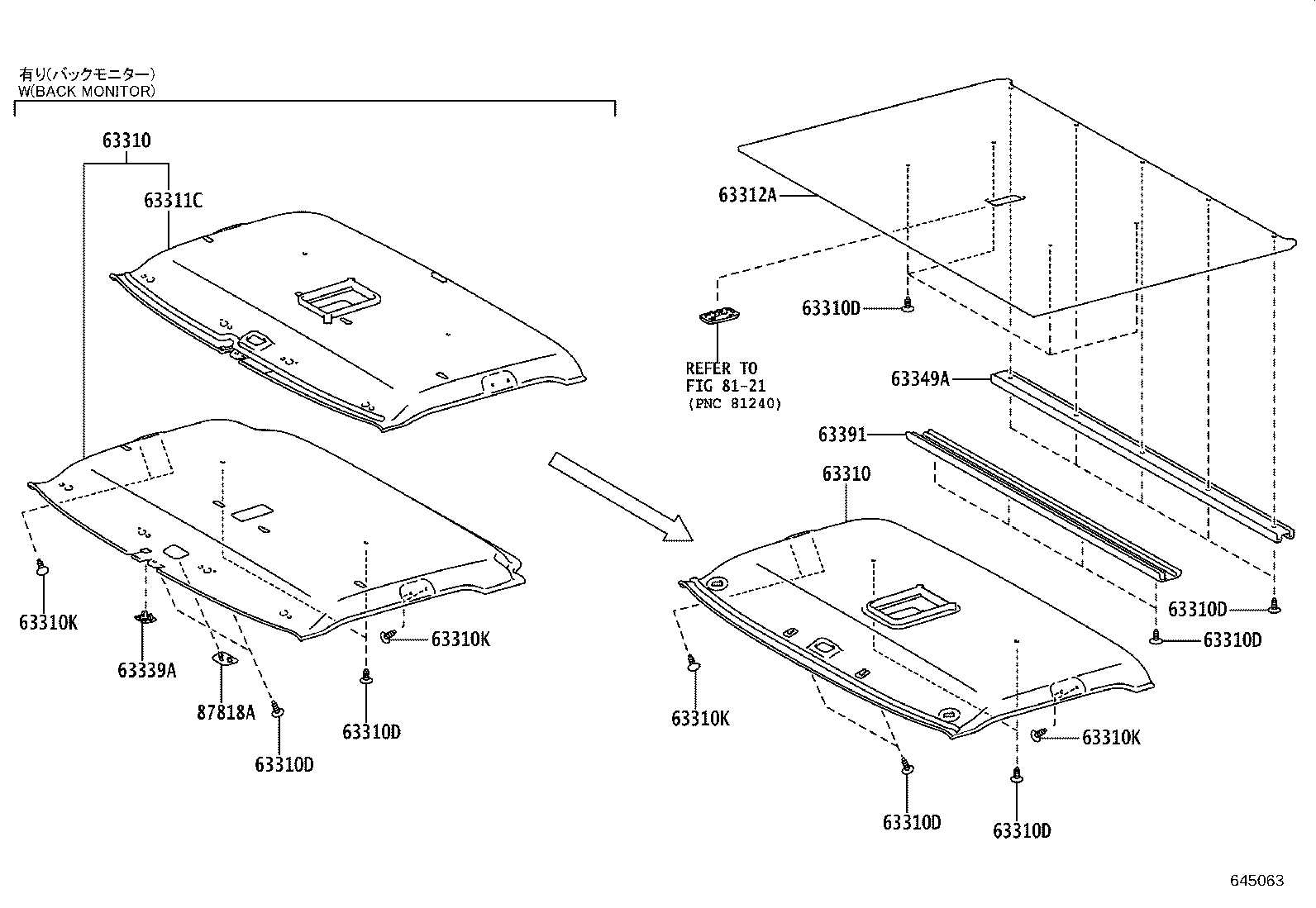

ILLUST NO. 1 OF 2(2103- )DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-37400B0 |
XZU710,722..DCB..DCRWD..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−無し,GRAY,TRIM1# |
1 | ||
| 63310-37760B0 |
XZU710,722..DCB..DCRWD..CBU ﾊﾞｯｸﾓﾆﾀ−無し,GRAY,TRIM1# |
1 | ||
| 63310-37C80B0 |
XZU710,722..DCB..DCRWD..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,GRAY,TRIM1# |
1 | ||
| 63310-37C90B0 |
XZU710,722..DCB..DCRWD..CBU GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-37400B0 |
XZU710,722..DCB..DCRWD..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−無し,GRAY,TRIM1# |
1 | ||
| 63310-37760B0 |
XZU710,722..DCB..DCRWD..CBU ﾊﾞｯｸﾓﾆﾀ−無し,GRAY,TRIM1# |
1 | ||
| 63310-37C80B0 |
XZU710,722..DCB..DCRWD..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,GRAY,TRIM1# |
1 | ||
| 63310-37C90B0 |
XZU710,722..DCB..DCRWD..CBU GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06048B9 |
XZU710,722..DCB..DCRWD MD.CHARCOAL,TRIM1# |
17 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06048B9 |
XZU710,722..DCB..DCRWD MD.CHARCOAL,TRIM1# |
17 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06048B9 |
XZU710,722..DCB..DCRWD MD.CHARCOAL,TRIM1# |
17 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06048B9 |
XZU710,722..DCB..DCRWD MD.CHARCOAL,TRIM1# |
17 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06048B9 |
XZU710,722..DCB..DCRWD MD.CHARCOAL,TRIM1# |
17 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06048B9 |
XZU710,722..DCB..DCRWD MD.CHARCOAL,TRIM1# |
17 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06048B9 |
XZU710,722..DCB..DCRWD MD.CHARCOAL,TRIM1# |
17 | ||
| 63310K - CLIP | ||||
| 90467-06048B9 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-06048B9 |
XZU710,722..DCB..DCRWD ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2,後席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| 63310K - CLIP | ||||
| 90467-06048B9 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-06048B9 |
XZU710,722..DCB..DCRWD ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2,後席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| 63310K - CLIP | ||||
| 90467-06048B9 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-06048B9 |
XZU710,722..DCB..DCRWD ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2,後席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| 63310K - CLIP | ||||
| 90467-06048B9 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-06048B9 |
XZU710,722..DCB..DCRWD ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2,後席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63310-37400B0 |
XZU710,722..DCB..DCRWD..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,GRAY,TRIM1# |
1 | ||
| 63310-37760B0 |
XZU710,722..DCB..DCRWD..CBU GRAY,TRIM1# |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63312-37100B1 |
XZU710,722..DCB..DCRWD GRAY,TRIM1# |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-37010 |
XZC710,XZU70#,71#,72#,73#,775..CBU ﾊﾞｯｸﾓﾆﾀ−無し |
1 | ||
| 63339-37010 |
XZC710,XZU70#,71#,72#,73#,775..(DCRWD,DCVTO,DCVUO)..CBU |
1 | ||
| 63349A - GARNISH, ROOF HEADLINING, REAR | ||||
| 63349-37010B0 |
XZU710,722..DCB..DCRWD GRAY,TRIM1# |
1 | ||
| 63391 - TRIM, ROOF HEADLINING, FRONT | ||||
| 63391-37030B0 |
XZU710,722..DCB..DCRWD GRAY,TRIM1# |
1 | ||
| 87818A - COVER, INNER REAR VIEW MIRROR HOLE | ||||
| 87818-37010B0 |
XZC710,XZU70#,71#,72#,73#,775..CBU ﾊﾞｯｸﾓﾆﾀ−無し,GRAY,TRIM1# |
1 | ||
| 87818-37010B0 |
XZC710,XZU70#,71#,72#,73#,775..(DCRWD,DCVTO,DCVUO)..CBU GRAY,TRIM1# |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 2 OF 2(2103- )
ｱﾘ(ｵｰﾊﾞｰﾍｯﾄﾞ ｺﾝｿｰﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63183C - BRACKET, ROOF CONSOLE, FRONT | ||||
| 63183-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 63183C - BRACKET, ROOF CONSOLE, FRONT | ||||
| 63183-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 63651C - BOX, ROOF CONSOLE | ||||
| 63651-37010B0 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO GRAY,TRIM1# |
2 | ||
| 63651C - BOX, ROOF CONSOLE | ||||
| 63651-37010B0 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO GRAY,TRIM1# |
2 | ||
| 74351C - COVER, ROOF CONSOLE, NO.1 | ||||
| 74351-37100B0 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO GRAY,TRIM1# |
1 | ||
| 74351C - COVER, ROOF CONSOLE, NO.1 | ||||
| 74351-37100B0 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO GRAY,TRIM1# |
1 | ||
| 74352C - COVER, ROOF CONSOLE, NO.2 | ||||
| 74352-37100B0 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO GRAY,TRIM1# |
1 | ||
| 74352C - COVER, ROOF CONSOLE, NO.2 | ||||
| 74352-37100B0 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 93315-16016 | ||||
