XZU722-PKTQX (2019)
Toyota Dyna/Toyoace
(1905- )N04C..XZU710,722..DCB

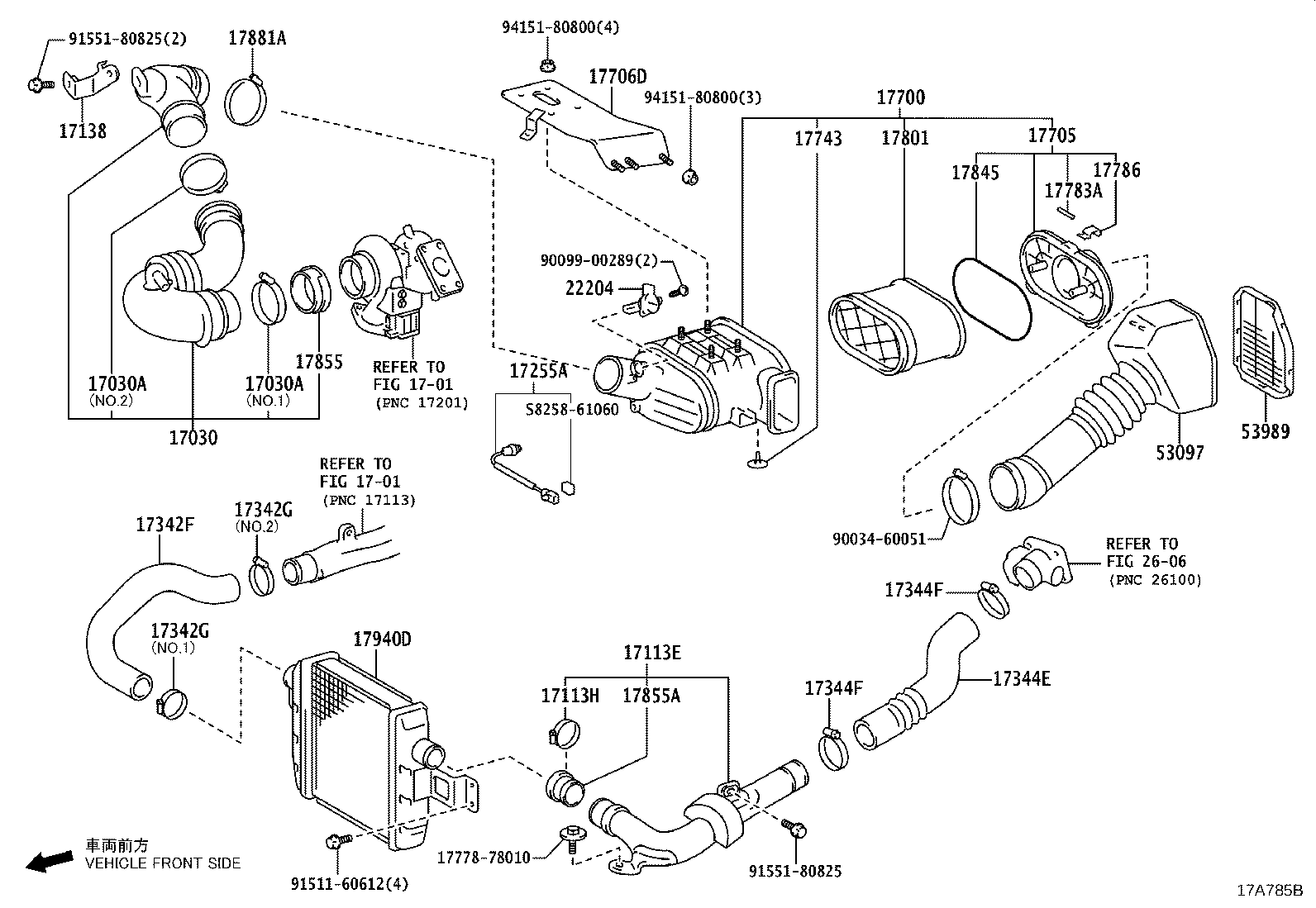

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17030 - HOSE ASSY, AIR | ||||
| 17030-78831 |
N04C..XZU710,722..DCB..DCRWD |
1 | ||
| 17030-78832 |
N04C..XZU710,722..DCB..DCRWD |
1 | ||
| 17030A - CLAMP, HOSE | ||||
| 17781-78070 |
N04C..XZU710,722..DCB..DCRWD NO.2 |
1 | ||
| 17781-78140 |
N04C..XZU710,722..DCB..DCRWD NO.1 |
1 | ||
| 17030A - CLAMP, HOSE | ||||
| 17781-78070 |
N04C..XZU710,722..DCB..DCRWD NO.2 |
1 | ||
| 17781-78140 |
N04C..XZU710,722..DCB..DCRWD NO.1 |
1 | ||
| 17113E - PIPE, INTAKE, NO.1 | ||||
| 17103-78240 |
N04C..XZC710,XZU70#,71#,72#..DCRWD |
1 | ||
| 17113H - CLAMP, INTAKE PIPE | ||||
| 17781-78100 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78390 |
N04C..XZU710,722..DCB..DCRWD |
1 | ||
| 17255A - VALVE, INTAKE RELIEF | ||||
| 17255-78030 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-78190 |
N04C..XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90034-60046 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO NO.1 |
1 | ||
| 90034-60047 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO NO.2 |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90034-60046 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO NO.1 |
1 | ||
| 90034-60047 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO NO.2 |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-78340 |
N04C..XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90034-60048 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90034-60048 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78750 |
N04C..XZU710,722..DCB..DCRWD |
1 | ||
| 17700-78840 |
N04C..XZU710,722..DCB..DCRWD |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-78080 |
N04C..XZU710,722..DCB..DCRWD |
1 | ||
| 17706D - STAY SUB-ASSY, AIR CLEANER | ||||
| 17706-78270 |
N04C..XZU710,722..DCB..DCRWD |
1 | ||
| 17743 - VALVE, DUST RELIEF | ||||
| 17743-78030 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 17783A - RETAINER, AIR CLEANER INLET | ||||
| 17783-78010 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
3 | ||
| 17786 - CLAMP, AIR CLEANER | ||||
| 17786-78020 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
3 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-78090 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-78021 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 17855 - GASKET, AIR INLET DUCT, NO.1 | ||||
| 17855-78130 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD |
1 | ||
| 17855A - GASKET, AIR INLET DUCT, NO.2 | ||||
| 17855-78030 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-99005 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 17781-78160 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-78171 |
N04C..XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-E0020 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37360 |
XZU710,722..DCB..DCRWD |
1 | ||
| 53989 - NET, AIR CLEANER INLET | ||||
| 53989-37060 |
XZU710,722..DCB..DCRWD |
1 | ||
| Common parts | ||||
| 17778-78010 | ||||
| 90034-60051 | ||||
| 90099-00289 | ||||
| 91511-60612 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| S8258-61060 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
