XZU720-TQFRC3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

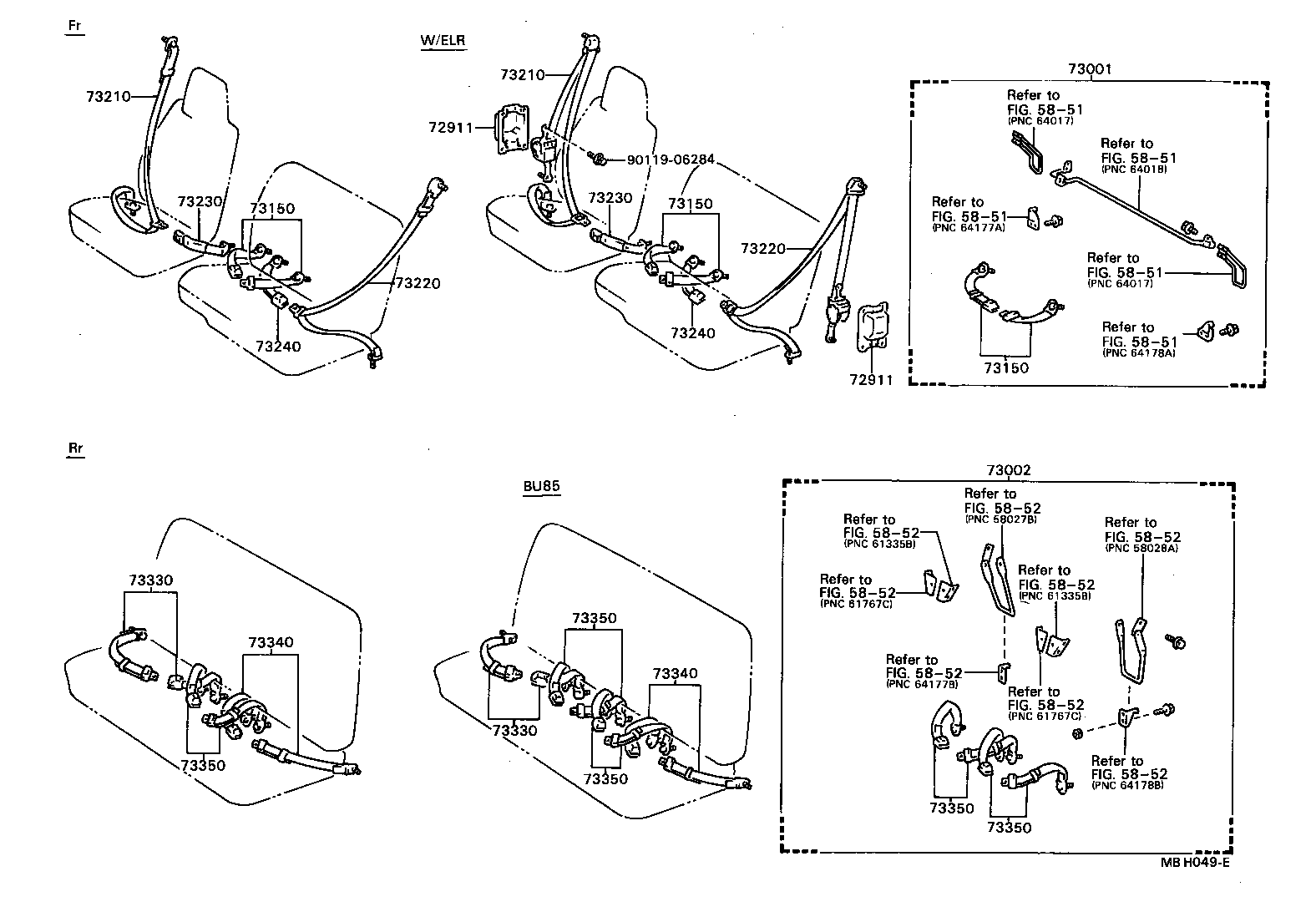

(8409- )

Click highlighted areas on diagram

diagram 5851 5851 5851 5851 5851 5852 5852 5852 5852 5852 5852 5852 5852 72911 72911 73001 73002 73150 73150 73150 73210 73210 73220 73220 73230 73230 73240 73240 73330 73330 73340 73340 73350 73350 73350 73350 73350 9011906284
Part # Description Qty Price
Common parts
90119-06284
Linked diagrams
5851
5852

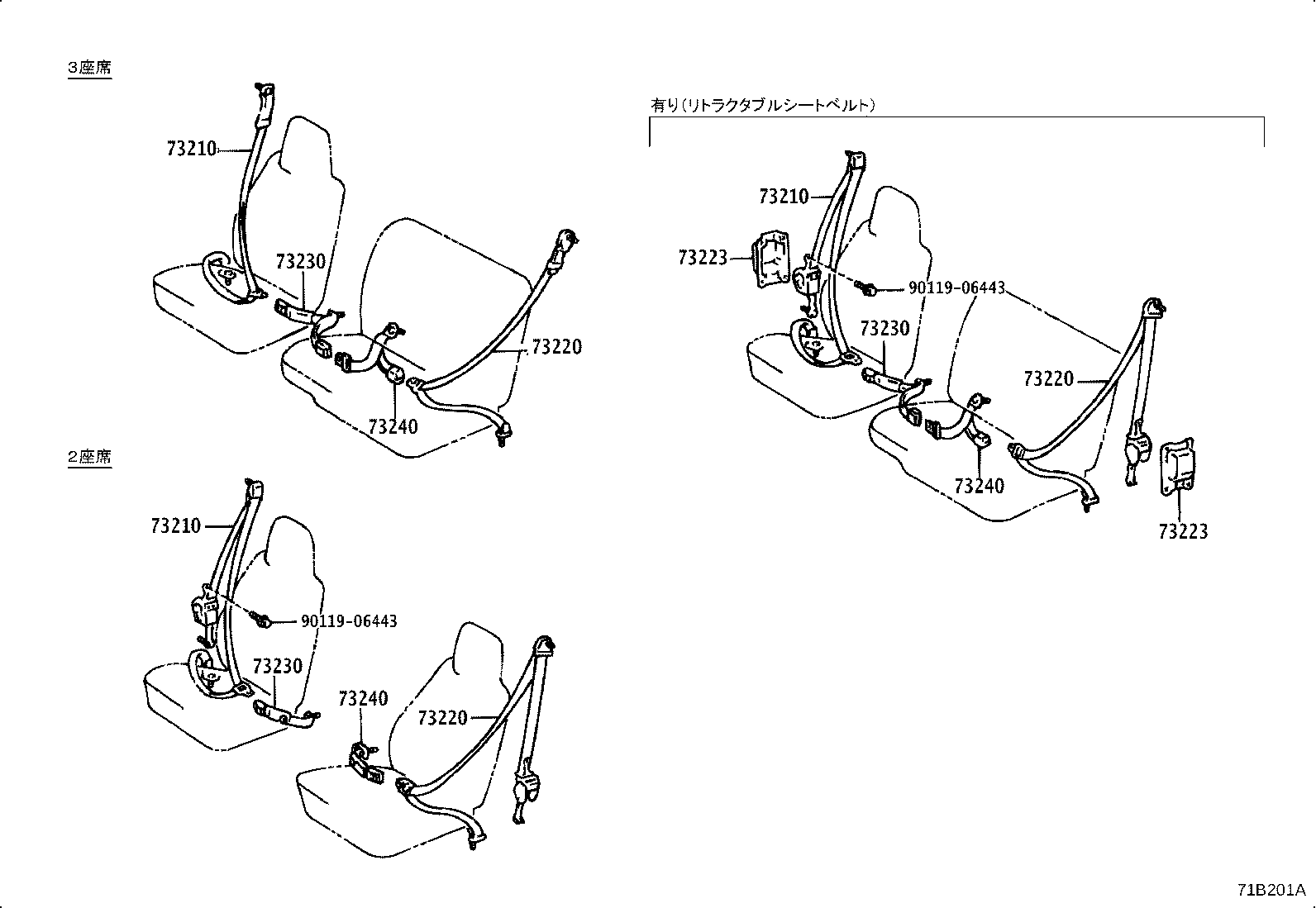

(8808- )

Click highlighted areas on diagram

ﾌﾛﾝﾄｼｰﾄ

diagram 73210 73210 73210 73220 73220 73220 73223 73223 73230 73230 73230 73240 73240 73240 9011906443 9011906443
Part # Description Qty Price
Common parts
90119-06443

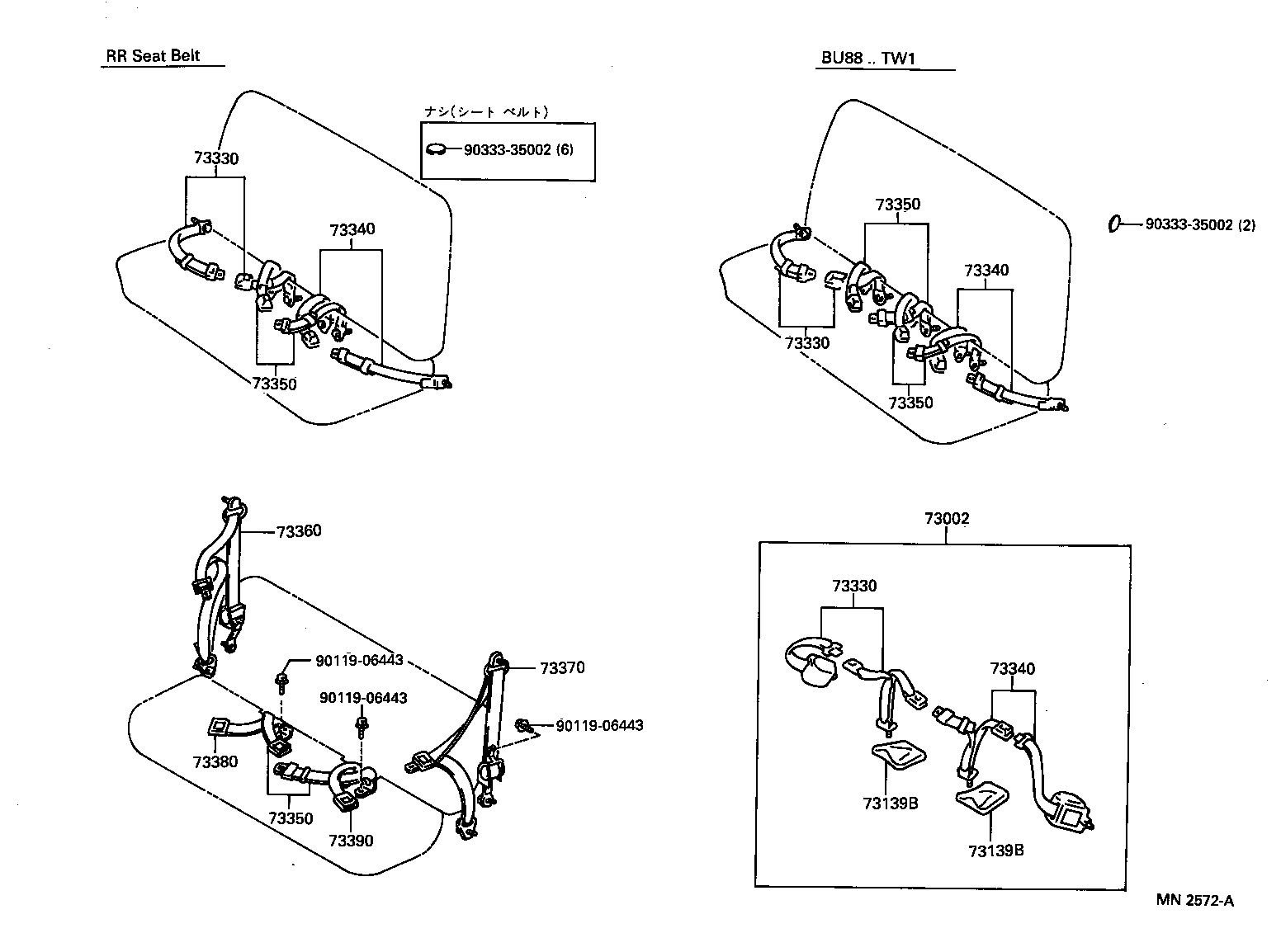

(8808- )

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

diagram 73002 73139B 73139B 73330 73330 73330 73340 73340 73340 73350 73350 73350 73350 73360 73370 73380 73390 9011906443 9011906443 9011906443 9033335002 9033335002
Part # Description Qty Price
Common parts
90119-06443
90333-35002

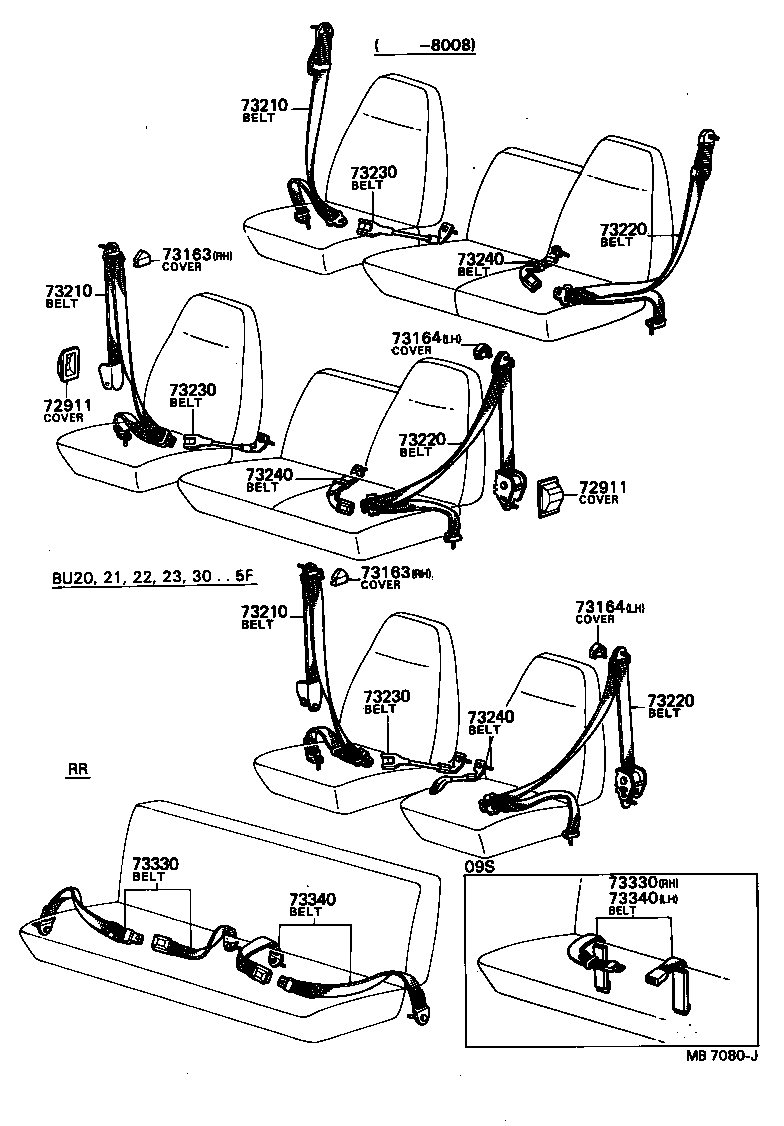

(7708- )

Click highlighted areas on diagram

diagram 72911 72911 73163 73163 73164 73164 73210 73210 73210 73220 73220 73220 73230 73230 73230 73240 73240 73240 73330 73330 73340 73340
Part # Description Qty Price

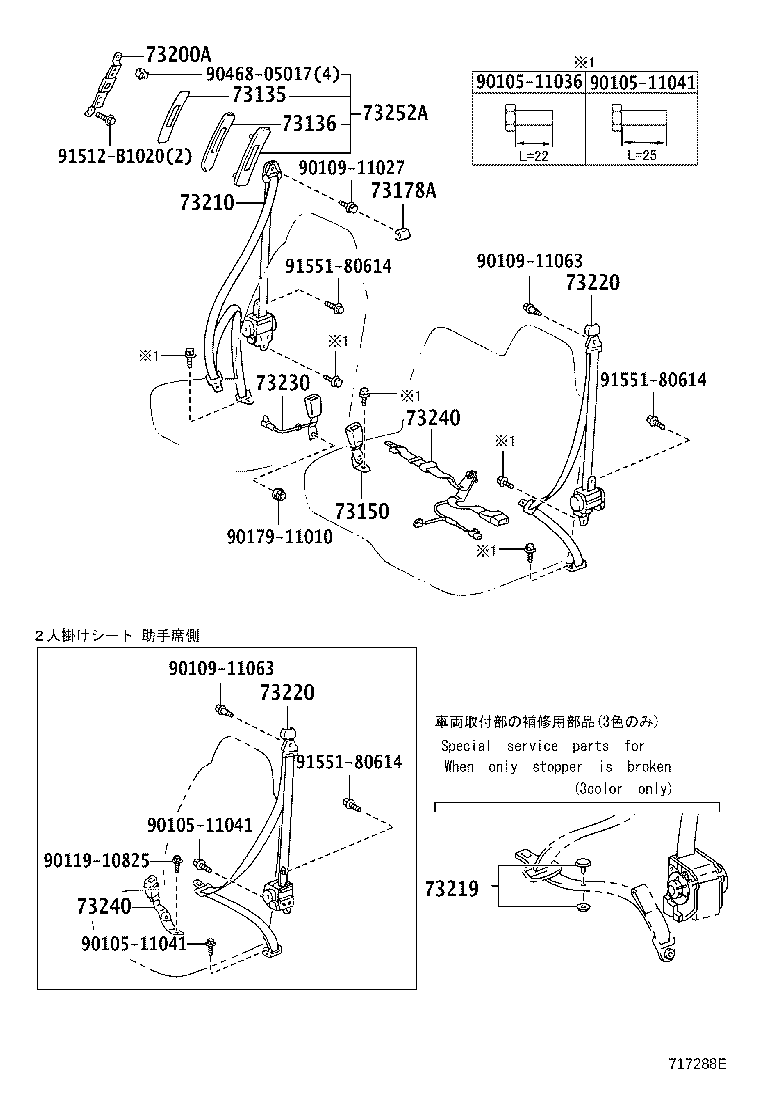

(1107- )SCB

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼｰﾄ

diagram 73135 73136 73150 73178A 73200A 73210 73219 73220 73220 73230 73240 73240 73252A 9010511036 9010511041 9010511041 9010511041 9010911027 9010911063 9010911063 9011910825 9017911010 9046805017 91512B1020 9155180614 9155180614 9155180614
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-35020B2

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
73136 - COVER, SHOULDER BELT ANCHORAGE PLATE, INNER
73135-35010B2

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-37080B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020P2

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-34030

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37361B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
73210-37360B0

XZC710,XZU700,710,720,730,775

GRAY,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

ﾌﾞﾗｯｸ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37350B0

XZU700..DM7..IV3;XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73210-37350B0

XZC710,XZU700,710,720,730,775

SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73210-37380B0

XZC710,XZU700,710,720,730,775..SCB

ｼｰﾄ表皮−ﾓｹｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73210-37340B0

XZC710,XZU700,710,720,730,775

GRAY,TRIM1#

 1
73210-37370B0

XZC710,XZU700,710,720,730,775..SCB

ｼｰﾄ表皮−ﾓｹｯﾄ,GRAY,TRIM1#

 1
73210-37381B0

XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)

ｼｰﾄ表皮−ﾓｹｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73210-37351B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73210-37341B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
73210-37371B0

XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)

ｼｰﾄ表皮−ﾓｹｯﾄ,GRAY,TRIM1#

 1
73210-37351B0

XZU710..SCB..(T3,T4);XZU710..SCB..T5..(DCRTJ,DCRTK);XZU700,710..(DM7,T5)..DCRTL..IV3;XZC710,XZU700,720,730,775..T3,T4,T5

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37350B0

XZU700..DM7..IV3;XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73210-37350B0

XZC710,XZU700,710,720,730,775

SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73210-37380B0

XZC710,XZU700,710,720,730,775..SCB

ｼｰﾄ表皮−ﾓｹｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73210-37340B0

XZC710,XZU700,710,720,730,775

GRAY,TRIM1#

 1
73210-37370B0

XZC710,XZU700,710,720,730,775..SCB

ｼｰﾄ表皮−ﾓｹｯﾄ,GRAY,TRIM1#

 1
73210-37381B0

XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)

ｼｰﾄ表皮−ﾓｹｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73210-37351B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73210-37341B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
73210-37371B0

XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)

ｼｰﾄ表皮−ﾓｹｯﾄ,GRAY,TRIM1#

 1
73210-37351B0

XZU710..SCB..(T3,T4);XZU710..SCB..T5..(DCRTJ,DCRTK);XZU700,710..(DM7,T5)..DCRTL..IV3;XZC710,XZU700,720,730,775..T3,T4,T5

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37240B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37250B0

XZC710,XZU700,710,720,730,775..SCB

GRAY,TRIM1#

 1
73240-37270B0

XZU710..SCB..(T3,T4);XZU710..SCB..T5..(DCRTJ,DCRTK);XZU700,710..(DM7,T5)..DCRTL..IV3;XZC710,XZU700,720,730,775..T3,T4,T5

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ,GRAY,TRIM1#

 1
73230-37251B0

XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)

GRAY,TRIM1#

 1
73230-37260B0

XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)

SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73230-37260B0

XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)

ｼｰﾄ表皮−ﾓｹｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73240-37280B0

XZU710..SCB..(T3,T4);XZU710..SCB..T5..(DCRTJ,DCRTK);XZU700,710..(DM7,T5)..DCRTL..IV3;XZC710,XZU700,720,730,775..T3,T4,T5

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37250B0

XZC710,XZU700,710,720,730,775..SCB

GRAY,TRIM1#

 1
73240-37270B0

XZU710..SCB..(T3,T4);XZU710..SCB..T5..(DCRTJ,DCRTK);XZU700,710..(DM7,T5)..DCRTL..IV3;XZC710,XZU700,720,730,775..T3,T4,T5

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ,GRAY,TRIM1#

 1
73230-37251B0

XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)

GRAY,TRIM1#

 1
73230-37260B0

XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)

SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73230-37260B0

XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)

ｼｰﾄ表皮−ﾓｹｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73240-37280B0

XZU710..SCB..(T3,T4);XZU710..SCB..T5..(DCRTJ,DCRTK);XZU700,710..(DM7,T5)..DCRTL..IV3;XZC710,XZU700,720,730,775..T3,T4,T5

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席),GRAY,TRIM1#

 1
73252A - COVER, SHOULDER BELT ANCHOR ADJUST
73252-37021B1

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
Common parts
90105-11036
90105-11041
90109-11027
90109-11063
90119-10825
90179-11010
90468-05017
91512-B1020
91551-80614
