Toyota Dyna/toyoace XZU720 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU720-TQFRC3 (2011)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

XZU720-TQFRC3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90099-07087
90099-07114
94110-40800
94511-00800

ILLUST NO. 1 OF 2(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
88446-36010
88899-20090
90099-04306
90099-04312
90099-04313
90099-04315
90099-04316
90099-04317
90099-04520
90099-04914
90099-04950
90099-04993
90119-10079
91621-60816
Linked diagrams
1605

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
22349-76010
88440-20060
88899-20090
90091-00857
90093-01301
90099-04312
90099-04313
90099-04520
90099-04914
90099-19255
90119-10079
91111-50830
91111-60855
91112-70860
91611-60835
91611-61045
91621-60816
91651-60820
91651-60825
91651-60835
94511-00800
Linked diagrams
1605

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90099-07087
90099-07094
90099-07114
90099-35012
93319-15008
94110-40800
94511-00800

(7708- )RU2#,3#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
88569-20080
88899-12130
90099-04522
91611-60816
91611-60820
91611-60835
91611-61020
91651-60820
Linked diagrams
1301

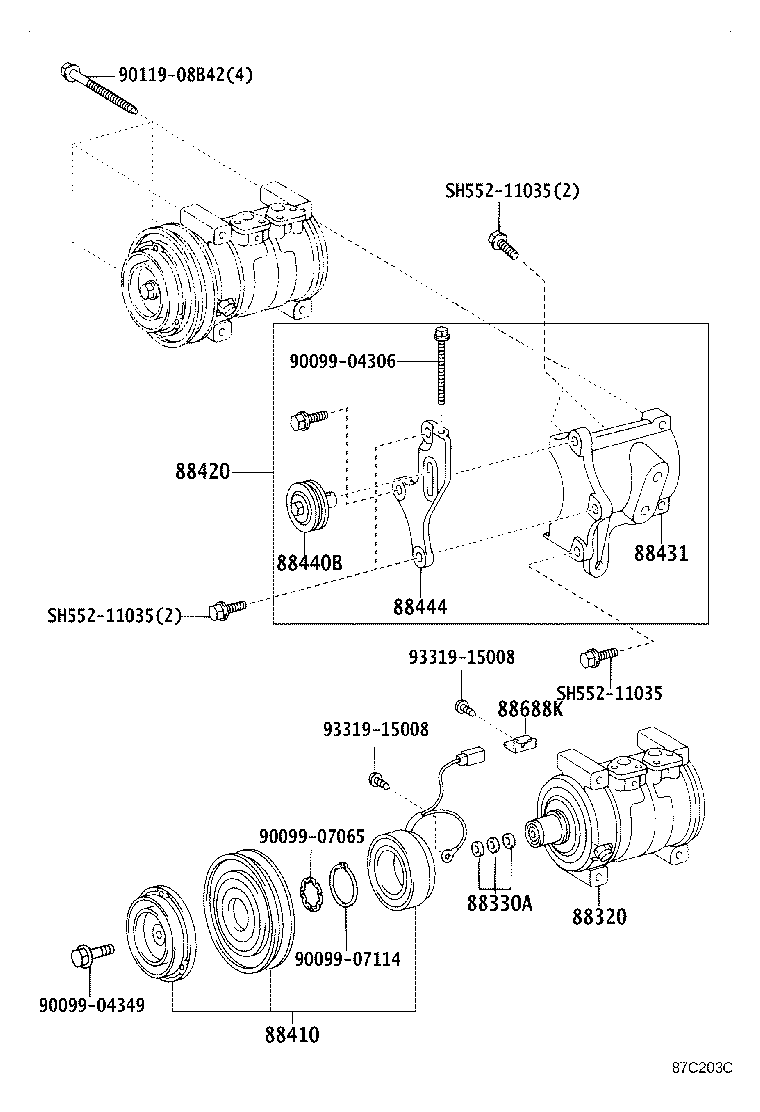

(1107- )XZC710,XZU70#,71#,72#,73#..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-37110	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775	07/2011 - 05/2017	1
88410 - CLUTCH ASSY, MAGNET
88410-17100	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
88420 - PULLEY ASSY, IDLE, W/BRACKET
S8830-51130	XZC710,XZU700,710,720,730	07/2011 - 02/2012	1
88420-37230	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	03/2012 - 05/2017	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
S8834-51540	XZC710,XZU700,710,720,730	07/2011 - 03/2012	1
88431-37130	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	03/2012 - 05/2017	1
88440B - PULLEY ASSY, IDLE
88440-37120	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
88444 - BRACKET, IDLE PULLEY
S1638-21670	XZC710,XZU700,710,720,730	07/2011 - 03/2012	1
88444-37160	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	03/2012 - 05/2017	1
88688K - BRACKET, COOLER COMPRESSOR
88688-3V580	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
Common parts
90099-04306
90099-04349
90099-07065
90099-07114
90119-08B42
93319-15008
SH552-11035

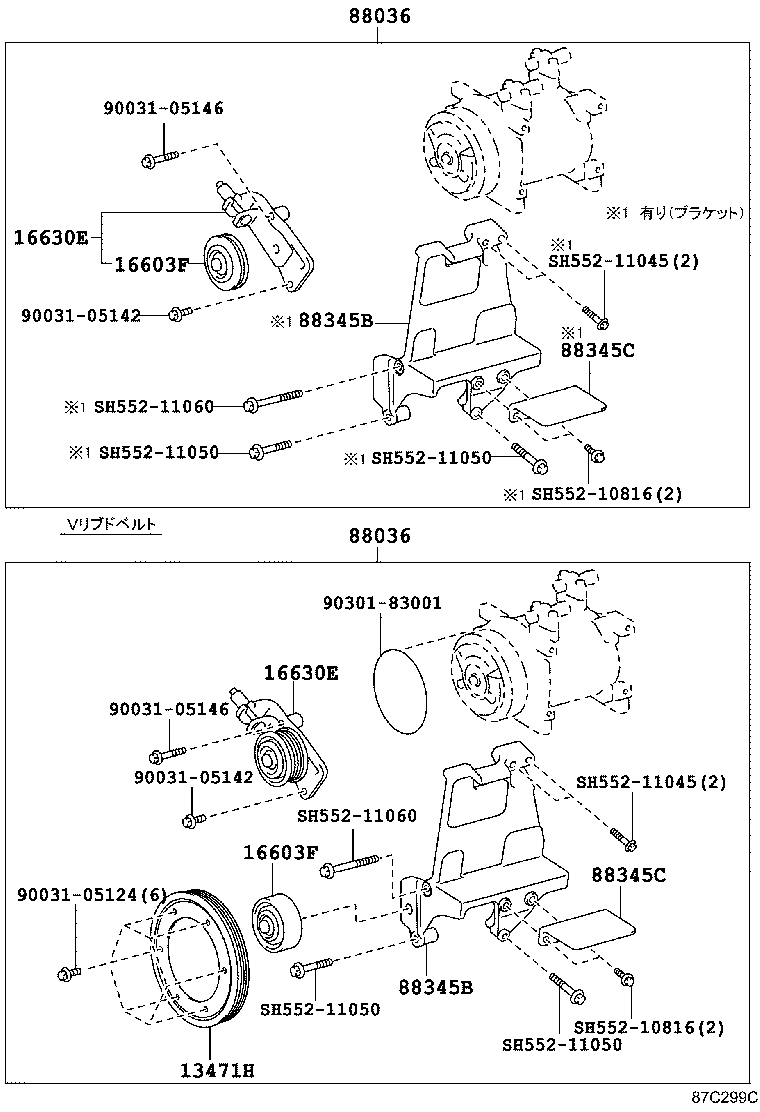

(1107- )SCB..T3,T4,T5..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU..IV3

Click highlighted areas on diagram

ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & ﾌﾟｰﾘ(ﾚｲﾄｳｺﾝﾌﾟﾚｯｻ)

Part #	Description	Period	Qty
13471H - PULLEY, CRANKSHAFT
13471-78060	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
13471-78040	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16603F - PULLEY SUB-ASSY, IDLER
16603-78021	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16603-78110	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
16603-78021	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16603-E0010	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	11/2013 - 05/2017	1
16603F - PULLEY SUB-ASSY, IDLER
16603-78021	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16603-78110	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
16603-78021	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16603-E0010	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	11/2013 - 05/2017	1
16630E - PULLEY ASSY, IDLER
16630-78260	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
16630-78201	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16630-E0050	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16630-78201	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16630E - PULLEY ASSY, IDLER
16630-78260	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
16630-78201	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16630-E0050	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16630-78201	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88036 - COMPRESSOR MOUNTING SET
88036-37210	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	11/2011 - 05/2017	1
88036-37172	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88036-37183	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	11/2013 - 05/2017	1
88036-37194	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	09/2012 - 05/2017	1
88036 - COMPRESSOR MOUNTING SET
88036-37210	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	11/2011 - 05/2017	1
88036-37172	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88036-37183	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	11/2013 - 05/2017	1
88036-37194	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	09/2012 - 05/2017	1
88345B - BRACKET, COMPRESSOR MOUNTING, NO.1
88345-37262	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345-37262	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
88345-37262	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345B - BRACKET, COMPRESSOR MOUNTING, NO.1
88345-37262	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345-37262	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
88345-37262	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345C - BRACKET, COMPRESSOR MOUNTING, NO.2
88345-37271	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345-37271	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345-37271	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
88345C - BRACKET, COMPRESSOR MOUNTING, NO.2
88345-37271	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345-37271	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345-37271	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
Common parts
90031-05124
90031-05142
90031-05146
90301-83001
SH552-10816
SH552-11045
SH552-11050
SH552-11060

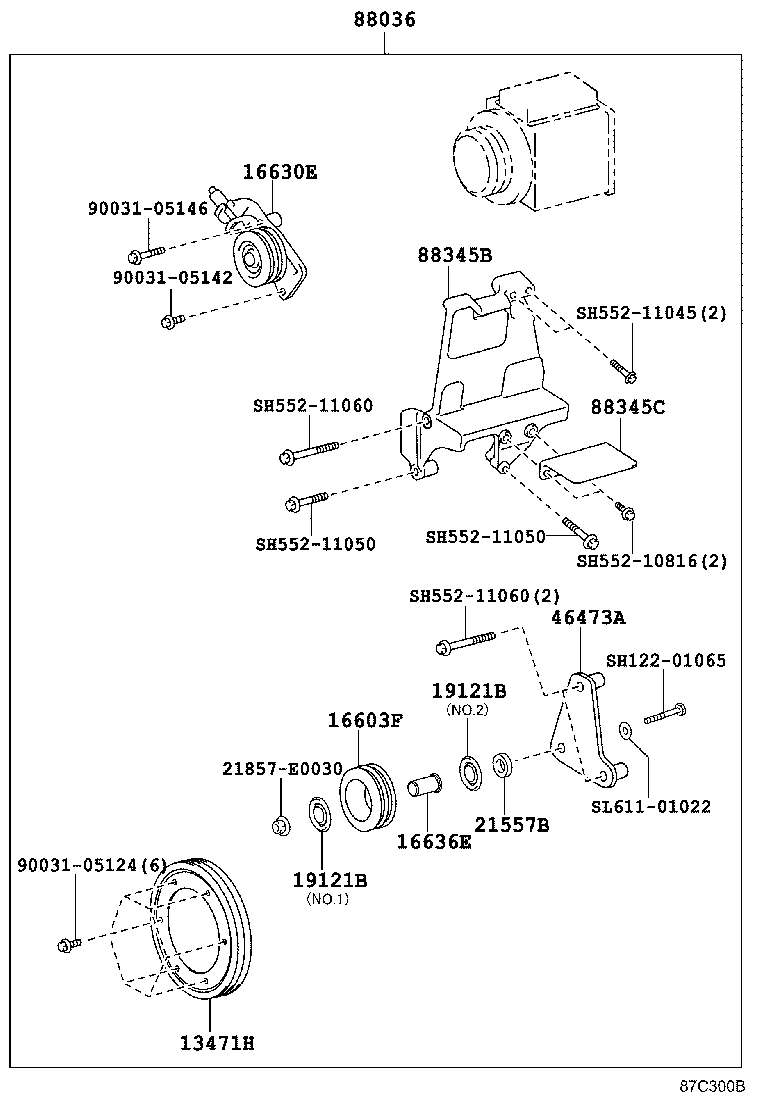

(1107- )SCB..T3,T4,T5..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU..IV3

Click highlighted areas on diagram

ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & ﾌﾟｰﾘ(ﾊﾂﾃﾞﾝﾖｳﾚｲﾄｳｷ)

Part #	Description	Period	Qty
13471H - PULLEY, CRANKSHAFT
13471-78060	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
13471-78040	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16603F - PULLEY SUB-ASSY, IDLER
16603-78021	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16603-78110	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
16603-78021	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16603-E0010	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	11/2013 - 05/2017	1
16630E - PULLEY ASSY, IDLER
16630-78260	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
16630-78201	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16630-E0050	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16630-78201	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
16636E - SHAFT, IDLER PULLEY
16636-E0110	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	11/2013 - 05/2017	1
19121B - COVER, DUST PROOF
19121-E0060	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1	11/2013 - 05/2017	1
19121-E0070	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2	11/2013 - 05/2017	1
19121B - COVER, DUST PROOF
19121-E0060	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1	11/2013 - 05/2017	1
19121-E0070	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2	11/2013 - 05/2017	1
21557B - SPACER, NO.1
21557-E0A40	N04C..XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	11/2013 - 05/2017	1
46473A - BRACKET, PULLEY
46473-E0010	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	11/2013 - 05/2017	1
88036 - COMPRESSOR MOUNTING SET
88036-37210	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	11/2011 - 05/2017	1
88036-37172	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88036-37183	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	11/2013 - 05/2017	1
88036-37194	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	09/2012 - 05/2017	1
88345B - BRACKET, COMPRESSOR MOUNTING, NO.1
88345-37262	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345-37262	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
88345-37262	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345C - BRACKET, COMPRESSOR MOUNTING, NO.2
88345-37271	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345-37271	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 05/2017	1
88345-37271	XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 05/2017	1
Common parts
21857-E0030
90031-05124
90031-05142
90031-05146
SH122-01065
SH552-10816
SH552-11045
SH552-11050
SH552-11060
SL611-01022
