XZU720-TQFMF (2019)
Toyota Dyna/Toyoace

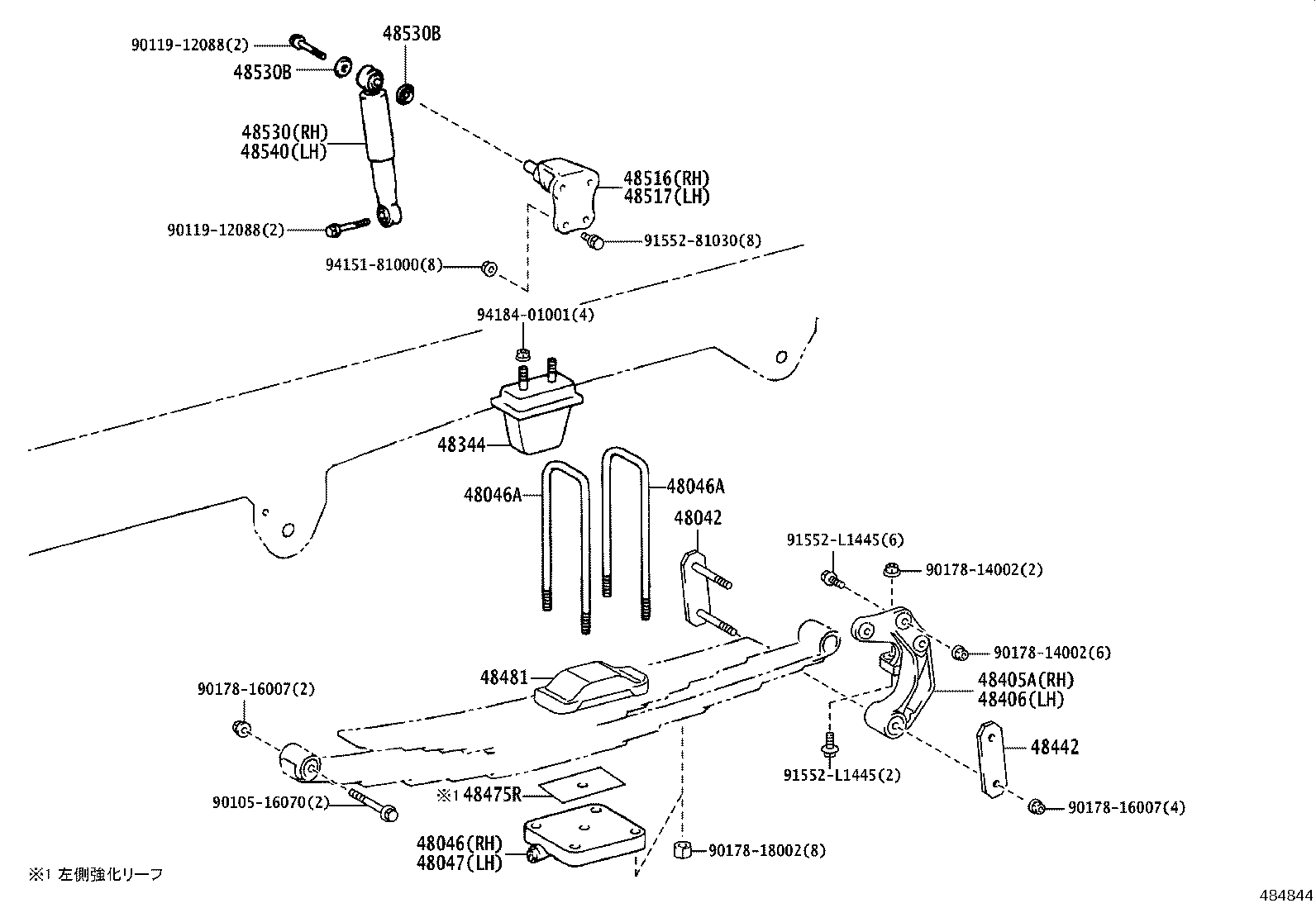

ILLUST NO. 1 OF 2(1905- )XZC710,XZU710,720..20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37060 |
XZU71#,72#,73#..DCVUO |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37111 |
XZU72#,73#..T4..DCVUO;XZU71#..(20T,30T,35T)..DCVUO |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18014 |
XZU71#,72#..(20T,30T)..DCVUO 長さ=320 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18014 |
XZU71#,72#..(20T,30T)..DCVUO 長さ=320 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37111 |
XZU72#,73#..T4..DCVUO;XZU71#..(20T,30T,35T)..DCVUO |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XZU710,720..T4..20T..DCVUO;XZU712,72#,73#..T3..(30T,35T)..DCVUO |
2 | ||
| 48405A - BRACKET SUB-ASSY, SPRING, NO.4 RH | ||||
| 48405-37010 |
XZU71#,72#,73#..DCVUO |
1 | ||
| 48406 - BRACKET SUB-ASSY, SPRING, NO.4 LH | ||||
| 48406-37010 |
XZU71#,72#,73#..DCVUO |
1 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48442-37080 |
XZU71#,72#,73#..DCVUO |
2 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37120 |
XZC710,XZU70#,712..DCRWD,DCVTO,DCVUO;XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU72#,73#..(T4,T5)..(DCRWD,DCVTO,DCVUO);XZU710..(20T,30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37052 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37052 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37291 |
XZU710,720..20T..DCVUO ﾏｰｸ 48531−37291 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37291 |
XZU710,720..20T..DCVUO ﾏｰｸ 48531−37291 |
1 | ||
| Common parts | ||||
| 90105-16070 | ||||
| 90119-12088 | ||||
| 90178-14002 | ||||
| 90178-16007 | ||||
| 90178-18002 | ||||
| 91552-81030 | ||||
| 91552-L1445 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||

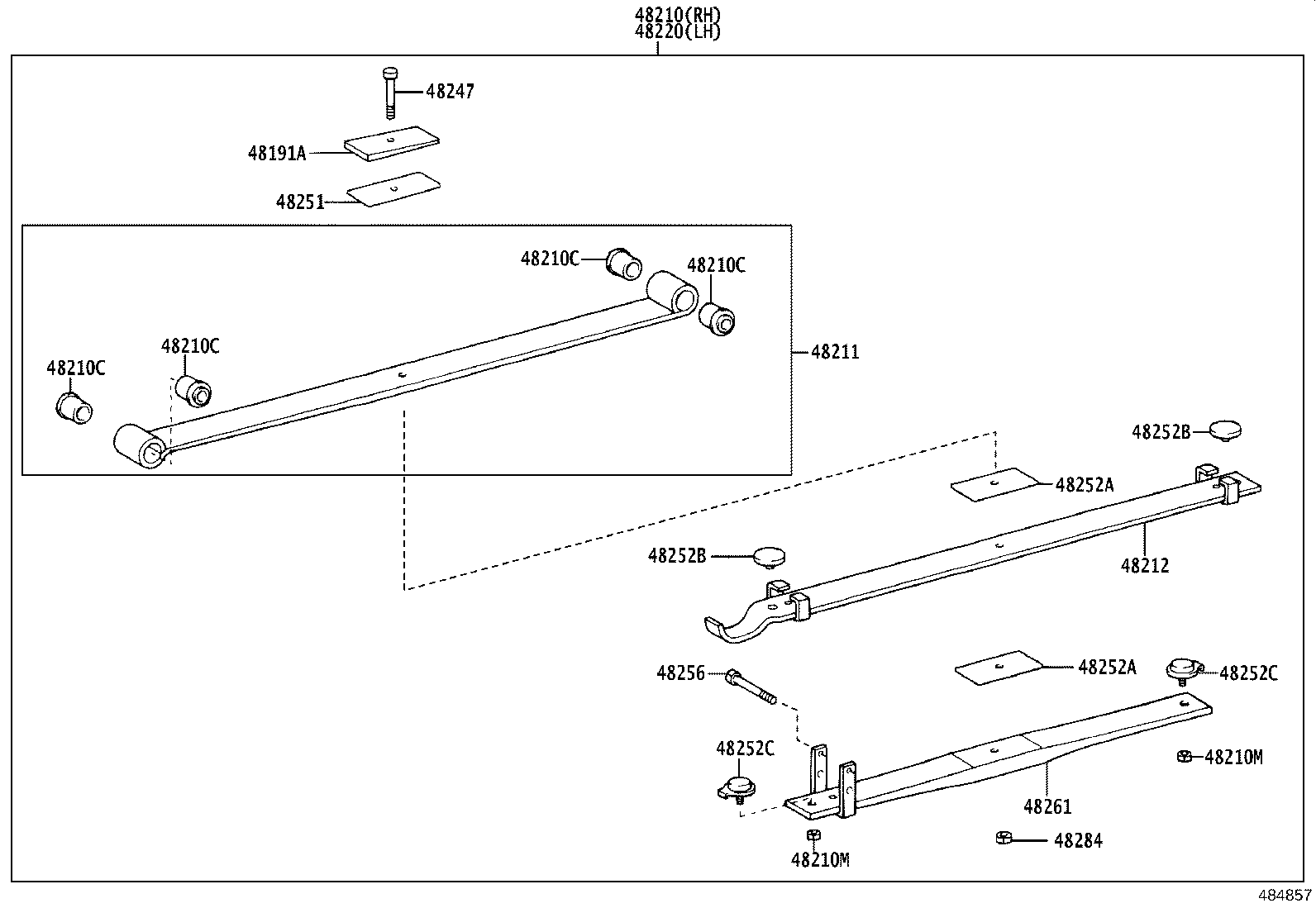

ILLUST NO. 2 OF 2(1905- )XZC710,XZU710,720..20T
MAIN 2 + HELPER 1-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37V30 |
XZU710,720..T4..20T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210M - NUT(FOR REAR SPRING) | ||||
| 48284-0W060 |
XZU710,720..20T..DCVUO |
4 | ||
| 48210M - NUT(FOR REAR SPRING) | ||||
| 48284-0W060 |
XZU710,720..20T..DCVUO |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37V30 |
XZU710,720..T4..20T..DCVUO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37V30 |
XZU710,720..T4..20T..DCVUO |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37V30 |
XZU710,720..T4..20T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37W00 |
XZC710,XZU710,720..20T..(DCRWD,DCVUO) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37F91 |
XZU710,720..20T..DCVUO |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37N60 |
XZU710,720..20T..DCVUO |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37N60 |
XZU710,720..20T..DCVUO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU710,720..20T..DCVUO |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU710,720..20T..DCVUO |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XZU710,720..20T..DCVUO |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48207-37V30 |
XZU710,720..T4..20T..DCVUO |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU700,71#,72#,73#..DCVUO |
2 | ||

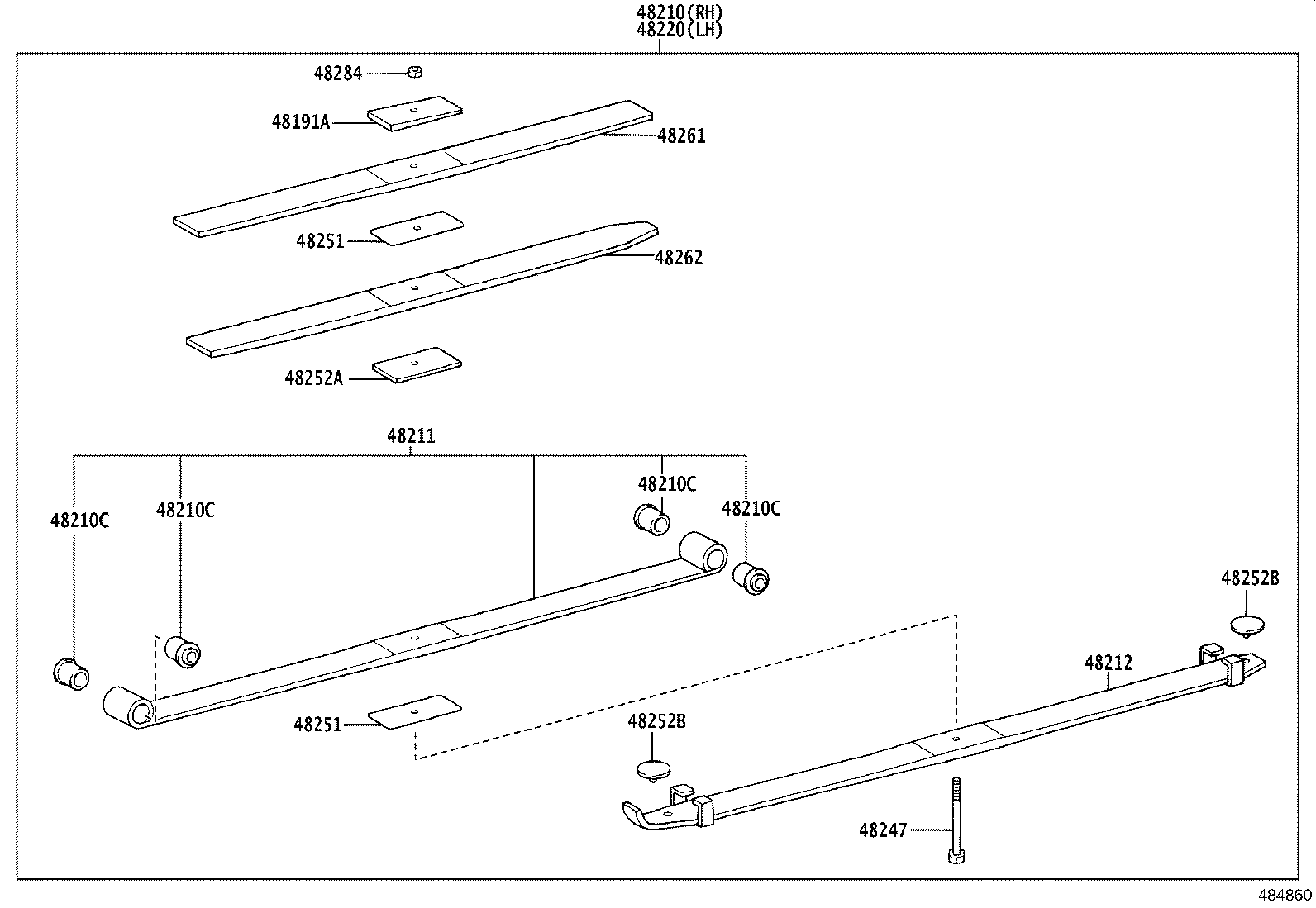

ILLUST NO. 2 OF 2(1905- )XZU71#..30T,35T ; (1905- )XZU72#,73#..T4..30T,35T ; (1905- )XZU72#
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37V30 |
XZU710,720..T4..20T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37V30 |
XZU710,720..T4..20T..DCVUO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37V30 |
XZU710,720..T4..20T..DCVUO |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37V30 |
XZU710,720..T4..20T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37W00 |
XZC710,XZU710,720..20T..(DCRWD,DCVUO) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37F91 |
XZU710,720..20T..DCVUO |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37F91 |
XZU710,720..20T..DCVUO |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37N60 |
XZU710,720..20T..DCVUO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48207-37V30 |
XZU710,720..T4..20T..DCVUO |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
