XZU720-TQFMF (2019)

Toyota Dyna/Toyoace

Production May 2019 - Mar 2021
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

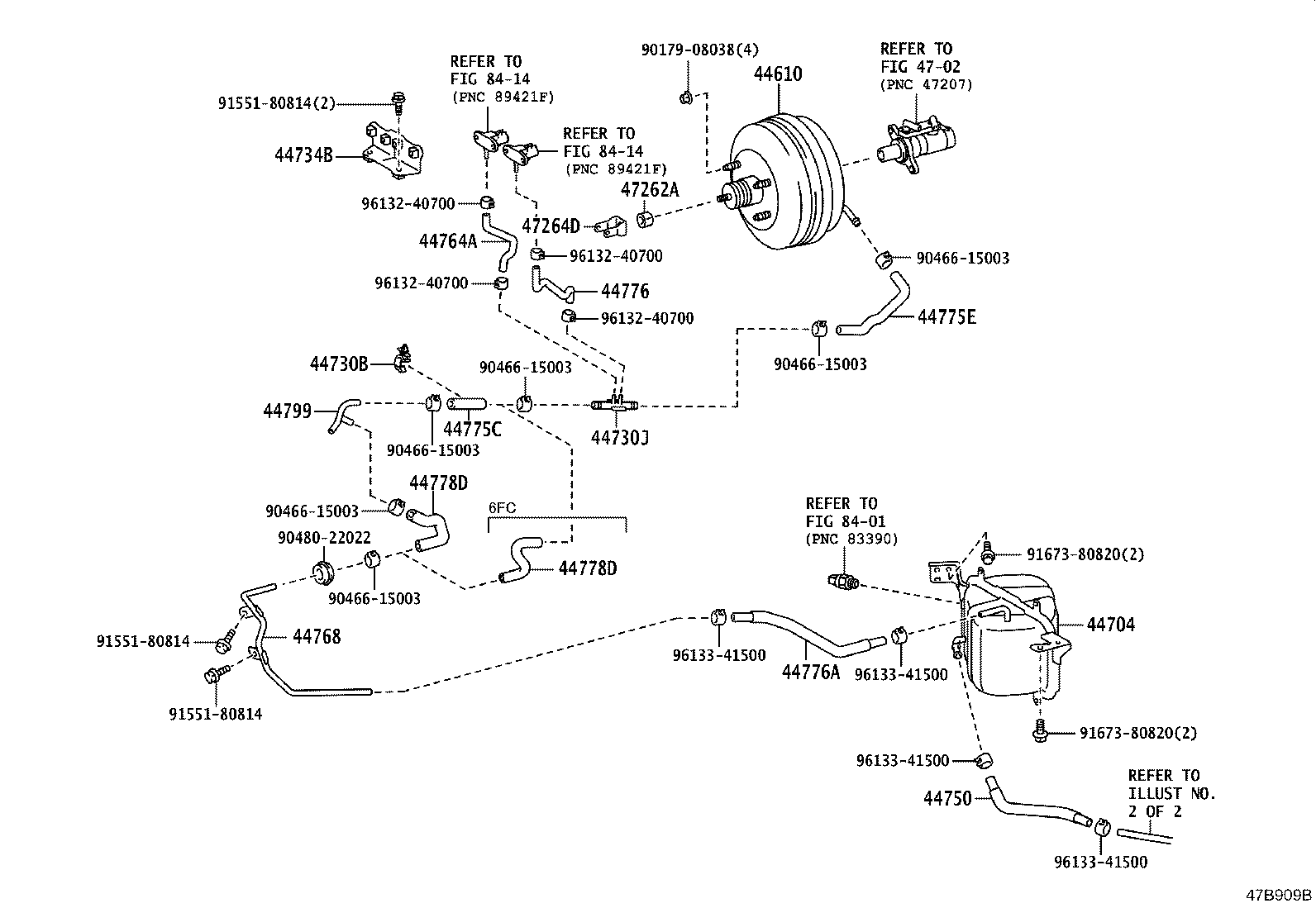

ILLUST NO. 1 OF 2(1905- )

Click highlighted areas on diagram

diagram 44610 44704 44730B 44730J 44734B 44750 44764A 44768 44775C 44775E 44776 44776A 44778D 44778D 44799 4702 47262A 47264D 8401 8414 8414 9017908038 9046615003 9046615003 9046615003 9046615003 9046615003 9046615003 9048022022 9155180814 9155180814 9155180814 9167380820 9167380820 9613240700 9613240700 9613240700 9613240700 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37290

XZU710,720..20T..DCVUO

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37330

XZU700,71#,72#,73#..DCVUO

 1
44730B - CLAMP, VACUUM HOSE
44597-37021

XZU700,71#,72#,73#..DCVUO

 1
44730J - WAY(FOR BOOSTER VACUUM)
90414-10043

XZU700,71#,72#,73#..DCVUO

 1
44734B - BRACKET, BOOSTER SUPPORT
44734-37020

XZU700,71#,72#,73#..DCVUO

 1
44750 - HOSE ASSY, VACUUM
44750-37400

XZU700,71#,72#,73#..DCVUO

 1
44764A - HOSE, BOOSTER VACUUM
44776-37330

XZU700,71#,72#,73#..DCVUO

 1
44768 - TUBE, BOOSTER VACUUM
44768-37220

XZU700,71#,72#,73#..DCVUO

 1
44775C - HOSE, CONNECTOR TO WAY
44775-37030

XZU700,71#,72#,73#..DCVUO

 1
44775E - HOSE, WAY TO CONNECTOR
44776-37340

XZU700,71#,72#,73#..DCVUO

 1
44776 - HOSE, BRAKE BOOSTER
44776-37350

XZU700,71#,72#,73#..DCVUO

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37470

XZU700,71#,72#,73#..DCVUO

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37310

XZU700,71#,72#,73#..DCVUO

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37310

XZU700,71#,72#,73#..DCVUO

 1
44799 - WAY, BRAKE VACUUM HOSE
44799-37040

XZU700,71#,72#,73#..DCVUO

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
90179-10065

XZU700,71#,72#,73#..DCVUO

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-50010

XZU700,71#,72#,73#..DCVUO

 1
Common parts
90179-08038
90466-15003
90480-22022
91551-80814
91673-80820
96132-40700
96133-41500
Linked diagrams
4702
8401
8414

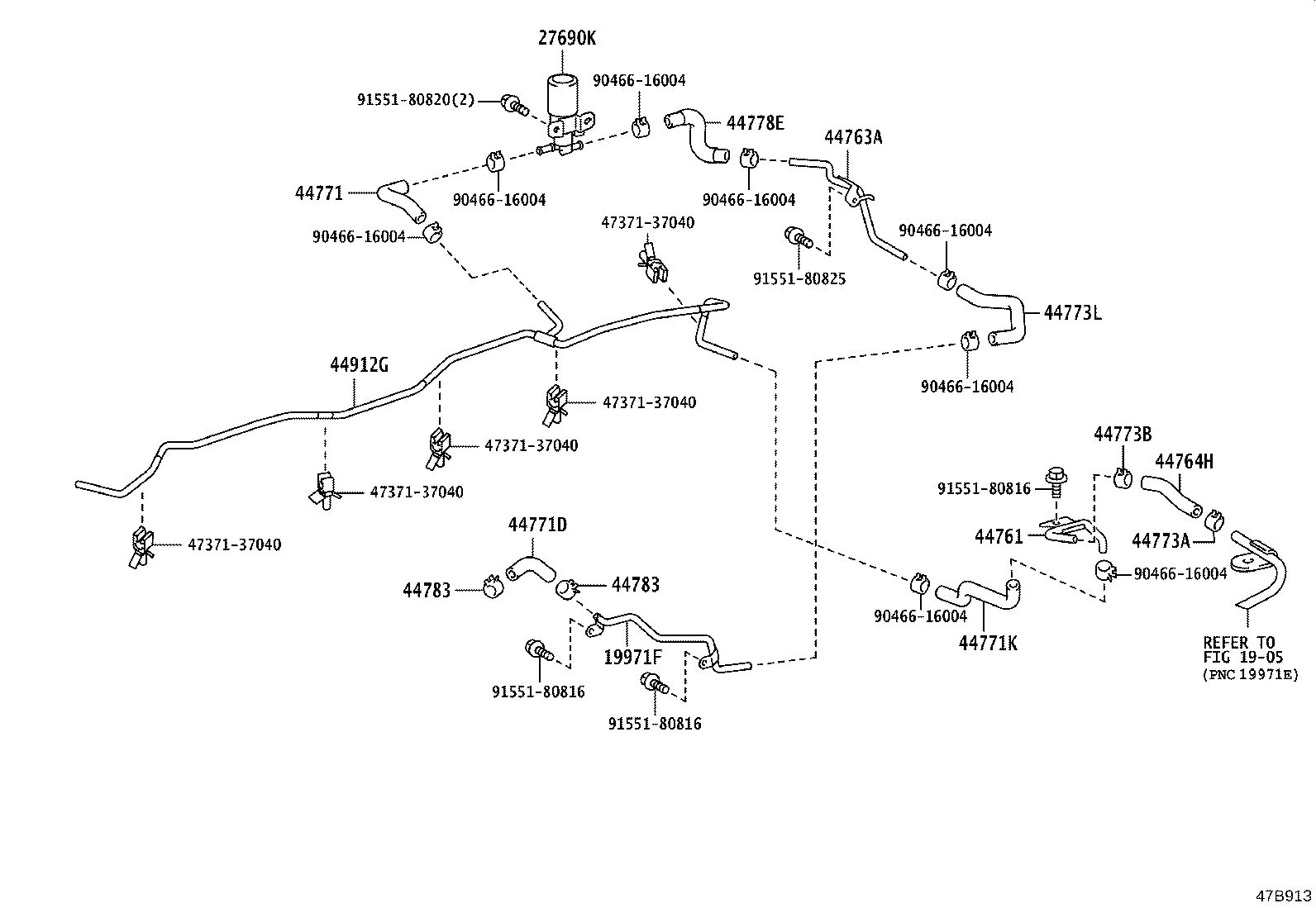

ILLUST NO. 2 OF 2(1905- )XZC710,XZU70#,71#,72#,73#

Click highlighted areas on diagram

diagram 1905 19971F 27690K 44761 44763A 44764H 44771 44771D 44771K 44773A 44773B 44773L 44778E 44783 44783 44912G 4737137040 4737137040 4737137040 4737137040 4737137040 9046616004 9046616004 9046616004 9046616004 9046616004 9046616004 9046616004 9046616004 9155180816 9155180816 9155180816 9155180820 9155180825
Part # Description Qty Price
19971F - PIPE, VACUUM
19971-78271

N04C..XZU700,71#,72#,73#..DCVUO

 1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78180

N04C..XZU700,71#,72#,73#..DCVUO

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37580

XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-37E20

XZC710,XZU70#,71#,72#,73#

 1
44763-37E21

XZU700,71#,72#,73#..DCVUO

 1
44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE)
95446-09120

XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37B40

XZU700,71#,72#,73#..DCVUO

 1
44771D - HOSE, VACUUM TUBE CONNECTOR
44771-37A61

XZU700,71#,72#,73#..DCVUO

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37E00

XZU700,71#,72#,73#..DCVUO

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90466-16004

XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO

 1
44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2)
90466-16004

XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37400

XZU700,71#,72#,73#..DCVUO

 1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
44778-37401

XZU700,71#,72#,73#..DCVUO

 1
44778-37400

XZC710,XZU70#,71#,72#,73#

 1
44783 - CLAMP, VACUUM HOSE
96138-51701

XZU700,71#,72#,73#..DCVUO

 2
44783 - CLAMP, VACUUM HOSE
96138-51701

XZU700,71#,72#,73#..DCVUO

 2
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37E11

XZU700,71#,72#,73#..DCVUO

 1
Common parts
47371-37040
90466-16004
91551-80816
91551-80820
91551-80825
Linked diagrams
1905
