XZU720-TQFMD3 (2011)
Toyota Dyna/Toyoace
(1107- )XZU700,710,720,730..DCRTL ; (1705-)DCRTL
MZZ6R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| SU002-01048 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| SU002-00355 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| SU002-00264 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| SU002-00357 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33206 - PLATE SUB-ASSY, SHIFT INTER LOCK | ||||
| SU002-01049 |
XZU710..T5..6F..IV3;XZU710..40T..DCRTK..IV3;XZU720..6F..(20T,30T,35T);XZU710..(T3,T5)..(20T,40T)..DCRTK..CBU;XZU700,710,730..(T3,T4)..6F..(20T,30T,35T) |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| SU002-00986 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| SU002-00401 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| SU002-00941 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
1 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-01017 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
2 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-01017 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
2 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-01017 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
2 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-01017 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
2 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| SU002-01064 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33215B - FORK, GEAR SHIFT, NO.4 | ||||
| SU002-00402 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
5 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
5 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
5 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
5 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| SU002-00281 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
2 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| SU002-00281 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
2 | ||
| 33242H - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| SU002-00940 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| SU002-01034 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| SU002-01033 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| SU002-00249 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| SU002-00353 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU NO.2 |
1 | ||
| SU002-00352 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU NO.1 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| SU002-00353 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU NO.2 |
1 | ||
| SU002-00352 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU NO.1 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| SU002-00405 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| SU002-00985 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| SU002-00983 |
XZU710..T5..6F..IV3;XZU710..40T..DCRTK..IV3;XZU720..6F..(20T,30T,35T);XZU710..(T3,T5)..(20T,40T)..DCRTK..CBU;XZU700,710,730..(T3,T4)..6F..(20T,30T,35T) |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| SU002-00271 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33262E - SHAFT, SELECT LEVER | ||||
| SU002-00252 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| SU002-00272 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33544C - DAMPER, SHIFT LEVER | ||||
| 33544-37020 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| Common parts | ||||
| 91552-81255 | ||||
| 94151-81200 | ||||
| SU002-00248 | ||||
| SU002-00258 | ||||
| SU002-00270 | ||||
| SU002-00279 | ||||
| SU002-00335 | ||||
| SU002-00358 | ||||
| SU002-00365 | ||||
| SU002-00467 | ||||
| SU002-00923 | ||||
| SU002-00946 | ||||
| SU002-00947 | ||||
| SU002-00966 | ||||

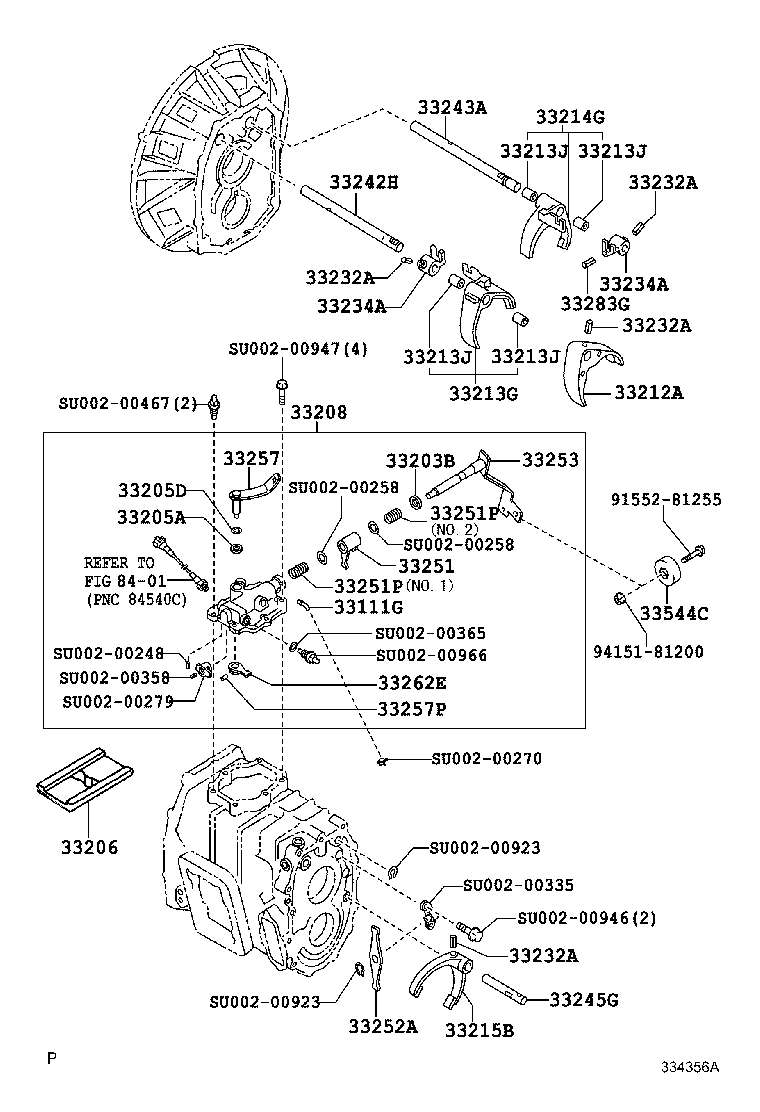

| Linked diagrams | ||||
| 8401 | ||||
