XZU720-TPMMB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8409- )BU6#,7#,8#,90,93,95

Click highlighted areas on diagram

diagram 51100F 51202 51203 51204 51205 51206 51207 51208 51209 51210 51211
Part # Description Qty Price

ILLUST NO. 2 OF 3(8409- )BU6#,7#,8#,90,93,95

Click highlighted areas on diagram

diagram 93123
Part # Description Qty Price

ILLUST NO. 3 OF 3(8409- )BU6#,7#,8#,90,93,95

Click highlighted areas on diagram

diagram 51025 51141 51142 51155 51156 51401 51402 51411 51412 51721 51721 51721A 51721A 51722 51722 51731 51732 51733 51734 51741 51751 51767A 51768A 51881 51881 51884 51884 66176 66177 75133 75134 9010510086 9010510123 9010512002 9010912024 9017010082 9017010082 9017010082 9017012018 9017012018 9020110203 9020110489 9020112002 9020112002 9020112002 9020112002 9111271030 9111271030 9116151235 9116171235 9116271230 9116571235 9411551200 9411551200 9411551200 9418401000 9451201200 9451201200 9461111001 9461111200 9462111200
Part # Description Qty Price
Common parts
90105-10086
90105-10123
90105-12002
90109-12024
90170-10082
90170-12018
90201-10203
90201-10489
90201-12002
91112-71030
91161-51235
91161-71235
91162-71230
91165-71235
94115-51200
94184-01000
94512-01200
94611-11001
94611-11200
94621-11200

ILLUST NO. 3 OF 4(8808- )

Click highlighted areas on diagram

diagram 38492 38493 38976 51017 51018 51141 51141 51142 51142 51145 51401 51401 51402 51402 51701 51702 51703 51704 51721 51721 51722 51722 51731 51732 51741 51751 51767A 51767A 51768A 51768A 51769 5352 5352 65289A 65289A 66358 66358 66358 66358 75133 75134 9010112172 9010112172 9010510123 9010510166 9010510166 9010510166 9010512002 9010912024 9017010082 9017010082 9017010082 9017010082 9017012018 9017012018 9017012028 9020110203 9020110344 9020110344 9020110489 9020112002 9020112002 9020112002 9020112002 9020112033 9111271030 9111271030 9111271030 9116171235 9116271230 9116271240 9116571235 9411051000 9411551200 9411551200 9411551200 9418401000 9451201200 9461111001 9461111001 9462111200 9462111200
Part # Description Qty Price
Common parts
90101-12172
90105-10123
90105-10166
90105-12002
90109-12024
90170-10082
90170-12018
90170-12028
90201-10203
90201-10344
90201-10489
90201-12002
90201-12033
91112-71030
91161-71235
91162-71230
91162-71240
91165-71235
94110-51000
94115-51200
94184-01000
94512-01200
94611-11001
94621-11200
Linked diagrams
5352

ILLUST NO. 1 OF 4(8808- )

Click highlighted areas on diagram

diagram 51025 51025 51025 51100F 9010510123 9017012018 9020110344 9020110489 9111271035 9116151235 9418401000 9451201200 9461111200
Part # Description Qty Price
Common parts
90105-10123
90170-12018
90201-10344
90201-10489
91112-71035
91161-51235
94184-01000
94512-01200
94611-11200

ILLUST NO. 2 OF 4(8808- )

Click highlighted areas on diagram

diagram 51017 51018 51025 51025 51025 51025 51025 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51204 51204 51204 51204 51204 51204 51204 51204 51204 51204 51204 51204 51205 51205 51205 51205 51205 51205 51205 51205 51205 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51206B 51206B 51206B 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51209C 51209C 51209C 51209C 51209C 51209C 51733 51734
Part # Description Qty Price

ILLUST NO. 1 OF 2(7708- )

Click highlighted areas on diagram

diagram 51100 51100F 51202 51203 51204 51204 51205 51206 51207 51208 51209 51210 51211
Part # Description Qty Price

ILLUST NO. 2 OF 2(7708- )

Click highlighted areas on diagram

diagram 1702 51017 51018 51209A 51401 51402 51703A 51704A 51721 51731 51732 51733 51734 51741 51741A 51741A 5174336011 5175136020 5176936040 51881 51881 51882 51883 51884 51884 51943A 51947B 51947B 66103A 66104A 66176 66177 9010110096 9020110489 9020110489 9020112002 9111271030 9116171230 9411051000 9411551200 9418401000
Part # Description Qty Price
Common parts
51743-36011
51751-36020
51769-36040
90101-10096
90201-10489
90201-12002
91112-71030
91161-71230
94110-51000
94115-51200
94184-01000
Linked diagrams
1702

ILLUST NO. 1 OF 4(1107-1705)XZU720..MTM..20T

Click highlighted areas on diagram

diagram 48411B 48412C 48414D 48414D 48416D 48416D 48418B 48418B 48419A 48419A 48512C 48512C 51013 51014 51017 51018 51100F 51155B 51155B 51203K 51211A 51221C 51241B 51261 51271A 51291 9017814002 9017814002 9111281035 9111281035 91552L1445 91552L1445 9164281235 9164281235 9413001202 9413001202 9415081001 9415081001
Part # Description Qty Price

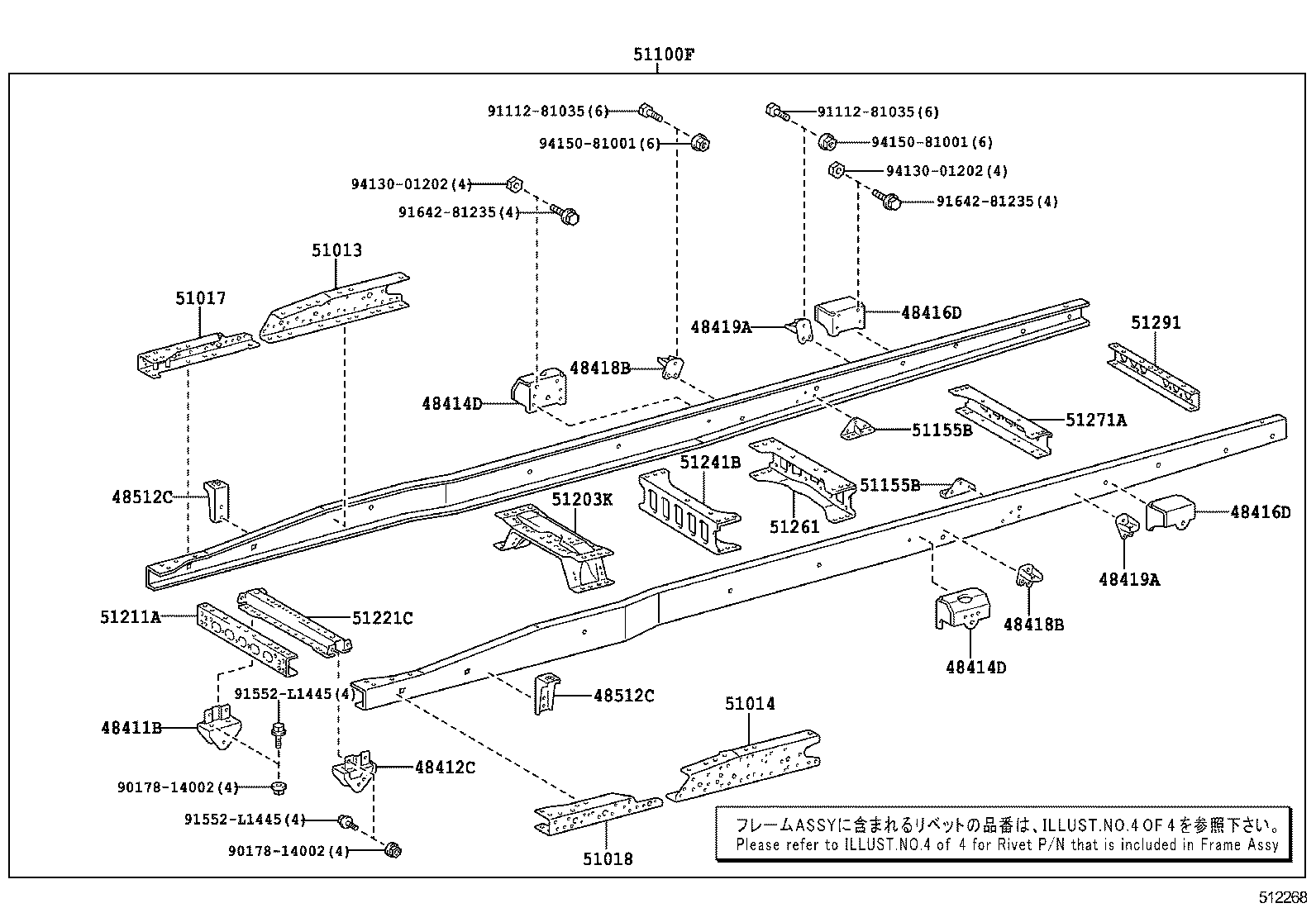

48411B - BRACKET, SPRING, NO.1 RH
48411-37080

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 1
48412C - BRACKET, SPRING, NO.1 LH
48412-37070

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 1
48414D - BRACKET, SPRING, NO.3
48414-37130

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
48414D - BRACKET, SPRING, NO.3
48414-37130

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
48416D - BRACKET, SPRING, NO.4
48416-37110

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
48416D - BRACKET, SPRING, NO.4
48416-37110

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
48418B - BRACKET, SPRING, NO.6
48418-37030

XZU720..20T;XZC710,XZU700;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
48418B - BRACKET, SPRING, NO.6
48418-37030

XZU720..20T;XZC710,XZU700;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
48419A - BRACKET, SPRING, NO.7
48419-37030

XZU720..20T;XZC710,XZU700;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
48419A - BRACKET, SPRING, NO.7
48419-37030

XZU720..20T;XZC710,XZU700;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER
48512-37080

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER
48512-37080

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37470

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37450

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37240

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37190

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51100F - FRAME SUB-ASSY
51001-3VT10

XZU720..MTM..20T..(DCRTJ,DCRTK)

 1
51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2
51155-37090

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2
51155-37090

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37351

XZC710,XZU700,710,720..MTM..(DCRTJ,DCRTK)

 1
51211A - CROSSMEMBER, FRAME, FRONT
51211-37130

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51221C - CROSSMEMBER, FRAME, NO.2
51221-37200

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51241B - CROSSMEMBER, FRAME, NO.4
51241-37070

XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51261 - CROSSMEMBER, FRAME, NO.6
51261-37060

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51271A - CROSSMEMBER, FRAME, NO.7
51271-37010

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51291 - CROSSMEMBER, FRAME, REAR
51291-37100

XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
Common parts
90178-14002
91112-81035
91552-L1445
91642-81235
94130-01202
94150-81001

ILLUST NO. 2 OF 4(1107-1705)XZU720

Click highlighted areas on diagram

diagram 51021C 51421 51422 51568 51568C 51569 51569C 51705E 9017812005 9155180825 9155180825 9155180825 9155180825 9155281230 9155281230 9155281240 91552F1240 91552F1240 91672L1235 91673L1035 91673L1035 91673L1035 9415121000 9415181200
Part # Description Qty Price
51021C - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-37030

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51421 - BRACKET, ENGINE FRONT MOUNTING, RH
51421-37230

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51422 - BRACKET, ENGINE FRONT MOUNTING, LH
51422-37230

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37231

XZC710,XZU720;XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51568C - BRACKET, PROPELLER SHAFT GUARD
51568-37360

XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51569 - GUARD, PROPELLER SHAFT
51569-37310

XZU710..T3,T4;XZC710,XZU720,775;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51569C - GUARD, PROPELLER SHAFT
51569-37300

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING
51705-37720

XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)

 1
Common parts
90178-12005
91551-80825
91552-81230
91552-81240
91552-F1240
91672-L1235
91673-L1035
94151-21000
94151-81200

ILLUST NO. 3 OF 4(1107- )DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU

Click highlighted areas on diagram

ﾌﾛﾝﾄﾌｯｸ

diagram 51961E 51961E 51961E 51962C 51963A 51963A 51963C 51964A 51964A 9017814007 9017814007 9167201460 9167201460 9167201460 9412541400 9412541400
Part # Description Qty Price
51961E - HOOK, FRONT
51961-37120

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
51961E - HOOK, FRONT
51961-37120

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
51961E - HOOK, FRONT
51961-37120

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
51962C - RETAINER, FRONT HOOK
51962-37050

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

牽引ﾌｯｸ−ﾌﾛﾝﾄのみ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP)

 1
51962-37050

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP)

 1
51963A - HOOK, TRANSPORT, FRONT RH
51963-37030

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 1
51963A - HOOK, TRANSPORT, FRONT RH
51963-37030

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 1
51963C - RETAINER, FRONT HOOK, LH
51963-37040

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP)

 1
51963-37040

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

牽引ﾌｯｸ−ﾌﾛﾝﾄのみ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP)

 1
51964A - HOOK, TRANSPORT, FRONT LH
51964-37040

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 1
51964A - HOOK, TRANSPORT, FRONT LH
51964-37040

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 1
Common parts
90178-14007
91672-01460
94125-41400

ILLUST NO. 3 OF 4(1107- )DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU

Click highlighted areas on diagram

ﾘﾔﾌｯｸ

diagram 51961J 51961J 51961J 9017914007 9167201460 9167201460 9167201460 9413001402
Part # Description Qty Price
51961J - HOOK, REAR
51961-36040

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)

 1
51961-36040

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
51961J - HOOK, REAR
51961-36040

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)

 1
51961-36040

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
51961J - HOOK, REAR
51961-36040

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)

 1
51961-36040

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
Common parts
90179-14007
91672-01460
94130-01402

ILLUST NO. 4 OF 4(1107- )

Click highlighted areas on diagram

ﾘﾍﾞｯﾄ

diagram 9003260013 9026011001 9512101024 9512101026 9512101028 9512101032 9512101036 9512101038 SM11201334 SZ26011011 SZ26011012
Part # Description Qty Price
Common parts
90032-60013
90260-11001
95121-01024
95121-01026
95121-01028
95121-01032
95121-01036
95121-01038
SM112-01334
SZ260-11011
SZ260-11012
