XZU720-TPMMB3 (2011)
Toyota Dyna/Toyoace
(8409- )BU6#,7#,8#,93,98
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94125-41200 | ||||
| 94184-61000 | ||||
| 94611-11001 | ||||
| 96451-00600 | ||||
(7708- )HU30,JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-10038 | ||||
| 90170-10082 | ||||
| 94110-41000 | ||||
| 94125-41200 | ||||
| 94512-01000 | ||||
| 94611-11001 | ||||
| 96451-00600 | ||||

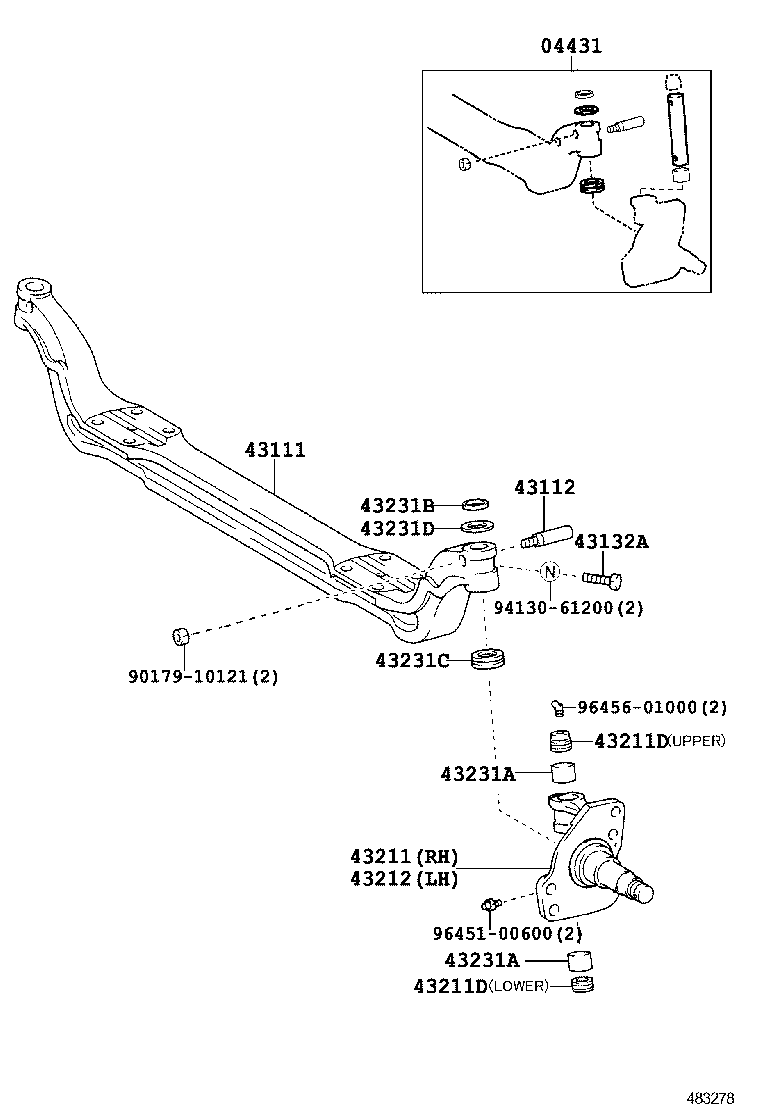

(1107- )XZC710,XZU700,710,720..20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04431 - PIN KIT, STEERING KNUCKLE KING | ||||
| 0443C-37020 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) |
2 | ||
| 0443C-37010 |
XZC710,XZU700,710,720..20T |
2 | ||
| 43111 - I BEAM, FRONT AXLE | ||||
| 43111-37051 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) |
1 | ||
| 43112 - PIN, KING PIN LOCK | ||||
| 43112-36020 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) |
2 | ||
| 43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT) | ||||
| 90106-12001 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-37110 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) |
1 | ||
| 43211D - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-33003 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 下側 |
2 | ||
| 90345-33004 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 上側 |
2 | ||
| 43211D - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-33003 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 下側 |
2 | ||
| 90345-33004 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 上側 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-37110 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) |
1 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90999-73086 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) |
4 | ||
| 90999-73086 |
XZC710,XZU700,710,720..20T |
8 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90999-73086 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) |
4 | ||
| 90999-73086 |
XZC710,XZU700,710,720..20T |
8 | ||
| 43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN) | ||||
| 90312-28003 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) |
2 | ||
| 43231C - BEARING (FOR STEERING KNUCKLE KING PIN) | ||||
| 90367-28001 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) |
2 | ||
| 43231D - SHIM (FOR KING PIN) | ||||
| 90564-28005 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 厚さ=2.3 |
1 | ||
| 90564-28004 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 厚さ=2.2 |
1 | ||
| 90564-28003 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 厚さ=2.1 |
1 | ||
| 90564-28007 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 厚さ=1.7 |
1 | ||
| 90564-28008 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 厚さ=1.8 |
1 | ||
| 90564-28002 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 厚さ=2.0 |
1 | ||
| 90564-28006 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 厚さ=2.4 |
1 | ||
| 90564-28001 |
XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK) 厚さ=1.9 |
1 | ||
| Common parts | ||||
| 90179-10121 | ||||
| 94130-61200 | ||||
| 96451-00600 | ||||
| 96456-01000 | ||||
