XZU720-TPMMB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47703 47704 47710A 47710B 47710D 47710D 47716 47716 47717 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731 47743A 47743A 47744 47750 47769 47769 47775B 47775B 47775C 47775C 47781A 47781B 9020112452 9020112452 9411571200
Part # Description Qty Price
Common parts
90201-12452
94115-71200

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47703 47704 47710A 47716 47716 47717 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731A 47744 47750 47755A 47769 47771 47771 47772 47779 47781B 47781C 47781C
Part # Description Qty Price

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price

(8808- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price

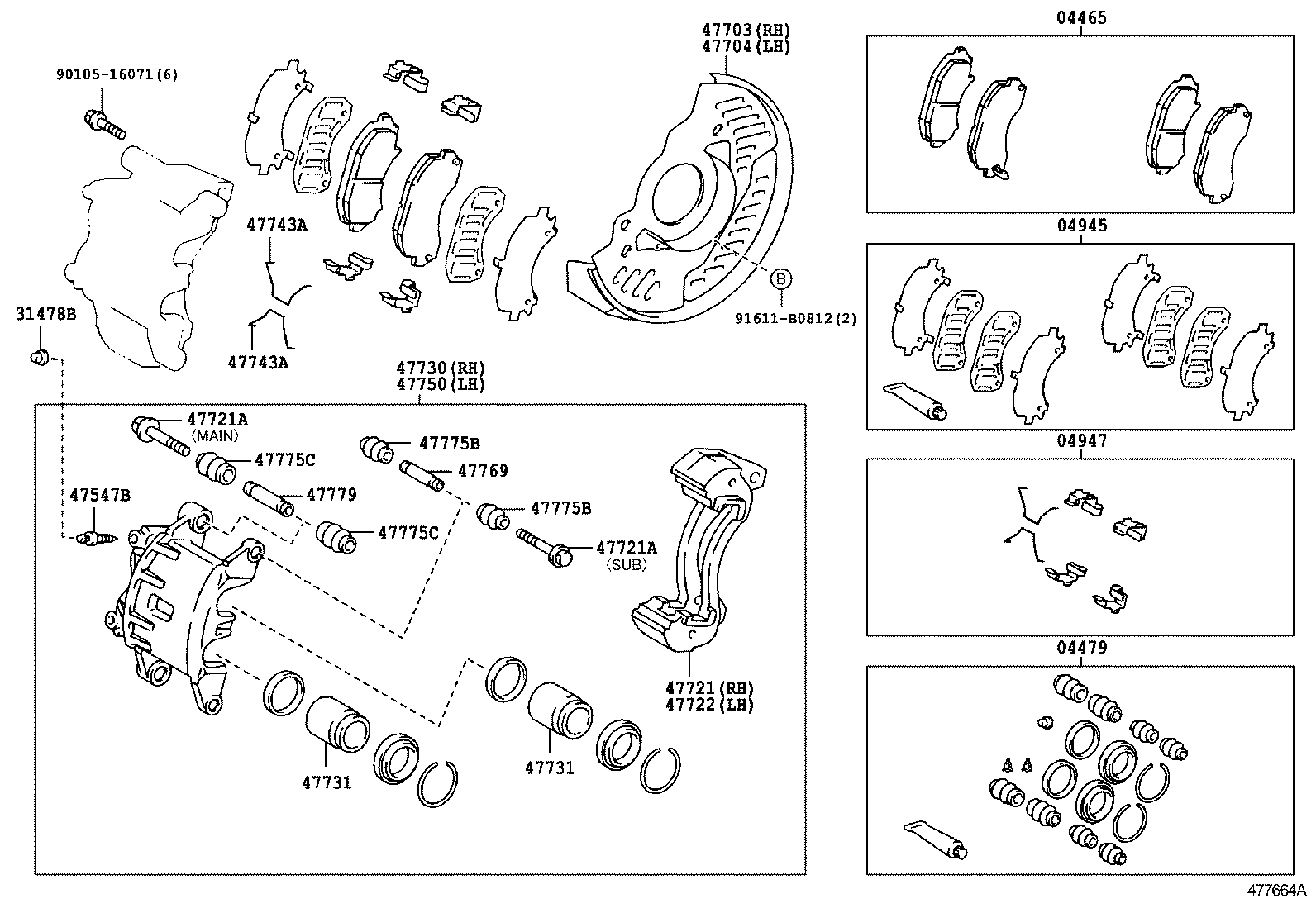

(1107- )XZC710,XZU700,710,720..20T

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47721 47721A 47721A 47722 47730 47731 47731 47743A 47743A 47750 47769 47775B 47775B 47775C 47775C 47779 9010516071 91611B0812
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-37250

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

ﾏｰｸ AK NS265

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
0447B-37021

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-37030

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
0494A-37020

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-37030

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-37030

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 1
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-37030

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

*12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側

 4
90119-08B87

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

*8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

*12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側

 4
90119-08B87

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

*8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-37020

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-37030

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 1
47731 - PISTON, FRONT DISC BRAKE
47731-37010

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 4
47731 - PISTON, FRONT DISC BRAKE
47731-37010

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-37030

XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-36030

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 4
47775B - BOOT, BUSH DUST, NO.1
47775-36040

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 8
47775B - BOOT, BUSH DUST, NO.1
47775-36040

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36050

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36050

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-36010

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 4
Common parts
90105-16071
91611-B0812
