XZU720-TPMMB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CBU,IV3

Click highlighted areas on diagram

diagram 33111G 33203B 33205 33205A 33205D 33205H 33208 33212A 33213B 33213B 33213B 33213G 33214G 33232A 33234A 33243A 33244D 33251 33251F 33251P 33251P 33252A 33252B 33253 33257 33261C 33263C 33263D 33263E 33264 33264A 33264B 33265 33275A 33275A 33275A 33275B 33275B 33275B 33276E 33282 33282 33531B 9011908332 9161160835 9411040600 9411040800 9451200600 9451200800
Part # Description Qty Price
Common parts
90119-08332
91611-60835
94110-40600
94110-40800
94512-00600
94512-00800

(1107- )XZC710,XZU700,710,720..5F ; (1705-)XZC710,XZU700,710,720..5F

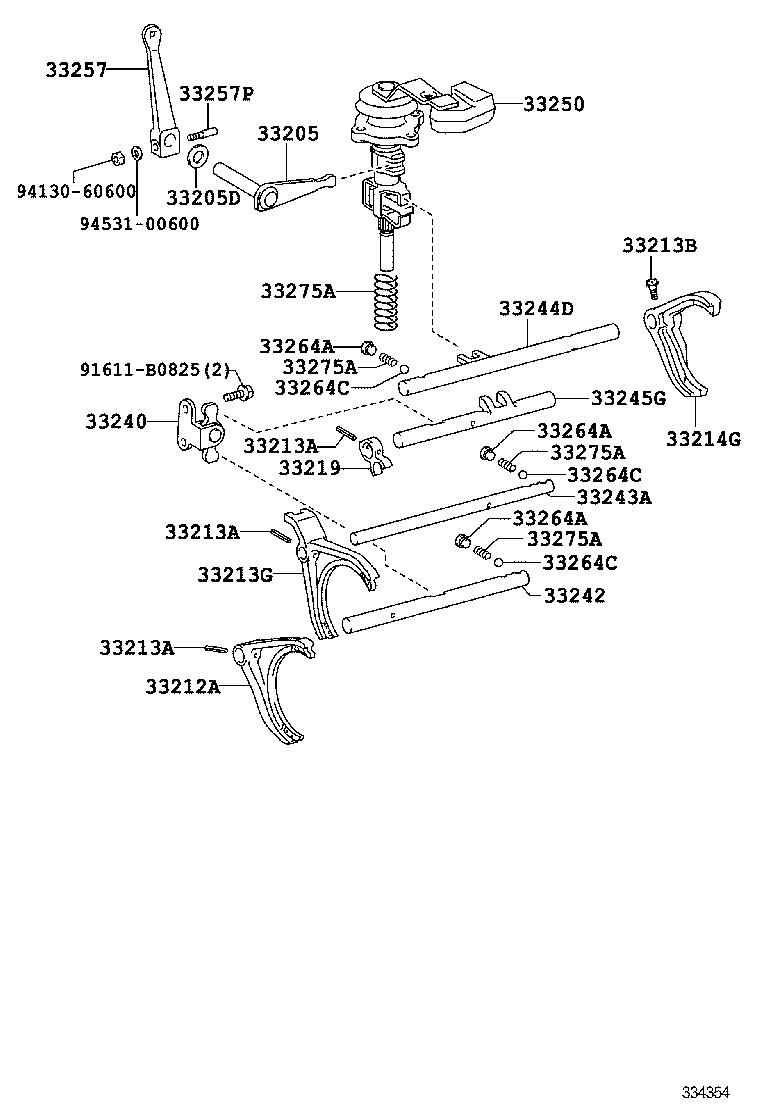

Click highlighted areas on diagram

M550

diagram 33205 33205D 33212A 33213A 33213A 33213A 33213B 33213G 33214G 33219 33240 33242 33243A 33244D 33245G 33250 33257 33257P 33264A 33264A 33264A 33264C 33264C 33264C 33275A 33275A 33275A 33275A 91611B0825 9413060600 9453100600
Part # Description Qty Price
33205 - SHAFT SUB-ASSY, SELECT LEVER
33205-37040

XZC710,XZU700,710,720..5F

 1
33205D - WASHER(FOR OUTER LEVER OIL SETTING)
90201-13029

XZC710,XZU700,710,720..5F

外径=28

 1
33212A - FORK, GEAR SHIFT, NO.1
33210-37020

XZC710,XZU700,710,720..5F

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05002

XZC710,XZU700,710,720..5F

 3
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05002

XZC710,XZU700,710,720..5F

 3
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05002

XZC710,XZU700,710,720..5F

 3
33213B - BOLT(FOR SHIFT FORK SET)
90105-08211

XZC710,XZU700,710,720..5F

 1
33213G - FORK, GEAR SHIFT, NO.2
33220-37020

XZC710,XZU700,710,720..5F

 1
33214G - FORK, GEAR SHIFT, NO.3
33214-36070

XZC710,XZU700,710,720..5F

 1
33214-37040

XZC710,XZU700,710,720..5F

 1
33214-37020

XZC710,XZU700,710,720..5F

 1
33219 - PLATE, SHIFT FORK LOCK
33219-37010

XZC710,XZU700,710,720..5F

 1
33240 - BRACKET ASSY, REVERSE SHIFT ARM
33240-37011

XZC710,XZU700,710,720..5F

 1
33240-37010

XZC710,XZU700,710,720..5F

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-37050

XZC710,XZU700,710,720..5F

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-37061

XZC710,XZU700,710,720..5F

 1
33243-37060

XZC710,XZU700,710,720..5F

 1
33244D - SHAFT, GEAR SHIFT FORK, NO.3
33244-37070

XZC710,XZU700,710,720..5F

 1
33245G - SHAFT, GEAR SHIFT FORK, NO.4
33245-37030

XZC710,XZU700,710,720..5F

 1
33250 - SHAFT ASSY, SHIFT & SELECT LEVER
33250-37010

XZC710,XZU700,710,720..5F

 1
33250-37011

XZC710,XZU700,710,720..5F

 1
33250-37012

XZC710,XZU700,710,720..5F

 1
33257 - LEVER, SELECT OUTER
33257-37090

XZC710,XZU700,710,720..5F

 1
33257P - PIN, SELECT OUTER LEVER LOCK
33282-35010

XZC710,XZU700,710,720..5F

 1
33264A - PLUG, INTER LOCK HOLE
90341-12008

XZC710,XZU700,710,720..5F

外径=18

 3
33264A - PLUG, INTER LOCK HOLE
90341-12008

XZC710,XZU700,710,720..5F

外径=18

 3
33264A - PLUG, INTER LOCK HOLE
90341-12008

XZC710,XZU700,710,720..5F

外径=18

 3
33264C - BALL (FOR SHIFT INTER LOCK)
90360-10003

XZC710,XZU700,710,720..5F

 3
33264C - BALL (FOR SHIFT INTER LOCK)
90360-10003

XZC710,XZU700,710,720..5F

 3
33264C - BALL (FOR SHIFT INTER LOCK)
90360-10003

XZC710,XZU700,710,720..5F

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-15055

XZC710,XZU700,710,720..5F

長さ=90.5

 1
90501-14194

XZC710,XZU700,710,720..5F

長さ=31.7

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-15055

XZC710,XZU700,710,720..5F

長さ=90.5

 1
90501-14194

XZC710,XZU700,710,720..5F

長さ=31.7

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-15055

XZC710,XZU700,710,720..5F

長さ=90.5

 1
90501-14194

XZC710,XZU700,710,720..5F

長さ=31.7

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-15055

XZC710,XZU700,710,720..5F

長さ=90.5

 1
90501-14194

XZC710,XZU700,710,720..5F

長さ=31.7

 3
Common parts
91611-B0825
94130-60600
94531-00600
