XZU720-TPMMB (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1107- )XZU720..T5..DCRTJ,DCRTK..CBU ; (1107-)XZU710..T5..DCRTJ,DCRTK,DCRTL

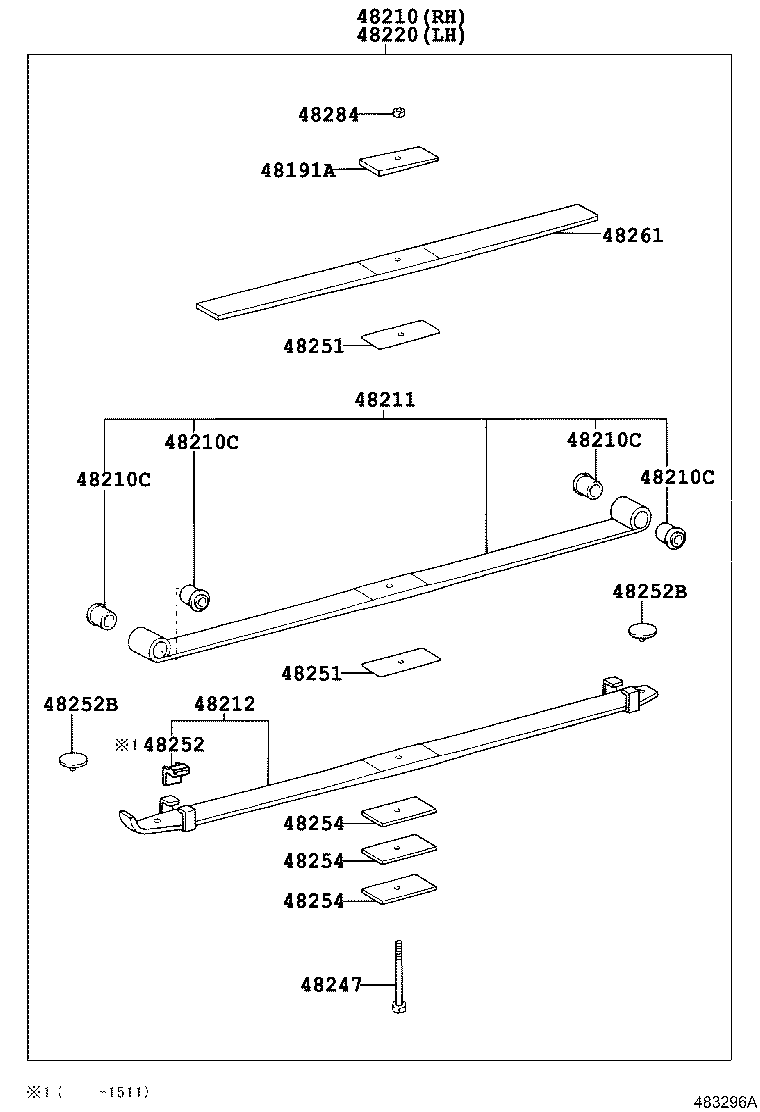

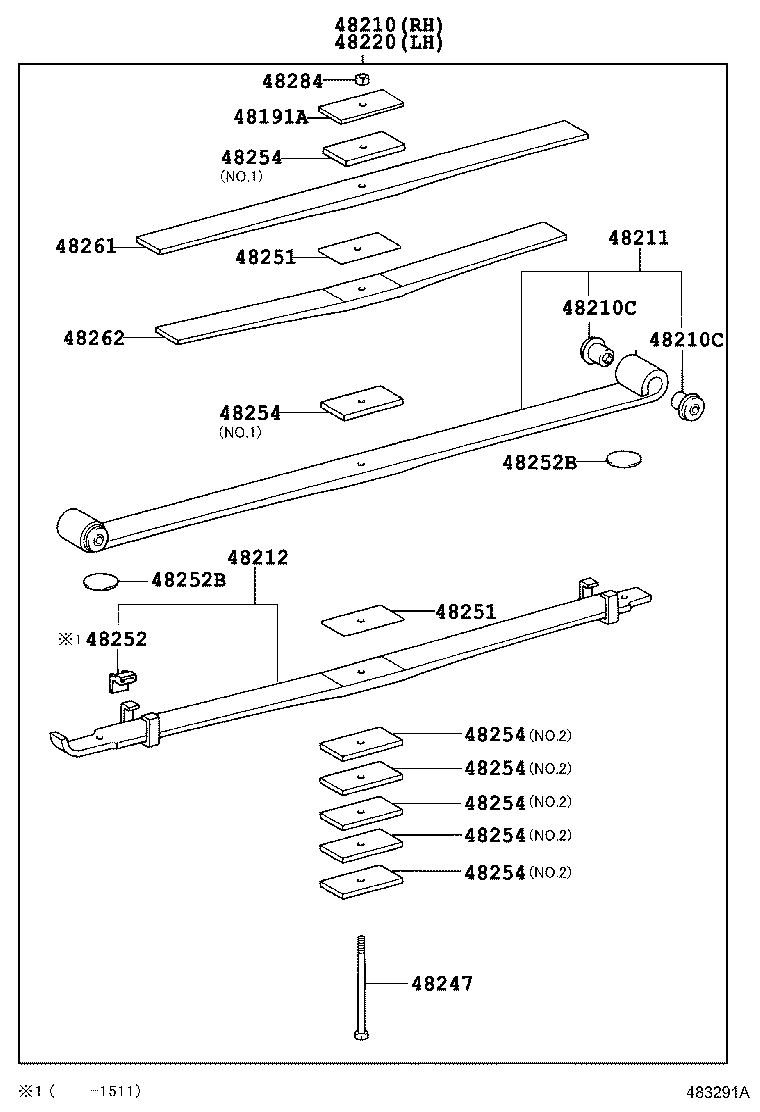

Click highlighted areas on diagram

MAIN 2 + HELPER 2-LEAF

diagram 48191A 48210 48210C 48210C 48211 48212 48220 48247 48251 48251 48252 48252B 48252B 48254 48254 48254 48254 48254 48254 48254 48261 48262 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48192-37100

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48210 - SPRING ASSY, REAR RH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48211 - LEAF, REAR SPRING, NO.1
48201-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48201-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48201-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-37C41

XZU710,720..T5

 2
48201-37C41

XZU710,720..T5

 2
48201-37C31

XZU710,720..T5

 2
48201-37C31

XZU710,720..T5

 2
48201-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-37C41

XZU710,720..T5

 2
48202-37C41

XZU710,720..T5

 2
48202-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48202-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48202-37C31

XZU710,720..T5

 2
48202-37C31

XZU710,720..T5

 2
48202-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48247-3V070

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48247-3V031

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-3V031

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-37C41

XZU710,720..T5;XZU700..6F..DCRTJ;XZU700..T4..DCRTK

 2
48247-37C41

XZU710,720..T5;XZU700..6F..DCRTJ;XZU700..T4..DCRTK

 2
48247-37F91

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-37F91

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48213-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48213-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C41

XZU710,720..T5

 2
48213-37C41

XZU710,720..T5

 2
48213-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C31

XZU710,720..T5

 2
48213-37C31

XZU710,720..T5

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0W070

XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 2
48284-0W070

XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 2
48284-3B750

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 2
48284-3B750

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 2

ILLUST NO. 2 OF 2(1107- )T5..DCRTJ,DCRTK,DCRTL

Click highlighted areas on diagram

MAIN 2 + HELPER 1-LEAF

diagram 48191A 48210 48210C 48210C 48210C 48210C 48211 48212 48220 48247 48251 48251 48252 48252B 48252B 48254 48254 48254 48261 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48210 - SPRING ASSY, REAR RH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48211 - LEAF, REAR SPRING, NO.1
48201-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48201-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-37C41

XZU710,720..T5

 2
48201-37C31

XZU710,720..T5

 2
48201-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-37C41

XZU710,720..T5

 2
48202-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48202-37C31

XZU710,720..T5

 2
48202-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48247-3V031

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-37C41

XZU710,720..T5;XZU700..6F..DCRTJ;XZU700..T4..DCRTK

 2
48247-37F91

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48213-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C41

XZU710,720..T5

 2
48213-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C31

XZU710,720..T5

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0W070

XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 2
48284-3B750

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 2

ILLUST NO. 2 OF 2(1107- )XZU700..DCRTL..CBU ; (1107- )XZU700..T3..DCRTL,DCRVU ; (1905- )XZU

Click highlighted areas on diagram

MAIN 7 + HELPER 6-LEAF

diagram 48191A 48210 48210C 48211 48212 48213 48214 48215 48216 48217 48220 48247 48251 48251 48251 48251 48251 48251 48251 48251 48251 48251 48251 48252A 48254 48254 48254 48254 48261 48262 48263 48264 48265 48266 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48210 - SPRING ASSY, REAR RH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48211 - LEAF, REAR SPRING, NO.1
48201-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48201-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-37C41

XZU710,720..T5

 2
48201-37C31

XZU710,720..T5

 2
48201-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-37C41

XZU710,720..T5

 2
48202-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48202-37C31

XZU710,720..T5

 2
48202-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48247-3V031

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-37C41

XZU710,720..T5;XZU700..6F..DCRTJ;XZU700..T4..DCRTK

 2
48247-37F91

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48213-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C41

XZU710,720..T5

 2
48213-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C31

XZU710,720..T5

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0W070

XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 2
48284-3B750

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 2

ILLUST NO. 2 OF 2(1107-1705)XZU720,730..40T ; (1209-1705)XZU710..40T..DCRTL ; (1209-1705)XZU720,730.

Click highlighted areas on diagram

MAIN 7 + HELPER 6-LEAF

diagram 48191A 48210 48210C 48210C 48211 48212 48213 48214 48215 48216 48217 48220 48247 48251 48253 48261 48262 48263 48264 48265 48266 48282 48282 48282 48282 48282 48282 48282 48282 48282 48282 48282 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48210 - SPRING ASSY, REAR RH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48211 - LEAF, REAR SPRING, NO.1
48201-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48201-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-37C41

XZU710,720..T5

 2
48201-37C31

XZU710,720..T5

 2
48201-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-37C41

XZU710,720..T5

 2
48202-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48202-37C31

XZU710,720..T5

 2
48202-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48247-3V031

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-37C41

XZU710,720..T5;XZU700..6F..DCRTJ;XZU700..T4..DCRTK

 2
48247-37F91

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48213-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C41

XZU710,720..T5

 2
48213-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C31

XZU710,720..T5

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0W070

XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 2
48284-3B750

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 2

ILLUST NO. 2 OF 2(1107-1705)XZU710..35T..IV3 ; (1107-1705)XZU710..T3..35T..CBU ; (1107-1705)XZU720..

Click highlighted areas on diagram

MAIN 2 + HELPER 3-LEAF

diagram 48191A 48210 48210C 48210C 48210C 48210C 48211 48212 48220 48247 48251 48251 48251 48251 48252 48252 48252 48252 48252B 48252B 48254 48261 48262 48263 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48192-37100

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48192-37100

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48210 - SPRING ASSY, REAR RH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48211 - LEAF, REAR SPRING, NO.1
48201-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48201-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48201-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48201-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-37C41

XZU710,720..T5

 2
48201-37C41

XZU710,720..T5

 2
48201-37C41

XZU710,720..T5

 2
48201-37C31

XZU710,720..T5

 2
48201-37C31

XZU710,720..T5

 2
48201-37C31

XZU710,720..T5

 2
48201-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-37C41

XZU710,720..T5

 2
48202-37C41

XZU710,720..T5

 2
48202-37C41

XZU710,720..T5

 2
48202-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48202-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48202-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48202-37C31

XZU710,720..T5

 2
48202-37C31

XZU710,720..T5

 2
48202-37C31

XZU710,720..T5

 2
48202-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48247-3V070

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48247-3V070

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48247-3V031

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-3V031

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-3V031

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-37C41

XZU710,720..T5;XZU700..6F..DCRTJ;XZU700..T4..DCRTK

 2
48247-37C41

XZU710,720..T5;XZU700..6F..DCRTJ;XZU700..T4..DCRTK

 2
48247-37C41

XZU710,720..T5;XZU700..6F..DCRTJ;XZU700..T4..DCRTK

 2
48247-37F91

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-37F91

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-37F91

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48214-37N60

XZU710,720..T5

 6
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48213-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48213-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48213-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C41

XZU710,720..T5

 2
48213-37C41

XZU710,720..T5

 2
48213-37C41

XZU710,720..T5

 2
48213-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C31

XZU710,720..T5

 2
48213-37C31

XZU710,720..T5

 2
48213-37C31

XZU710,720..T5

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0W070

XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 2
48284-0W070

XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 2
48284-0W070

XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 2
48284-3B750

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 2
48284-3B750

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 2
48284-3B750

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 2

ILLUST NO. 2 OF 2(1107-1209)XZU710,720,730..40T..DCRTL ; (1107-)40T..DCRTK,DCRVT ; (1107- )XZ

Click highlighted areas on diagram

MAIN 2 + HELPER 3-LEAF

diagram 48191A 48210 48210C 48210C 48210C 48210C 48211 48212 48220 48247 48251 48251 48251 48251 48252 48252 48252 48252 48252B 48252B 48253 48254 48254 48255 48255 48255 48261 48262 48263 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48210 - SPRING ASSY, REAR RH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48211 - LEAF, REAR SPRING, NO.1
48201-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48201-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-37C41

XZU710,720..T5

 2
48201-37C31

XZU710,720..T5

 2
48201-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-37C41

XZU710,720..T5

 2
48202-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48202-37C31

XZU710,720..T5

 2
48202-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48247-3V031

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-37C41

XZU710,720..T5;XZU700..6F..DCRTJ;XZU700..T4..DCRTK

 2
48247-37F91

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48213-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C41

XZU710,720..T5

 2
48213-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C31

XZU710,720..T5

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0W070

XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 2
48284-3B750

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 2

ILLUST NO. 2 OF 2(1107-1705)XZU710,720..30T..IV3 ; (1107-1705)XZU710,720..T3..30T..CBU ; (1705- )

Click highlighted areas on diagram

MAIN 2 + HELPER 2-LEAF

diagram 48191A 48210 48210C 48210C 48210C 48210C 48211 48212 48220 48247 48251 48251 48251 48252 48252 48252 48252 48252B 48252B 48253D 48253D 48254 48261 48262 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48192-37100

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 2
48210 - SPRING ASSY, REAR RH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
90389-16026

XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 8
48211 - LEAF, REAR SPRING, NO.1
48201-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48201-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48201-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-37C41

XZU710,720..T5

 2
48201-37C41

XZU710,720..T5

 2
48201-37C31

XZU710,720..T5

 2
48201-37C31

XZU710,720..T5

 2
48201-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48201-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-37C41

XZU710,720..T5

 2
48202-37C41

XZU710,720..T5

 2
48202-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48202-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48202-37C31

XZU710,720..T5

 2
48202-37C31

XZU710,720..T5

 2
48202-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48202-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-37C41

XZU710,720..T5

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48210-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48247-3V070

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48247-3V031

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-3V031

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-37C41

XZU710,720..T5;XZU700..6F..DCRTJ;XZU700..T4..DCRTK

 2
48247-37C41

XZU710,720..T5;XZU700..6F..DCRTJ;XZU700..T4..DCRTK

 2
48247-37F91

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48247-37F91

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48251 - SPACER, REAR SPRING LEAF
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
S4814-E0010

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48253-3V020

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252-37380

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37521

XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48252-37670

XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V080

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 6
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V070

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48254-3V080

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.2

 10
48214-37N60

XZU710,720..T5

 6
48214-37N60

XZU710,720..T5

 6
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48264-37N60

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T4..20T..IV3;XZC710,XZU700..T4..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ,NO.1

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48213-37C40

XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

 2
48213-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C41

XZU710,720..T5

 2
48213-37C41

XZU710,720..T5

 2
48213-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48213-37C31

XZU710,720..T5

 2
48213-37C31

XZU710,720..T5

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V470

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48214-3V471

XZU710..T5;XZU720..T5..CBU;XZU720..20T..IV3;XZC710,XZU700,710..T4..20T..IV3

ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0W070

XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 2
48284-0W070

XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T

 2
48284-3B750

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 2
48284-3B750

XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)

 2

ILLUST NO. 1 OF 2(1107- )XZC710,XZU700,710,720..20T..DCRTJ,DCRTK,DCRTL

Click highlighted areas on diagram

ｼｬｯｸﾙﾌﾞｼｭ=ﾗﾊﾞｰﾀｲﾌﾟ

diagram 48042 48046 48046A 48046A 48047 48210Q 48210Q 48344 48422A 48435 48435 48475R 48481 48516 48517 48530 48530B 48530B 48540 9003204031 9010516021 9010516070 9010516070 9011912088 9011912088 9017016016 9017016016 9017818002 9020116035 9020116035 9111281025 91651B0820 9413001002 9418401001 9418401001 9418401001
Part # Description Qty Price
48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2
48042-37020

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-37111

XZU720,730..T4,T5;XZU720..T3..DCRTK;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..(T3,T4)..(20T,30T,35T)

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-18014

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

長さ=320

 4
90117-18018

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

長さ=360,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-18014

XZU700..6F..DCRTJ;XZU700..T4..DCRTK;XZU710..T5..DCRTL..IV3;XZU710,720..T5..(DCRTJ,DCRTK)

長さ=320

 4
90117-18018

XZU720..T5..CBU;XZU720..20T..IV3;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..T4..20T..IV3

長さ=360,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-37111

XZU720,730..T4,T5;XZU720..T3..DCRTK;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..(T3,T4)..(20T,30T,35T)

 1
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90389-16026

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 4
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90389-16026

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 4
48344 - STOPPER, BUMPER, REAR
48344-37270

XZU710..T5..DCRTL..IV3;XZU710,720..(T3,T5)..(20T,35T)..(DCRTJ,DCRTK)

 2
48422A - SUPPORT, REAR SPRING PIN
48422-37010

XZU775;XZC710,XZU700,720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 2
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48306-E0280

XZU720..20T;XZC710,XZU700;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 4
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48306-E0280

XZU720..20T;XZC710,XZU700;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZU710..20T..(DCRTJ,DCRTK)

 4
48481 - SEAT, REAR SPRING, UPPER
48481-37120

XZC710,XZU700;XZU720,730..T4,T5;XZU720..T3..DCRTK;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZU710..(T3,T4)..(20T,30T,35T)

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-37052

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-37052

XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-37290

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

ﾏｰｸ 48531−37290

 1
48531-37291

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

ﾏｰｸ 48531−37291

 1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-37290

XZU720..20T;XZU710..T4..20T..DCRTL;XZU710..T5..DCRTL..IV3;XZC710,XZU700..DCRTJ,DCRTK;XZU710..20T..(DCRTJ,DCRTK)

ﾏｰｸ 48531−37290

 1
48531-37291

XZU710,720..20T;XZC710,XZU700..DCRTJ,DCRTK

ﾏｰｸ 48531−37291

 1
Common parts
90032-04031
90105-16021
90105-16070
90119-12088
90170-16016
90178-18002
90201-16035
91112-81025
91651-B0820
94130-01002
94184-01001
