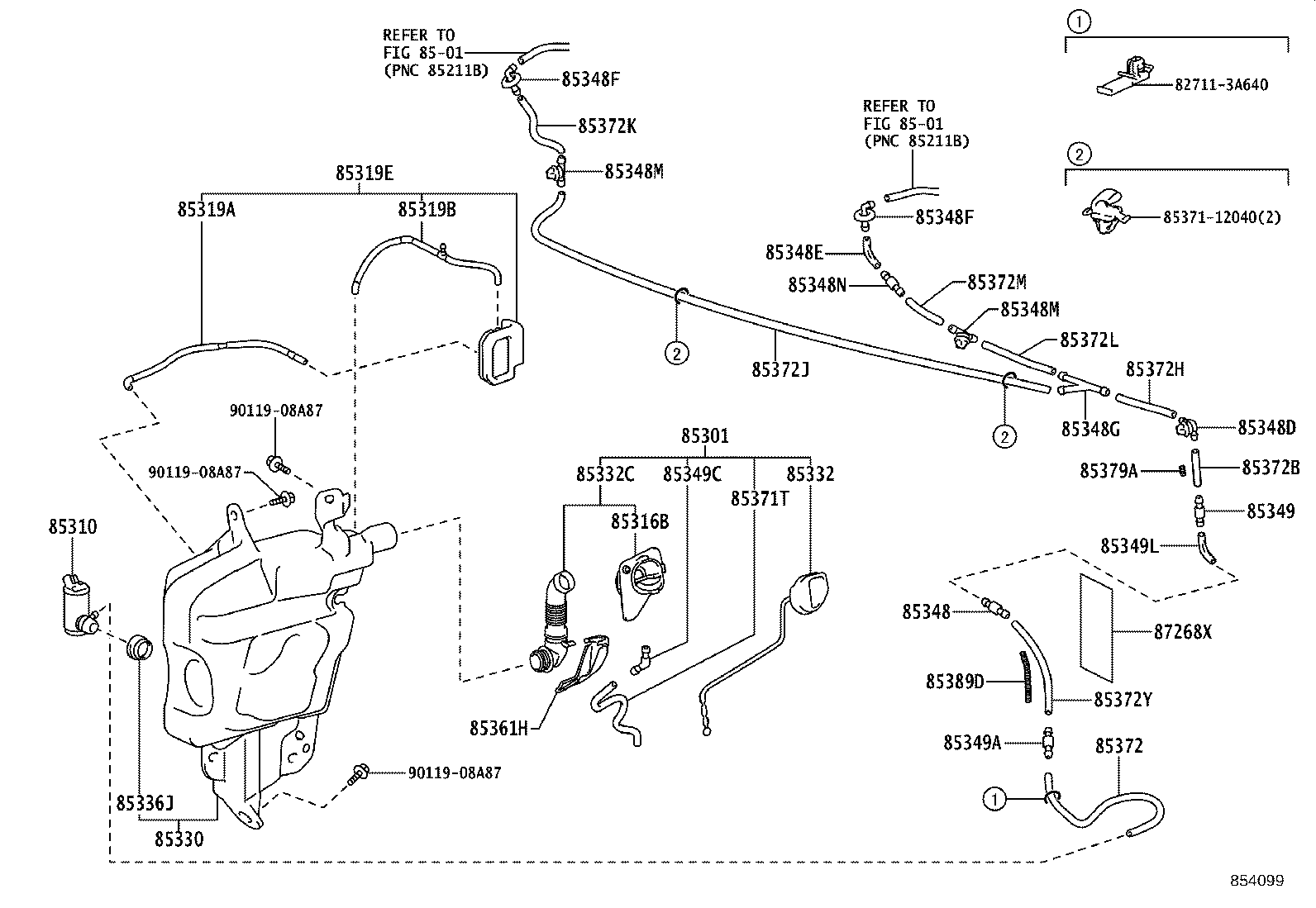

XZU720-TPFMX3 (2019)
Toyota Dyna/Toyoace
(1905- )XZC710,XZU70#,71#,72#,73#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-37070 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-90B00 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85310-90B00 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85316B - CAP, WASHER, INLET | ||||
| 85386-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85319-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85319-37150 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85319-37150 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85319E - INLET WASHER | ||||
| 85318-37150 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85318-37150 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-37150 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85315-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-37071 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85332C - CAP, FRONT WASHER TANK | ||||
| 85386-37070 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 90099-32089 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 90099-32089 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-12520 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85375-33070 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-14481 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-12250 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-12520 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85377-50110 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85349L - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85361H - BRACKET, WASHER | ||||
| 85361-37050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 90446-06013 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO *H,L=130,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 90446-06013 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=130 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=310 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-07001 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=35 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=420 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=1020 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=75 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=160 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33299 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=35 |
1 | ||
| 85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85379A - SPRING, WINDSHIELD WASHER HOSE | ||||
| 85389-37270 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85389D - SPRING(WASHER HOSE) | ||||
| 85389-37260 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 87268X - PROTECTOR | ||||
| 87268-37110 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 82711-3A640 | ||||
| 85371-12040 | ||||
| 90119-08A87 | ||||
| Linked diagrams | ||||
| 8501 | ||||

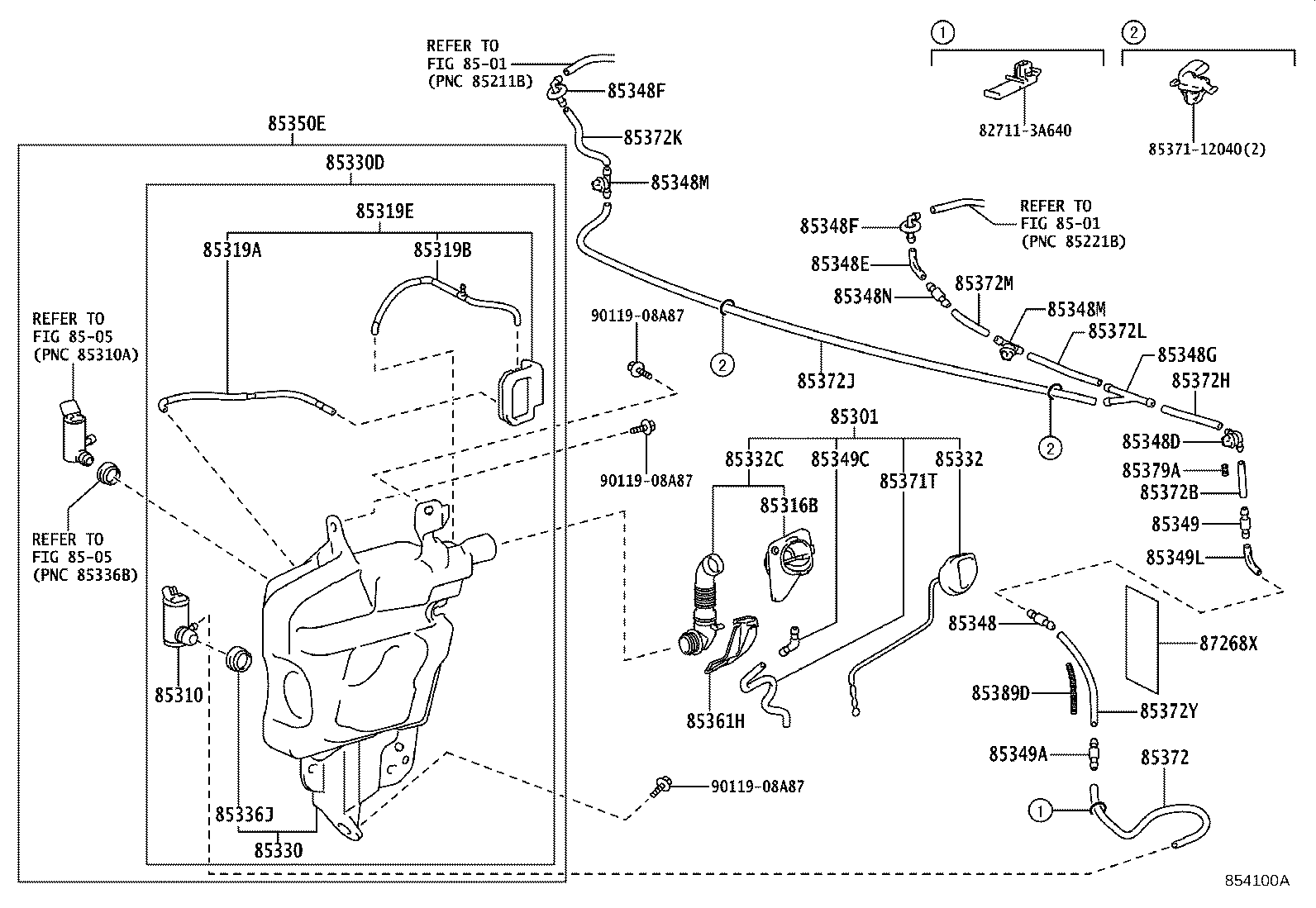

(1905- )
W(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-37070 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-90B00 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85310-90B00 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85316B - CAP, WASHER, INLET | ||||
| 85386-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85319-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85319-37150 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85319-37150 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85319E - INLET WASHER | ||||
| 85318-37150 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85318-37150 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-37150 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85315-37200 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85330D - JAR ASSY, WASHER | ||||
| 85355-37023 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-37071 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85332C - CAP, FRONT WASHER TANK | ||||
| 85386-37070 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 90099-32089 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 90099-32089 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-12520 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85375-33070 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-14481 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-12250 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-12520 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85377-50110 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85349L - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85350E - JAR & PUMP ASSY, HEADLAMP CLEANER | ||||
| 85350-37023 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85361H - BRACKET, WASHER | ||||
| 85361-37050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 90446-06013 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO *H,L=130,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 90446-06013 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=130 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=310 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-07001 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=35 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=420 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=1020 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=75 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=160 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33299 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO *H,L=35 |
1 | ||
| 85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85379A - SPRING, WINDSHIELD WASHER HOSE | ||||
| 85389-37270 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85389D - SPRING(WASHER HOSE) | ||||
| 85389-37260 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 87268X - PROTECTOR | ||||
| 87268-37110 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 82711-3A640 | ||||
| 85371-12040 | ||||
| 90119-08A87 | ||||
| Linked diagrams | ||||
| 8501 | ||||
| 8505 | ||||
