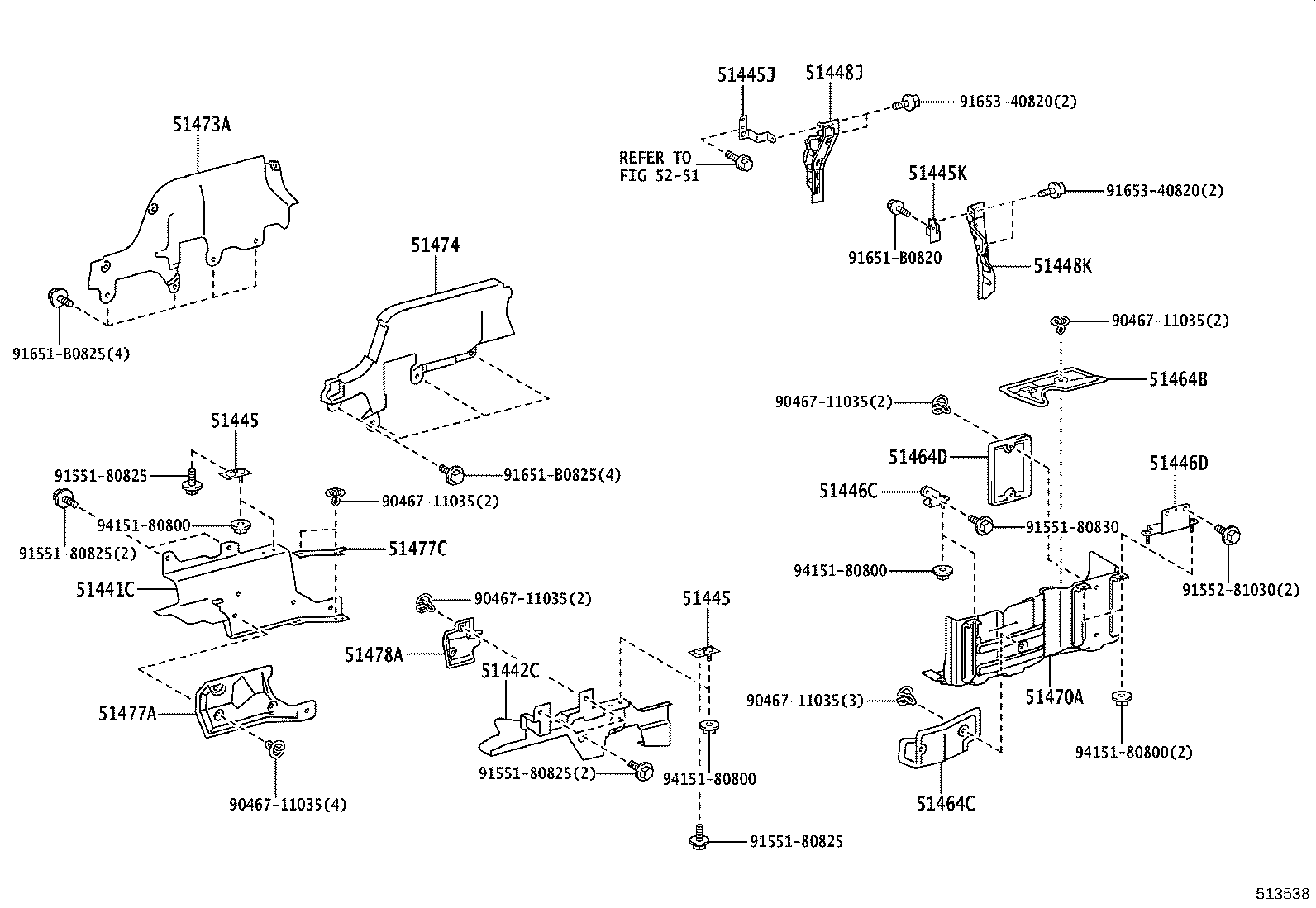

XZU720-TKFSF3 (2019)
Toyota Dyna/Toyoace
(1905- )XZC710,XZU70#,71#,72#..SCB..DCRWD,DCVTO ; (2103- )XZC710,XZU70#,71#,7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-37790 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-37080 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51448B - SHUTTER, ENGINE REAR SIDE | ||||
| 51448-37201 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51454A - SILENCER, ENGINE REAR COVER | ||||
| 51454-37241 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37290 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37251 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477A - SILENCER, ENGINE UNDER COVER, RH | ||||
| 51477-37040 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477C - SILENCER, ENGINE UNDER COVER, LOWER RH | ||||
| 51477-37050 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51478A - SILENCER, ENGINE UNDER COVER, LH | ||||
| 51478-37210 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| Common parts | ||||
| 90467-11035 | ||||
| 91551-80825 | ||||
| 91651-B0825 | ||||
| 91653-40820 | ||||
| 94151-80800 | ||||
(1905- )DCVUO ; (2103- )DCVUO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-37790 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-37080 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51446C - BRACKET, ENGINE UNDER COVER, LH | ||||
| 51446-37290 |
XZU710,720..(35T,40T)..DCVUO..IV3 ﾊﾞｯﾃﾘ−130F51L X 2 |
1 | ||
| 51446-37280 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51446D - BRACKET, ENGINE UNDER COVER, LH NO.2 | ||||
| 51446-37290 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51446-37300 |
XZU710,720..(35T,40T)..DCVUO..IV3 ﾊﾞｯﾃﾘ−130F51L X 2 |
1 | ||
| 51448B - SHUTTER, ENGINE REAR SIDE | ||||
| 51448-37201 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51454A - SILENCER, ENGINE REAR COVER | ||||
| 51454-37241 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51464B - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37180 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51464C - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37190 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51464D - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37200 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51470A - COVER ASSY, TRANSMISSION UNDER, LH | ||||
| 51470-37330 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37290 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37251 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477A - SILENCER, ENGINE UNDER COVER, RH | ||||
| 51477-37040 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477C - SILENCER, ENGINE UNDER COVER, LOWER RH | ||||
| 51477-37050 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51478A - SILENCER, ENGINE UNDER COVER, LH | ||||
| 51478-37210 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| Common parts | ||||
| 90467-11035 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91552-81030 | ||||
| 91651-B0825 | ||||
| 91653-40820 | ||||
| 94151-80800 | ||||
(1905- )20T..DCVUO ; (1905- )XZU700,712,722,73#..DCVUO ; (1905- )XZU710,72
ﾅｼ(ｼｬｵﾝｶﾊﾞｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-37790 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51441-37790 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-37080 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51442-37080 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51445J - BRACKET, ENGINE REAR COVER, RH | ||||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445-37C40 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51445-37C40 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445K - BRACKET, ENGINE REAR COVER, LH | ||||
| 51445-37C50 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51445-37C50 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51446C - BRACKET, ENGINE UNDER COVER, LH | ||||
| 51446-37290 |
XZU710,720..(35T,40T)..DCVUO..IV3 ﾊﾞｯﾃﾘ−130F51L X 2 |
1 | ||
| 51446-37290 |
XZU710,720..(35T,40T)..DCVUO..IV3 ﾊﾞｯﾃﾘ−130F51L X 2 |
1 | ||
| 51446-37280 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51446-37280 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51446D - BRACKET, ENGINE UNDER COVER, LH NO.2 | ||||
| 51446-37290 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51446-37290 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51446-37300 |
XZU710,720..(35T,40T)..DCVUO..IV3 ﾊﾞｯﾃﾘ−130F51L X 2 |
1 | ||
| 51446-37300 |
XZU710,720..(35T,40T)..DCVUO..IV3 ﾊﾞｯﾃﾘ−130F51L X 2 |
1 | ||
| 51448J - SHUTTER, ENGINE REAR SIDE, RH | ||||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448-37170 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51448-37170 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448K - SHUTTER, ENGINE REAR SIDE, LH | ||||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37180 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51448-37180 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51464B - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37180 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51464-37180 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51464C - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37190 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51464-37190 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51464D - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37200 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51464-37200 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51470A - COVER ASSY, TRANSMISSION UNDER, LH | ||||
| 51470-37330 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51470-37330 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37290 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51473-37290 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37251 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51474-37251 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477A - SILENCER, ENGINE UNDER COVER, RH | ||||
| 51477-37040 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477-37040 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477C - SILENCER, ENGINE UNDER COVER, LOWER RH | ||||
| 51477-37050 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477-37050 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51478A - SILENCER, ENGINE UNDER COVER, LH | ||||
| 51478-37210 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51478-37210 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| Common parts | ||||
| 90467-11035 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91552-81030 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 91653-40820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5251 | ||||
(1905- )XZU710,720..35T,40T..DCVUO..IV3 ; (2103- )XZU710,720..35T,40T..DCVUO.
ﾅｼ(ｼｬｵﾝｶﾊﾞｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-37790 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-37080 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51445J - BRACKET, ENGINE REAR COVER, RH | ||||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445-37C40 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445K - BRACKET, ENGINE REAR COVER, LH | ||||
| 51445-37C50 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51446C - BRACKET, ENGINE UNDER COVER, LH | ||||
| 51446-37290 |
XZU710,720..(35T,40T)..DCVUO..IV3 ﾊﾞｯﾃﾘ−130F51L X 2 |
1 | ||
| 51446-37280 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51446D - BRACKET, ENGINE UNDER COVER, LH NO.2 | ||||
| 51446-37290 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51446-37300 |
XZU710,720..(35T,40T)..DCVUO..IV3 ﾊﾞｯﾃﾘ−130F51L X 2 |
1 | ||
| 51448J - SHUTTER, ENGINE REAR SIDE, RH | ||||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448-37170 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448K - SHUTTER, ENGINE REAR SIDE, LH | ||||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37180 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51464B - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37180 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51464C - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37190 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51464D - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37200 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51470A - COVER ASSY, TRANSMISSION UNDER, LH | ||||
| 51470-37330 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37290 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37251 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477A - SILENCER, ENGINE UNDER COVER, RH | ||||
| 51477-37040 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477C - SILENCER, ENGINE UNDER COVER, LOWER RH | ||||
| 51477-37050 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51478A - SILENCER, ENGINE UNDER COVER, LH | ||||
| 51478-37210 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| Common parts | ||||
| 90467-11035 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91552-81030 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 91653-40820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5251 | ||||
(1905- )XZC710,XZU70#,71#,72#..SCB..DCRWD,DCVTO ; (2103- )XZC710,XZU70#,71#,7
ﾅｼ(ｼｬｵﾝｶﾊﾞｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-37790 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-37080 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 51445J - BRACKET, ENGINE REAR COVER, RH | ||||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445-37C40 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51445-37C40 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445K - BRACKET, ENGINE REAR COVER, LH | ||||
| 51445-37C50 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445-37C50 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448J - SHUTTER, ENGINE REAR SIDE, RH | ||||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448-37170 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448K - SHUTTER, ENGINE REAR SIDE, LH | ||||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37180 |
XZU700..DM7;XZU720..40T..DCVUO..IV3 高所作業車仕様 |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..DCVUO 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448-37180 |
XZU700,71#,72#,73#..(T3,T4,T5)..DCVUO..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37290 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37251 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477A - SILENCER, ENGINE UNDER COVER, RH | ||||
| 51477-37040 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51477C - SILENCER, ENGINE UNDER COVER, LOWER RH | ||||
| 51477-37050 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 51478A - SILENCER, ENGINE UNDER COVER, LH | ||||
| 51478-37210 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| Common parts | ||||
| 90467-11035 | ||||
| 91551-80825 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 91653-40820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5251 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
