XZU720-TKFSF3 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(1905- )XZU71#,72#,73#..30T,35T,40T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37060 |
XZU71#,72#,73#..DCVUO |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18018 |
XZU720..40T..DCVUO..IV3 長さ=360,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 90117-18017 |
XZU710,720,730..40T..DCVUO 長さ=350 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18018 |
XZU720..40T..DCVUO..IV3 長さ=360,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 90117-18017 |
XZU710,720,730..40T..DCVUO 長さ=350 |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37220 |
XZU700..DM6,DM7;XZU710,720,730..40T..DCVUO |
2 | ||
| 48344-37280 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48405A - BRACKET SUB-ASSY, SPRING, NO.4 RH | ||||
| 48405-37010 |
XZU71#,72#,73#..DCVUO |
1 | ||
| 48406 - BRACKET SUB-ASSY, SPRING, NO.4 LH | ||||
| 48406-37010 |
XZU71#,72#,73#..DCVUO |
1 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
XZU71#,72#,73#..(30T,35T,40T)..DCVUO |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
XZU71#,72#,73#..(30T,35T,40T)..DCVUO |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48442-37080 |
XZU71#,72#,73#..DCVUO |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37100 |
XZU710,720,730..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 4ﾄﾝｵｰﾊﾞｰ ﾃﾝｼｮﾝ |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37130 |
XZU720..40T..DCVTO;XZU72#,73#..T3..DCVUO;XZU710..40T..(DCVTO,DCVUO) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37052 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37052 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37460 |
XZU710,720,730..40T..DCVUO ﾏｰｸ 48531−37460 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37460 |
XZU710,720,730..40T..DCVUO ﾏｰｸ 48531−37460 |
1 | ||
| Common parts | ||||
| 90105-16070 | ||||
| 90119-12088 | ||||
| 90178-14002 | ||||
| 90178-16007 | ||||
| 90178-18002 | ||||
| 91552-81030 | ||||
| 91552-L1445 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||
ILLUST NO. 2 OF 2(1905- )XZU71#..30T,35T ; (1905- )XZU72#,73#..T4..30T,35T ; (1905- )XZU72#
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37K31 |
XZU720..40T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37W90 |
XZU710,720,730..40T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37K31 |
XZU720..40T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37W90 |
XZU710,720,730..40T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37N30 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48247-37K31 |
XZU71#..40T..(DCRWD,DCVTO);XZU720..40T..(DCVTO,DCVUO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU700,710,720,730..T3..40T..DCVUO |
6 | ||
| 48267-3V150 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU700,710,720,730..T3..40T..DCVUO |
6 | ||
| 48267-3V150 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| S4814-E0010 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48282-37V60 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48213-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU700,71#,72#,73#..DCVUO |
2 | ||

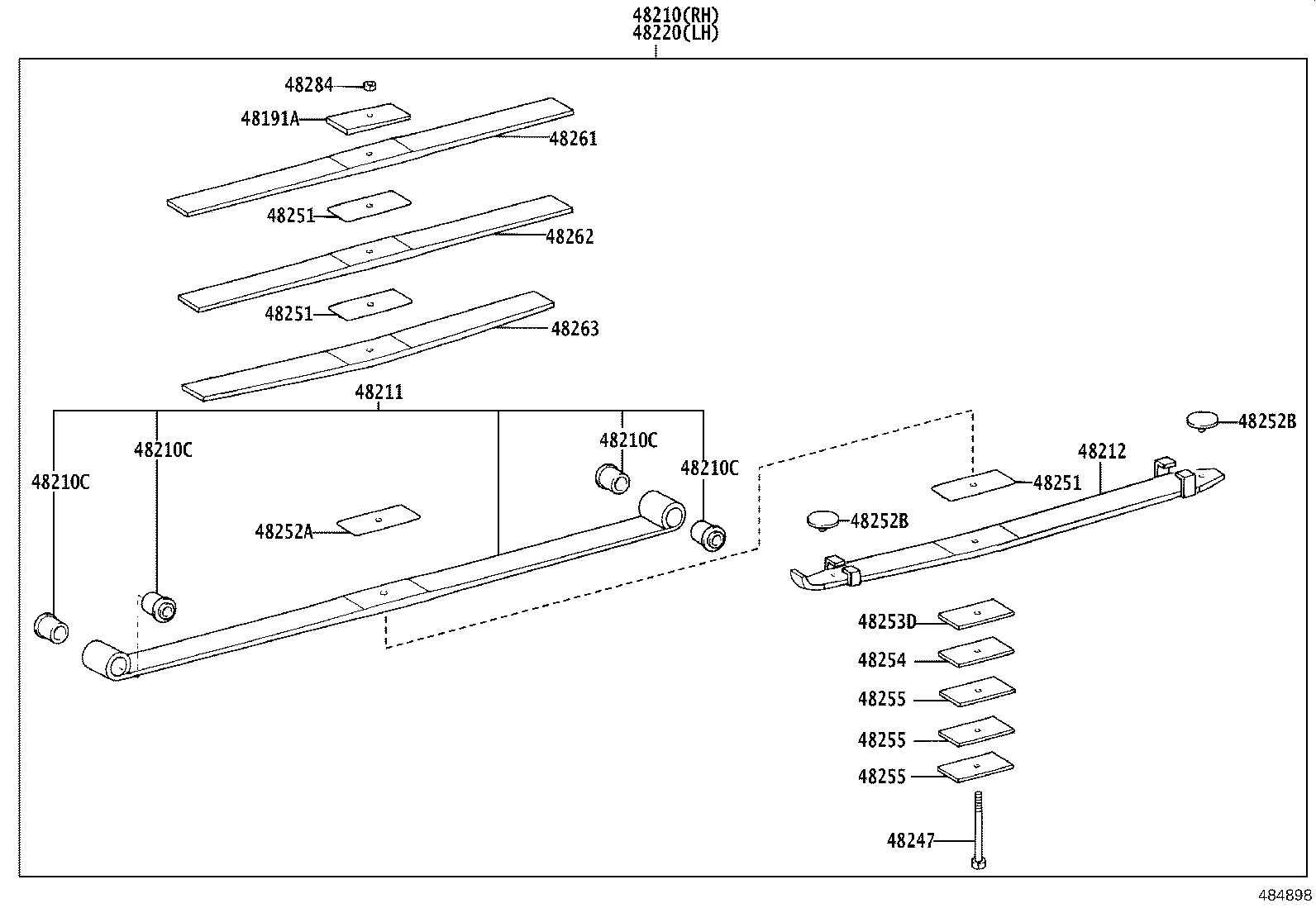

ILLUST NO. 2 OF 2(1905- )XZU710,720,730..40T..DCVUO
MAIN 2 + HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37K31 |
XZU720..40T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37W90 |
XZU710,720,730..40T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37K31 |
XZU720..40T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37W90 |
XZU710,720,730..40T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37N30 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48247-37K31 |
XZU71#..40T..(DCRWD,DCVTO);XZU720..40T..(DCVTO,DCVUO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU700,710,720,730..T3..40T..DCVUO |
6 | ||
| 48267-3V150 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU700,710,720,730..T3..40T..DCVUO |
6 | ||
| 48267-3V150 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU700,710,720,730..T3..40T..DCVUO |
6 | ||
| 48267-3V150 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| S4814-E0010 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48282-37V60 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-37L51 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48218-3V140 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48215-37G30 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48215-37G30 |
XZU710,720,730..40T..DCVUO |
6 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48215-37G30 |
XZU710,720,730..40T..DCVUO |
6 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48215-37G30 |
XZU710,720,730..40T..DCVUO |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48213-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48215-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48263-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU700,71#,72#,73#..DCVUO |
2 | ||

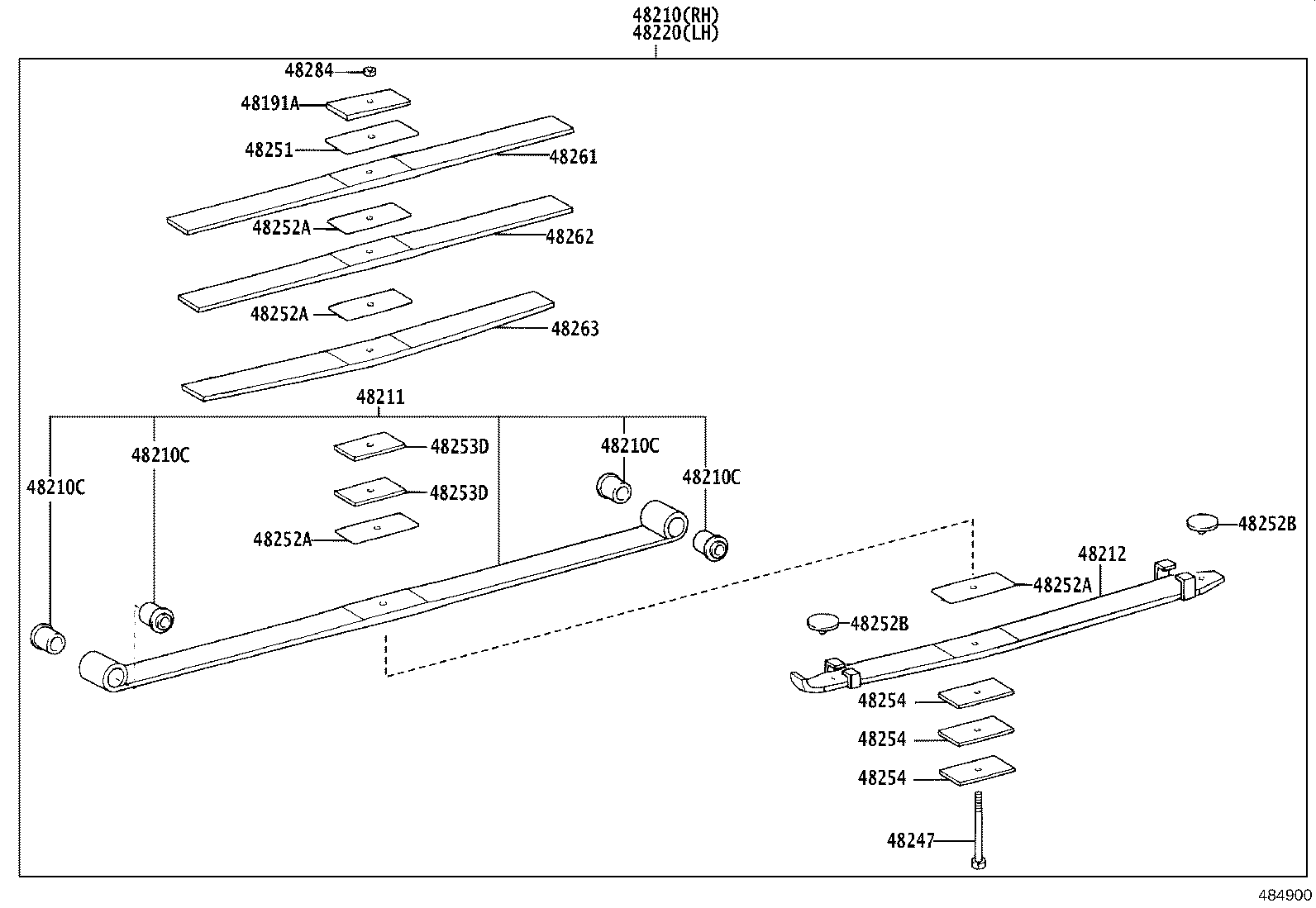

ILLUST NO. 2 OF 2(1905- )XZU712..40T ; (1905- )XZU710..40T..DCVTO ; (1905- )XZU720..40T..DC
MAIN 2 + HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37K31 |
XZU720..40T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37W90 |
XZU710,720,730..40T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37K31 |
XZU720..40T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37W90 |
XZU710,720,730..40T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37N30 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48247-37K31 |
XZU71#..40T..(DCRWD,DCVTO);XZU720..40T..(DCVTO,DCVUO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU700,710,720,730..T3..40T..DCVUO |
6 | ||
| 48267-3V150 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| S4814-E0010 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48282-37V60 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| S4814-E0010 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48282-37V60 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| S4814-E0010 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48282-37V60 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| S4814-E0010 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48282-37V60 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-37L51 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48218-3V140 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-37L51 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48218-3V140 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48215-37G30 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48215-37G30 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48215-37G30 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48213-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48215-37K31 |
XZU720..40T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48263-37W90 |
XZU710,720,730..40T..DCVUO |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
