XZU720-TKFRC (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 52091A 52091A 52091A 52092A 52092A 52092A 52093 52093 52093 52093 52094 52094 52094 52094 52907 52908 52911 52911 9020111369 9020111369 9020111369 9054110058 9111141060 9111141060 9111141065 9111152020 9111152020 9111152020 9111152020 9161141020 9165141020 9165141020 9411041000 9411041000 9411041000 9411041000 9418041000 9418041000 9418041000 9418041000 9451201000 9451201000 9451201000 9451201000
Part # Description Qty Price
Common parts
90201-11369
90541-10058
91111-41060
91111-41065
91111-52020
91611-41020
91651-41020
94110-41000
94180-41000
94512-01000

(1107-1705)XZU720..CBU ; (1705- )XZU72#..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU..CBU

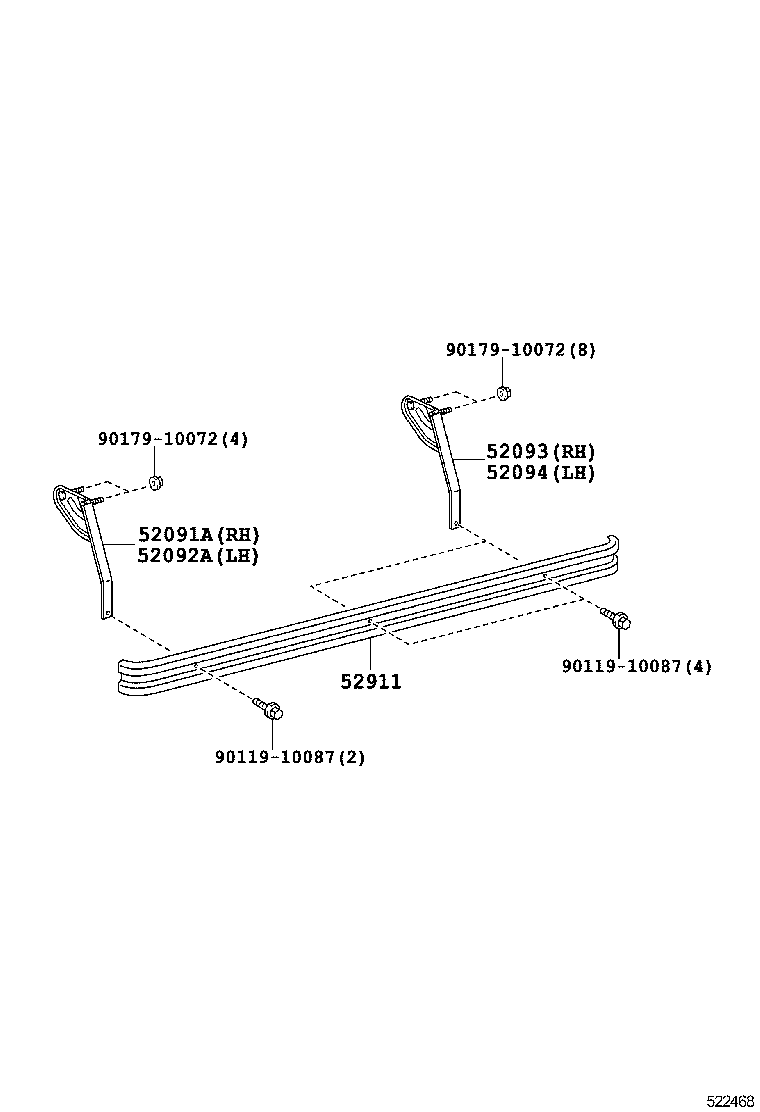

Click highlighted areas on diagram

diagram 52091A 52092A 52093 52094 52911 9011910087 9011910087 9017910072 9017910072
Part # Description Qty Price
52091A - STAY SUB-ASSY, SIDE BUMPER, FRONT RH
52091-37A50

XZU720..(T3,T5)..CBU;XZU710..T3..DCRTL..CBU;XZU700,710,775..SCB..(T3,T5)..(DCRTJ,DCRTK)..CBU

 1
52092A - STAY SUB-ASSY, SIDE BUMPER, FRONT LH
52092-37880

XZU720..(T3,T5)..CBU;XZU710..T3..DCRTL..CBU;XZU700,710,775..(T3,T5)..(DCRTJ,DCRTK)..CBU

 1
52093 - STAY SUB-ASSY, SIDE BUMPER, REAR RH
52093-37200

XZU720..(T3,T5)..CBU

 2
52094 - STAY SUB-ASSY, SIDE BUMPER, REAR LH
52092-37880

XZU720..(T3,T5)..CBU

 2
52911 - BAR, SIDE BUMPER
52901-37290

XZU720..(20T,30T,35T)..CBU

 2
Common parts
90119-10087
90179-10072
