Toyota Dyna/toyoace XZU720 FRAME

XZU720-TKFRC (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8409- )BU6#,7#,8#,90,93,95

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 2 OF 3(8409- )BU6#,7#,8#,90,93,95

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 3 OF 3(8409- )BU6#,7#,8#,90,93,95

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-10086
90105-10123
90105-12002
90109-12024
90170-10082
90170-12018
90201-10203
90201-10489
90201-12002
91112-71030
91161-51235
91161-71235
91162-71230
91165-71235
94115-51200
94184-01000
94512-01200
94611-11001
94611-11200
94621-11200

ILLUST NO. 3 OF 4(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90101-12172
90105-10123
90105-10166
90105-12002
90109-12024
90170-10082
90170-12018
90170-12028
90201-10203
90201-10344
90201-10489
90201-12002
90201-12033
91112-71030
91161-71235
91162-71230
91162-71240
91165-71235
94110-51000
94115-51200
94184-01000
94512-01200
94611-11001
94621-11200
Linked diagrams
5352

ILLUST NO. 1 OF 4(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-10123
90170-12018
90201-10344
90201-10489
91112-71035
91161-51235
94184-01000
94512-01200
94611-11200

ILLUST NO. 2 OF 4(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 1 OF 4(1107-1705)XZU720..6F..30T,35T,40T

Click highlighted areas on diagram

Part #	Description	Period	Qty
48411B - BRACKET, SPRING, NO.1 RH
48411-37110	XZU710,720,730..30T,35T,40T	07/2011 - 05/2017	1
48412C - BRACKET, SPRING, NO.1 LH
48412-37100	XZU710,720,730..30T,35T,40T	07/2011 - 05/2017	1
48414D - BRACKET, SPRING, NO.3
48414-37200	XZU710,720,730..30T,35T,40T	07/2011 - 05/2017	2
48414D - BRACKET, SPRING, NO.3
48414-37200	XZU710,720,730..30T,35T,40T	07/2011 - 05/2017	2
48418B - BRACKET, SPRING, NO.6
48418-37050	XZU710,720,730..30T,35T,40T	07/2011 - 05/2017	2
48418B - BRACKET, SPRING, NO.6
48418-37050	XZU710,720,730..30T,35T,40T	07/2011 - 05/2017	2
48419A - BRACKET, SPRING, NO.7
48419-37040	XZU710,720,730..30T,35T,40T 右側	07/2011 - 05/2017	1
48419-37050	XZU710,720,730..30T,35T,40T 左側	07/2011 - 05/2017	1
48419A - BRACKET, SPRING, NO.7
48419-37040	XZU710,720,730..30T,35T,40T 右側	07/2011 - 05/2017	1
48419-37050	XZU710,720,730..30T,35T,40T 左側	07/2011 - 05/2017	1
48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER
48512-37080	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	2
48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER
48512-37080	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	2
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37470	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37450	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37240	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37190	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51100F - FRAME SUB-ASSY
51001-3VU40	XZU720..6F..(30T,35T)..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2
51155-37090	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	2
51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2
51155-37090	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	2
51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3
51155-37210	XZU710,720,730..30T,35T,40T	07/2011 - 05/2017	2
51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3
51155-37210	XZU710,720,730..30T,35T,40T	07/2011 - 05/2017	2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37200	XZU710,720,730..30T,35T,40T	07/2011 - 05/2017	2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37200	XZU710,720,730..30T,35T,40T	07/2011 - 05/2017	2
51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37351	XZC710,XZU700,710,720..MTM..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51211A - CROSSMEMBER, FRAME, FRONT
51211-37130	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51221C - CROSSMEMBER, FRAME, NO.2
51221-37200	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51241B - CROSSMEMBER, FRAME, NO.4
51241-37070	XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51261 - CROSSMEMBER, FRAME, NO.6
51261-37060	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51271A - CROSSMEMBER, FRAME, NO.7
51271-37010	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51291 - CROSSMEMBER, FRAME, REAR
51291-37100	XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
Common parts
90105-12355
90178-12005
90178-14002
91552-L1445

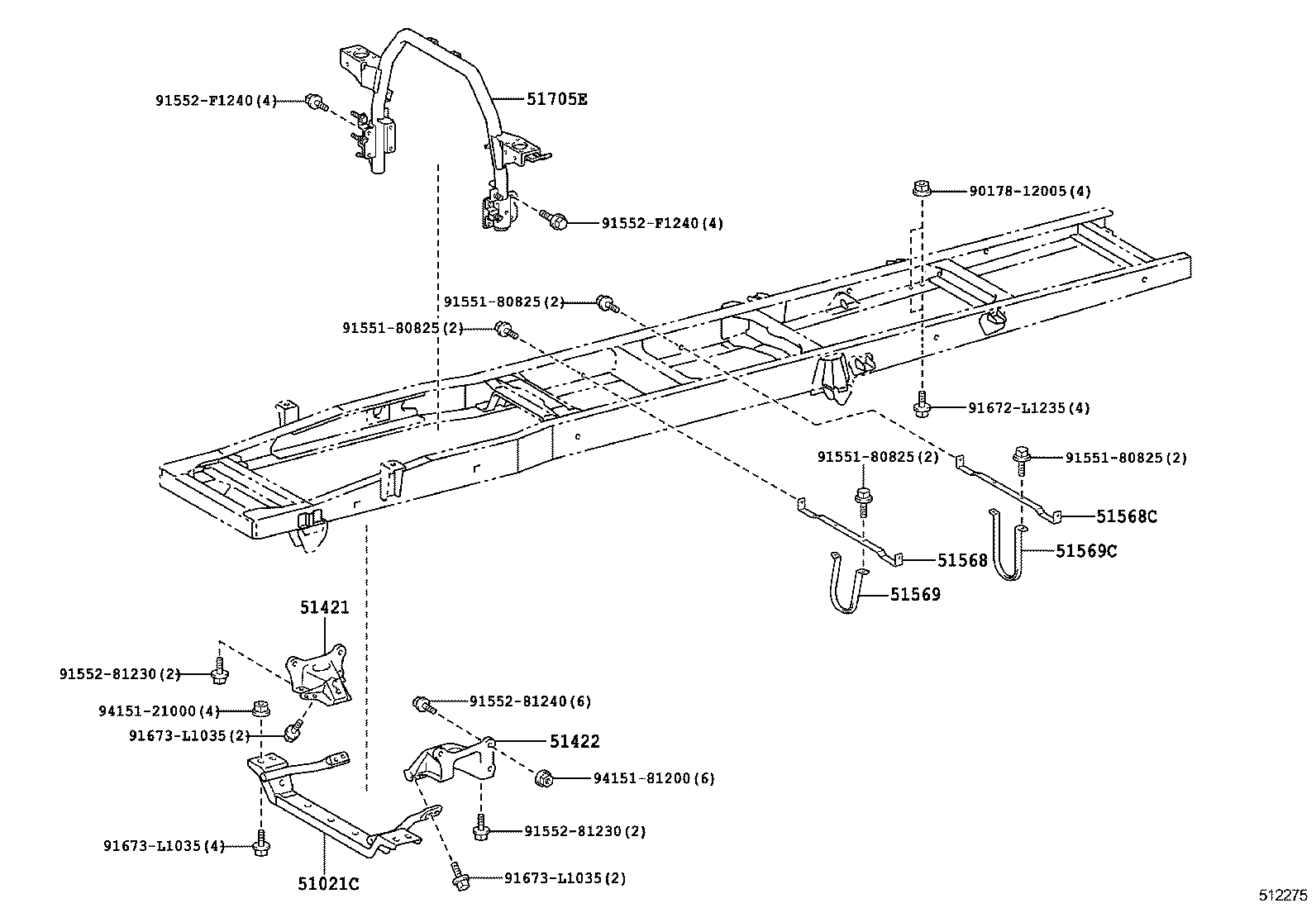

ILLUST NO. 2 OF 4(1107-1705)XZU720

Click highlighted areas on diagram

Part #	Description	Period	Qty
51021C - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-37030	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51421 - BRACKET, ENGINE FRONT MOUNTING, RH
51421-37230	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51422 - BRACKET, ENGINE FRONT MOUNTING, LH
51422-37230	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37231	XZC710,XZU720;XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51568C - BRACKET, PROPELLER SHAFT GUARD
51568-37360	XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51569 - GUARD, PROPELLER SHAFT
51569-37310	XZU710..T3,T4;XZC710,XZU720,775;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51569C - GUARD, PROPELLER SHAFT
51569-37300	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING
51705-37720	XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
Common parts
90178-12005
91551-80825
91552-81230
91552-81240
91552-F1240
91672-L1235
91673-L1035
94151-21000
94151-81200

ILLUST NO. 3 OF 4(1107- )DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU

Click highlighted areas on diagram

ﾌﾛﾝﾄﾌｯｸ

Part #	Description	Period	Qty
51961E - HOOK, FRONT
51961-37120	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775	07/2011 - 05/2017	1
51961E - HOOK, FRONT
51961-37120	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775	07/2011 - 05/2017	1
51961E - HOOK, FRONT
51961-37120	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775	07/2011 - 05/2017	1
51962C - RETAINER, FRONT HOOK
51962-37050	XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) 牽引ﾌｯｸ−ﾌﾛﾝﾄのみ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP)	07/2011 - 05/2017	1
51962-37050	XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) 牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP)	07/2011 - 05/2017	1
51963A - HOOK, TRANSPORT, FRONT RH
51963-37030	XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51963A - HOOK, TRANSPORT, FRONT RH
51963-37030	XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51963C - RETAINER, FRONT HOOK, LH
51963-37040	XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) 牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP)	07/2011 - 05/2017	1
51963-37040	XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) 牽引ﾌｯｸ−ﾌﾛﾝﾄのみ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP)	07/2011 - 05/2017	1
51964A - HOOK, TRANSPORT, FRONT LH
51964-37040	XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
51964A - HOOK, TRANSPORT, FRONT LH
51964-37040	XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
Common parts
90178-14007
91672-01460
94125-41400

ILLUST NO. 3 OF 4(1107- )DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU

Click highlighted areas on diagram

ﾘﾔﾌｯｸ

Part #	Description	Period	Qty
51961J - HOOK, REAR
51961-36040	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) 牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)	07/2011 - 05/2017	1
51961-36040	XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) 牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)	07/2011 - 05/2017	1
51961J - HOOK, REAR
51961-36040	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) 牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)	07/2011 - 05/2017	1
51961-36040	XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) 牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)	07/2011 - 05/2017	1
51961J - HOOK, REAR
51961-36040	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) 牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し)	07/2011 - 05/2017	1
51961-36040	XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730,775..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) 牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)	07/2011 - 05/2017	1
Common parts
90179-14007
91672-01460
94130-01402

ILLUST NO. 4 OF 4(1107- )

Click highlighted areas on diagram

ﾘﾍﾞｯﾄ

Part #	Description	Period	Qty	Price
Common parts
90032-60013
90260-11001
95121-01024
95121-01026
95121-01028
95121-01032
95121-01036
95121-01038
SM112-01334
SZ260-11011
SZ260-11012
