Toyota Dyna/toyoace XZU720 PARKING BRAKE & CABLE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU720-TKFRC (2011)
4601 - PARKING BRAKE & CABLE

XZU720-TKFRC (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10338
90119-10339
90119-10398
94613-11200

ILLUST NO. 1 OF 3(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-08123
90461-08225
90468-08001
91651-40814
91651-40820
94120-40600
94180-41000
95381-02520

ILLUST NO. 2 OF 3(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-10642
90461-10645
90461-12086
90949-01169
90949-01170
91611-60816
91611-60820
91651-40825
94110-40800

ILLUST NO. 3 OF 3(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
46540-36010
46550-36010
46601-25011
90119-10338
94613-11200

ILLUST NO. 1 OF 3(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-08123
90461-08225
90468-08001
91651-40814
91651-40820
91651-40825
94180-41000
95381-02520

ILLUST NO. 3 OF 3(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10338
94613-11200

ILLUST NO. 1 OF 2(1107- )XZU700,710,720..30T,35T,40T..DCRTJ,DCRTK ; (1705- )XZU720..5F ; (1705

Click highlighted areas on diagram

Part #	Description	Period	Qty
46210 - LEVER ASSY, PARKING BRAKE
46210-37150C0	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1#	07/2011 - 03/2017	1
46210-37150C0	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1#	07/2011 - 03/2017	1
46210-37150C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	07/2011 - 03/2017	1
46210-37150C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	07/2011 - 03/2017	1
46210-37130C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	07/2011 - 05/2017	1
46210-37130C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	07/2011 - 05/2017	1
46211-37021C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	04/2017 - 05/2017	1
46211-37021C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	04/2017 - 05/2017	1
46211-37021C0	XZC710,XZU700,710,720,730,775 BLACK,TRIM1#	04/2017 - 05/2017	1
46211-37021C0	XZC710,XZU700,710,720,730,775 BLACK,TRIM1#	04/2017 - 05/2017	1
46210 - LEVER ASSY, PARKING BRAKE
46210-37150C0	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1#	07/2011 - 03/2017	1
46210-37150C0	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1#	07/2011 - 03/2017	1
46210-37150C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	07/2011 - 03/2017	1
46210-37150C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	07/2011 - 03/2017	1
46210-37130C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	07/2011 - 05/2017	1
46210-37130C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	07/2011 - 05/2017	1
46211-37021C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	04/2017 - 05/2017	1
46211-37021C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	04/2017 - 05/2017	1
46211-37021C0	XZC710,XZU700,710,720,730,775 BLACK,TRIM1#	04/2017 - 05/2017	1
46211-37021C0	XZC710,XZU700,710,720,730,775 BLACK,TRIM1#	04/2017 - 05/2017	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37A40	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
46420-37A40	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
46420-37C30	XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	05/2013 - 05/2017	1
46420-37C30	XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	05/2013 - 05/2017	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37461	XZU700,710,720..6F..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
46430-37461	XZU700,710,720..6F..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
46430-37E90	XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	05/2013 - 05/2017	1
46430-37E90	XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	05/2013 - 05/2017	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37200	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
46453-37200	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
46585 - PLATE, PARKING BRAKE CAUTION
46585-37020	XZC710,XZU700,710,720,730,775	10/2016 - 05/2017	1
46585-37020	XZC710,XZU700,710,720,730,775	10/2016 - 05/2017	1
46585-37020	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	10/2016 - 05/2017	1
46585-37020	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	10/2016 - 05/2017	1
46585-37030	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)	10/2016 - 05/2017	1
46585-37030	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)	10/2016 - 05/2017	1
46585 - PLATE, PARKING BRAKE CAUTION
46585-37020	XZC710,XZU700,710,720,730,775	10/2016 - 05/2017	1
46585-37020	XZC710,XZU700,710,720,730,775	10/2016 - 05/2017	1
46585-37020	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	10/2016 - 05/2017	1
46585-37020	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	10/2016 - 05/2017	1
46585-37030	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)	10/2016 - 05/2017	1
46585-37030	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)	10/2016 - 05/2017	1
Common parts
90119-06315
91551-80818
91551-A0818
94151-80800
96160-01200
Linked diagrams
8401

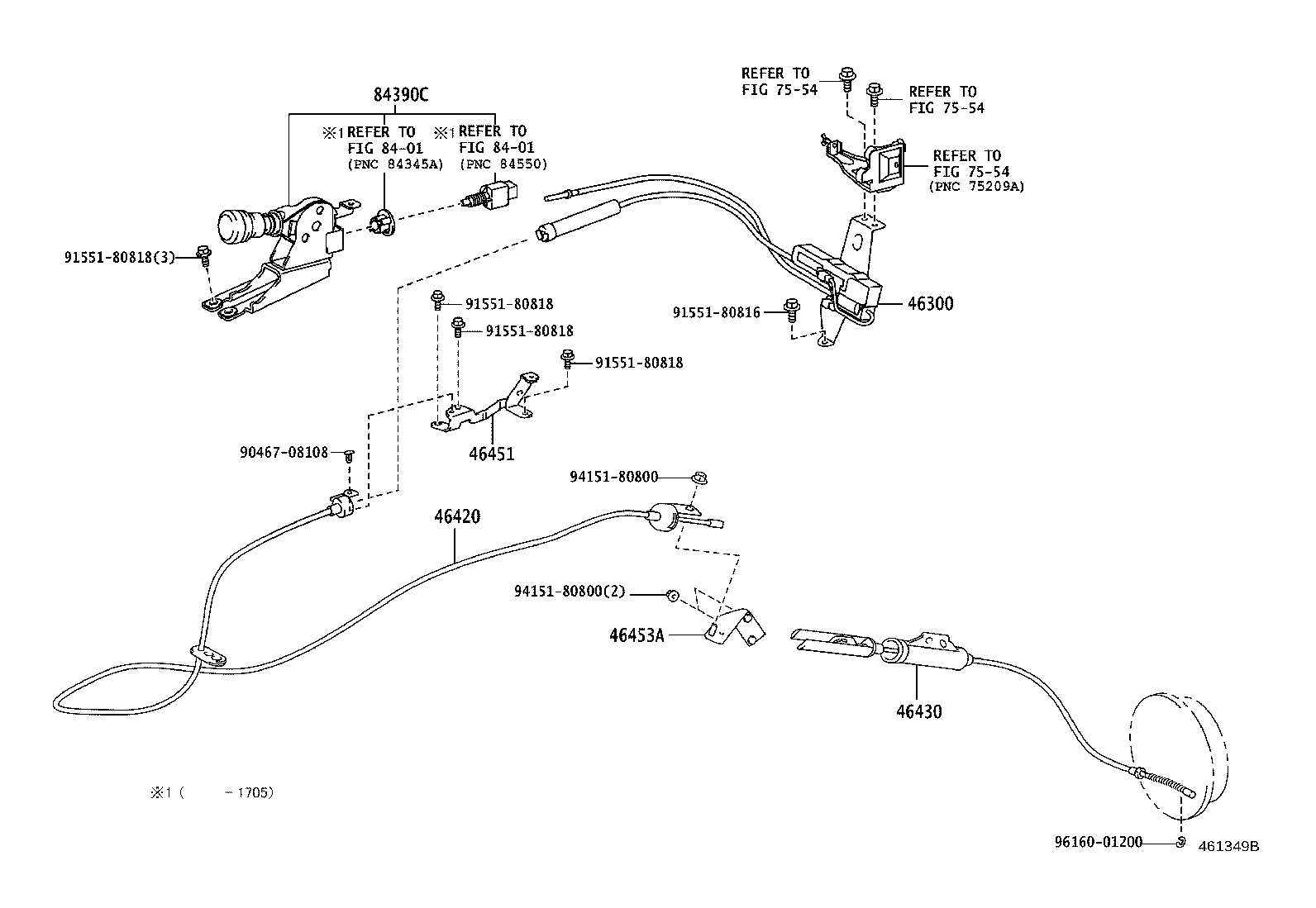

ILLUST NO. 1 OF 2(1305- )XZU700,710,720..6F..DCRTJ,DCRTK ; (1705- )6F..DCRTJ,DCRTK

Click highlighted areas on diagram

ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)

Part #	Description	Period	Qty
46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET
46300-37071	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	05/2013 - 05/2017	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37A40	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
46420-37C30	XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	05/2013 - 05/2017	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37461	XZU700,710,720..6F..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
46430-37E90	XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	05/2013 - 05/2017	1
46451 - BRACKET, CABLE SUPPORT
46451-37090	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ)	05/2013 - 05/2017	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37200	XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK)	07/2011 - 05/2017	1
84390C - SWITCH ASSY, ELECTRIC PARKING BRAKE
84390-37030C0	XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	05/2013 - 05/2017	1
Common parts
90467-08108
91551-80816
91551-80818
94151-80800
96160-01200
Linked diagrams
7554
8401
