XZU720-TKFRC (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

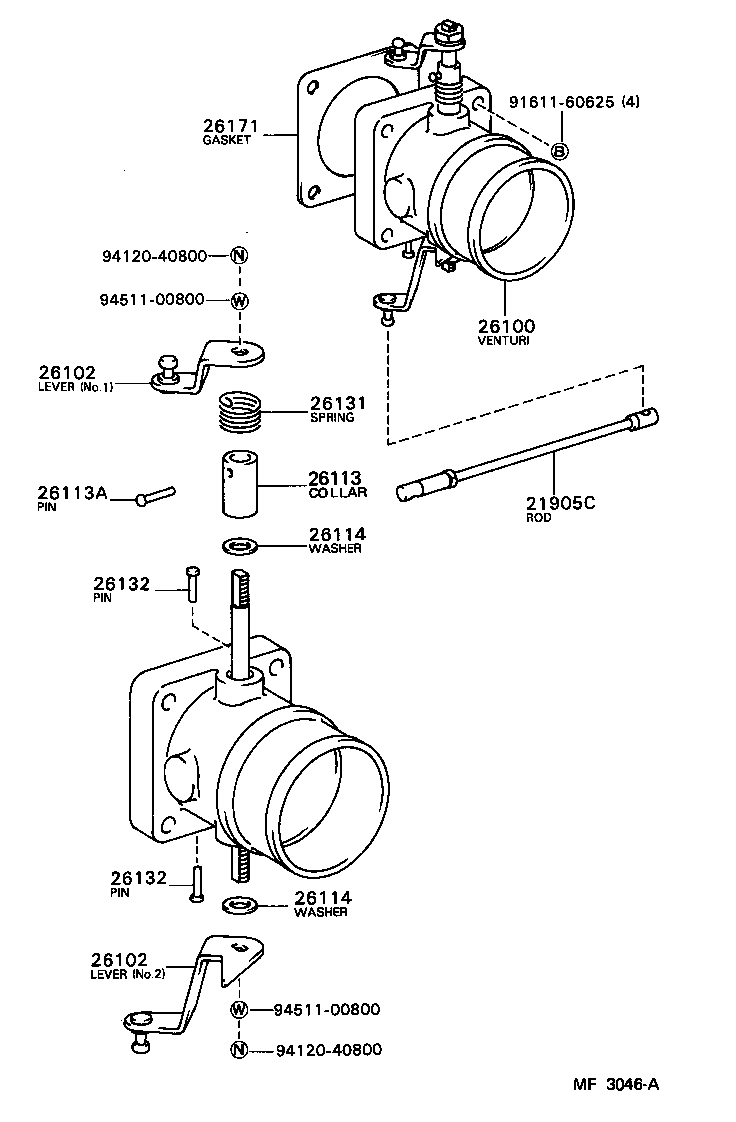

(8409- )B

Click highlighted areas on diagram

diagram 21905C 26100 26102 26102 26113 26113A 26114 26114 26131 26132 26132 26171 9161160625 9412040800 9412040800 9451100800 9451100800
Part # Description Qty Price
Common parts
91611-60625
94120-40800
94511-00800

(8708- )B

Click highlighted areas on diagram

diagram 21905C 26100 26102 26102 26113 26113A 26114 26114 26131 26132 26132 26171 9161160625 9412040800 9412040800 9451100800 9451100800
Part # Description Qty Price
Common parts
91611-60625
94120-40800
94511-00800

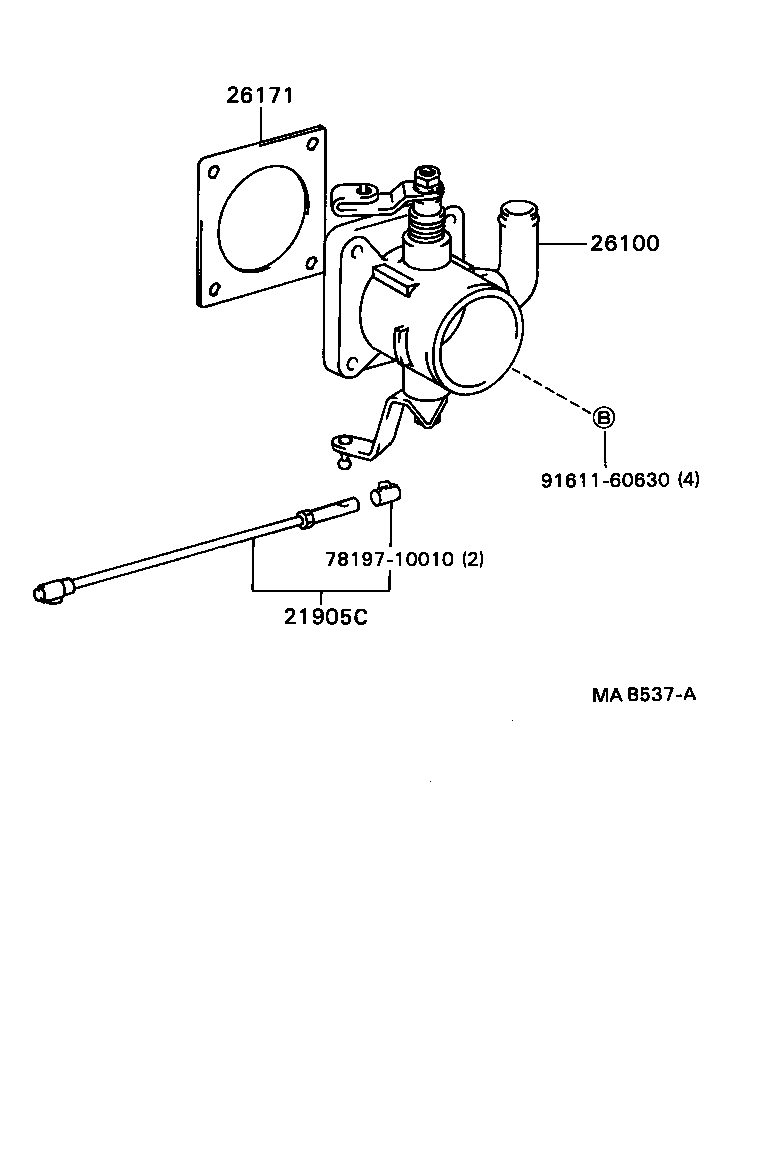

(8808- )B,3B

Click highlighted areas on diagram

diagram 21905C 26100 26171 7819710010 9161160630
Part # Description Qty Price
Common parts
78197-10010
91611-60630

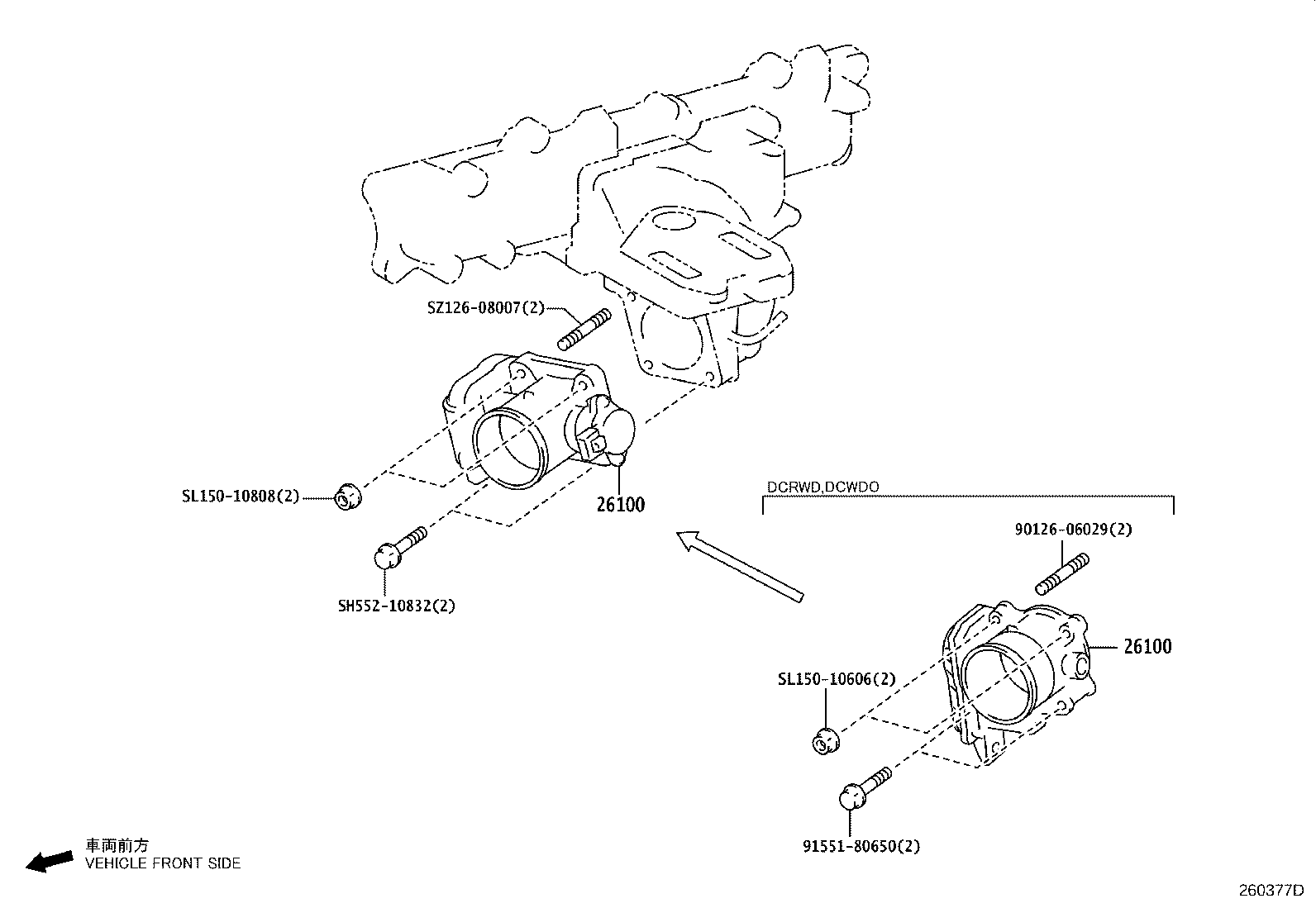

(1107- )

Click highlighted areas on diagram

diagram 26100 26100 9012606029 9155180650 SH55210832 SL15010606 SL15010808 SZ12608007
Part # Description Qty Price
26100 - VENTURI ASSY
26100-E0160

N04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775

 1
26100 - VENTURI ASSY
26100-E0160

N04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775

 1
Common parts
90126-06029
91551-80650
SH552-10832
SL150-10606
SL150-10808
SZ126-08007
