Toyota Dyna/toyoace XZU720 PARKING BRAKE & CABLE

XZU720-TKFQG3 (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10338
90119-10339
90119-10398
94613-11200

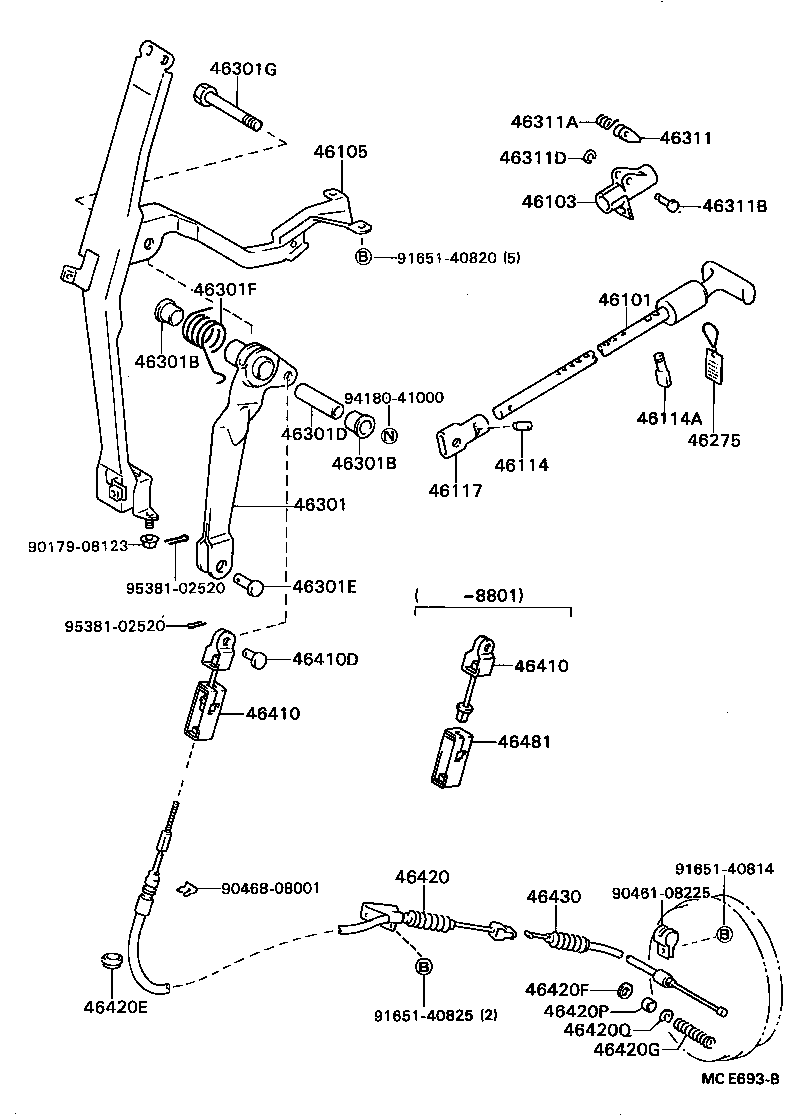

ILLUST NO. 1 OF 3(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-08123
90461-08225
90468-08001
91651-40814
91651-40820
94120-40600
94180-41000
95381-02520

ILLUST NO. 2 OF 3(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-10642
90461-10645
90461-12086
90949-01169
90949-01170
91611-60816
91611-60820
91651-40825
94110-40800

ILLUST NO. 3 OF 3(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
46540-36010
46550-36010
46601-25011
90119-10338
94613-11200

ILLUST NO. 1 OF 3(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-08123
90461-08225
90468-08001
91651-40814
91651-40820
91651-40825
94180-41000
95381-02520

ILLUST NO. 3 OF 3(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10338
94613-11200

ILLUST NO. 3 OF 3(8708- )275,30T

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10338
90119-10339
94613-11200

ILLUST NO. 2 OF 3(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90101-10470
90119-10338
94531-01000
94613-11200

ILLUST NO. 2 OF 3(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90101-10443
90101-10470
90119-10338
94531-01000
94613-11200

ILLUST NO. 1 OF 3(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-08225
90468-08001
91611-40812
91651-40814
91651-40816
94120-40600
94512-01000
95381-02520

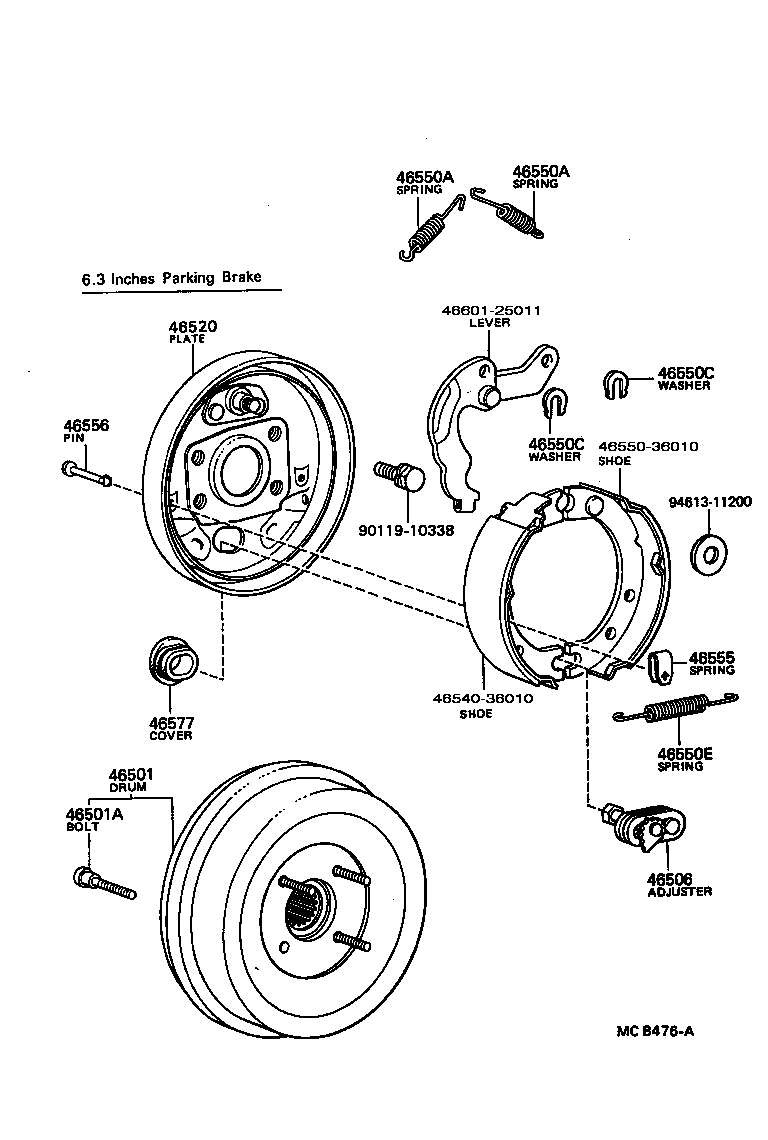

ILLUST NO. 2 OF 2(1705- )6F..DCRVT,DCRVU,DCRWD,DCVTO,DCVUO,DCWDO

Click highlighted areas on diagram

RE60,RE62

Part #	Description	Period	Qty
46201B - SPRING, TENSION
90507-20021	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU 左側	05/2017 - 05/2019	1
90507-20020	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU 右側	05/2017 - 05/2019	1
46201B - SPRING, TENSION
90507-20021	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU 左側	05/2017 - 05/2019	1
90507-20020	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU 右側	05/2017 - 05/2019	1
46405A - SCREW SET, SHOE ADJUSTING, RH
47405-36010	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU	05/2017 - 05/2019	1
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-37090	XZU700,710,720,730..6F..(DCRVT,DCRVU)	05/2017 - 05/2019	1
46503C - PLATE SUB-ASSY, PARKING BRAKE
46503-37E90	XZU700,710,720,730..6F..(DCRVT,DCRVU)	05/2017 - 05/2019	1
46515 - COVER, INSPECTION HOLE
46515-37040	XZU700,710,720,730..6F..(DCRVT,DCRVU)	05/2017 - 05/2019	2
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-37060	XZU700,710,720,730..6F..(DCRVT,DCRVU)	05/2017 - 05/2019	1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-37050	XZU700,710,720,730..6F..(DCRVT,DCRVU)	05/2017 - 05/2019	1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06020	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU	05/2017 - 05/2019	2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06020	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU	05/2017 - 05/2019	2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-07002	XZU700,710,720,730..6F..(DCRVT,DCRVU)	05/2017 - 05/2019	1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14054	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU NO.2	05/2017 - 05/2019	1
90506-23055	XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.1	05/2017 - 05/2019	1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14054	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU NO.2	05/2017 - 05/2019	1
90506-23055	XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.1	05/2017 - 05/2019	1
46555 - SPRING, BRAKE SHOE HOLD DOWN
90501-16108	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU	05/2017 - 05/2019	2
46556 - PIN, SHOE HOLD DOWN SPRING
47447-20030	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU	05/2017 - 05/2019	2
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011	XZU720..6FC..DCRTK;XZU702,71#,722..5F,6FC;XZU710..6F..(DCRVT,DCRVU);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU	05/2017 - 05/2019	4
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011	XZU720..6FC..DCRTK;XZU702,71#,722..5F,6FC;XZU710..6F..(DCRVT,DCRVU);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU	05/2017 - 05/2019	4
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
46601-37E80	XZU700,710,720,730..6F..(DCRVT,DCRVU)	05/2017 - 05/2019	1
46612 - STRUT, PARKING BRAKE SHOE LEVER
46612-36050	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU	05/2017 - 05/2019	1
46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90504-10010	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU	05/2017 - 05/2019	1
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47456-35010	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU	05/2017 - 05/2019	1
47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47459-30010	XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU	05/2017 - 05/2019	1
Common parts
90119-06315
90119-12211
90119-12459
91551-80820
91611-G0820
