XZU720-TKFQG3 (2017)
Toyota Dyna/Toyoace
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10029 | ||||
| 90170-10082 | ||||
| 90201-14002 | ||||
| 90214-14001 | ||||
| 91111-40820 | ||||
| 91611-61035 | ||||
| 91611-61050 | ||||
| 94125-41400 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10029 | ||||
| 90170-10082 | ||||
| 90201-14002 | ||||
| 90214-14001 | ||||
| 91111-50820 | ||||
| 91611-61050 | ||||
| 94125-41400 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91111-40814 | ||||
| 91111-40820 | ||||
| 91611-61025 | ||||
| 94110-51000 | ||||
| 94145-41200 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-11200 | ||||
| 95381-03028 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10052 | ||||
| 90201-14002 | ||||
| 90214-14001 | ||||
| 91111-40816 | ||||
| 91111-40820 | ||||
| 94110-51000 | ||||
| 94125-41400 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||

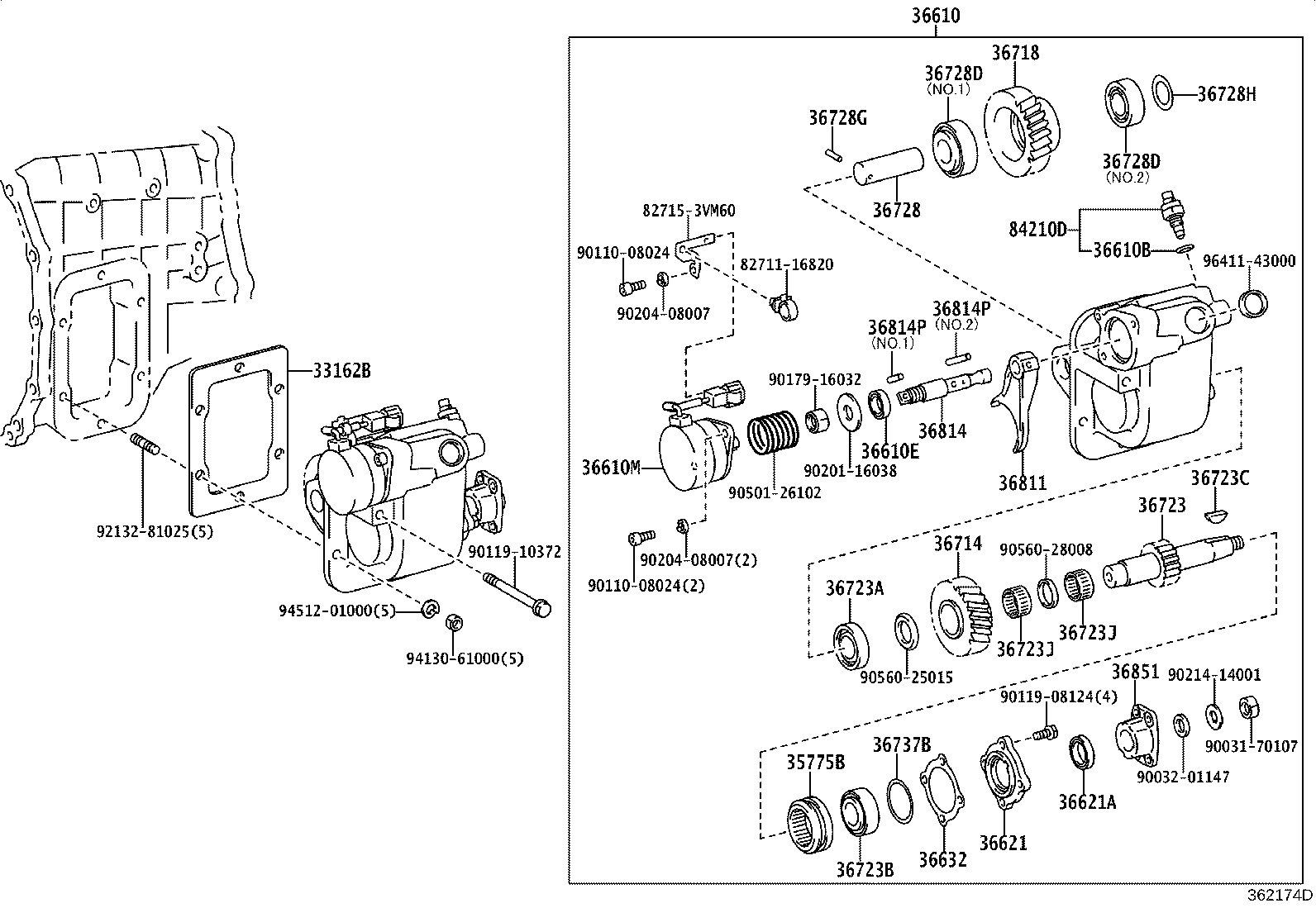

(1705- )6F..DCRVT,DCRVU ; (1905- )6F..DCRWD,DCVTO,DCVUO ; (2103- )T3,T4,T5
RE6# ﾃﾞﾝｷｼｷ25KG(ﾌﾗﾝｼﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37561 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610-37571 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-18008 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90430-18008 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-20010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610M - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 36800-37010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36800-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37080 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36621-37090 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-25110 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36632 - GASKET, POWER TAKE-OFF JOINT RETAINER | ||||
| 36632-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36632-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37150 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723-37160 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90254-04002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 84210D - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 84210-52050 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82715-3VM60 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90110-08024 | ||||
| 90119-08124 | ||||
| 90119-10372 | ||||
| 90179-16032 | ||||
| 90201-16038 | ||||
| 90204-08007 | ||||
| 90214-14001 | ||||
| 90501-26102 | ||||
| 90560-25015 | ||||
| 90560-28008 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||

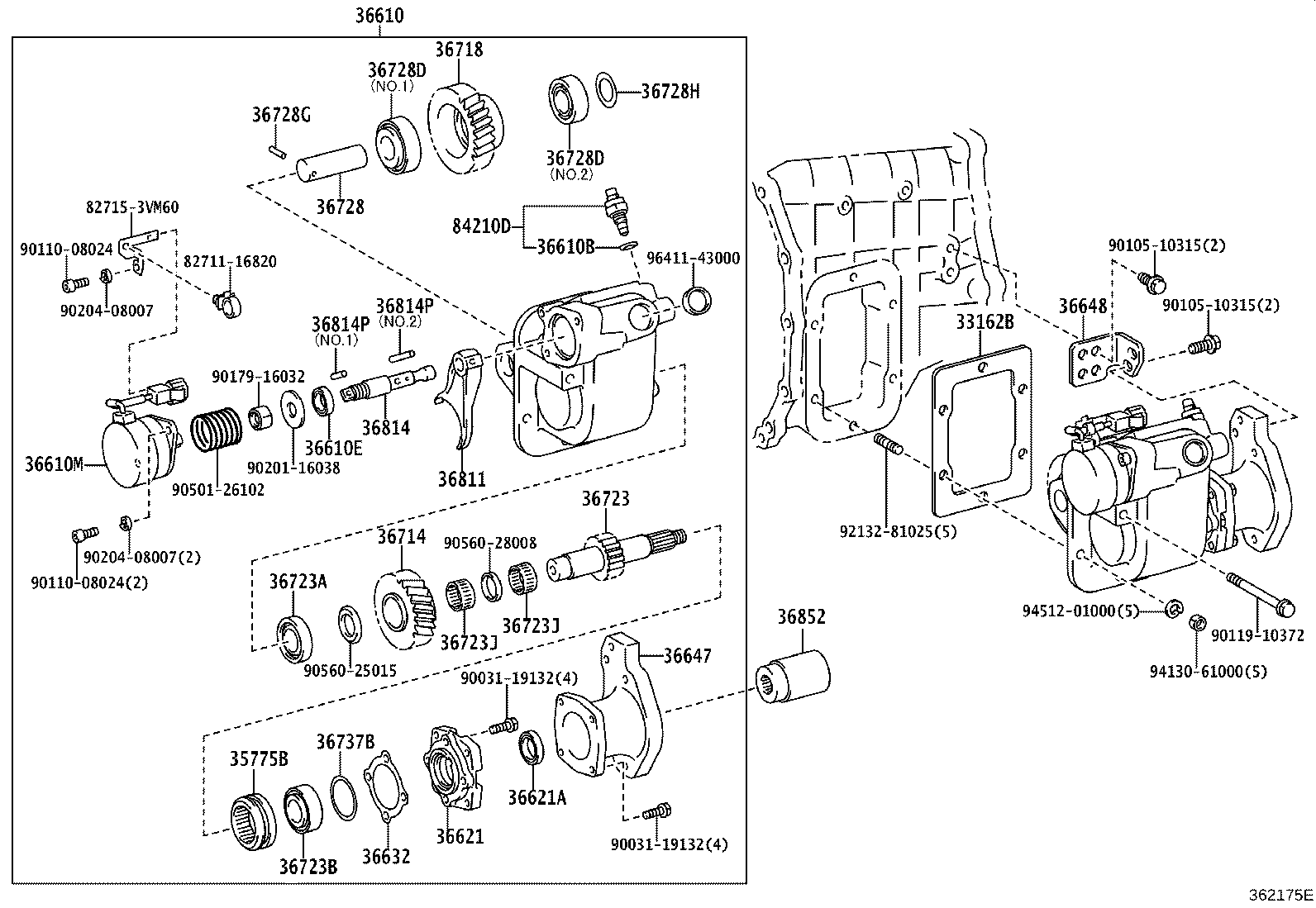

(1705- )6F..DCRVT,DCRVU..CBU,IV3 ; (1905-)XZU710..40T..DCVUO ; (1905- )XZ
RE6# ﾃﾞﾝｷｼｷ25KG(ｱﾀﾞﾌﾟﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 33162-37050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 35775-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 35775-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 35775-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 35775-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 35775-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 35775-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 35775-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 35775-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 35775-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37561 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610-37561 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610-37561 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610-37561 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610-37561 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610-37561 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610-37561 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610-37561 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610-37561 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610-37571 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610-37571 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610-37571 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610-37571 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610-37571 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610-37571 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610-37571 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610-37571 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610-37571 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-18008 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90430-18008 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90430-18008 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90430-18008 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90430-18008 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90430-18008 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90430-18008 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90430-18008 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90430-18008 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90430-18008 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90430-18008 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90430-18008 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90430-18008 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90430-18008 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90430-18008 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90430-18008 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90430-18008 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90430-18008 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-20010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-20010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-20010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-20010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-20010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-20010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-20010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-20010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-20010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-20010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-20010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-20010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-20010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-20010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-20010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-20010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-20010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36610M - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 36800-37010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36800-37010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36800-37010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36800-37010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36800-37010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36800-37010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36800-37010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36800-37010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36800-37010 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36800-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36800-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36800-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36800-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36800-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36800-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36800-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36800-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36800-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37080 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36621-37080 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36621-37080 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36621-37080 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36621-37080 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36621-37080 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36621-37080 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36621-37080 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36621-37080 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36621-37090 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621-37090 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621-37090 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621-37090 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621-37090 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621-37090 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621-37090 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621-37090 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621-37090 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-25110 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-25110 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-25110 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-25110 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-25110 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-25110 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-25110 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-25110 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90311-25110 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-25110 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-25110 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-25110 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-25110 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-25110 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-25110 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-25110 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90311-25110 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36632 - GASKET, POWER TAKE-OFF JOINT RETAINER | ||||
| 36632-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36632-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36632-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36632-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36632-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36632-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36632-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36632-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36632-37030 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36632-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36632-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36632-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36632-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36632-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36632-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36632-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36632-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36632-37030 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36647 - ADAPTER, POWER TAKE-OFF PUMP | ||||
| 36647-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36647-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36647-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36647-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36647-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36647-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36647-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36647-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36647-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36648 - BRACKET, POWER TAKE-OFF PUMP ADAPTER | ||||
| 36648-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36648-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36648-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36648-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36648-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36648-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36648-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36648-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36648-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36714-37260 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36718-37181 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37150 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723-37150 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723-37150 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723-37150 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723-37150 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723-37150 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723-37150 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723-37150 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723-37150 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723-37160 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723-37160 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723-37160 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723-37160 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723-37160 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723-37160 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723-37160 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723-37160 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723-37160 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-22001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90366-25011 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 90364-28020 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36728-37060 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25024 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90366-25025 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90254-04002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90254-04002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90254-04002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90254-04002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90254-04002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90254-04002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90254-04002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90254-04002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90254-04002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90254-04002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90254-04002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90254-04002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90254-04002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90254-04002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90254-04002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90254-04002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90254-04002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-25004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-25003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42001 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42002 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42001 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42003 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42003 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42002 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42004 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 90564-42004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 90564-42004 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36811-37040 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814-37100 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-05022 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.1 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 90254-06006 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ),NO.2 |
1 | ||
| 36852 - COUPLING, POWER TAKE-OFF OUTPUT SHAFT | ||||
| 36852-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36852-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36852-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36852-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36852-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36852-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36852-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36852-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 36852-37010 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 84210D - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 84210-52050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 84210-52050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 84210-52050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 84210-52050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 84210-52050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 84210-52050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 84210-52050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 84210-52050 |
XZU700,710,720,730..(T3,T4)..6F..(DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 84210-52050 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 84210-52050 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 84210-52050 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 84210-52050 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 84210-52050 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 84210-52050 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 84210-52050 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 84210-52050 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 84210-52050 |
XZC710,XZU700,710,720,730..(T3,T4,T5)..MTM..(DCRTJ,DCRVT,DCRVU) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82715-3VM60 | ||||
| 90031-19132 | ||||
| 90105-10315 | ||||
| 90110-08024 | ||||
| 90119-10372 | ||||
| 90179-16032 | ||||
| 90201-16038 | ||||
| 90204-08007 | ||||
| 90501-26102 | ||||
| 90560-25015 | ||||
| 90560-28008 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
