XZU720-TKFQG3 (2017)
Toyota Dyna/Toyoace
(8708- )CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60835 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||

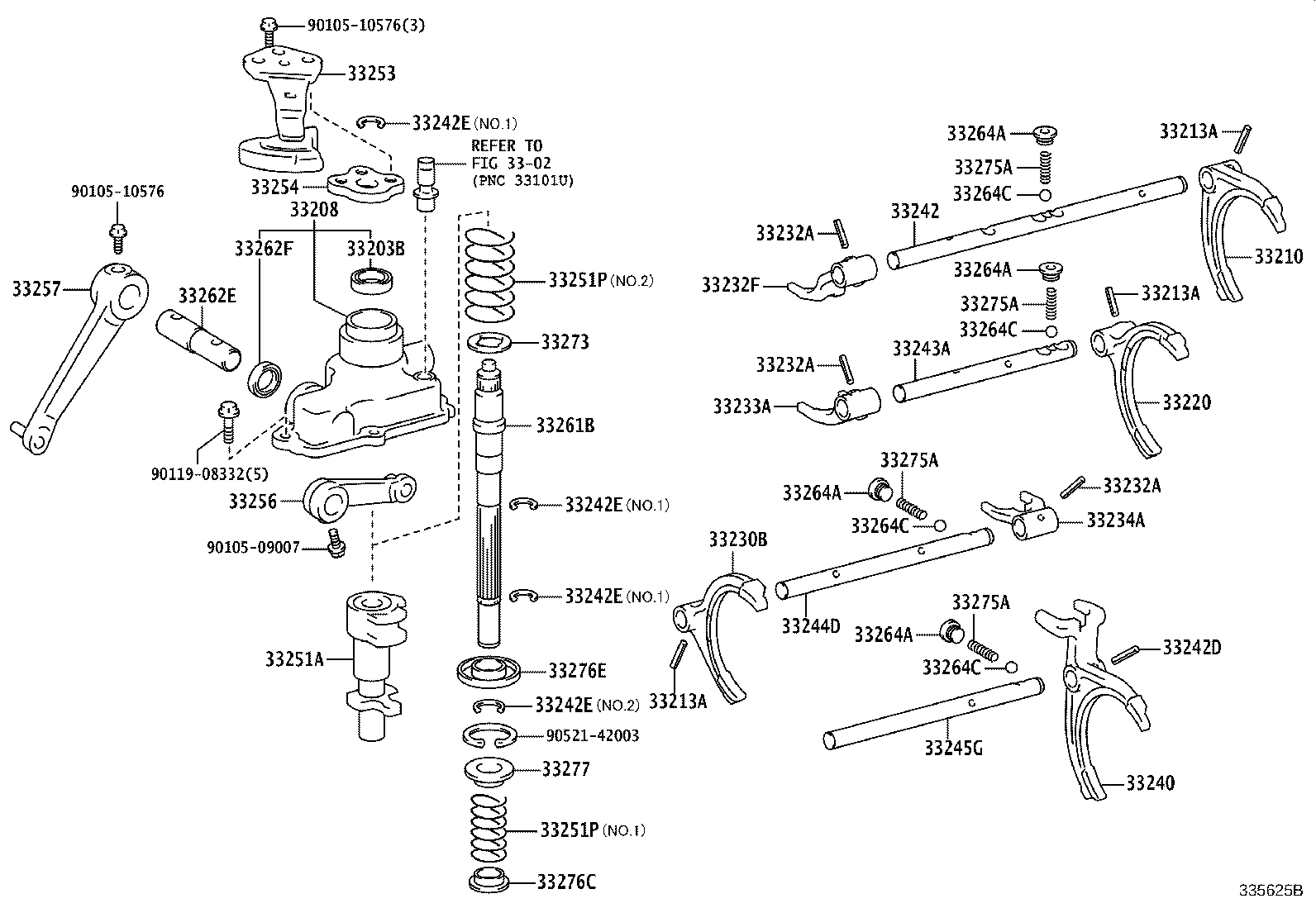

(1705- )6F..DCRVT,DCRVU ; (1905- )6F
RE60,RE62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-22021 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33208-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33210 - FORK ASSY, GEAR SHIFT, NO.1 | ||||
| 33210-37030 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-07003 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-07003 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-07003 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
3 | ||
| 33220 - FORK ASSY, GEAR SHIFT, NO.2 | ||||
| 33220-37030 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33230B - FORK ASSY, GEAR SHIFT, NO.3 | ||||
| 33230-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-07003 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
3 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-07003 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
3 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-07003 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
3 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-37030 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33233A - HEAD, GEAR SHIFT, NO.2 | ||||
| 33233-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-37030 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-37030 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-37060 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33242-37061 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33242D - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT) | ||||
| 90254-05016 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-15009 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 90520-19017 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-15009 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 90520-19017 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-15009 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 90520-19017 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-15009 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 90520-19017 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-37070 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-37090 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-37050 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-37070 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-27041 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90501-17048 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-27041 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90501-17048 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-37160 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33254 - LEVER, SHIFT OUTER, NO.2 | ||||
| 33254-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-37130 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33261B - SHAFT, SHIFT LEVER | ||||
| 33261-37050 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33262E - SHAFT, SELECT LEVER | ||||
| 33262-37050 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33262F - SEAL, OIL (FOR SELECT LEVER SHAFT) | ||||
| 90311-20012 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 外径=18 |
4 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 外径=18 |
4 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 外径=18 |
4 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 外径=18 |
4 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
4 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
4 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
4 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
4 | ||
| 33273 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.1 | ||||
| 33273-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 長さ=31.7 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 長さ=31.7 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 長さ=31.7 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 長さ=31.7 |
4 | ||
| 33276C - SEAT, SELECT SPRING | ||||
| 33278-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-37070 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-37040 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| Common parts | ||||
| 90105-09007 | ||||
| 90105-10576 | ||||
| 90119-08332 | ||||
| 90521-42003 | ||||
| Linked diagrams | ||||
| 3302 | ||||
