XZU720-TKFQG3 (2017)
Toyota Dyna/Toyoace
(8708- )CBU,IV3
| Part # | Description | Qty | Price |
|---|
(1705- )6F..DCRVT,DCRVU ; (1905- )6F
RE60,RE62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33021 - GEAR SET, REVERSE | ||||
| 33021-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33021-37020 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33022 - GEAR SET, 1ST | ||||
| 33022-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33023 - GEAR SET, 2ND | ||||
| 33023-37021 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33023-37050 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33024 - GEAR SET, 3RD | ||||
| 33024-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-37060 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33038-37080 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33039 - RING SET, SYNCHRONIZER, NO.3 | ||||
| 33039-37030 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33041 - GEAR SET, COUNTER | ||||
| 33041-37060 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33061A - SLEEVE SUB-ASSY, TRANSMISSION, NO.1 | ||||
| 33061-37020 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33061-37030 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33062 - SLEEVE SUB-ASSY, TRANSMISSION, NO.2 | ||||
| 33062-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33063 - SLEEVE SUB-ASSY, TRANSMISSION, NO.3 | ||||
| 33063-37030 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33064 - SLEEVE SUB-ASSY, TRANSMISSION, NO.4 | ||||
| 33064-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-37270 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-45032 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-42004 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.60−2.65,MARK 4 |
1 | ||
| 90520-42003 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.55−2.60,MARK 3 |
1 | ||
| 90520-42006 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.70−2.75,MARK 6 |
1 | ||
| 90520-42005 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.65−2.70,MARK 5 |
1 | ||
| 90520-42002 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.50−2.55,MARK 2 |
1 | ||
| 90520-42007 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.75−2.80,MARK 7 |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76001 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33311T - RING, SHAFT SNAP (FOR INPUT SHAFT) | ||||
| 90520-96001 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.41,内径=95.9 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-37111 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33321-37130 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-45033 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 90363-42002 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90521-95002 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=1.91−2.09 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-99009 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 内径=106.1,外径=115.64 |
1 | ||
| 33321L - SHIM (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90564-50349 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.40,MARK 02 |
1 | ||
| 90564-50348 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.35,MARK 01 |
1 | ||
| 90564-50355 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.70,MARK 08 |
1 | ||
| 90564-50353 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.60,MARK 06 |
1 | ||
| 90564-50356 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.75,MARK 09 |
1 | ||
| 90564-50350 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.45,MARK 03 |
1 | ||
| 90564-50351 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.50,MARK 04 |
1 | ||
| 90564-50359 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.90,MARK 12 |
1 | ||
| 90564-50354 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.65,MARK 07 |
1 | ||
| 90564-50357 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.80,MARK 10 |
1 | ||
| 90564-50352 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.55,MARK 05 |
1 | ||
| 90564-50358 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.85,MARK 11 |
1 | ||
| 33321M - RING, SHAFT SNAP (FOR BEARING) | ||||
| 90520-47015 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=1.62,ﾏｰｸ 3 |
1 | ||
| 90520-47016 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=1.68,ﾏｰｸ 4 |
1 | ||
| 90520-47013 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=1.50,ﾏｰｸ 1 |
1 | ||
| 90520-47017 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=1.74,ﾏｰｸ 5 |
1 | ||
| 90520-47014 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=1.56,ﾏｰｸ 2 |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90364-30017 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-30015 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90365-50004 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33321Y - RING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT BEARING) | ||||
| 90520-27093 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=1.81,ﾏｰｸ 2 |
1 | ||
| 90520-27098 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.11,ﾏｰｸ 7 |
1 | ||
| 90520-27092 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=1.75,ﾏｰｸ 1 |
1 | ||
| 90520-27099 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.17,ﾏｰｸ 8 |
1 | ||
| 90520-27095 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=1.93,ﾏｰｸ 4 |
1 | ||
| 90520-27094 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=1.87,ﾏｰｸ 3 |
1 | ||
| 90520-27097 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.05,ﾏｰｸ 6 |
1 | ||
| 90520-27096 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=1.99,ﾏｰｸ 5 |
1 | ||
| 33324G - FLANGE, OUTPUT SHAFT COMPANION (MTM) | ||||
| 33309-37031 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33327 - SLEEVE, TRANSMISSION HUB, NO.4 | ||||
| 33327-37020 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-37090 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33333D - SPACER (FOR 3RD GEAR) | ||||
| 90560-59001 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-48020 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-37120 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33337A - BEARING, NEEDLE ROLLER (FOR 6TH GEAR) | ||||
| 90364-55005 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33338C - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
3 | ||
| 33352B - HUB, TRANSMISSION CLUTCH, NO.4 | ||||
| 33352-37040 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-37020 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33357C - RACE, 3RD GEAR BEARING, INNER | ||||
| 33357-37010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-37070 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-37040 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-37090 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-37060 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-37060 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
12 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-37060 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
12 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-37060 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
12 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-37060 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
12 | ||
| 33369B - RING, SYNCHRONIZER, NO.4 | ||||
| 33381-37060 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33387A - RING, REVERSE SYNCHRONIZER | ||||
| 33387-37040 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-37070 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-41027 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.42,ﾏｰｸ H |
1 | ||
| 90520-41029 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.52,ﾏｰｸ K |
1 | ||
| 90520-41025 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.32,ﾏｰｸ F |
1 | ||
| 90520-41024 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.27,ﾏｰｸ E |
1 | ||
| 90520-41026 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.37,ﾏｰｸ G |
1 | ||
| 90520-41028 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.47,ﾏｰｸ J |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-37040 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33396C - RING, SYNCHRONIZER, NO.5(MTM) | ||||
| 33396-37030 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
2 | ||
| 33396C - RING, SYNCHRONIZER, NO.5(MTM) | ||||
| 33396-37030 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
2 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90363-30085 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-27004 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-49001 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-27053 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.45−2.50,ﾏｰｸ A |
1 | ||
| 90520-27055 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.55−2.60,ﾏｰｸ C |
1 | ||
| 90520-27054 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.50−2.55,ﾏｰｸ B |
1 | ||
| 90520-27100 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.40−2.45,ﾏｰｸ G |
1 | ||
| 90520-27058 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.70−2.75,ﾏｰｸ F |
1 | ||
| 90520-27101 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.75−2.80,ﾏｰｸ H |
1 | ||
| 90520-27057 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.65−2.70,ﾏｰｸ E |
1 | ||
| 90520-27056 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.60−2.65,ﾏｰｸ D |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-24040 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.45−2.50,ﾏｰｸ A |
1 | ||
| 90520-24042 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.53−2.62 ﾏｰｸ C |
1 | ||
| 90520-24044 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.69−2.74,ﾏｰｸ E |
1 | ||
| 90520-24041 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.51−2.56,ﾏｰｸ B |
1 | ||
| 90520-24043 |

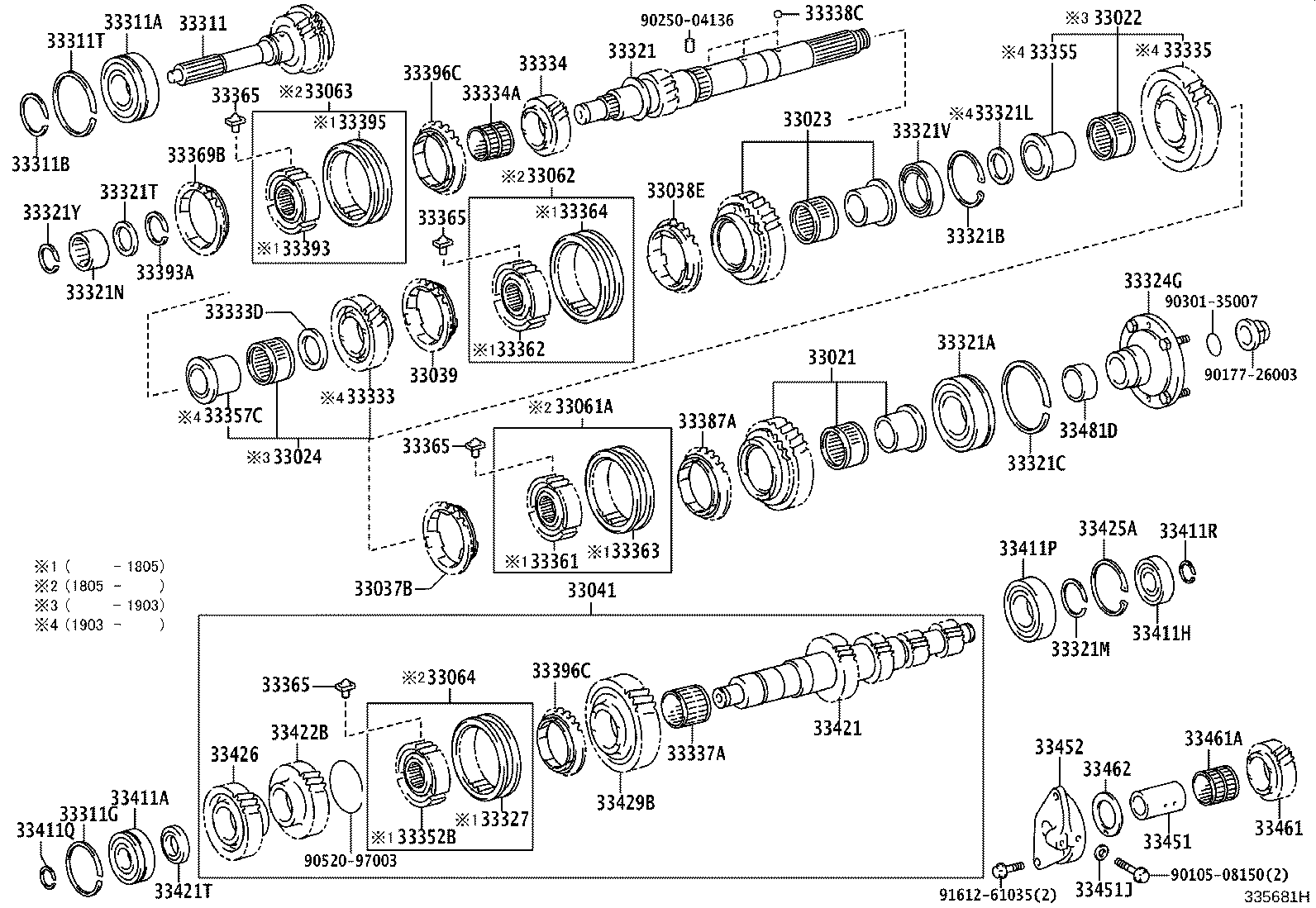

XZU700,710,720,730..6F..(DCRVT,DCRVU) 厚さ=2.63−2.68,ﾏｰｸ D |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-37180 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33421T - SPACER, COUNTER GEAR | ||||
| 90560-30014 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-37030 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33425A - RING, SHAFT SNAP (FOR COUNTER GEAR) | ||||
| 90521-95002 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33426 - GEAR, COUNTER SHAFT DRIVE | ||||
| 33421-37190 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33429B - GEAR, 6TH DRIVEN | ||||
| 33429-37020 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-37040 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
2 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-37020 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33461 - GEAR, REVERSE IDLER | ||||
| 33461-37060 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33461A - BEARING, REVERSE IDLER GEAR | ||||
| 90364-37019 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-37020 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-37050 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| Common parts | ||||
| 90105-08150 | ||||
| 90177-26003 | ||||
| 90250-04136 | ||||
| 90301-35007 | ||||
| 90520-97003 | ||||
| 91612-61035 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
