XZU720-TKFQG3 (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29331 29342 2936466010 29369 9004401043 9009904577 9020114099 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9043010004 9043010004 9043010004 9043010004 9611210180
Part # Description Qty Price
Common parts
29364-66010
90044-01043
90099-04577
90201-14099
90401-09001
90401-10006
90430-10004
96112-10180

(8708- )

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29331 29364 29369 9009904577 9020114099 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9040114033 9043010035 9043010035 9043010035 9043010035 9611210180 9674002063
Part # Description Qty Price
Common parts
90099-04577
90201-14099
90401-09001
90401-10006
90401-14033
90430-10035
96112-10180
96740-02063

(8808- )B,11B,14B#,3B ; (9311- )27LPG

Click highlighted areas on diagram

diagram 29300 29300G 29311 29331 29336 29342 29342 29342 29342 29342 29351 29364 29369 9009690031 9009904577 9009905185 9020114099 9020114099 9040109001 9161261032 9516110413
Part # Description Qty Price
Common parts
90096-90031
90099-04577
90099-05185
90201-14099
90401-09001
91612-61032
95161-10413

(1705-1905)

Click highlighted areas on diagram

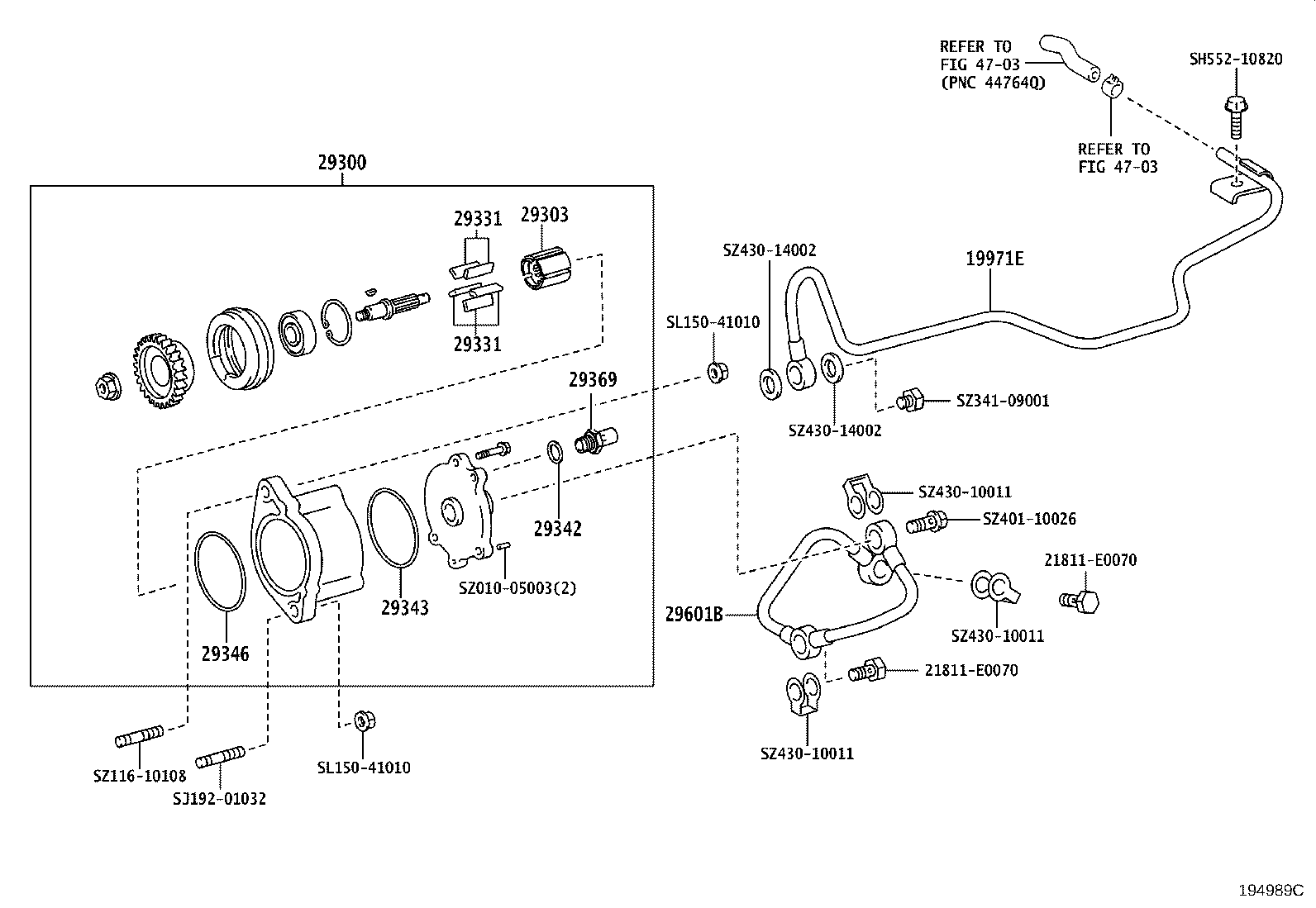

diagram 19971E 21811E0070 21811E0070 29300 29303 29331 29331 29342 29343 29346 29369 29601B 4703 4703 SH55210820 SJ19201032 SL15041010 SL15041010 SZ01005003 SZ11610108 SZ34109001 SZ40110026 SZ43010011 SZ43010011 SZ43010011 SZ43014002 SZ43014002
Part # Description Qty Price
19971E - PIPE, VACUUM
87207-37E00

N04C..XZU700,710,720,730..DCRVT,DCRVU

 1
29300 - PUMP ASSY, VACUUM
29300-E0090

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-EV020

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
29331 - BLADE, VACUUM PUMP, A
29331-EV020

N04C..XZC710,XZU70#,71#,72#,73#,775

 5
29331 - BLADE, VACUUM PUMP, A
29331-EV020

N04C..XZC710,XZU70#,71#,72#,73#,775

 5
29342 - PACKING, VACUUM PUMP
29342-EV010

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-EV030

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
29346 - RING, O VACUUM PUMP COVER
29346-EV010

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
29369 - VALVE SUB-ASSY, CHECK
29369-EV060

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
29601B - PIPE SUB-ASSY, OIL(FOR VACUUM PUMP)
29601-E0320

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
Common parts
21811-E0070
SH552-10820
SJ192-01032
SL150-41010
SZ010-05003
SZ116-10108
SZ341-09001
SZ401-10026
SZ430-10011
SZ430-14002
Linked diagrams
4703
