XZU720-TKFQG3 (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )B,11B,13B#..CBU,IV3

Click highlighted areas on diagram

diagram 15710 15710B 15710C 15722 15791 9004341006 9004341006 9004344011 9011008004 9017908088 9017908088 9034453003 9034553001 9043016242 9043016242 9161160835 9212260828 9453100800
Part # Description Qty Price
Common parts
90043-41006
90043-44011
90110-08004
90179-08088
90344-53003
90345-53001
90430-16242
91611-60835
92122-60828
94531-00800

(8708- )B,11B,13B#..CBU,IV3

Click highlighted areas on diagram

diagram 15710 15710B 15710C 15722 15791 9004341006 9004341006 9004344011 9011008004 9017908088 9017908088 9034453003 9034553001 9043016242 9043016242 9161160835 9212260828 9453100800
Part # Description Qty Price
Common parts
90043-41006
90043-44011
90110-08004
90179-08088
90344-53003
90345-53001
90430-16242
91611-60835
92122-60828
94531-00800

(8808- )B,11B,14B#,3B..CBU,IV3

Click highlighted areas on diagram

diagram 15710 15710B 15710C 15722 15791 9011008004 9017908040 9017908040 9034116012 9034118006 9034452013 9043016242 9043018019 9152160830 9161160835 9212260828 9453100800
Part # Description Qty Price
Common parts
90110-08004
90179-08040
90341-16012
90341-18006
90344-52013
90430-16242
90430-18019
91521-60830
91611-60835
92122-60828
94531-00800

(1705-1902)N04C..XZU700,710,720,730..DCRVT,DCRVU; (1902- )N04C..XZU700,710,720.

Click highlighted areas on diagram

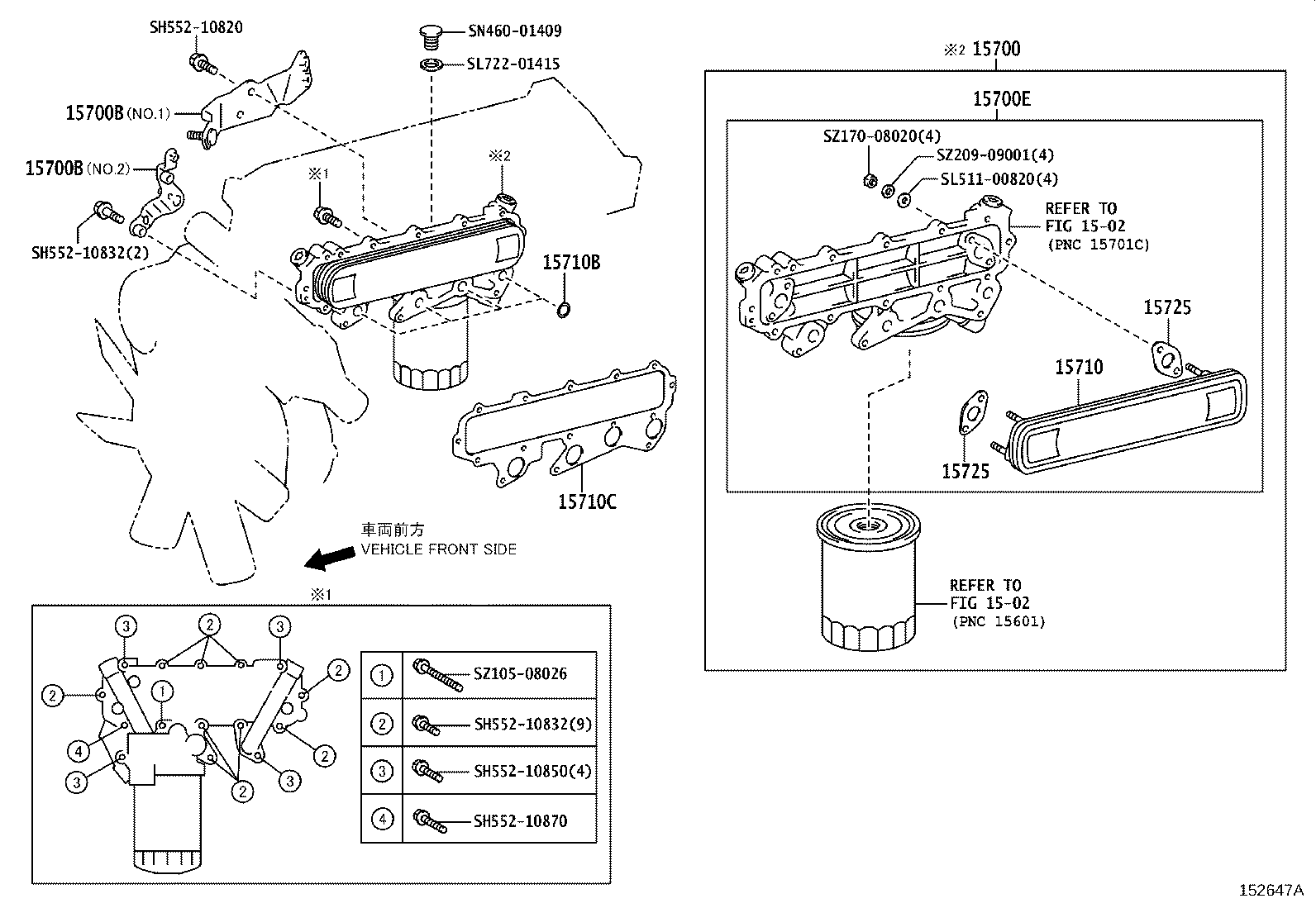

diagram 1502 1502 15700 15700B 15700B 15700E 15710 15710B 15710C 15725 15725 SH55210820 SH55210832 SH55210832 SH55210850 SH55210870 SL51100820 SL72201415 SN46001409 SZ10508026 SZ17008020 SZ20909001
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-E0023

N04C..XZU70#,71#,72#,775..DCRTK,DCRVT

 1
15700-E0024

N04C..XZU70#,71#,72#,775..DCRTK,DCRVT

 1
15700B - BRACKET(FOR OIL COOLER)
16269-78020

N04C..XZU700,710,720,730..DCRVT,DCRVU

NO.1:ｲﾗｽﾄ参照

 1
16269-78050

N04C..XZU700,710,720,730..DCRVT,DCRVU

NO.2:ｲﾗｽﾄ参照

 1
15700B - BRACKET(FOR OIL COOLER)
16269-78020

N04C..XZU700,710,720,730..DCRVT,DCRVU

NO.1:ｲﾗｽﾄ参照

 1
16269-78050

N04C..XZU700,710,720,730..DCRVT,DCRVU

NO.2:ｲﾗｽﾄ参照

 1
15700E - COOLER SUB-ASSY, OIL, W/O OIL FILTER
S1570-EV031

N04C..XZU70#,71#,72#,775..DCRTK,DCRVT

 1
S1570-EV030

N04C..XZU70#,71#,72#,775..DCRTK,DCRVT

 1
15710 - COOLER ASSY, OIL
16491-EV050

N04C..XZU70#,71#,72#,775..DCRTK,DCRVT

 1
S1571-22260

N04C..XZU70#,71#,72#,775..DCRTK,DCRVT

 1
15710B - RING, O(FOR OIL COOLER)
SZ301-19018

N04C..XZC710,XZU70#,71#,72#,73#,775

有り(PNC 15710C)

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
15725 - GASKET, OIL COOLER COVER
15785-EV010

N04C..XZC710,XZU70#,71#,72#,73#,775

 2
15725 - GASKET, OIL COOLER COVER
15785-EV010

N04C..XZC710,XZU70#,71#,72#,73#,775

 2
Common parts
SH552-10820
SH552-10832
SH552-10850
SH552-10870
SL511-00820
SL722-01415
SN460-01409
SZ105-08026
SZ170-08020
SZ209-09001
Linked diagrams
1502
