XZU712-TKFSX3 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(1905- )XZU71#,72#,73#..30T,35T,40T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37060 |
XZC710,XZU71#,72#..DCRWD,DCVTO |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37111 |
XZC710,XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(20T,30T,35T)..(DCRWD,DCVTO) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18019 |
XZU712..40T..DCRWD 長さ=380 |
4 | ||
| 90117-18021 |
XZU712..40T..DCRWD 長さ=400,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18019 |
XZU712..40T..DCRWD 長さ=380 |
4 | ||
| 90117-18021 |
XZU712..40T..DCRWD 長さ=400,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37111 |
XZC710,XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(20T,30T,35T)..(DCRWD,DCVTO) |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37280 |
XZU71#,720..40T..(DCRWD,DCVTO) |
2 | ||
| 48405A - BRACKET SUB-ASSY, SPRING, NO.4 RH | ||||
| 48405-37010 |
XZC710,XZU71#,72#..DCRWD,DCVTO |
1 | ||
| 48406 - BRACKET SUB-ASSY, SPRING, NO.4 LH | ||||
| 48406-37010 |
XZC710,XZU71#,72#..DCRWD,DCVTO |
1 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
XZU71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
XZU71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48442-37080 |
XZC710,XZU71#,72#..DCRWD,DCVTO |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37090 |
XZU712..DCRWD..IV3;XZU720..6FC..DCRWD..CBU;XZC710,XZU710,72#..SCB..(20T,30T,35T)..(DCRWD,DCVTO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37120 |
XZC710,XZU70#,712..DCRWD,DCVTO,DCVUO;XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU72#,73#..(T4,T5)..(DCRWD,DCVTO,DCVUO);XZU710..(20T,30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37052 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37052 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37341 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾏｰｸ 48531−37341 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37341 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾏｰｸ 48531−37341 |
1 | ||
| Common parts | ||||
| 90105-16070 | ||||
| 90119-12088 | ||||
| 90178-14002 | ||||
| 90178-16007 | ||||
| 90178-18002 | ||||
| 91552-81030 | ||||
| 91552-L1445 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||

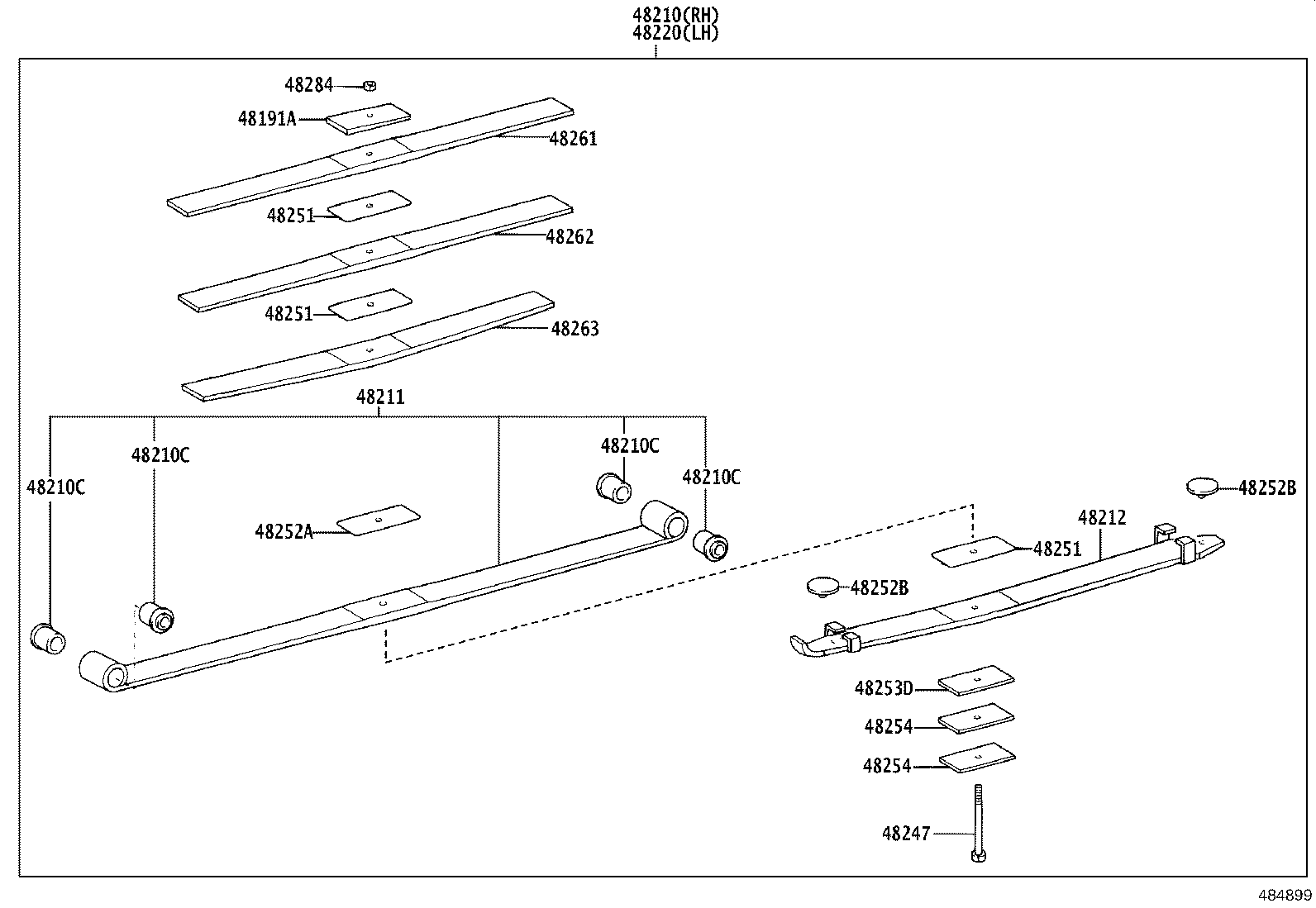

ILLUST NO. 2 OF 2(1905- )XZU712..40T
MAIN 2 + HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37Y70 |
XZU712..40T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37W10 |
XZU712..T3..(35T,40T)..DCRWD;XZU710,72#..T3..35T..(DCRWD,DCVTO) |
2 | ||
| 48201-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37W10 |
XZU712..T3..(35T,40T)..DCRWD;XZU710,72#..T3..35T..(DCRWD,DCVTO) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37Y70 |
XZU712..40T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37K31 |
XZU71#..40T..(DCRWD,DCVTO);XZU720..40T..(DCVTO,DCVUO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37W70 |
XZU700,71#,720..40T..(DCRWD,DCVTO) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU700,71#,720..40T..(DCRWD,DCVTO) |
6 | ||
| 48267-3V150 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU700,71#,720..40T..(DCRWD,DCVTO) |
6 | ||
| 48267-3V150 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU700,71#,720..40T..(DCRWD,DCVTO) |
6 | ||
| 48267-3V150 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-37L51 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48253-37W70 |
XZU700,712..40T..(DCRWD,DCVTO) |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-37B60 |
XZU700,712..40T..(DCRWD,DCVTO) |
4 | ||
| 48215-37G30 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-37B60 |
XZU700,712..40T..(DCRWD,DCVTO) |
4 | ||
| 48215-37G30 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48261-37Y70 |
XZU712..40T..DCRWD |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262-37Y70 |
XZU712..40T..DCRWD |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48215-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48263-37Y70 |
XZU712..40T..DCRWD |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
ILLUST NO. 2 OF 2(1905- )XZU712..40T ; (1905- )XZU710..40T..DCVTO ; (1905- )XZU720..40T..DC
MAIN 2 + HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37Y70 |
XZU712..40T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37W10 |
XZU712..T3..(35T,40T)..DCRWD;XZU710,72#..T3..35T..(DCRWD,DCVTO) |
2 | ||
| 48201-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37W10 |
XZU712..T3..(35T,40T)..DCRWD;XZU710,72#..T3..35T..(DCRWD,DCVTO) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37Y70 |
XZU712..40T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37K31 |
XZU71#..40T..(DCRWD,DCVTO);XZU720..40T..(DCVTO,DCVUO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37W70 |
XZU700,71#,720..40T..(DCRWD,DCVTO) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU700,71#,720..40T..(DCRWD,DCVTO) |
6 | ||
| 48267-3V150 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-37L51 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48253-37W70 |
XZU700,712..40T..(DCRWD,DCVTO) |
2 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-37L51 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48253-37W70 |
XZU700,712..40T..(DCRWD,DCVTO) |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-37B60 |
XZU700,712..40T..(DCRWD,DCVTO) |
4 | ||
| 48215-37G30 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-37B60 |
XZU700,712..40T..(DCRWD,DCVTO) |
4 | ||
| 48215-37G30 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-37B60 |
XZU700,712..40T..(DCRWD,DCVTO) |
4 | ||
| 48215-37G30 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48261-37Y70 |
XZU712..40T..DCRWD |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262-37Y70 |
XZU712..40T..DCRWD |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48215-37K31 |
XZU71#,720..40T..(DCRWD,DCVTO) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48263-37Y70 |
XZU712..40T..DCRWD |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
