XZU712-TKFQF3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Mar 2021
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

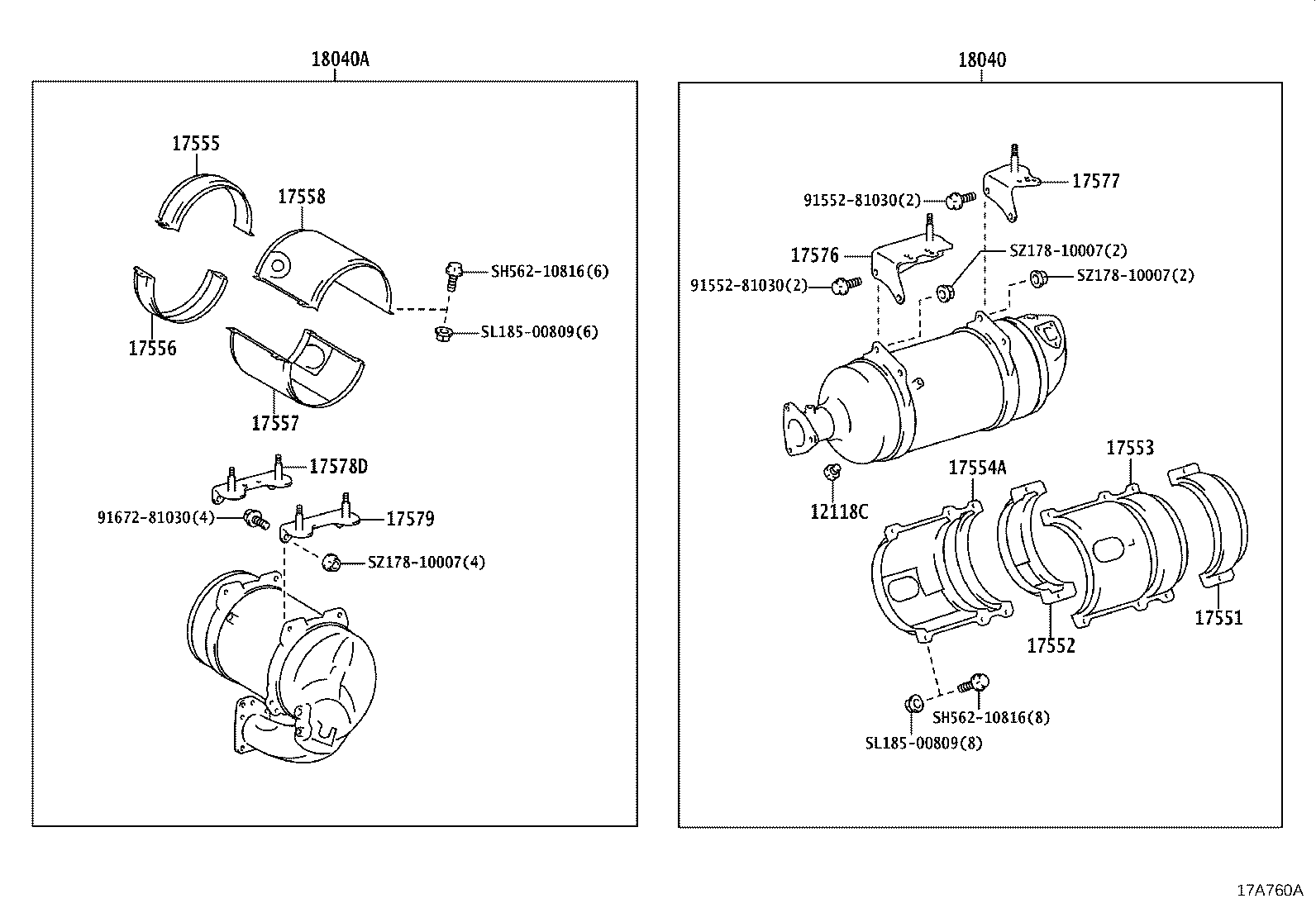

ILLUST NO. 3 OF 3(1905- )N04C..XZU700,71#,72#,73#..DCVUO

Click highlighted areas on diagram

diagram 12118C 17551 17552 17553 17554A 17555 17556 17557 17558 17576 17577 17578D 17579 18040 18040A 9155281030 9155281030 9167281030 SH56210816 SH56210816 SL18500809 SL18500809 SZ17810007 SZ17810007 SZ17810007
Part # Description Qty Price
12118C - PLUG, DRAIN
12118-78010

N04C..XZU700,71#,72#,73#..DCVUO

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17553-78130

N04C..XZU700,71#,72#,73#..DCVUO

 1
17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2
17553-78140

N04C..XZU700,71#,72#,73#..DCVUO

 1
17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3
17553-78150

N04C..XZU700,71#,72#,73#..DCVUO

 1
17554A - INSULATOR, EXHAUST PIPE HEAT, NO.4
17553-78160

N04C..XZU700,71#,72#,73#..DCVUO

 1
17555 - INSULATOR, EXHAUST PIPE HEAT, NO.5
17553-E0260

N04C..XZU700,71#,72#,73#..DCVUO

 1
17556 - INSULATOR, EXHAUST PIPE HEAT, NO.6
17553-E0270

N04C..XZU700,71#,72#,73#..DCVUO

 1
17557 - INSULATOR, EXHAUST PIPE HEAT, NO.7
17554-78250

N04C..XZU700,71#,72#,73#..DCVUO

 1
17558 - INSULATOR, EXHAUST PIPE HEAT, NO.8
17554-78240

N04C..XZU700,71#,72#,73#..DCVUO

 1
17576 - BRACKET, MUFFLER CLAMP
17576-78210

N04C..XZU700,71#,72#,73#..DCVUO

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78390

N04C..XZU700,71#,72#,73#..DCVUO

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78490

N04C..XZU700,71#,72#,73#..DCVUO

 1
17579 - BRACKET, EXHAUST PIPE SUPPORT NO.1 SUB
17579-78080

N04C..XZU700,71#,72#,73#..DCVUO

 1
18040 - CONVERTER ASSY, EXHAUST PIPE, NO.1
18040-78260

N04C..XZU700,71#,72#,73#..DCVUO

 1
18040A - CONVERTER ASSY, EXHAUST PIPE, NO.2
18040-78270

N04C..XZU700,71#,72#,73#..DCVUO

 1
Common parts
91552-81030
91672-81030
SH562-10816
SL185-00809
SZ178-10007

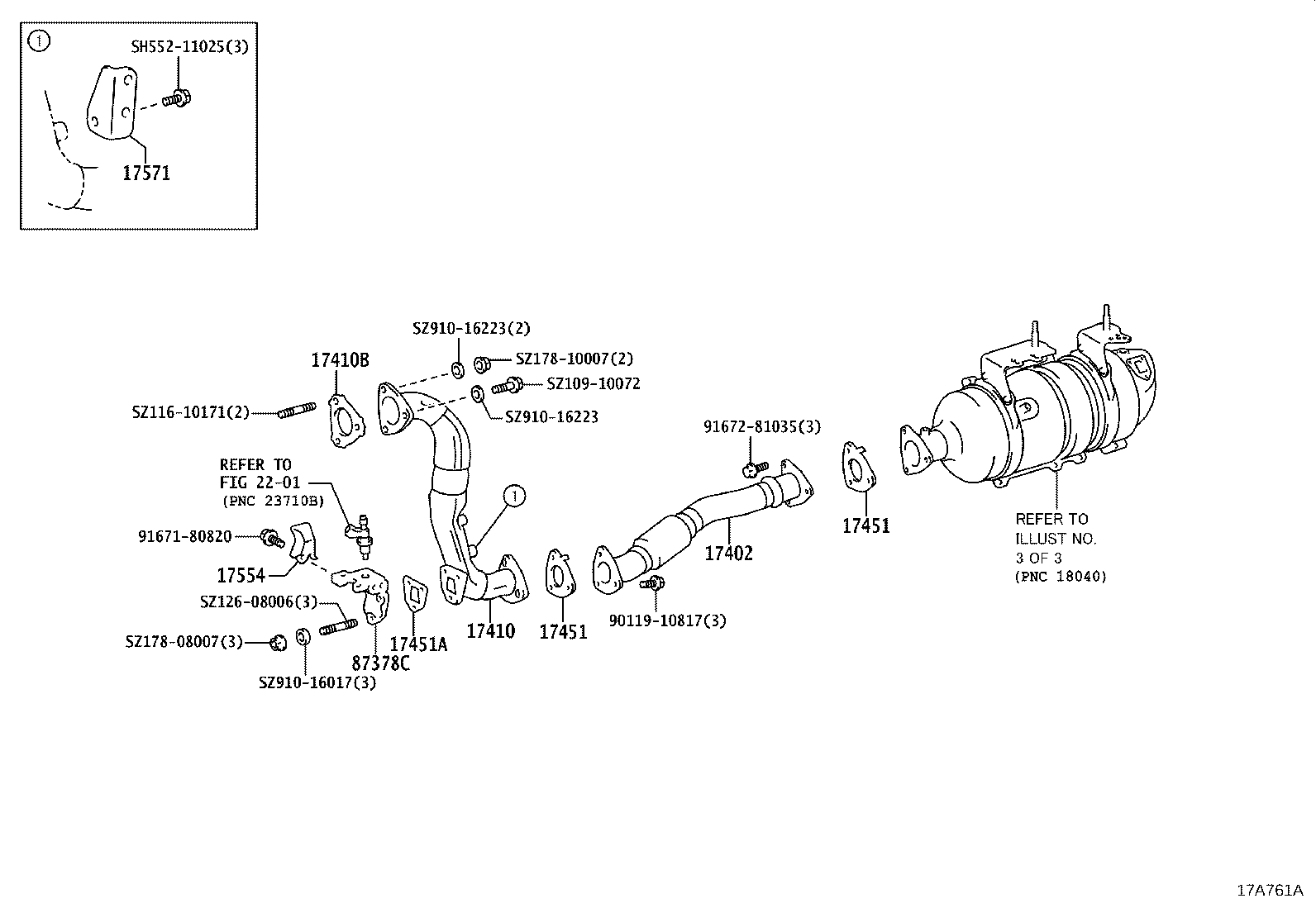

ILLUST NO. 1 OF 3(1905- )N04C..XZC710,XZU70#,71#,72#,73#

Click highlighted areas on diagram

diagram 17402 17410 17410B 17451 17451 17451A 17554 17571 2201 87378C 9011910817 9167180820 9167281035 SH55211025 SZ10910072 SZ11610171 SZ12608006 SZ17808007 SZ17810007 SZ91016017 SZ91016223 SZ91016223
Part # Description Qty Price
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-78331

N04C..XZU700,71#,72#,73#..DCVUO

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78420

N04C..XZU700,71#,72#,73#..DCVUO

 1
17410B - GASKET, EXHAUST PIPE
17451-E0110

N04C..XZU700,71#,72#,73#..DCVUO

 1
17451 - GASKET, EXHAUST PIPE
17451-78061

N04C..XZU700,71#,72#,73#..DCVUO

 2
17451 - GASKET, EXHAUST PIPE
17451-78061

N04C..XZU700,71#,72#,73#..DCVUO

 2
17451A - GASKET, EXHAUST PIPE, NO.2
17451-E0121

N04C..XZU700,71#,72#,73#..DCVUO

 1
17554 - INSULATOR, EXHAUST PIPE HEAT, FRONT
17554-78101

N04C..XZU700,71#,72#,73#..DCVUO

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78140

N04C..XZU700,71#,72#,73#..DCVUO

 1
87378C - PIPE, EXHAUST
87378-E0033

XZU700,71#,72#,73#..DCVUO

 1
Common parts
90119-10817
91671-80820
91672-81035
SH552-11025
SZ109-10072
SZ116-10171
SZ126-08006
SZ178-08007
SZ178-10007
SZ910-16017
SZ910-16223
Linked diagrams
2201

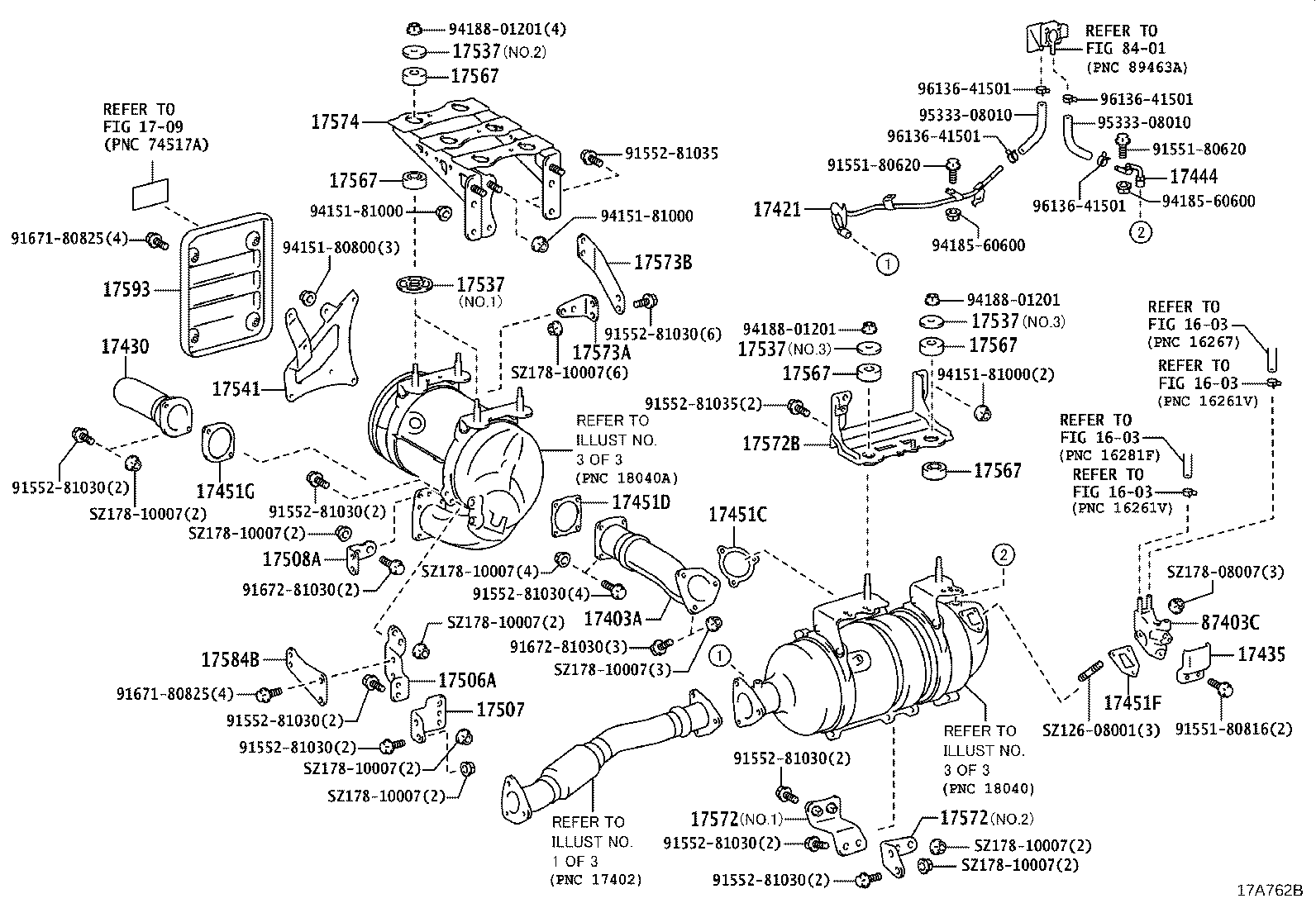

ILLUST NO. 2 OF 3(1905- )N04C..XZU700,71#,72#,73#..DCVUO

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1709 17403A 17421 17430 17435 17444 17451C 17451D 17451F 17451G 17506A 17507 17508A 17537 17537 17537 17537 17541 17567 17567 17567 17567 17567 17572 17572 17572B 17573A 17573B 17574 17584B 17593 8401 87403C 9155180620 9155180620 9155180816 9155281030 9155281030 9155281030 9155281030 9155281030 9155281030 9155281030 9155281030 9155281030 9155281035 9155281035 9167180825 9167180825 9167281030 9167281030 9415180800 9415181000 9415181000 9415181000 9418560600 9418560600 9418801201 9418801201 9418801201 9533308010 9533308010 9613641501 9613641501 9613641501 9613641501 SZ12608001 SZ17808007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007
Part # Description Qty Price
17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2
17403-78C30

N04C..XZU700,71#,72#,73#..DCVUO

 1
17421 - PIPE, EXHAUST, NO.2
17421-78360

N04C..XZU700,71#,72#,73#..DCVUO

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78K30

N04C..XZU700,71#,72#,73#..DCVUO

 1
17435 - INSULATOR, EXHAUST PIPE HEAT
17551-E0760

N04C..XZU700,71#,72#,73#..DCVUO

 1
17444 - PIPE, EXHAUST, NO.4
17444-78210

N04C..XZU700,71#,72#,73#..DCVUO

 1
17451C - GASKET, EXHAUST PIPE, NO.3
S1710-41490

N04C..XZU700,71#,72#,73#..DCVUO

 1
17451D - GASKET, EXHAUST PIPE, NO.4
S1710-41580

N04C..XZU700,71#,72#,73#..DCVUO

 1
17451F - GASKET, EXHAUST PIPE, NO.6
17451-E0121

N04C..XZU700,71#,72#,73#..DCVUO

 1
17451G - GASKET SUB-ASSY, EXHAUST MANIFOLD
17451-78120

N04C..XZU700,71#,72#,73#..DCVUO

 1
17451-E0090

N04C..XZC710,XZU70#,71#,72#,73#

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17584-78130

N04C..XZU700,71#,72#,73#..DCVUO

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17584-78120

N04C..XZU700,71#,72#,73#..DCVUO

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17584-78040

N04C..XZU700,71#,72#,73#..DCVUO

 1
17537 - PLATE, EXHAUST PIPE
17537-78030

N04C..XZU700,71#,72#,73#..DCVUO

NO.3

 2
17537-78030

N04C..XZU700,71#,72#,73#..DCVUO

NO.2

 4
17537-78020

N04C..XZU700,71#,72#,73#..DCVUO

NO.1

 4
17537 - PLATE, EXHAUST PIPE
17537-78030

N04C..XZU700,71#,72#,73#..DCVUO

NO.3

 2
17537-78030

N04C..XZU700,71#,72#,73#..DCVUO

NO.2

 4
17537-78020

N04C..XZU700,71#,72#,73#..DCVUO

NO.1

 4
17537 - PLATE, EXHAUST PIPE
17537-78030

N04C..XZU700,71#,72#,73#..DCVUO

NO.3

 2
17537-78030

N04C..XZU700,71#,72#,73#..DCVUO

NO.2

 4
17537-78020

N04C..XZU700,71#,72#,73#..DCVUO

NO.1

 4
17537 - PLATE, EXHAUST PIPE
17537-78030

N04C..XZU700,71#,72#,73#..DCVUO

NO.3

 2
17537-78030

N04C..XZU700,71#,72#,73#..DCVUO

NO.2

 4
17537-78020

N04C..XZU700,71#,72#,73#..DCVUO

NO.1

 4
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-78020

N04C..XZU700,71#,72#,73#..DCVUO

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78060

N04C..XZU700,71#,72#,73#..DCVUO

 11
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78060

N04C..XZU700,71#,72#,73#..DCVUO

 11
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78060

N04C..XZU700,71#,72#,73#..DCVUO

 11
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78060

N04C..XZU700,71#,72#,73#..DCVUO

 11
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78060

N04C..XZU700,71#,72#,73#..DCVUO

 11
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17585-78130

N04C..XZU700,71#,72#,73#..DCVUO

NO.2

 1
17585-78180

N04C..XZU700,71#,72#,73#..DCVUO

NO.1

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17585-78130

N04C..XZU700,71#,72#,73#..DCVUO

NO.2

 1
17585-78180

N04C..XZU700,71#,72#,73#..DCVUO

NO.1

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-78500

N04C..XZU700,71#,72#,73#..DCVUO

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17586-78110

N04C..XZU700,71#,72#,73#..DCVUO

 1
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17586-78120

N04C..XZU700,71#,72#,73#..DCVUO

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-78220

N04C..XZU700,71#,72#,73#..DCVUO

 1
17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17584-78140

N04C..XZU700,71#,72#,73#..DCVUO

 1
17593 - PROTECTOR, EXHAUST PIPE, NO.1
17551-78130

N04C..XZU700,71#,72#,73#..DCVUO

 1
87403C - PIPE SUB-ASSY, EXHAUST
87403-E0010

XZU700,71#,72#,73#..DCVUO

 1
Common parts
91551-80620
91551-80816
91552-81030
91552-81035
91671-80825
91672-81030
94151-80800
94151-81000
94185-60600
94188-01201
95333-08010
96136-41501
SZ126-08001
SZ178-08007
SZ178-10007
Linked diagrams
1603
1709
8401
