XZU710-TQTMB (2011)
Toyota Dyna/Toyoace
(1107-1905)XZC710,XZU70#,71#,72#,775..SCB..T3,T4,T5..CBU ; (1905- )XZU70#..CBU
ｻｲﾄﾞ ｹﾞｰﾄ ﾍﾙﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1 | ||||
| 66031-37020 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66031-37020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66034-37020 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66034-37020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66033C - ROD SUB-ASSY, GATE HELPER TENSION | ||||
| 66033-37100 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66033-37100 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66034 - BRACKET SUB-ASSY, GATE HELPER, NO.3 LH | ||||
| 66033-37090 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66033-37090 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66035B - BELLCRANK SUB-ASSY, GATE HELPER | ||||
| 66035-37020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66035-37020 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66302A - LINK SUB-ASSY, GATE HELPER | ||||
| 66302-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66302-37060 |
XZC710,XZU700,710,720,775..SCB..(T3,T4,T5)..CBU |
2 | ||
| 66302-37040 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66302-37061 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66302-37061 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66308A - END SUB-ASSY, GATE HELPER ROD, NO.2 | ||||
| 66308-37010 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66308-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
4 | ||
| 66326-37010 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
4 | ||
| 66326-37010 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66330 - HELPER ASSY, GATE, RH | ||||
| 66340-37050 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ***,ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66340-37050 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU *** |
1 | ||
| 66340 - HELPER ASSY, GATE, LH | ||||
| 66330-37040 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ***,ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66330-37040 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU *** |
1 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37060 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66341-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
4 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37060 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66341-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
4 | ||
| 66347B - BOLT, GATE HELPER BELLCRANK ADJUST | ||||
| 66347-37020 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66347-37020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66348 - RETAINER, GATE HELPER BELLCRANK ADJUST BOLT | ||||
| 66348-37010 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66348-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| Common parts | ||||
| 66996-37010 | ||||
| 66996-37011 | ||||
| 90170-10035 | ||||
| 90201-09011 | ||||
| 90201-10046 | ||||
| 90249-10098 | ||||
| 90249-10185 | ||||
| 90249-10195 | ||||
| 90249-10196 | ||||
| 90250-10029 | ||||
| 90523-08003 | ||||
| 91651-41020 | ||||
| 94130-61000 | ||||
| 94151-80840 | ||||
| 94185-61000 | ||||

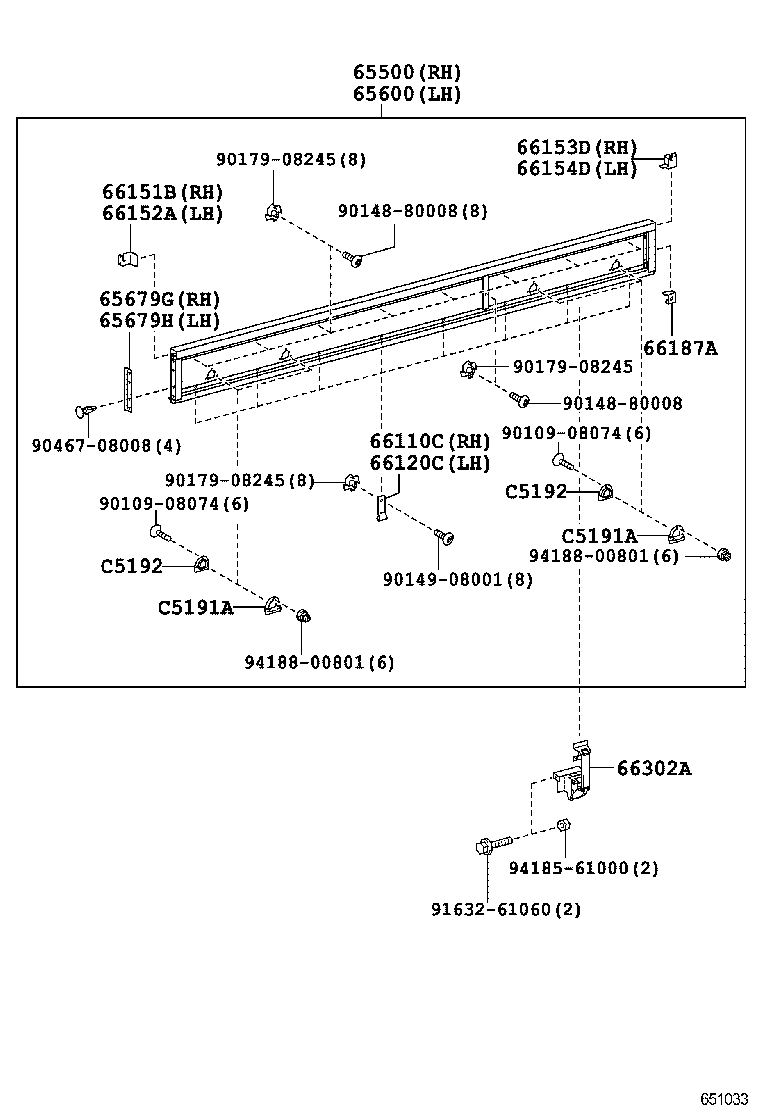

(1107- )XZC710,XZU710..SCB..T4..20T..DCRTJ,DCRWD,DCVUO,DCWDO..CBU
ﾚﾝﾀｶｰ ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-37E12 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65500-37E52 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37E11 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65500-37E61 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37E11 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37D10 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37E51 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37E12 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37E62 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-37C70 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37J12 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65600-37J11 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65600-37J61 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37J11 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37J51 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37J12 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37J62 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37J52 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 65679-37011 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65679-37011 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37070 |
XZC710,XZU710,775..SCB..CBU |
7 | ||
| 65010-37070 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65535-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
8 | ||
| 65010-37070 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37071 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37071 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65010-37071 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37071 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 65010-37070 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65010-37070 |
XZC710,XZU710,775..SCB..CBU |
7 | ||
| 65010-37070 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65535-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
8 | ||
| 65010-37071 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37071 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 66151B - LATCH, SIDE GATE, FRONT RH | ||||
| 66151-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66151-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66151-37030 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66152A - LATCH, SIDE GATE, FRONT LH | ||||
| 66152-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66152-37030 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66152-37020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66153D - LATCH, SIDE GATE, REAR RH | ||||
| C5366-95700 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 66153-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66153-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 66154D - LATCH, SIDE GATE, REAR LH | ||||
| 66154-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| C5365-95700 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 66154-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66187A - LATCH, SIDE GATE SUPPORT | ||||
| 66187-37020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ),右側 |
1 | ||
| 66187-37030 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ),左側 |
1 | ||
| 66187-37050 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU 左側 |
1 | ||
| 66187-37050 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ),左側 |
1 | ||
| 66187-37040 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ),右側 |
1 | ||
| 66187-37040 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU 右側 |
1 | ||
| 66302A - LINK SUB-ASSY, GATE HELPER | ||||
| 66302-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66302-37060 |
XZC710,XZU700,710,720,775..SCB..(T3,T4,T5)..CBU |
2 | ||
| 66302-37040 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66302-37061 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66302-37061 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| C5191A - PLATE, GATE ROPE THROUGH, OUTER | ||||
| C5191-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
4 | ||
| C5191A - PLATE, GATE ROPE THROUGH, OUTER | ||||
| C5191-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
4 | ||
| C5192 - PLATE, GATE ROPE THROUGH, INNER | ||||
| C5192-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
4 | ||
| C5192 - PLATE, GATE ROPE THROUGH, INNER | ||||
| C5192-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
4 | ||
| Common parts | ||||
| 90109-08074 | ||||
| 90148-80008 | ||||
| 90149-08001 | ||||
| 90179-08245 | ||||
| 90467-08008 | ||||
| 91632-61060 | ||||
| 94185-61000 | ||||
| 94188-00801 | ||||
(1107- )XZU710..6F..30T..DCRTK..CBU ; (1107-)XZU710..SCB..20T..DCRTJ..CBU ;
ﾊﾟﾜｰﾘﾌﾄ OR ﾊﾟﾜｰｹﾞｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-37E12 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65500-37E12 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65500-37E52 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37E52 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37E11 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65500-37E11 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65500-37E61 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37E61 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37E11 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37E11 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37D10 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37D10 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37E51 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37E51 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37E12 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37E12 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37E62 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37E62 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
10 | ||
| 90119-08464 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
10 | ||
| 90119-08464 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
14 | ||
| 90119-08464 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
14 | ||
| 90119-08464 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
14 | ||
| 90119-08464 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
14 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-37C70 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37C70 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37J12 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65600-37J12 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65600-37J11 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65600-37J11 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65600-37J61 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37J61 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37J11 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37J11 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37J51 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37J51 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37J12 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37J12 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37J62 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37J62 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37J52 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37J52 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
14 | ||
| 90119-08464 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
14 | ||
| 90119-08464 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
10 | ||
| 90119-08464 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
10 | ||
| 90119-08464 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
14 | ||
| 90119-08464 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
14 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 65679-37011 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 65679-37011 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65679-37011 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65679-37011 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65679-37011 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 65679-37011 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37070 |
XZC710,XZU710,775..SCB..CBU |
7 | ||
| 65010-37070 |
XZC710,XZU710,775..SCB..CBU |
7 | ||
| 65010-37070 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65010-37070 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65535-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
8 | ||
| 65535-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
8 | ||
| 65010-37070 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37070 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37071 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37071 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37071 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65010-37071 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65010-37071 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 65010-37071 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37071 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 65010-37071 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 65010-37070 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65010-37070 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65010-37070 |
XZC710,XZU710,775..SCB..CBU |
7 | ||
| 65010-37070 |
XZC710,XZU710,775..SCB..CBU |
7 | ||
| 65010-37070 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37070 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65535-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
8 | ||
| 65535-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
8 | ||
| 65010-37071 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37071 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37071 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65010-37071 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 66151B - LATCH, SIDE GATE, FRONT RH | ||||
| 66151-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66151-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66151-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66151-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66151-37030 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66151-37030 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66152A - LATCH, SIDE GATE, FRONT LH | ||||
| 66152-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66152-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66152-37030 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66152-37030 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66152-37020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66152-37020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66153D - LATCH, SIDE GATE, REAR RH | ||||
| C5366-95700 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| C5366-95700 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 66153-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66153-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66153-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 66153-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 66154D - LATCH, SIDE GATE, REAR LH | ||||
| 66154-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 66154-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| C5365-95700 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| C5365-95700 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 66154-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66154-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| Common parts | ||||
| 90119-08465 | ||||
| 90467-08008 | ||||
| 93560-14008 | ||||
| 94130-60800 | ||||
(1107- )XZC710,XZU70#,71#,72#,775..T3,T4,T5..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-37E12 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65500-37E52 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37E11 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65500-37E61 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500-37E11 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37D10 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37E51 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65500-37E12 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65500-37E62 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
10 | ||
| 90119-08464 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
14 | ||
| 90119-08464 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
14 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-37C70 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37J12 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65600-37J11 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65600-37J61 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37J11 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37J51 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600-37J12 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65600-37J62 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰｹﾞｰﾄ |
1 | ||
| 65600-37J52 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
14 | ||
| 90119-08464 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
10 | ||
| 90119-08464 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
14 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 65679-37011 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65679-37011 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37070 |
XZC710,XZU710,775..SCB..CBU |
7 | ||
| 65010-37070 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65535-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
8 | ||
| 65010-37070 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37071 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37071 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65010-37071 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37071 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 65010-37070 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 65010-37070 |
XZC710,XZU710,775..SCB..CBU |
7 | ||
| 65010-37070 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65535-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
8 | ||
| 65010-37071 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
6 | ||
| 65010-37071 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
7 | ||
| 66151B - LATCH, SIDE GATE, FRONT RH | ||||
| 66151-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66151-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66151-37030 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66152A - LATCH, SIDE GATE, FRONT LH | ||||
| 66152-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66152-37030 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66152-37020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66153D - LATCH, SIDE GATE, REAR RH | ||||
| C5366-95700 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 66153-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66153-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| 66154D - LATCH, SIDE GATE, REAR LH | ||||
| 66154-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,730,775..(T3,T4,T5)..CBU |
1 | ||
| C5365-95700 |
XZU710..6F..30T..DCRTK..CBU;XZU710..SCB..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
1 | ||
| 66154-37010 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66187A - LATCH, SIDE GATE SUPPORT | ||||
| 66187-37020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ),右側 |
1 | ||
| 66187-37030 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ),左側 |
1 | ||
| 66187-37050 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU 左側 |
1 | ||
| 66187-37050 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ),左側 |
1 | ||
| 66187-37040 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ),右側 |
1 | ||
| 66187-37040 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU 右側 |
1 | ||
| 66243B - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-37060 |
XZC710,XZU700,710,720,775..SCB..(T3,T4,T5)..CBU |
12 | ||
| 66243-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
12 | ||
| 66243-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
6 | ||
| 66243-37060 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
6 | ||
| 66243H - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
12 | ||
| 66243-37060 |
XZC710,XZU700,710,720,775..SCB..(T3,T4,T5)..CBU |
12 | ||
| 66243-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
6 | ||
| 66243-37060 |
XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
6 | ||
| Common parts | ||||
| 90148-80069 | ||||
| 90148-80070 | ||||
| 90179-08245 | ||||
| 90467-08008 | ||||
| 93560-14008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
