XZU710-TQMMB (2011)
Toyota Dyna/Toyoace
(1107- )XZC710,XZU70#,71#..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU,DCRWD,DCVTO,DCVUO..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

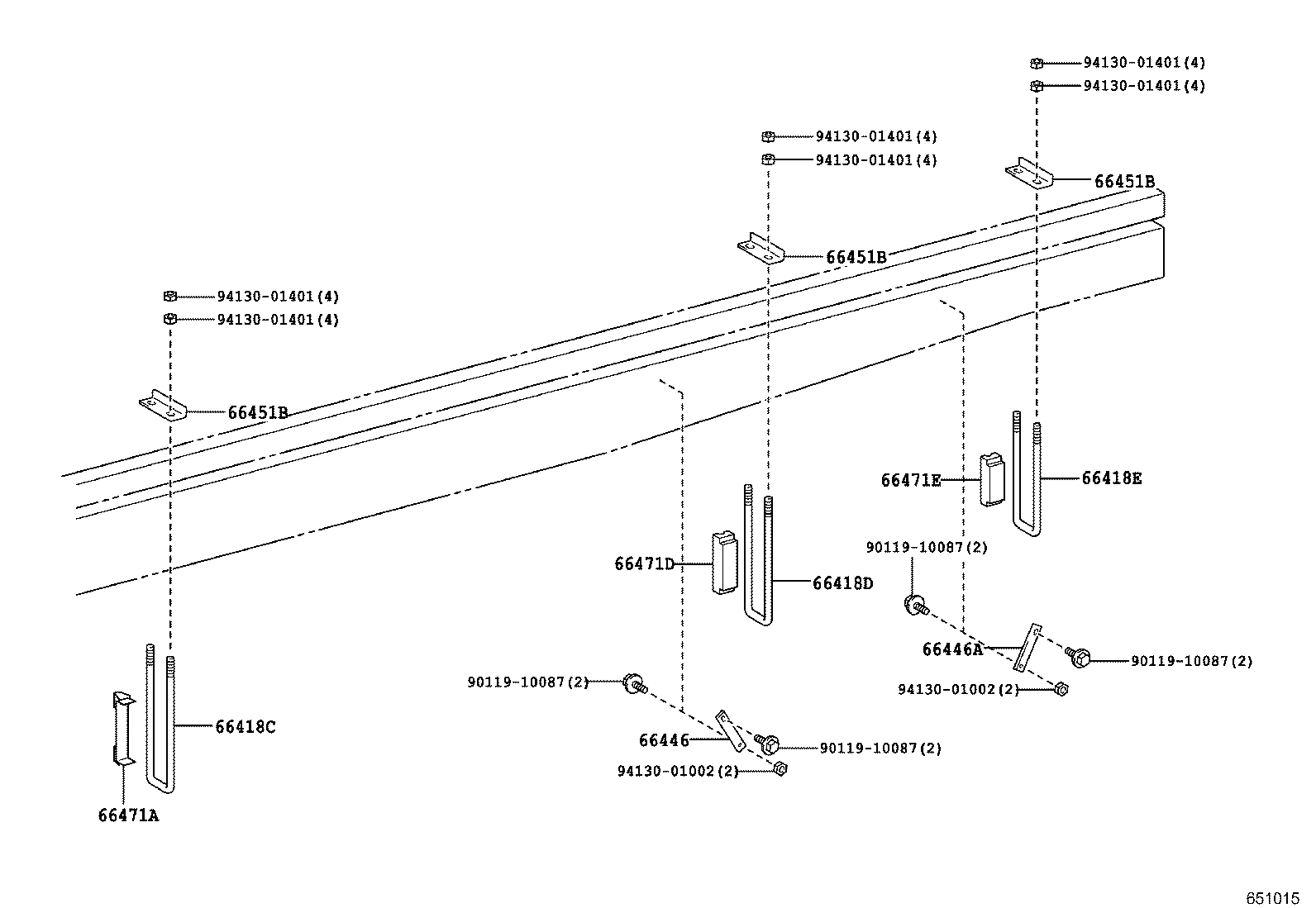

| 66418C - BOLT, U, FRONT | ||||
| 90031-17022 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 90117-12045 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66418D - BOLT, U, CENTER | ||||
| 90031-17021 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 90031-17021 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66418E - BOLT, U, REAR | ||||
| 90031-17020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 90117-12046 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-37150 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-37150 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-92700 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-92700 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66451E - PLATE, U BOLT, FRONT | ||||
| 66451-37030 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66451G - PLATE, U BOLT, REAR | ||||
| 66451-37030 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-37060 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66471-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66471D - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-37260 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66471-37260 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66471E - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66471-37080 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| Common parts | ||||
| 90119-10087 | ||||
| 94130-01002 | ||||
| 94130-01401 | ||||
| 94130-61200 | ||||
(1107- )XZU72#..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU,DCRWD,DCVTO,DCVUO..CBU ; (2103-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418C - BOLT, U, FRONT | ||||
| 90031-17022 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 90117-12045 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66418D - BOLT, U, CENTER | ||||
| 90031-17021 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 90031-17021 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66418E - BOLT, U, REAR | ||||
| 90031-17020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 90117-12046 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-37150 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-37150 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-92700 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-92700 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66451E - PLATE, U BOLT, FRONT | ||||
| 66451-37030 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66451G - PLATE, U BOLT, REAR | ||||
| 66451-37030 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-37060 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66471-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66471E - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66471-37080 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| Common parts | ||||
| 90119-10087 | ||||
| 94130-01002 | ||||
| 94130-01401 | ||||
(1107- )XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ; (1905- )XZC710,XZU710..SCB.
ﾚﾝﾀｶｰｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418C - BOLT, U, FRONT | ||||
| 90031-17022 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 90031-17022 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 90117-12045 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 90117-12045 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66418D - BOLT, U, CENTER | ||||
| 90031-17021 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 90031-17021 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 90031-17021 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 90031-17021 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66418E - BOLT, U, REAR | ||||
| 90031-17020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 90031-17020 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 90117-12046 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 90117-12046 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-37150 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446-37150 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-37140 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66446-92700 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66446-92700 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66451B - PLATE, U BOLT | ||||
| 66451-37040 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
6 | ||
| 66451-37040 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
6 | ||
| 66451B - PLATE, U BOLT | ||||
| 66451-37040 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
6 | ||
| 66451-37040 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
6 | ||
| 66451B - PLATE, U BOLT | ||||
| 66451-37040 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
6 | ||
| 66451-37040 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
6 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-37060 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66471-37060 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66471-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66471-37060 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66471D - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-37260 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66471-37260 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66471-37260 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66471-37260 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66471E - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66471-37080 |
XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
2 | ||
| 66471-37080 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| 66471-37080 |
XZU710..SCB..T4..20T..DCRTJ..CBU ﾊﾟﾜｰﾘﾌﾄ |
2 | ||
| Common parts | ||||
| 90119-10087 | ||||
| 94130-01002 | ||||
| 94130-01401 | ||||
(1107- )XZC710,XZU710..SCB..T4..20T..DCRTJ,DCRTK,DCRTL..CBU ; (1905- )XZC710,
ｱﾘ(ﾒｲﾝｼﾙ ｻﾎﾟｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 66441-37030 |
XZC710,XZU710..SCB..T4..20T..CBU |
2 | ||
| 66441-37030 |
XZC710,XZU710..SCB..T4..20T..CBU |
2 | ||
| Common parts | ||||
| 90119-10102 | ||||
| 90201-10159 | ||||
| 94130-01002 | ||||
| Linked diagrams | ||||
| 5151 | ||||
