Toyota Dyna/toyoace XZU710 SIDE BUMPER & BUMPER STAY - JDM Part Detective

Home Blog About Contact Search

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU710-TQMMB (2011)
5254 - SIDE BUMPER & BUMPER STAY

XZU710-TQMMB (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1107-1705)XZC710,XZU700,710,775..T3,T4,T5..CBU; (1705- )XZC710,XZU70#,71#,775.

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
52091A - STAY SUB-ASSY, SIDE BUMPER, FRONT RH
52091-37A40	XZC710,XZU700,710,720,775..SCB..T4..CBU	07/2011 - 05/2017	1
52091-37A40	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	07/2011 - 05/2017	1
52092A - STAY SUB-ASSY, SIDE BUMPER, FRONT LH
52092-37870	XZC710,XZU700,710,720,775..T4..CBU	07/2011 - 05/2017	1
52092-37870	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	07/2011 - 05/2017	1
52093 - STAY SUB-ASSY, SIDE BUMPER, REAR RH
52093-37190	XZC710,XZU700,710,775..T4..CBU	07/2011 - 05/2017	1
52093-37190	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	07/2011 - 05/2017	1
52094 - STAY SUB-ASSY, SIDE BUMPER, REAR LH
52092-37870	XZC710,XZU700,710,775..T4..CBU	07/2011 - 05/2017	1
52092-37870	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	07/2011 - 05/2017	1
52911 - BAR, SIDE BUMPER
52901-37250	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	07/2011 - 05/2017	2
52901-37120	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	07/2011 - 05/2017	2
52901-37250	XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..(20T,30T,35T)..CBU	07/2011 - 05/2017	2
Common parts
90119-10087
90179-10072

(1107-1705)XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ; (1705- )XZC710,XZU710..SCB.

Click highlighted areas on diagram

ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ-ﾚﾝﾀｶｰｼﾖｳ(ﾛﾝｸﾞ3ﾎｳｶｲﾃﾞｯｷ)

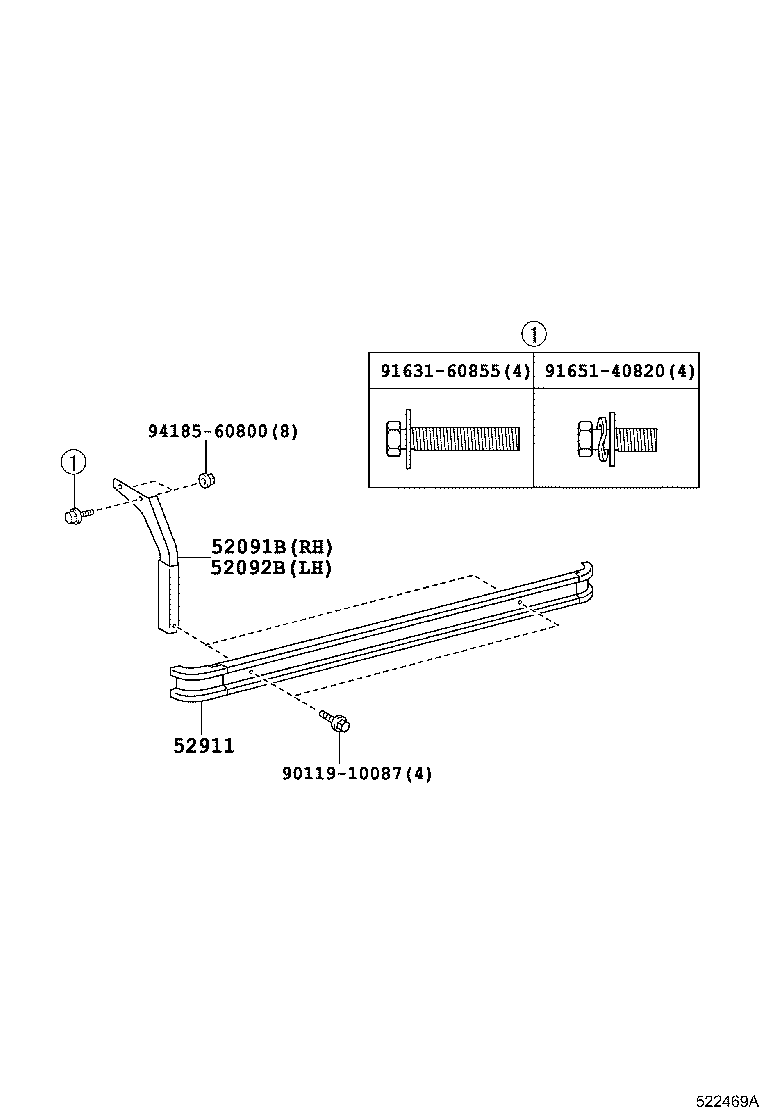

diagram

Part #	Description	Period	Qty	Price
52091B - STAY SUB-ASSY, SIDE BUMPER, RH
52091-37380	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	07/2011 - 07/2012	2
52091-37460	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	08/2012 - 05/2017	2
52092B - STAY SUB-ASSY, SIDE BUMPER, LH
52092-37430	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	08/2012 - 05/2017	2
52092-37200	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	07/2011 - 07/2012	2
52911 - BAR, SIDE BUMPER
52901-37250	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	07/2011 - 05/2017	2
52901-37120	XZC710,XZU710..SCB..T4..20T..DCRTJ..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ)	07/2011 - 05/2017	2
52901-37250	XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..(20T,30T,35T)..CBU	07/2011 - 05/2017	2
Common parts
90119-10087
91631-60855
91651-40820
94185-60800
