XZU710-TQFRF3 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(1905- )XZU71#,72#,73#..30T,35T,40T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37060 |
XZU71#,72#,73#..DCVUO |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37111 |
XZU72#,73#..T4..DCVUO;XZU71#..(20T,30T,35T)..DCVUO |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18017 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 長さ=350,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 90117-18015 |
XZU71#,72#,73#..T4..35T..DCVUO 長さ=330 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18017 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 長さ=350,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 90117-18015 |
XZU71#,72#,73#..T4..35T..DCVUO 長さ=330 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37111 |
XZU72#,73#..T4..DCVUO;XZU71#..(20T,30T,35T)..DCVUO |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37090 |
XZU71#,72#,73#..T4..(30T,35T)..DCVUO |
2 | ||
| 48405A - BRACKET SUB-ASSY, SPRING, NO.4 RH | ||||
| 48405-37010 |
XZU71#,72#,73#..DCVUO |
1 | ||
| 48406 - BRACKET SUB-ASSY, SPRING, NO.4 LH | ||||
| 48406-37010 |
XZU71#,72#,73#..DCVUO |
1 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
XZU71#,72#,73#..(30T,35T,40T)..DCVUO |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
XZU71#,72#,73#..(30T,35T,40T)..DCVUO |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48442-37080 |
XZU71#,72#,73#..DCVUO |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37090 |
XZU712..DCVUO..IV3;XZU710,72#,73#..(T4,T5)..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37120 |
XZC710,XZU70#,712..DCRWD,DCVTO,DCVUO;XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU72#,73#..(T4,T5)..(DCRWD,DCVTO,DCVUO);XZU710..(20T,30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37052 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37052 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37331 |
XZU71#..(30T,35T)..DCVUO;XZU72#,73#..T4..(30T,35T)..DCVUO ﾏｰｸ 48531−37331 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37331 |
XZU71#..(30T,35T)..DCVUO;XZU72#,73#..T4..(30T,35T)..DCVUO ﾏｰｸ 48531−37331 |
1 | ||
| Common parts | ||||
| 90105-16070 | ||||
| 90119-12088 | ||||
| 90178-14002 | ||||
| 90178-16007 | ||||
| 90178-18002 | ||||
| 91552-81030 | ||||
| 91552-L1445 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||
ILLUST NO. 2 OF 2(1905- )XZU71#..30T,35T ; (1905- )XZU72#,73#..T4..30T,35T ; (1905- )XZU72#
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V50 |
XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU71#..(30T,35T)..(DCRWD,DCVTO,DCVUO);XZU70#,72#,73#..T4..(30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48247-37E81 |
XZU72#..T3..35T..(DCRWD,DCVTO);XZU71#..T3..35T..(DCRWD,DCVTO)..CBU;XZU71#..35T..(DCRWD,DCVTO,DCVUO)..IV3;XZU72#,73#..T4..35T..(DCRWD,DCVTO,DCVUO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU71#,72#,73#..(30T,35T)..DCVUO |
4 | ||
| S4814-E0010 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU71#,72#,73#..(30T,35T)..DCVUO |
4 | ||
| S4814-E0010 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48253-37L51 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48282-37V60 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37J61 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48261-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J61 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU700,71#,72#,73#..DCVUO |
2 | ||

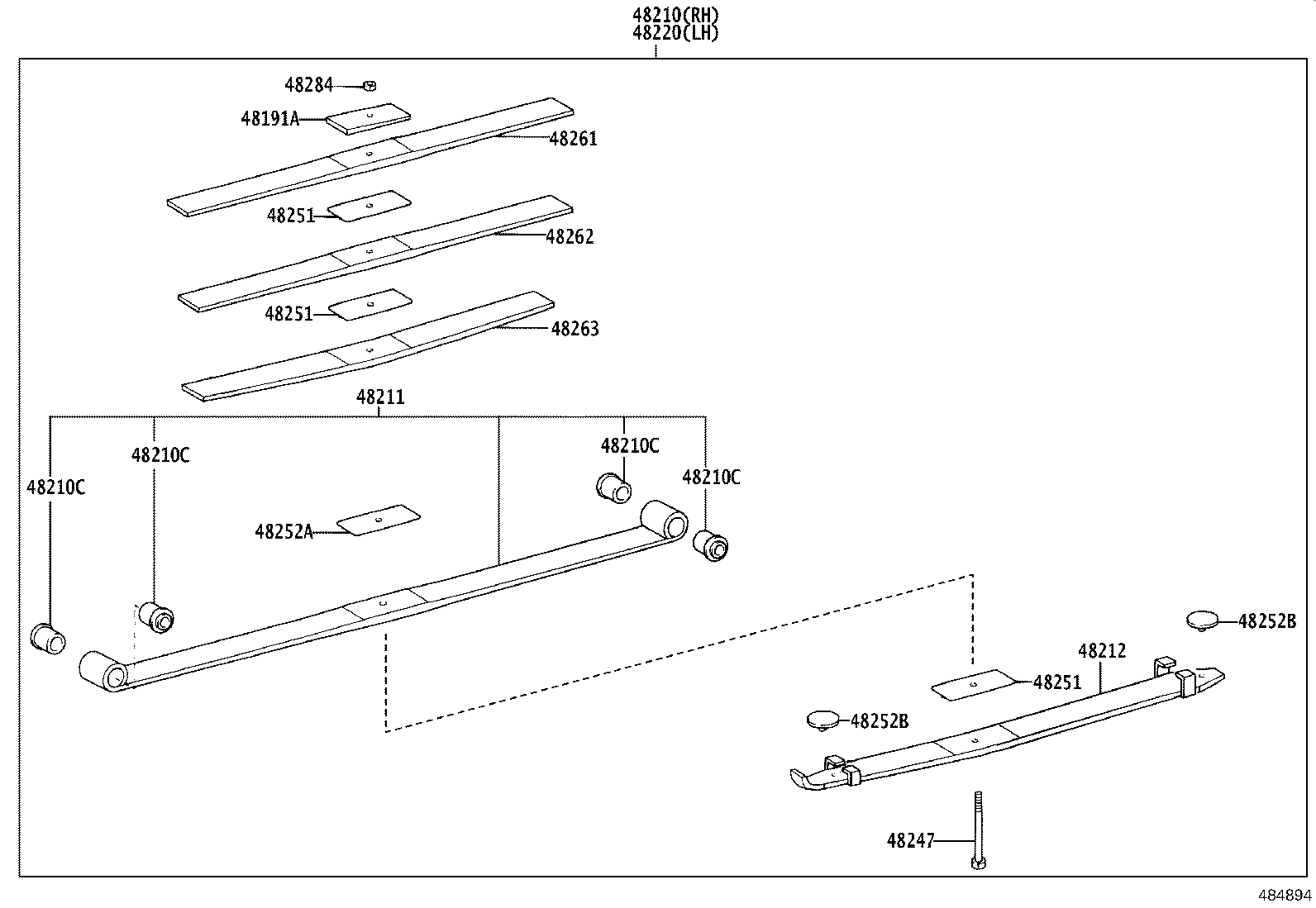

ILLUST NO. 2 OF 2(1905- )XZU71#..35T..DCRWD,DCVTO,DCVUO..IV3 ;(1905- )XZU72#,73#..T4..35T..DC
MAIN 2 + HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 48192-37100 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 90389-16026 |
XZU71#,72#,73#..DCVUO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48201-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48202-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#,72#,73#..T4..35T..DCVUO..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V50 |
XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU71#..(30T,35T)..(DCRWD,DCVTO,DCVUO);XZU70#,72#,73#..T4..(30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48247-37V50 |
XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU71#..(30T,35T)..(DCRWD,DCVTO,DCVUO);XZU70#,72#,73#..T4..(30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48247-37E81 |
XZU72#..T3..35T..(DCRWD,DCVTO);XZU71#..T3..35T..(DCRWD,DCVTO)..CBU;XZU71#..35T..(DCRWD,DCVTO,DCVUO)..IV3;XZU72#,73#..T4..35T..(DCRWD,DCVTO,DCVUO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37E81 |
XZU72#..T3..35T..(DCRWD,DCVTO);XZU71#..T3..35T..(DCRWD,DCVTO)..CBU;XZU71#..35T..(DCRWD,DCVTO,DCVUO)..IV3;XZU72#,73#..T4..35T..(DCRWD,DCVTO,DCVUO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU71#,72#,73#..(30T,35T)..DCVUO |
4 | ||
| 48282-37V50 |
XZU71#,72#,73#..(30T,35T)..DCVUO |
4 | ||
| S4814-E0010 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| S4814-E0010 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU71#,72#,73#..(30T,35T)..DCVUO |
4 | ||
| 48282-37V50 |
XZU71#,72#,73#..(30T,35T)..DCVUO |
4 | ||
| S4814-E0010 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| S4814-E0010 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37V50 |
XZU71#,72#,73#..(30T,35T)..DCVUO |
4 | ||
| 48282-37V50 |
XZU71#,72#,73#..(30T,35T)..DCVUO |
4 | ||
| S4814-E0010 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| S4814-E0010 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
8 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48253-37L51 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48253-37L51 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48282-37V60 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 48282-37V60 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48252-37521 |
XZU700,71#,72#,73#..DCVUO |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37J61 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J61 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48261-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48261-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J61 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J61 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48262-37W30 |
XZU71#,72#,73#..T4..35T..DCVUO |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48215-37J61 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48215-37J61 |
XZU722,732..T3..DCVUO..CBU;XZU71#,72#,73#..35T..DCVUO..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 48284-0W070 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
