XZU710-TQFRC3 (2011)
Toyota Dyna/Toyoace

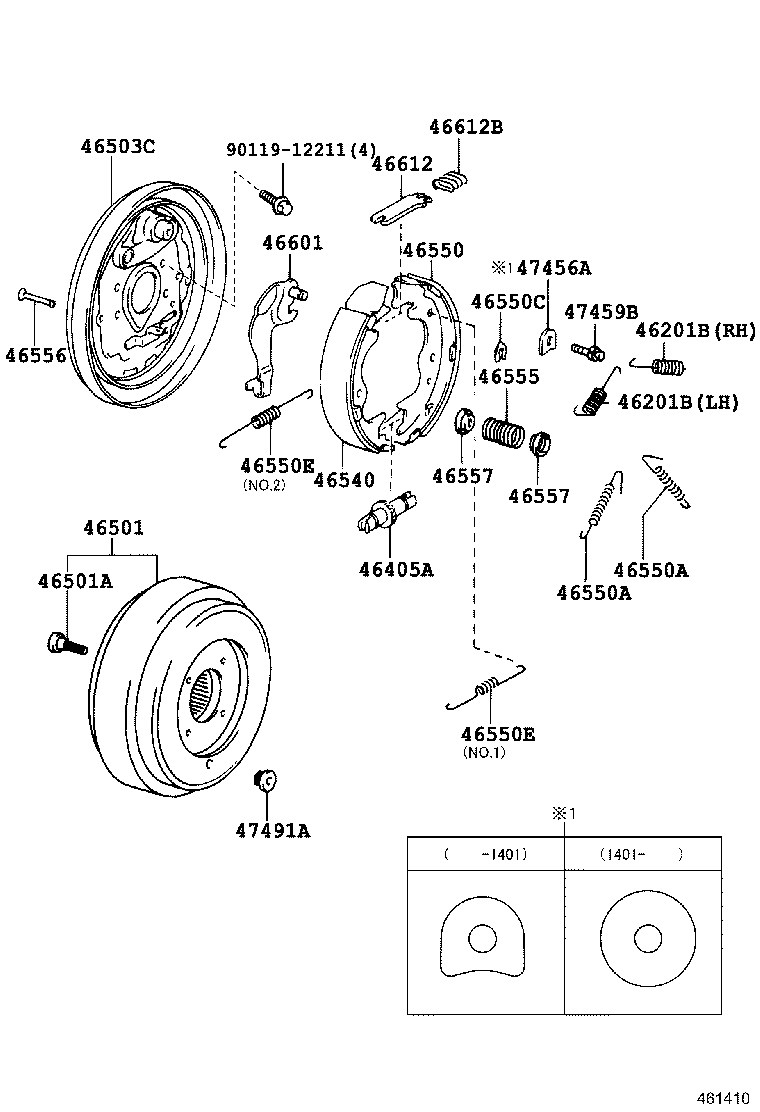

ILLUST NO. 2 OF 2(1107- )XZC710,XZU700,710,720..5F,6FC..20T..DCRTJ,DCRTK ; (1905- )XZC710,XZU7
ﾅｼ(ﾃﾞﾝﾄﾞｳ ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46511-37080 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| SU002-00970 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| SU002-00296 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| SU002-00286 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| SU002-00286 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| SU002-00290 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| SU002-00297 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| SU002-00993 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| SU002-00294 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| SU002-00295 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| Common parts | ||||
| 90119-12211 | ||||
| 94613-11200 | ||||

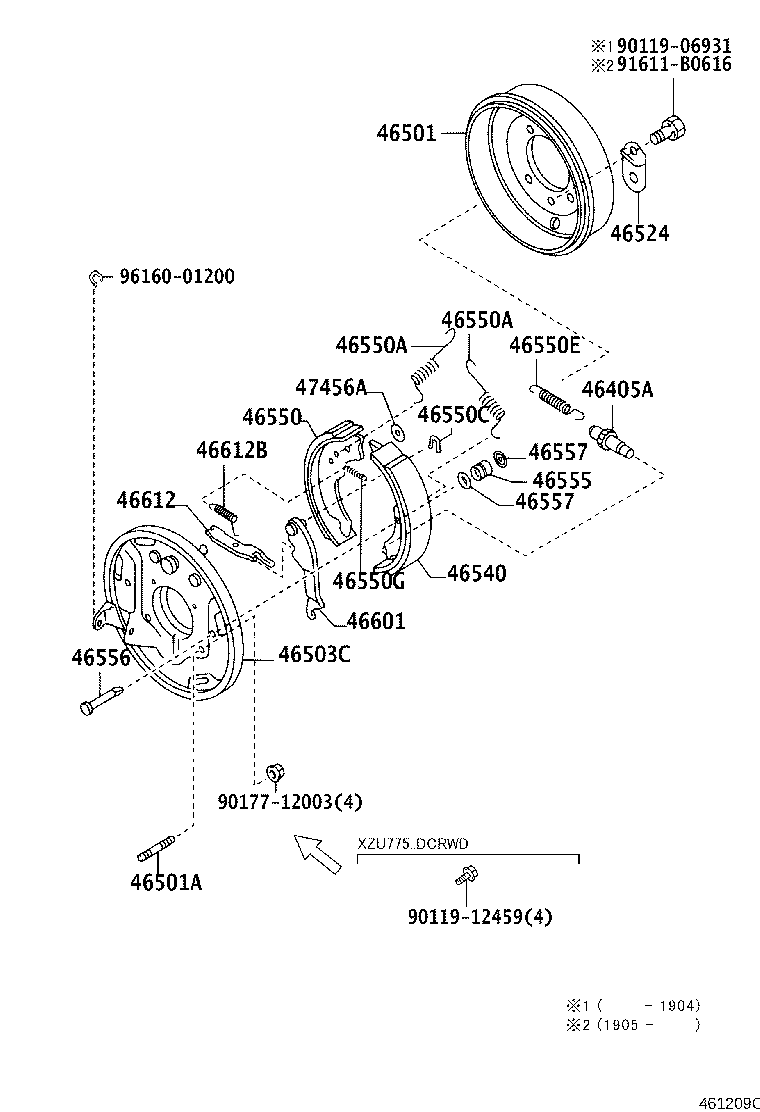

ILLUST NO. 2 OF 2(1107- )XZU775..DCRTK ; (1107- )XZU700,710,720..6F..DCRTJ,DCRTK ; (1705- )
MYY5A,MYY6S,RE50F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| SU002-00289 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46511-37080 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| SU002-00970 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| SU002-00296 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46524 - COVER, PARKING BRAKE DUST | ||||
| 46524-37030 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| SU002-00286 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| SU002-00286 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00291 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| SU002-00290 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| SU002-00297 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| SU002-00993 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| SU002-00294 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| SU002-00295 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| SU002-00292 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| Common parts | ||||
| 90119-06931 | ||||
| 90119-12459 | ||||
| 90177-12003 | ||||
| 91611-B0616 | ||||
| 96160-01200 | ||||
ILLUST NO. 1 OF 2(1107- )XZU722..T3..35T..DCRTK..IV3 ; (1107-)XZU720..6F..20T..DCRTK,DCRTL ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37150C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU700,710,720,730,775 BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU700,710,720,730,775 BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU700,710,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37150C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU700,710,720,730,775 BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU700,710,720,730,775 BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU700,710,720,730,775 BLACK,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37C30 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46420-37A40 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46420-37A40 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46420-37A40 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46420-37C30 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46420-37C30 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37461 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46430-37461 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46430-37461 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46430-37E90 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46430-37E90 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46430-37E90 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46453-37200 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46453-37200 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46585 - PLATE, PARKING BRAKE CAUTION | ||||
| 46585-37020 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 46585-37020 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 46585-37020 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 46585-37020 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37020 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37020 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585 - PLATE, PARKING BRAKE CAUTION | ||||
| 46585-37020 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 46585-37020 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 46585-37020 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 46585-37020 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37020 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37020 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| Common parts | ||||
| 90461-08225 | ||||
| 91551-80818 | ||||
| 91551-A0818 | ||||
| 91651-40814 | ||||
| 94151-80800 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1107- )XZU700,710,720..30T,35T,40T..DCRTJ,DCRTK ; (1705- )XZU720..5F ; (1705
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37150C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU700,710,720,730,775 BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU700,710,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37150C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU700,710,720,730,775 BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU700,710,720,730,775 BLACK,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37A40 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46420-37A40 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46420-37C30 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46420-37C30 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37461 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46430-37461 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46430-37E90 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46430-37E90 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46453-37200 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46585 - PLATE, PARKING BRAKE CAUTION | ||||
| 46585-37020 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 46585-37020 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 46585-37020 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37020 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585 - PLATE, PARKING BRAKE CAUTION | ||||
| 46585-37020 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 46585-37020 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 46585-37020 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37020 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 91551-80818 | ||||
| 91551-A0818 | ||||
| 94151-80800 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1305- )XZU700,710,720..6F..DCRTJ,DCRTK ; (1705- )6F..DCRTJ,DCRTK
ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET | ||||
| 46300-37071 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37A40 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46420-37C30 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37461 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46430-37E90 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-37090 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 84390C - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-37030C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-08108 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 94151-80800 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 7554 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1107- )XZU700,710,720..6FC..DCRTJ,DCRTK ; (1305- )XZC710,XZU700,710,720..SCB
ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET | ||||
| 46300-37071 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46300-37071 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37A40 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46420-37A40 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46420-37C30 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46420-37C30 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37461 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46430-37461 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46430-37E90 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46430-37E90 |
XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-37090 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46451-37090 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 46453-37200 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 84390C - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-37030C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 84390-37030C0 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90467-08108 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7554 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1107- )XZC710,XZU700,710,720..SCB..6FC..DCRTJ,DCRTK ; (1305- )XZC710,XZU700,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| SU002-00289 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00289 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00289 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46511-37080 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46511-37080 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46511-37080 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| SU002-00970 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| SU002-00970 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| SU002-00970 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| SU002-00296 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00296 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00296 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| SU002-00286 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00286 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00286 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| SU002-00286 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00286 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00286 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| SU002-00287 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| SU002-00287 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| SU002-00287 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| SU002-00287 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00299 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00299 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00288 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00288 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00288 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00288 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| SU002-00290 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| SU002-00290 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| SU002-00290 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| SU002-00297 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| SU002-00297 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| SU002-00297 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| SU002-00303 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| SU002-00303 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| SU002-00303 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| SU002-00303 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| SU002-00993 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00993 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00993 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| SU002-00294 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00294 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00294 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| SU002-00295 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00295 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00295 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| SU002-00292 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00292 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| SU002-00292 |
XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| Common parts | ||||
| 90119-12211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
