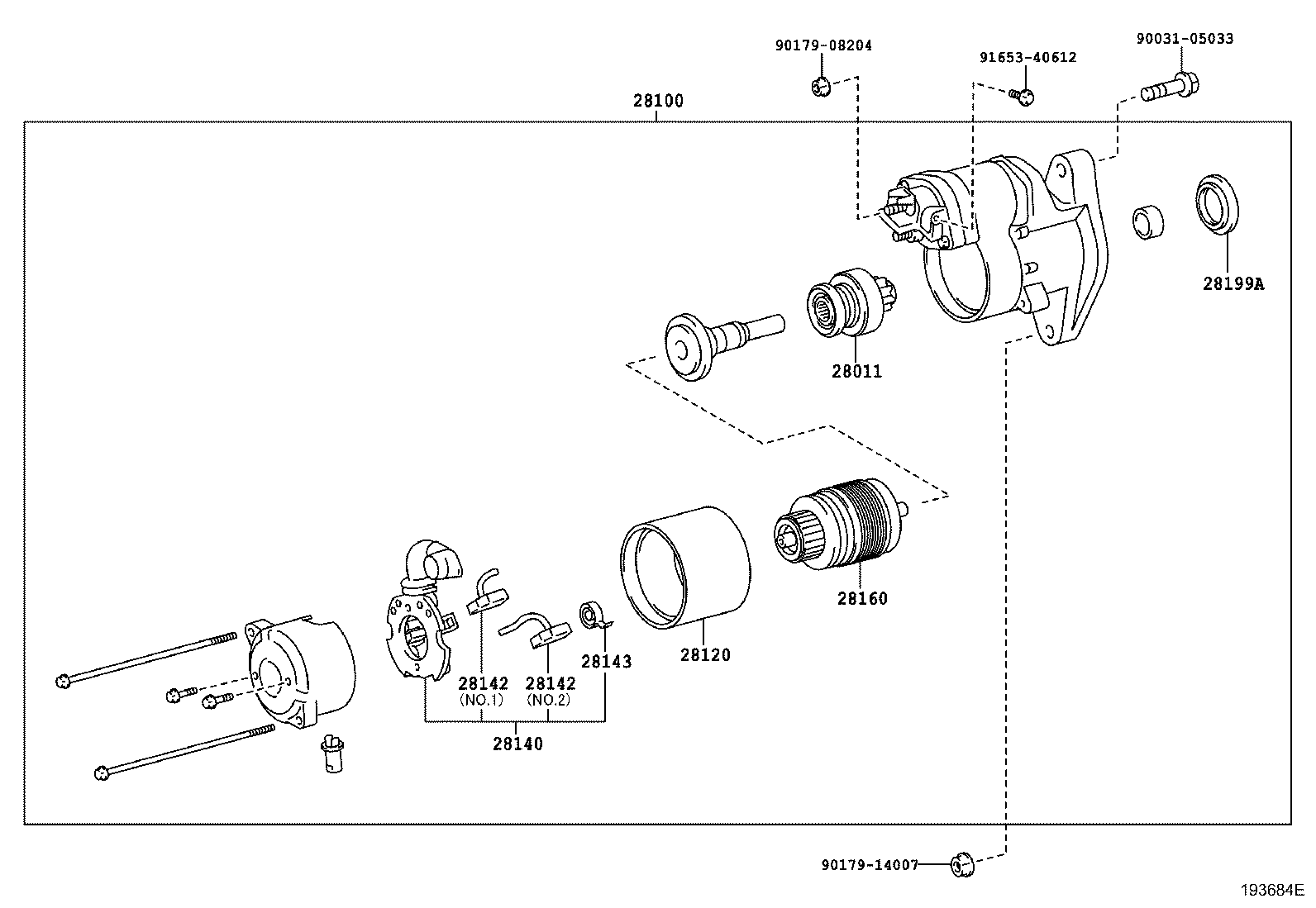

XZU710-TQFRC3 (2011)
Toyota Dyna/Toyoace
(1107- )N04C..XZC710,XZU700,710,720..6FC..DCRTJ,DCRTK ; (1705- )N04C..XZC710,
24V 4.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-78111 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-78113 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM 24V 5.0KW |
1 | ||
| 28100-78114 |
N04C..XZC710,XZU700,710,720,730,775..MTM 24V 5.0KW |
1 | ||
| 28100-78115 |
N04C..XZC710,XZU700,710,720,730,775..MTM 24V 5.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-78111 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-78110 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| S2814-31200 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM |
4 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-78111 |
N04C..XZC710,XZU700,710,720,730,775 |
1 | ||
| 28160-78110 |
N04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| S2819-91100 |
N04C..XZC710,XZU700,710,720,730,775..MTM |
1 | ||
| S2819-91100 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM |
2 | ||
| Common parts | ||||
| 90031-05033 | ||||
| 90179-08204 | ||||
| 90179-14007 | ||||
| 91653-40612 | ||||
(1107- )N04C..XZC710,XZU700,710,720,730,775..MTM..DCRTJ,DCRTK,DCRTL ; (1705-
24V 5.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-78111 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-78113 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM 24V 5.0KW |
1 | ||
| 28100-78114 |
N04C..XZC710,XZU700,710,720,730,775..MTM 24V 5.0KW |
1 | ||
| 28100-78115 |
N04C..XZC710,XZU700,710,720,730,775..MTM 24V 5.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-78111 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-78110 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-78110 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| S2814-31200 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM |
4 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-78111 |
N04C..XZC710,XZU700,710,720,730,775 |
1 | ||
| 28160-78110 |
N04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| S2819-91100 |
N04C..XZC710,XZU700,710,720,730,775..MTM |
1 | ||
| S2819-91100 |
N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM |
2 | ||
| Common parts | ||||
| 90031-05033 | ||||
| 90179-08204 | ||||
| 90179-14007 | ||||
| 91653-40612 | ||||
