XZU710-TQFQB3 (2011)
Toyota Dyna/Toyoace

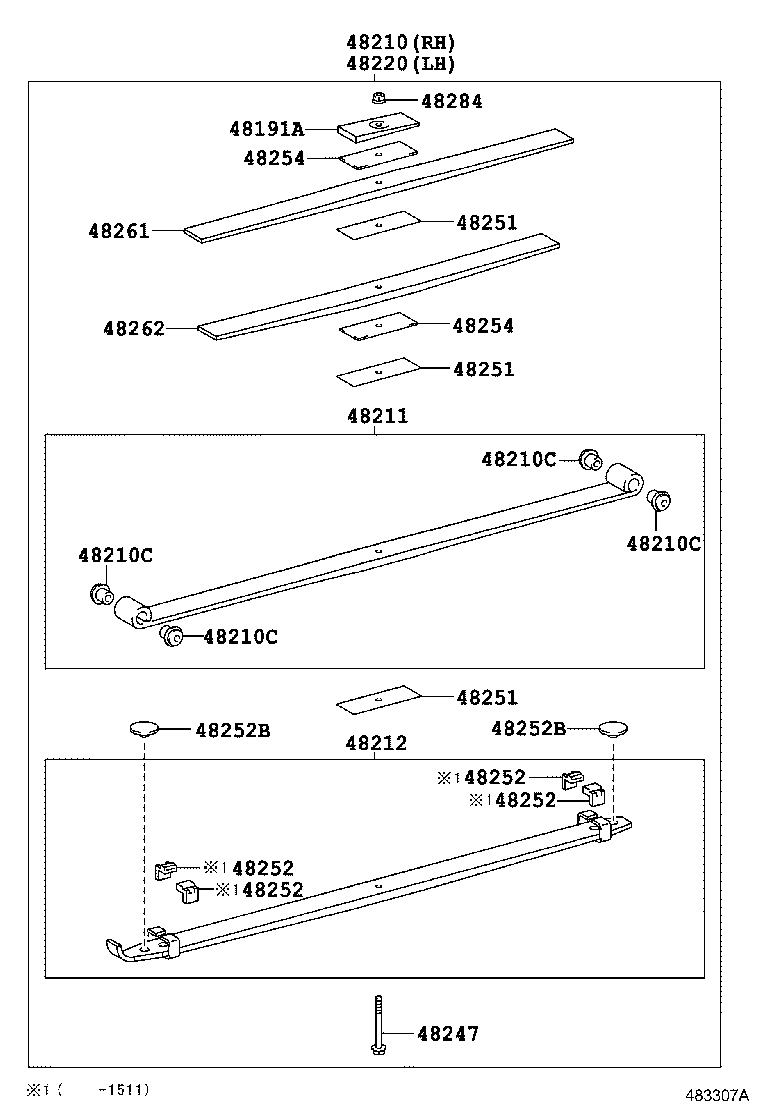

ILLUST NO. 2 OF 2(1107- )XZU700..DCRTL..CBU ; (1107- )XZU700..T3..DCRTL,DCRVU ; (1905- )XZU
MAIN 7 + HELPER 6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48201-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48202-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37J20 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-3V050 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-37C31 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-37J81 |
XZU710,720..T4..30T..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48213-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48213-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48214-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48214-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
2 | ||
| 48284-3B750 |
XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
2 | ||
ILLUST NO. 2 OF 2(1107- )XZU71#,72#..T4..30T..DCRTJ,DCRTK,DCRTL
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48201-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48202-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37J20 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-3V050 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-37C31 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-37J81 |
XZU710,720..T4..30T..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
4 | ||
| 48252-37670 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
4 | ||
| 48252-37670 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48213-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48213-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48214-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48214-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
2 | ||
| 48284-3B750 |
XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
2 | ||
ILLUST NO. 2 OF 2(1107-1705)XZU710,720..T4..30T
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48201-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48202-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37J20 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-3V050 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-37C31 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-37J81 |
XZU710,720..T4..30T..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
4 | ||
| 48252-37670 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
4 | ||
| 48252-37670 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48213-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48213-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48214-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48214-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
2 | ||
| 48284-3B750 |
XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
2 | ||
ILLUST NO. 2 OF 2(1107-1209)XZU710,720,730..40T..DCRTL ; (1107-)40T..DCRTK,DCRVT ; (1107- )XZ
MAIN 2 + HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48201-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48202-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37J20 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-3V050 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-37C31 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-37J81 |
XZU710,720..T4..30T..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
4 | ||
| 48252-37670 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
4 | ||
| 48252-37670 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48213-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48213-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48214-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48214-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
2 | ||
| 48284-3B750 |
XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
2 | ||
ILLUST NO. 2 OF 2(1107-1705)XZU710,720..30T..IV3 ; (1107-1705)XZU710,720..T3..30T..CBU ; (1705- )
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
2 | ||
| 48192-37100 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 90389-16026 |
XZU710..T3,T4;XZU720,730,775;XZC710,XZU700..20T;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48201-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48201-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48201-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48202-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48202-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48202-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37K20 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J90 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄ刀@ﾃﾝｼｮﾝ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37K21 |
XZU710,720..T4..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37J20 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37J20 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-3V050 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-3V050 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-37C31 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-37C31 |
XZC710,XZU700,710,720..T4..(20T,30T) |
2 | ||
| 48247-37J81 |
XZU710,720..T4..30T..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37J81 |
XZU710,720..T4..30T..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48253-3V020 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| S4814-E0010 |
XZU730..35T;XZU710,720..T3..30T;XZU720..T3..35T..DCRTL;XZU710,720..T4..(30T,35T) |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252-37380 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
4 | ||
| 48252-37670 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
4 | ||
| 48252-37670 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
4 | ||
| 48252-37670 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
4 | ||
| 48252-37670 |
XZU775..20T;XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48253-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48253-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48253-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48253-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48253-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48253-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48253-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48254-3V070 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48264-37N60 |
XZU710,720..T4..30T;XZU700..T4..(30T,35T) |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48213-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48213-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48213-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48213-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J50 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J90 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48214-37K20 |
XZU710,720..T4..30T |
2 | ||
| 48214-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J90 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J51 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J91 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48214-37K21 |
XZU710,720..T4..30T |
2 | ||
| 48214-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J81 |
XZU710,720..T4..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J81 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
2 | ||
| 48284-0W070 |
XZU710..40T..DCRTK;XZC710,XZU700,710,720,730..20T,30T,35T |
2 | ||
| 48284-3B750 |
XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
2 | ||
| 48284-3B750 |
XZU710..T5..DCRTL..IV3;XZU710..(T3,T4)..(20T,30T,35T);XZC710,XZU700,720,730..20T,30T,35T;XZU710..(T3,T5)..(20T,40T)..(DCRTJ,DCRTK) |
2 | ||
ILLUST NO. 1 OF 2(1107- )XZU71#,72#,73#..30T,35T,40T..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU
ｼｬｯｸﾙﾌﾞｼｭ=ﾃﾝｼｮﾝﾗﾊﾞｰﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37060 |
XZU710,720,730..30T,35T,40T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37111 |
XZU720,730..T4,T5;XZU720..T3..DCRTK;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..(T3,T4)..(20T,30T,35T) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18015 |
XZU700,730..T3..35T;XZU710,720..T4..30T;XZU720..T3..35T..DCRTL 長さ=330 |
4 | ||
| 90117-18016 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 長さ=340,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
4 | ||
| 90117-18016 |
XZU710,720..T4..30T..IV3 長さ=340,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 90117-18016 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU 長さ=340,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18015 |
XZU700,730..T3..35T;XZU710,720..T4..30T;XZU720..T3..35T..DCRTL 長さ=330 |
4 | ||
| 90117-18016 |
XZU710..T4..6F..30T..IV3;XZU710..T4..6FC..30T..DCRTJ..IV3 長さ=340,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
4 | ||
| 90117-18016 |
XZU710,720..T4..30T..IV3 長さ=340,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 90117-18016 |
XZU710,720..30T..IV3;XZU710,720..T3..30T..CBU 長さ=340,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37111 |
XZU720,730..T4,T5;XZU720..T3..DCRTK;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,710..(T3,T4)..(20T,30T,35T) |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37090 |
XZU775;XZU700,710,720,730..T4..(30T,35T) |
2 | ||
| 48405A - BRACKET SUB-ASSY, SPRING, NO.4 RH | ||||
| 48405-37010 |
XZU710,720,730..30T,35T,40T |
1 | ||
| 48406 - BRACKET SUB-ASSY, SPRING, NO.4 LH | ||||
| 48406-37010 |
XZU710,720,730..30T,35T,40T |
1 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
XZU710,720,730..30T,35T,40T |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
XZU710,720,730..30T,35T,40T |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48442-37080 |
XZU710,720,730..30T,35T,40T |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37090 |
XZU710..6FC..30T..DCRTJ..IV3;XZU710..6F..30T..(DCRTJ,DCRTK)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ 2.95ﾄﾝ ﾃﾝｼｮﾝ |
1 | ||
| 48475-37090 |
XZU710..(30T,35T)..IV3;XZU720..T3..DCRTK..IV3;XZU720,730..T4..(30T,35T)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37120 |
XZC710,XZU700;XZU720,730..T4,T5;XZU720..T3..DCRTK;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZU710..(T3,T4)..(20T,30T,35T) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37052 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37052 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37330 |
XZU710..30T,35T;XZU720..T3..DCRTK;XZU720,730..T4..(30T,35T) ﾏｰｸ 48531−37330 |
1 | ||
| 48531-37331 |
XZU710..30T,35T;XZU720..T3..DCRTK;XZU720,730..T4..(30T,35T) ﾏｰｸ 48531−37331 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37330 |
XZU710..30T,35T;XZU720..T3..DCRTK;XZU720,730..T4..(30T,35T) ﾏｰｸ 48531−37330 |
1 | ||
| 48531-37331 |
XZU710..30T,35T;XZU720..T3..DCRTK;XZU720,730..T4..(30T,35T) ﾏｰｸ 48531−37331 |
1 | ||
| Common parts | ||||
| 90032-04031 | ||||
| 90105-16021 | ||||
| 90119-12088 | ||||
| 90178-14002 | ||||
| 90178-16007 | ||||
| 90178-18002 | ||||
| 91112-81025 | ||||
| 91552-L1445 | ||||
| 94130-01002 | ||||
| 94184-01001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
