XZU710-TQFMC (2011)
Toyota Dyna/Toyoace

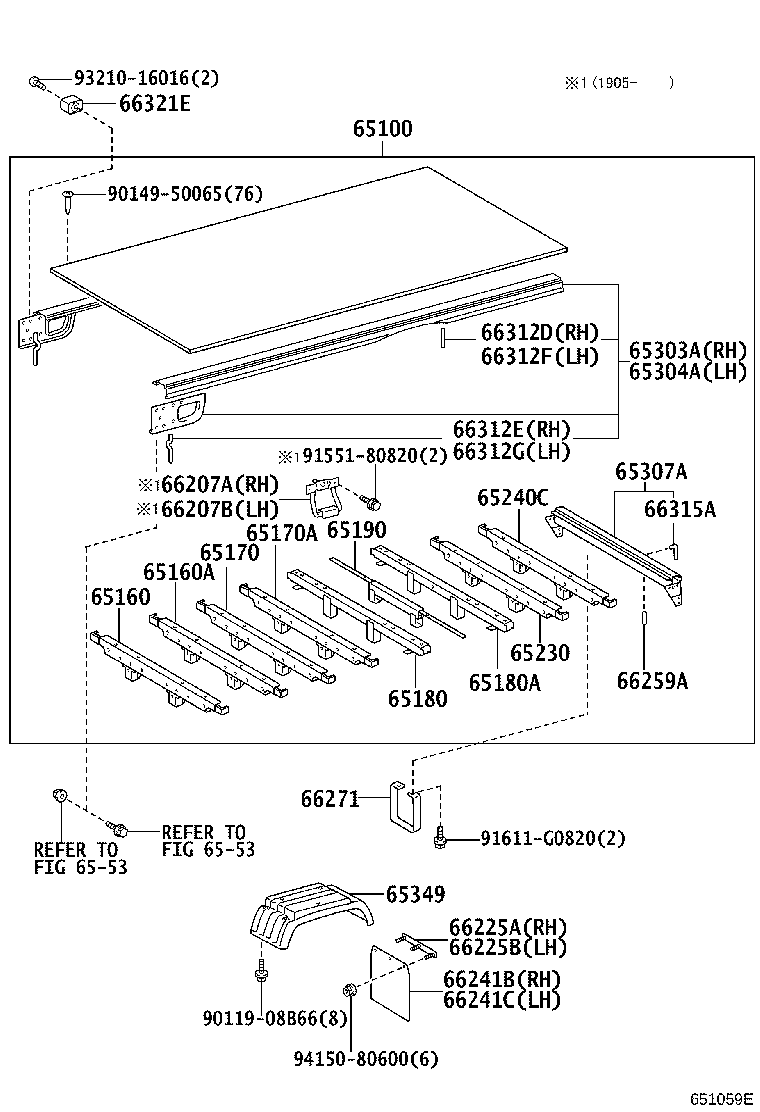

ILLUST NO. 1 OF 2(1107- )XZC710,XZU710..SCB..T4..20T..DCRTJ,DCRTK,DCRTL,DCRWD,DCWDO..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VD90 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65100-3VE20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65100-3VD91 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65100-3VE21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65170A - SILL ASSY, CROSS, NO.3 | ||||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37A10 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180-37870 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37871 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37A11 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180A - SILL ASSY, CROSS, NO.6 | ||||
| 65180-37880 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37A20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180-37881 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37A21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37330 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65190-37310 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37F80 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65303-37F81 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65303-37F82 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37F50 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65304-37F51 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65304-37F52 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37830 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65307-37810 |
XZU710..DCB..T5;XZU720..T5..CBU;XZC710,XZU710..SCB..20T..CBU |
1 | ||
| 65307-37A50 |
XZU710..DCB..T5;XZU720..T5..CBU;XZC710,XZU710..SCB..20T..CBU |
1 | ||
| 65307-37A80 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65307-37A51 |
XZU710..DCB..T5;XZU720..T5..CBU;XZU710..T4..20T..DCRTL..CBU;XZC710,XZU710..SCB..20T..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65307-37A81 |
XZU710..T4..20T..DCRTL..CBU;XZC710,XZU710..SCB..20T..(DCRTJ,DCRTK)..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
2 | ||
| 65349-37041 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 65349-37040 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37270 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37281 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66242-37271 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37280 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37270 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37271 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37281 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66242-37280 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37B80 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B81 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37C20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C22 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37B82 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37B80 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37C20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37B81 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B82 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37C22 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66321-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 91551-80820 | ||||
| 91611-G0820 | ||||
| 93210-16016 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 6553 | ||||
ILLUST NO. 1 OF 2(1107- )XZU71#..T4..30T,35T..DCRTJ,DCRTK,DCRTL,DCRVT,DCVUO,DCWDO..CBU ; (1905-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VD90 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65100-3VD90 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65100-3VE20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65100-3VE20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65100-3VD91 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65100-3VD91 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65100-3VE21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65100-3VE21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65170A - SILL ASSY, CROSS, NO.3 | ||||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37A10 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180-37A10 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180-37870 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37870 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37871 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37871 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37A11 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180-37A11 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180A - SILL ASSY, CROSS, NO.6 | ||||
| 65180-37880 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37880 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37A20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180-37A20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180-37881 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37881 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37A21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180-37A21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37330 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65190-37330 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65190-37310 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65190-37310 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37F80 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65303-37F80 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65303-37F81 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65303-37F81 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65303-37F82 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65303-37F82 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37F50 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65304-37F50 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65304-37F51 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65304-37F51 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65304-37F52 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65304-37F52 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37830 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65307-37830 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65307-37810 |
XZU710..DCB..T5;XZU720..T5..CBU;XZC710,XZU710..SCB..20T..CBU |
1 | ||
| 65307-37810 |
XZU710..DCB..T5;XZU720..T5..CBU;XZC710,XZU710..SCB..20T..CBU |
1 | ||
| 65307-37A50 |
XZU710..DCB..T5;XZU720..T5..CBU;XZC710,XZU710..SCB..20T..CBU |
1 | ||
| 65307-37A50 |
XZU710..DCB..T5;XZU720..T5..CBU;XZC710,XZU710..SCB..20T..CBU |
1 | ||
| 65307-37A80 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65307-37A80 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65307-37A51 |
XZU710..DCB..T5;XZU720..T5..CBU;XZU710..T4..20T..DCRTL..CBU;XZC710,XZU710..SCB..20T..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65307-37A51 |
XZU710..DCB..T5;XZU720..T5..CBU;XZU710..T4..20T..DCRTL..CBU;XZC710,XZU710..SCB..20T..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65307-37A81 |
XZU710..T4..20T..DCRTL..CBU;XZC710,XZU710..SCB..20T..(DCRTJ,DCRTK)..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65307-37A81 |
XZU710..T4..20T..DCRTL..CBU;XZC710,XZU710..SCB..20T..(DCRTJ,DCRTK)..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
2 | ||
| 65349-37010 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
2 | ||
| 65349-37041 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 65349-37041 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 65349-37040 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
2 | ||
| 65349-37040 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37270 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37270 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37281 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66242-37281 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66242-37271 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37271 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37280 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66242-37280 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37270 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37270 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37271 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37271 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37281 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66242-37281 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66242-37280 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66242-37280 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37B80 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B80 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B81 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B81 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37C20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C22 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C22 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37B82 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B82 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37B80 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B80 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37C20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37B81 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B81 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B82 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B82 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37C22 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C22 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66259-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66271-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 66311-37020 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 66311-37020 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66315-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66321-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66321-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90119-10444 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 91551-80820 | ||||
| 91611-G0820 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 6553 | ||||
(1107- )XZU71#..T4..6F..30T..DCRTK,DCRWD,DCWDO..CBU ; (1107- )XZU710..SCB..T4
ﾊﾟﾜｰﾘﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VD90 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65100-3VE20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65100-3VD91 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65100-3VE21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65170A - SILL ASSY, CROSS, NO.3 | ||||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37A10 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180-37870 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37871 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37A11 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180A - SILL ASSY, CROSS, NO.6 | ||||
| 65180-37880 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37A20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65180-37881 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65180-37A21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37330 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65190-37310 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65170-37470 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65170-37450 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65160-37650 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 65160-37630 |
XZC710,XZU710..SCB..T4..20T..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37F80 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65303-37F81 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65303-37F82 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37F50 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65304-37F51 |
XZC710,XZU710..SCB..(T3,T4)..CBU;XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU |
1 | ||
| 65304-37F52 |
XZC710,XZU710..SCB..CBU |
1 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
2 | ||
| 65349-37041 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 65349-37040 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37270 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37281 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66242-37271 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37280 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37270 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37271 |
XZC710,XZU700,710,720..20T..CBU |
1 | ||
| 66242-37281 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66242-37280 |
XZC710,XZU710..SCB..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37B80 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B81 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37C20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C22 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37B82 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37B80 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37C20 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37C21 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66241-37B81 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37B82 |
XZC710,XZU710,720..T4..20T..CBU |
1 | ||
| 66241-37C22 |
XZC710,XZU710..SCB..T4..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ﾛﾝｸﾞ,3方開ﾃﾞｯｷ) |
1 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU710..SCB..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU710,775..SCB..(T3,T4)..CBU |
7 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66321-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90119-10444 | ||||
| 90149-50065 | ||||
| 91611-G0820 | ||||
| 93210-16016 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 6553 | ||||
ILLUST NO. 2 OF 2(1107- )CBU
ｱﾘ(ﾘﾌﾚｯｸｽ ﾘﾌﾚｸﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66321-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66321-37030 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
2 | ||
| 66321-92805 |
XZC710,XZU700,710,720,775..(T3,T4,T5)..CBU |
2 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37070 |
XZC710,XZU710,720,775..CBU |
1 | ||
| 75139-37080 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37080 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 75139-37070 |
XZC710,XZU710,720,775..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37080 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 75139-37070 |
XZC710,XZU710,720,775..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37080 |
XZU710..(T3,T4)..CBU;XZU710..T5..(DCRTJ,DCRTK)..CBU;XZC710,XZU700,720,775..(T3,T4,T5)..CBU |
1 | ||
| 75139-37070 |
XZC710,XZU710,720,775..CBU |
1 | ||
| Common parts | ||||
| 93210-16016 | ||||
| Linked diagrams | ||||
| 8115 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
