XZU710-TPFMX3 (2019)
Toyota Dyna/Toyoace
(1905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

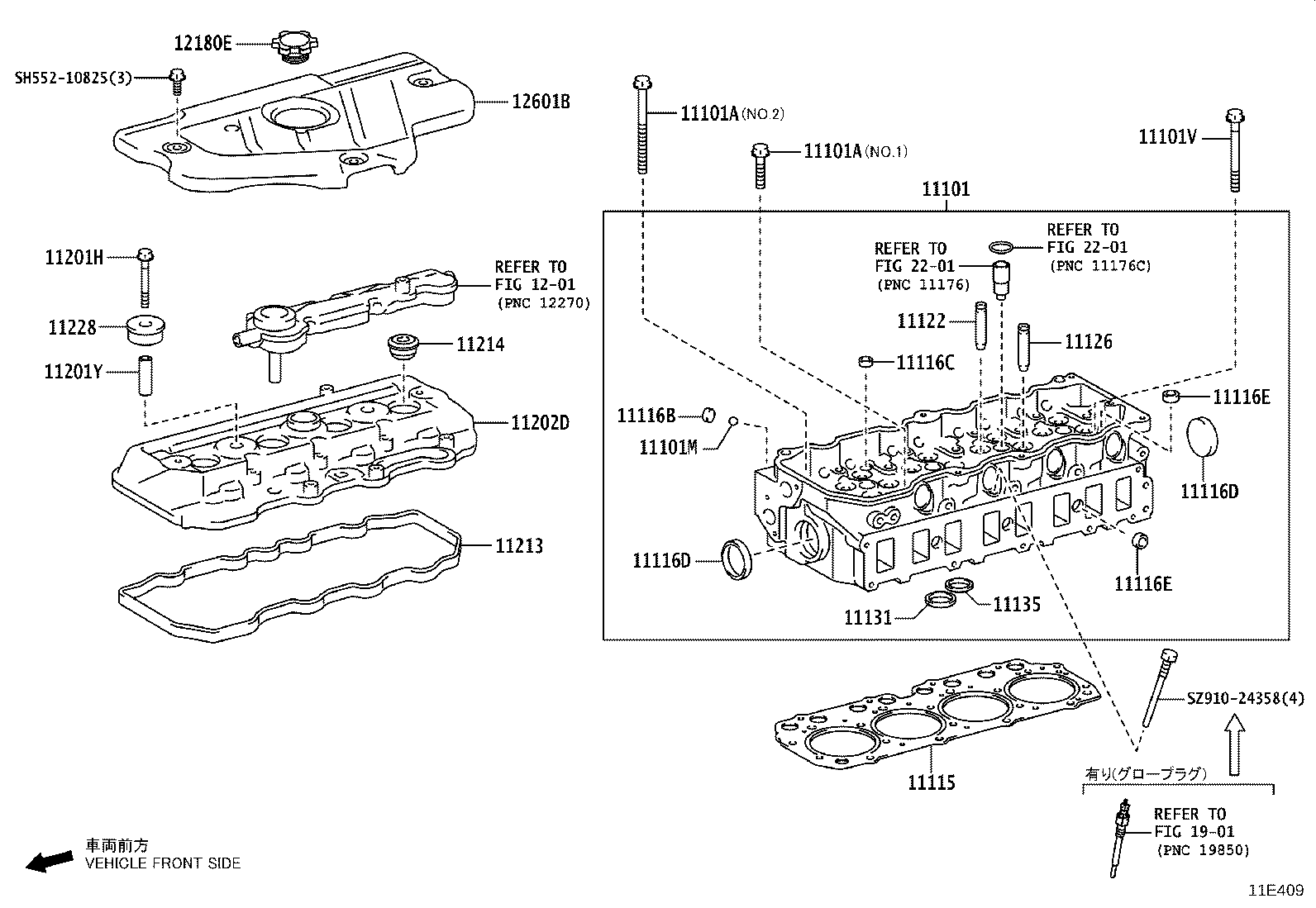

| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-78221 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| SH552-11035 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO NO.1:ｲﾗｽﾄ参照 |
3 | ||
| S1118-52700 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO NO.2:ｲﾗｽﾄ参照 |
18 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| SH552-11035 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO NO.1:ｲﾗｽﾄ参照 |
3 | ||
| S1118-52700 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO NO.2:ｲﾗｽﾄ参照 |
18 | ||
| 11101M - BALL NO.1(FOR CYLINDER HEAD) | ||||
| SN441-00508 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 11101V - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| SH552-11000 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-78101 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| SN411-01412 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| SN411-01712 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
5 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| SN411-05016 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| SN411-05016 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| SN411-02216 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
11 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| SN411-02216 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
11 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| S1112-21220 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| S1112-21220 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| S1113-11540 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-E0010 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO STD |
8 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| SH552-10865 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 11201Y - SPACER(FOR CYLINDER HEAD COVER) | ||||
| SZ910-16303 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 11202D - COVER SUB-ASSY, CYLINDER HEAD, NO.2 | ||||
| 11201-78061 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-78060 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11213-78082 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 11228 - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-78050 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 12180E - CAP ASSY, OIL FILLER | ||||
| 12180-E0010 |
N04C..XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-78022 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 12601-78021 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| Common parts | ||||
| SH552-10825 | ||||
| SZ910-24358 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1901 | ||||
| 2201 | ||||
