XZU710-TPFMF3 (2019)
Toyota Dyna/Toyoace

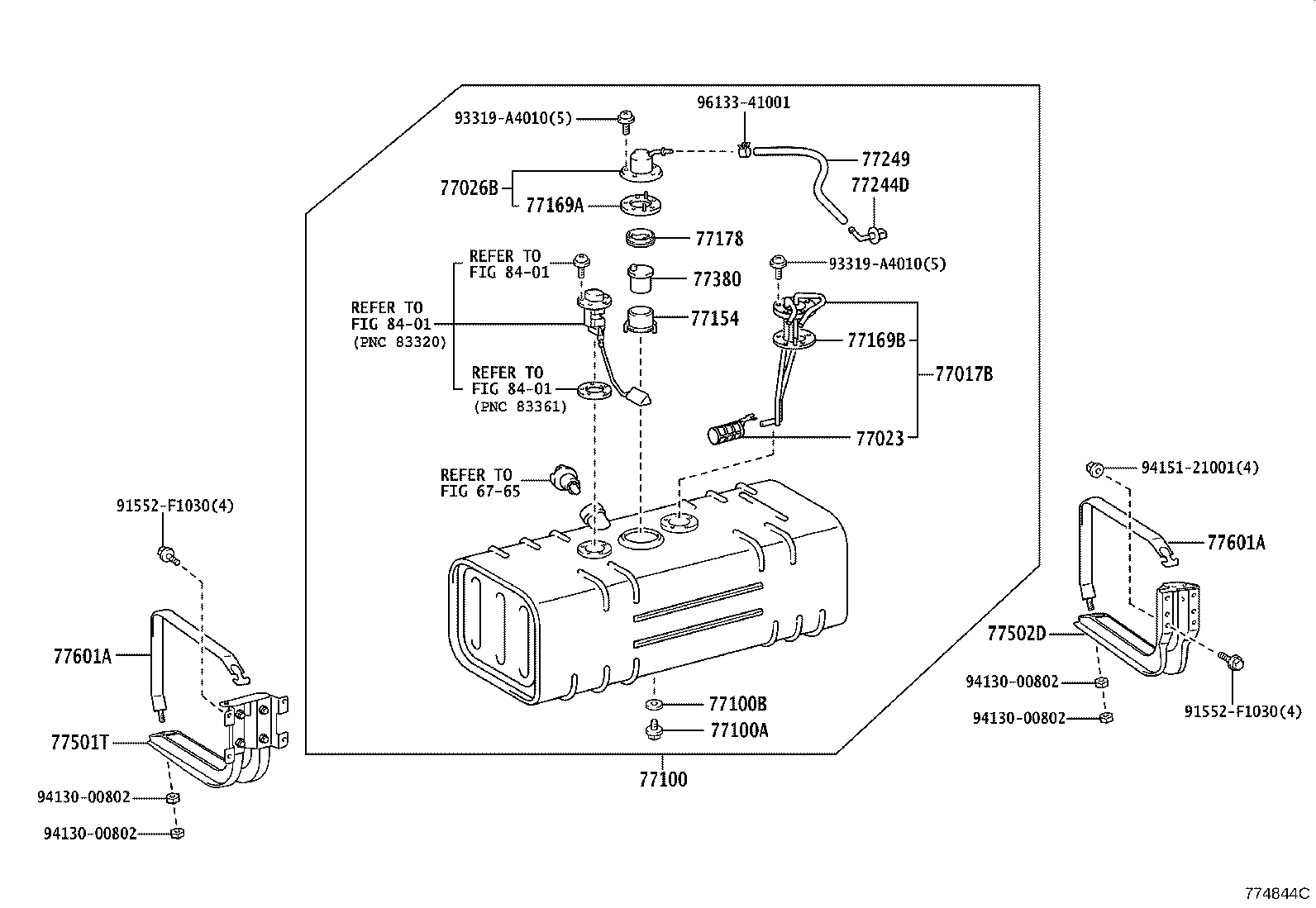

ILLUST NO. 1 OF 2(1905- )XZC710,XZU70#,71#,72#,73#..DCRWD,DCVTO,DCVUO ; (2103- )XZC710,XZU70#,
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37070 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-37A40 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77100-37A20 |
XZU712,722,732..DCVUO..IV3;XZU700,710,720..(DM6,DM7,T4,T5)..(20T,40T)..DCVUO..(IV3,IV5) ﾌｭｰｴﾙﾀﾝｸ−70L |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1 | ||||
| 77244-37030 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37510 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37561 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77501-37521 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| Common parts | ||||
| 91552-F1030 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-21001 | ||||
| 96133-41001 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1905- )IV6 ; (1905- )XZU700..DM7 ; (1905-)XZU720..40T..DCWDO ; (1905-
ﾌｭｰｴﾙﾀﾝｸ ｺｳｼｮｻｷﾞｮｳｼｬｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77026-37010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77026-37010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-37A40 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77100-37A40 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77100-37A40 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77100-37A20 |
XZU712,722,732..DCVUO..IV3;XZU700,710,720..(DM6,DM7,T4,T5)..(20T,40T)..DCVUO..(IV3,IV5) ﾌｭｰｴﾙﾀﾝｸ−70L |
1 | ||
| 77100-37A20 |
XZU712,722,732..DCVUO..IV3;XZU700,710,720..(DM6,DM7,T4,T5)..(20T,40T)..DCVUO..(IV3,IV5) ﾌｭｰｴﾙﾀﾝｸ−70L |
1 | ||
| 77100-37A20 |
XZU712,722,732..DCVUO..IV3;XZU700,710,720..(DM6,DM7,T4,T5)..(20T,40T)..DCVUO..(IV3,IV5) ﾌｭｰｴﾙﾀﾝｸ−70L |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77154-25010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77154-25010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77169-14020 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77169-14020 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77178-44010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77178-44010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1 | ||||
| 77244-37030 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77244-37030 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77244-37030 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37510 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77249-37510 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77249-37510 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77380-26010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77380-26010 |
XZU700,71#,72#,73#..DCVUO |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37561 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO |
1 | ||
| 77501-37561 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO |
1 | ||
| 77501-37561 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37561 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO |
1 | ||
| 77501-37561 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO |
1 | ||
| 77501-37561 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 77601-37121 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 77601-37121 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 77601-37121 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| 77601-37121 |
XZU700,71#,72#,73#..DCVUO |
2 | ||
| Common parts | ||||
| 91552-F1030 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-21001 | ||||
| 96133-41001 | ||||
| S4736-11310 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||

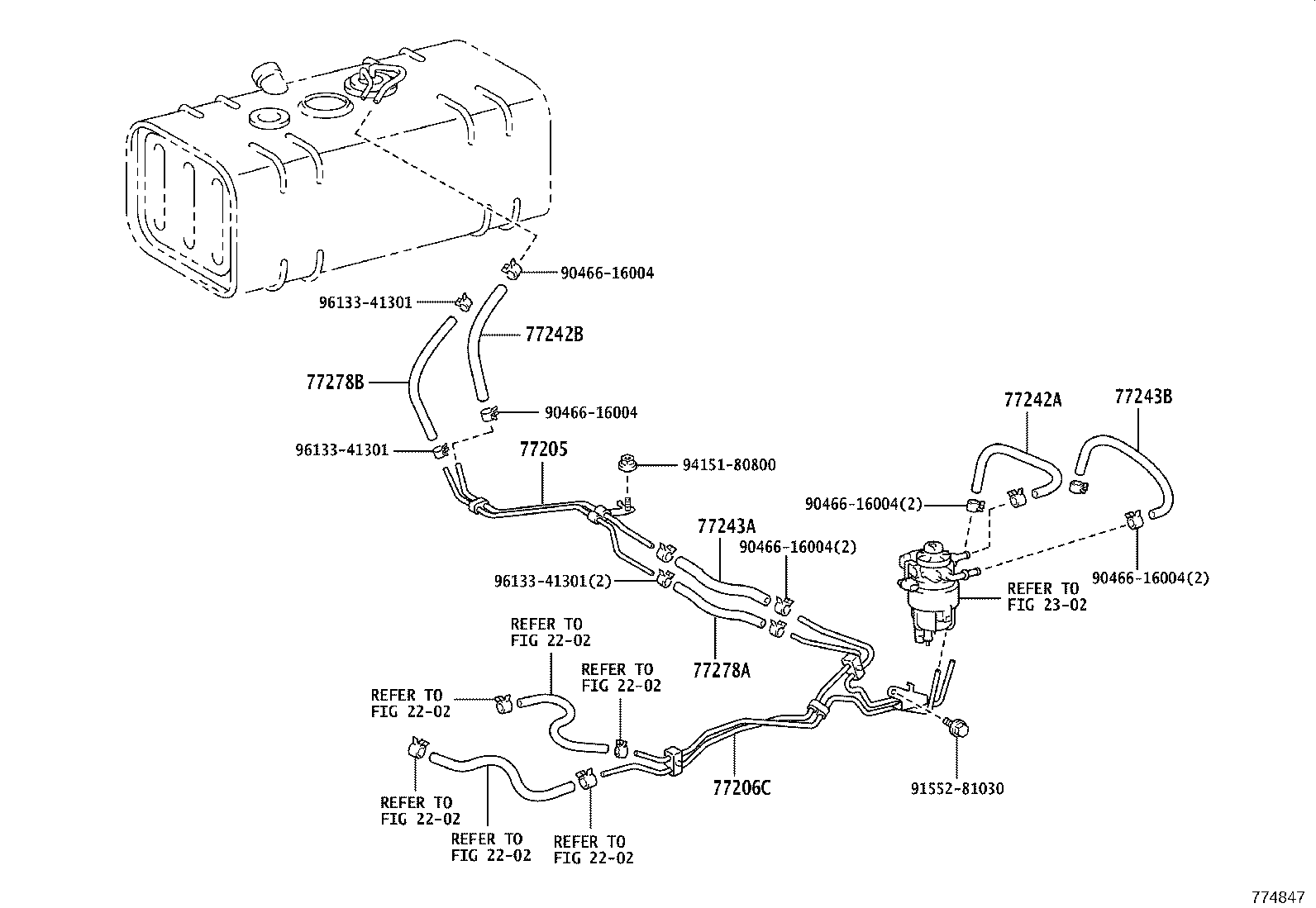

ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO,DCVUO ; (2103- )
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37K70 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37P00 |
XZU720,730..IV3;XZU720..20T..CBU;XZU710..DCVTO..IV3;XZU710..40T..DCVUO..IV3;XZU710..SCB..(20T,35T)..(DCRWD,DCVUO);XZC710,XZU70#,712,722,732..SCB..(T3,T4) |
1 | ||
| 77206-37P01 |
XZU730..IV3;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO;XZU700,712,722,732..(T3,T4)..DCVUO |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO 長さ=240 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO 長さ=300 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| SM331-10030 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO 長さ=160 |
1 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| SM331-10030 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO 長さ=190 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO 長さ=260 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO 長さ=160 |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||

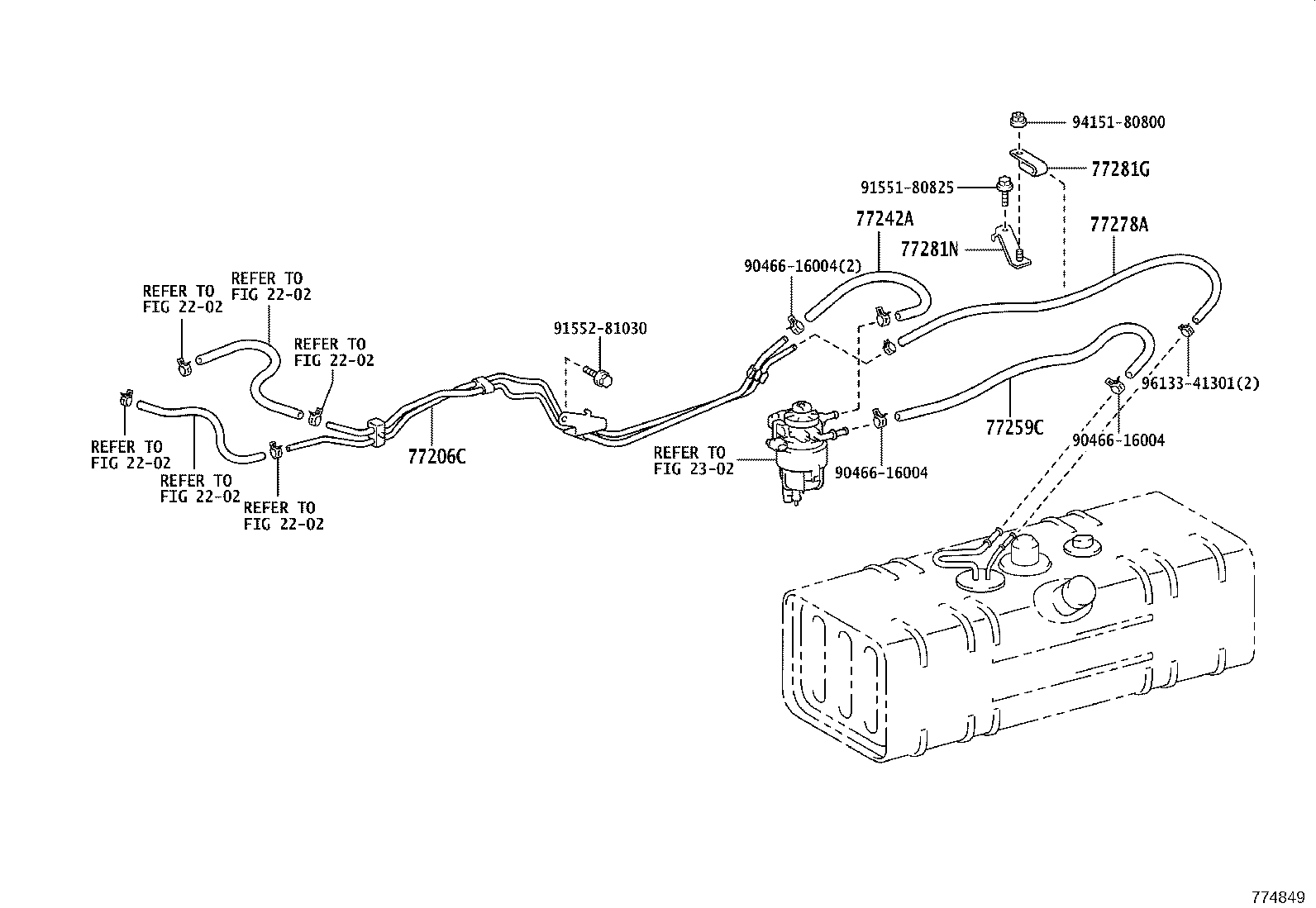

ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO,DCVUO ; (2103- )
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37P00 |
XZU720,730..IV3;XZU720..20T..CBU;XZU710..DCVTO..IV3;XZU710..40T..DCVUO..IV3;XZU710..SCB..(20T,35T)..(DCRWD,DCVUO);XZC710,XZU70#,712,722,732..SCB..(T3,T4) |
1 | ||
| 77206-37P01 |
XZU730..IV3;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO;XZU700,712,722,732..(T3,T4)..DCVUO |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO 長さ=240 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
XZU730..IV3;XZU700,712,722,732..DCVUO;XZU710,720..40T..DCVUO..IV3;XZU710,720..(20T,35T)..DCVUO 長さ=260 |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
