XZU710-TPFMC3 (2017)
Toyota Dyna/Toyoace

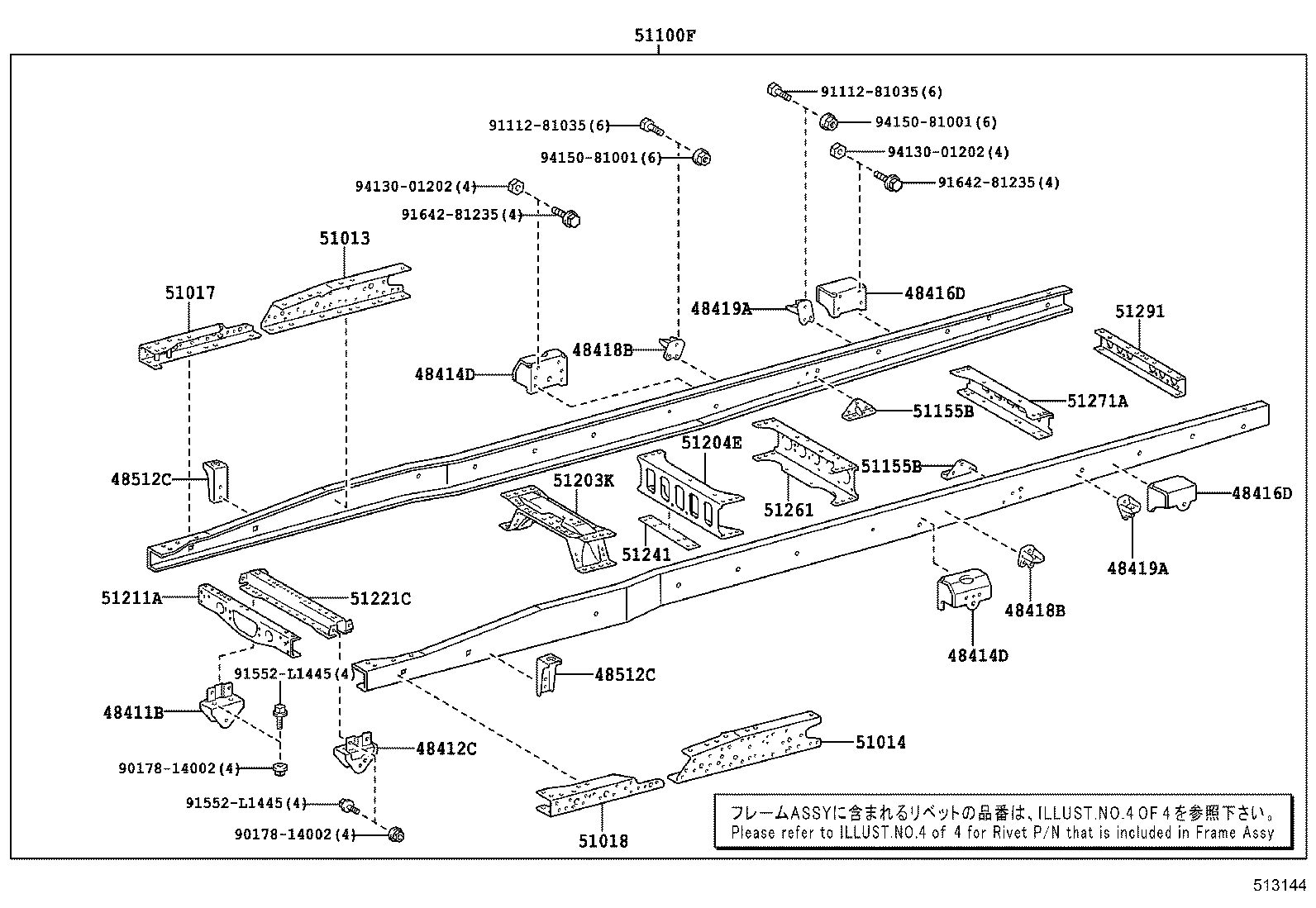

ILLUST NO. 1 OF 4(1705- )XZC710,XZU710..5F ; (1705- )XZU710..T5..DCRTK..CBU ; (1705- )XZU71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37080 |
XZC710,XZU700,710,720..20T |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37070 |
XZC710,XZU700,710,720..20T |
1 | ||
| 48414D - BRACKET, SPRING, NO.3 | ||||
| 48414-37130 |
XZC710,XZU700,710,720..20T |
2 | ||
| 48414D - BRACKET, SPRING, NO.3 | ||||
| 48414-37130 |
XZC710,XZU700,710,720..20T |
2 | ||
| 48416D - BRACKET, SPRING, NO.4 | ||||
| 48416-37110 |
XZC710,XZU700,710,720..20T |
2 | ||
| 48416D - BRACKET, SPRING, NO.4 | ||||
| 48416-37110 |
XZC710,XZU700,710,720..20T |
2 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER | ||||
| 48512-37080 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER | ||||
| 48512-37080 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37470 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37450 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37240 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37190 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VS22 |
XZU710..SCB..T5..(DCRTJ,DCRTK);XZC710,XZU710..SCB..T4..MTM..(DCRTJ,DCRTK)..IV3 |
1 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37090 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37090 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37351 |
XZC710,XZU70#,71#,72#,730..MTM..(DCRTJ,DCRTK,DCRVT,DCRVU) |
1 | ||
| 51204E - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-37160 |
XZC710,XZU71#,72# |
1 | ||
| 51211A - CROSSMEMBER, FRAME, FRONT | ||||
| 51211-37310 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51221C - CROSSMEMBER, FRAME, NO.2 | ||||
| 51221-37200 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51241 - BRACKET, CENTER BEARING SUPPORT | ||||
| 51241-37080 |
XZC710,XZU71#..DCRTJ,DCRTK,DCRTL |
1 | ||
| 51261 - CROSSMEMBER, FRAME, NO.6 | ||||
| 51261-37170 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51271A - CROSSMEMBER, FRAME, NO.7 | ||||
| 51271-37010 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51291-37100 |
XZC710,XZU71#,72#,73# |
1 | ||
| Common parts | ||||
| 90178-14002 | ||||
| 91112-81035 | ||||
| 91552-L1445 | ||||
| 91642-81235 | ||||
| 94130-01202 | ||||
| 94150-81001 | ||||
ILLUST NO. 1 OF 4(1705- )XZC710..6FC..DCRTJ ; (1705- )XZU710..6FC..DCRTJ..CBU ; (1705- )XZU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37080 |
XZC710,XZU700,710,720..20T |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37070 |
XZC710,XZU700,710,720..20T |
1 | ||
| 48414D - BRACKET, SPRING, NO.3 | ||||
| 48414-37130 |
XZC710,XZU700,710,720..20T |
2 | ||
| 48414D - BRACKET, SPRING, NO.3 | ||||
| 48414-37130 |
XZC710,XZU700,710,720..20T |
2 | ||
| 48416D - BRACKET, SPRING, NO.4 | ||||
| 48416-37110 |
XZC710,XZU700,710,720..20T |
2 | ||
| 48416D - BRACKET, SPRING, NO.4 | ||||
| 48416-37110 |
XZC710,XZU700,710,720..20T |
2 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER | ||||
| 48512-37080 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER | ||||
| 48512-37080 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37470 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37450 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37240 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37190 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VS22 |
XZU710..SCB..T5..(DCRTJ,DCRTK);XZC710,XZU710..SCB..T4..MTM..(DCRTJ,DCRTK)..IV3 |
1 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37090 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37090 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37351 |
XZC710,XZU70#,71#,72#,730..MTM..(DCRTJ,DCRTK,DCRVT,DCRVU) |
1 | ||
| 51204E - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-37160 |
XZC710,XZU71#,72# |
1 | ||
| 51211A - CROSSMEMBER, FRAME, FRONT | ||||
| 51211-37310 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51221C - CROSSMEMBER, FRAME, NO.2 | ||||
| 51221-37200 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51241 - BRACKET, CENTER BEARING SUPPORT | ||||
| 51241-37080 |
XZC710,XZU71#..DCRTJ,DCRTK,DCRTL |
1 | ||
| 51261 - CROSSMEMBER, FRAME, NO.6 | ||||
| 51261-37170 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51271A - CROSSMEMBER, FRAME, NO.7 | ||||
| 51271-37010 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51291-37100 |
XZC710,XZU71#,72#,73# |
1 | ||
| Common parts | ||||
| 90178-14002 | ||||
| 91112-81035 | ||||
| 91552-L1445 | ||||
| 91642-81235 | ||||
| 94130-01202 | ||||
| 94150-81001 | ||||
ILLUST NO. 2 OF 4(1705- )XZC710,XZU71#..DCRTJ,DCRTK,DCRTL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021C - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT | ||||
| 51021-37030 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51421 - BRACKET, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37230 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51422 - BRACKET, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37230 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51568C - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37360 |
XZC710,XZU71#,72#,732..DCRTJ,DCRTK,DCRTL |
1 | ||
| 51569C - GUARD, PROPELLER SHAFT | ||||
| 51569-37300 |
XZU720;XZC710,XZU71#,722,732..DCRTJ,DCRTK,DCRTL |
1 | ||
| 51569H - GUARD, PROPELLER SHAFT | ||||
| 51569-37400 |
XZC710,XZU71#,72#,73#,775 |
1 | ||
| 51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING | ||||
| 51705-37720 |
XZC710,XZU70#,71#,72#,732,775..SCB..(DCRTJ,DCRTK,DCRTL) |
1 | ||
| Common parts | ||||
| 90178-12005 | ||||
| 91551-80825 | ||||
| 91552-81230 | ||||
| 91552-81240 | ||||
| 91552-F1240 | ||||
| 91672-L1235 | ||||
| 91673-L1035 | ||||
| 94151-21000 | ||||
| 94151-21201 | ||||
| 94151-81200 | ||||
