XZU710-TKTQB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )6FC

Click highlighted areas on diagram

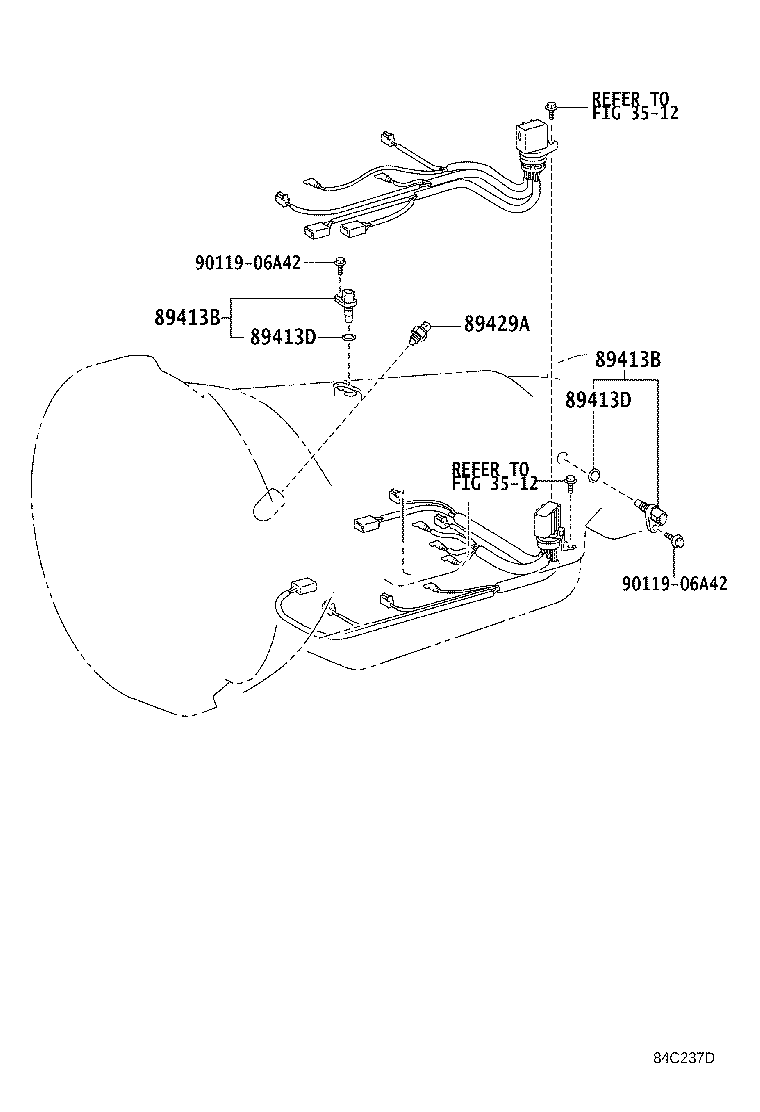

diagram 3512 3512 89413B 89413B 89413D 89413D 89429A 9011906A42 9011906A42
Part # Description Qty Price
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-37010

XZC710,XZU700,710,720..6FC

 2
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-37010

XZC710,XZU700,710,720..6FC

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

XZC710,XZU700,710,720..6FC

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

XZC710,XZU700,710,720..6FC

 2
89429A - SENSOR, TEMPERATURE
89429-37010

XZC710,XZU700,710,720..6FC

 1
Common parts
90119-06A42
Linked diagrams
3512
