XZU710-TKTQB3 (2011)
Toyota Dyna/Toyoace
Production
Jul 2011
-
May 2017
Engine
N04C
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1107-1904)XZC710,XZU700,710,720..6FC

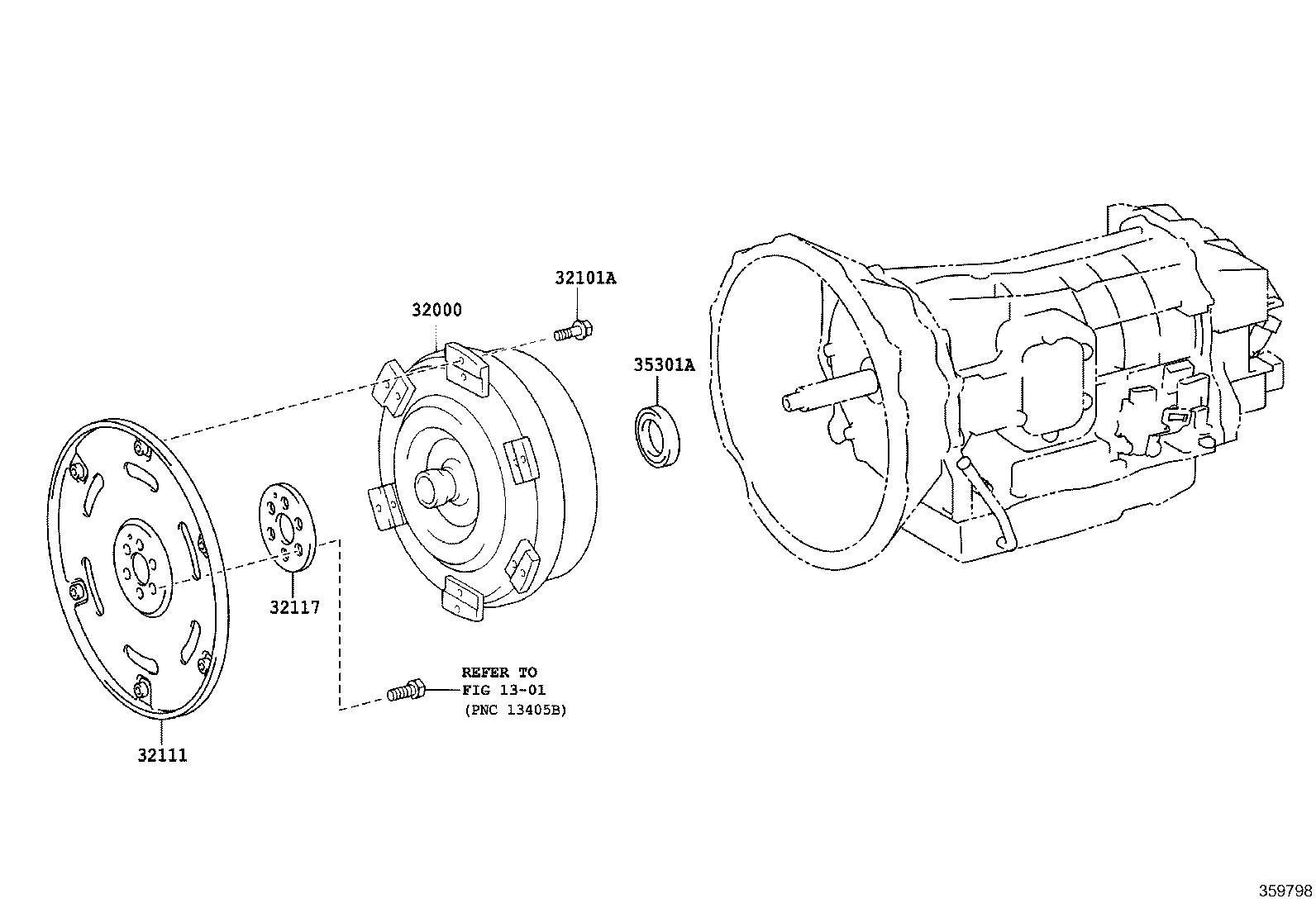

Click highlighted areas on diagram
A860E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-37060 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-10894 |
XZC710,XZU700,710,720..6FC *10−1.25PX28−23 |
6 | ||
| 32111 - PLATE, PUMP IMPELLER DRIVE | ||||
| 32111-37060 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 32111-37050 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-37050 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-46009 |
XZC710,XZU700,710,720..6FC |
1 | ||
| Linked diagrams | ||||
| 1301 | ||||
