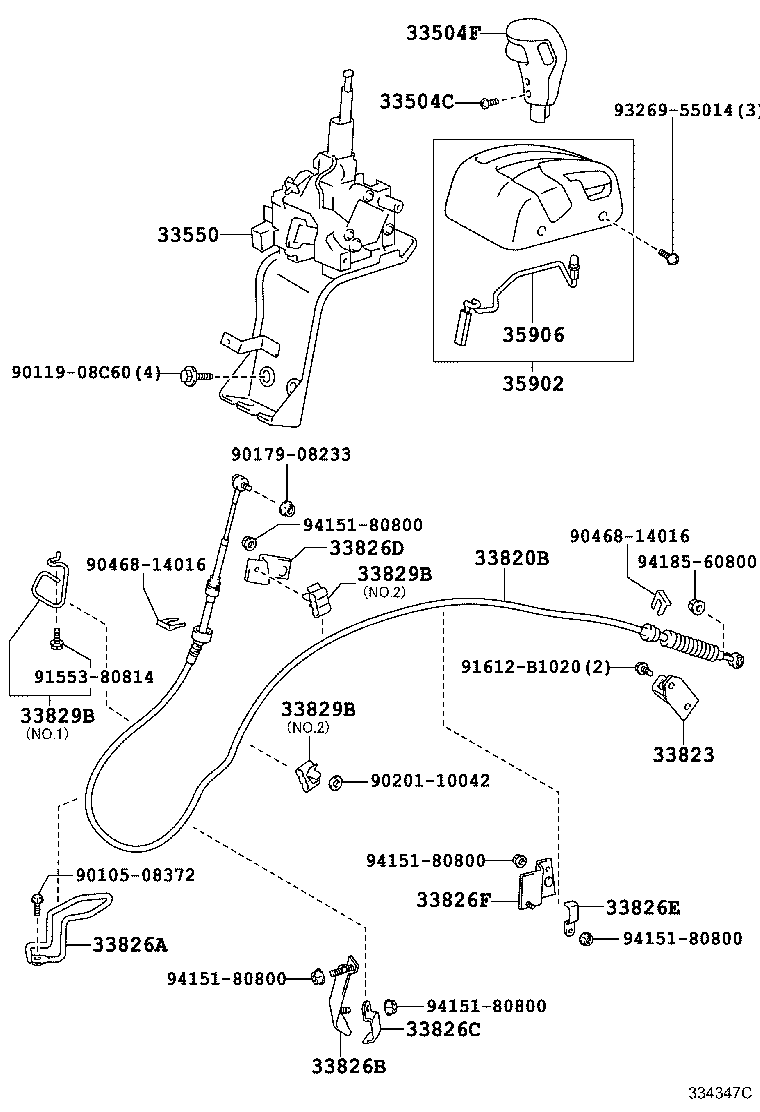

XZU710-TKTQB3 (2011)
Toyota Dyna/Toyoace
(1107- )XZC710,XZU700,710,720,730..MTM..DCRTJ,DCRTK,DCRTL ; (1705- )XZC710,XZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-37090C0 |
XZC710,XZU700,710,720..6FC BLACK,TRIM1# |
1 | ||
| 33504-37090C0 |
XZC710,XZU700,710,720..6FC BLACK,TRIM1# |
1 | ||
| 33504-37060C0 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU BLACK,TRIM1# |
1 | ||
| 33504-37060C0 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU BLACK,TRIM1# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37340C0 |
XZU700,710,720,730..6F BLACK,TRIM1# |
1 | ||
| 33550-37340C0 |
XZU700,710,720,730..6F BLACK,TRIM1# |
1 | ||
| 33550-37350C0 |
XZC710,XZU700,710,720..6FC BLACK,TRIM1# |
1 | ||
| 33550-37350C0 |
XZC710,XZU700,710,720..6FC BLACK,TRIM1# |
1 | ||
| 33550-37341C0 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU BLACK,TRIM1# |
1 | ||
| 33550-37341C0 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU BLACK,TRIM1# |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37M10 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 33820-37M10 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37590 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 33830-37590 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37A60 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 33823-37A60 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 33823-37880 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 33823-37880 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37A60 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 33823-37A60 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 33823-37880 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 33823-37880 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37B90 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826-37B90 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37A50 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826-37A50 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37580 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826-37580 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33827-37160 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33827-37160 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37580 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826-37580 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37320 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33827-37320 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37340 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.1 |
1 | ||
| 33829-37340 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.1 |
1 | ||
| 33829-37210 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.2 |
2 | ||
| 33829-37210 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.2 |
2 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37340 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.1 |
1 | ||
| 33829-37340 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.1 |
1 | ||
| 33829-37210 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.2 |
2 | ||
| 33829-37210 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.2 |
2 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37340 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.1 |
1 | ||
| 33829-37340 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.1 |
1 | ||
| 33829-37210 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.2 |
2 | ||
| 33829-37210 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.2 |
2 | ||
| Common parts | ||||
| 90105-08372 | ||||
| 90119-08C60 | ||||
| 90119-10883 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91553-80814 | ||||
| 94151-80800 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 5855 | ||||
(1107- )6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90152-40003 |
XZC710,XZU700,710,720..6FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-37090C0 |
XZC710,XZU700,710,720..6FC BLACK,TRIM1# |
1 | ||
| 33504-37060C0 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU BLACK,TRIM1# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37340C0 |
XZU700,710,720,730..6F BLACK,TRIM1# |
1 | ||
| 33550-37350C0 |
XZC710,XZU700,710,720..6FC BLACK,TRIM1# |
1 | ||
| 33550-37341C0 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU BLACK,TRIM1# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-37M31 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 33820-37M30 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37A60 |
XZU700,710,720..6F..(DCRTJ,DCRTK) |
1 | ||
| 33823-37880 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37B90 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37A50 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37580 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33827-37160 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37580 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37320 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37340 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.1 |
1 | ||
| 33829-37210 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.2 |
2 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37340 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.1 |
1 | ||
| 33829-37210 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.2 |
2 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37340 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.1 |
1 | ||
| 33829-37210 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) NO.2 |
2 | ||
| 35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING | ||||
| 35902-37082C0 |
XZC710,XZU700,710,720..6FC BLACK,TRIM1# |
1 | ||
| 35902-37081C0 |
XZC710,XZU700,710,720..6FC BLACK,TRIM1# |
1 | ||
| 35902-37080C0 |
XZC710,XZU700,710,720..6FC BLACK,TRIM1# |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 82232-37020 |
XZC710,XZU700,710,720..6FC |
1 | ||
| 82232-37020 |
XZC710,XZU700,710,720..6FC |
1 | ||
| Common parts | ||||
| 90105-08372 | ||||
| 90119-08C60 | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14016 | ||||
| 91553-80814 | ||||
| 91612-B1020 | ||||
| 93269-55014 | ||||
| 94151-80800 | ||||
| 94185-60800 | ||||
