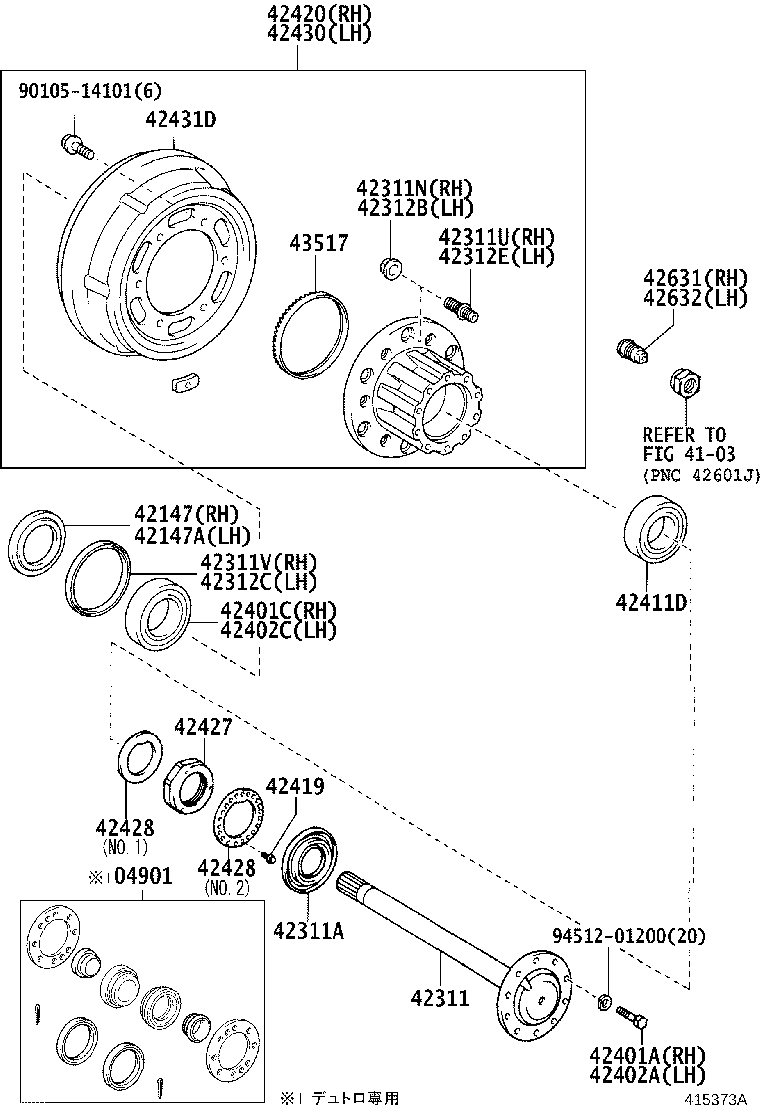

XZU710-TKFSF3 (2019)
Toyota Dyna/Toyoace
(1905- )IV6 ; (1905- )XZU710..40T..DCVUO..IV3 ; (1905- )XZU712..T3..6F..35
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04901 - MAINTENANCE KIT, BRAKE | ||||
| 04901-37060 |
XZU70#,71#,72#,73#..(30T,35T,40T)..(DCRWD,DCVTO,DCVUO) |
1 | ||
| 04901-37060 |
XZU70#,71#,72#,73#..(30T,35T,40T)..(DCRWD,DCVTO,DCVUO) |
1 | ||
| 04901-37060 |
XZU70#,71#,72#,73#..(30T,35T,40T)..(DCRWD,DCVTO,DCVUO) |
1 | ||
| 42147 - GUIDE, REAR AXLE OIL SEAL, RH | ||||
| 42147-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 42147-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 42147-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 42147A - GUIDE, REAR AXLE OIL SEAL, LH | ||||
| 42147-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 42147-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 42147-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37150 |
XZU700,710,72#,73#..(DM6,DM7,T3)..DCVUO |
2 | ||
| 42311-37150 |
XZU700,710,72#,73#..(DM6,DM7,T3)..DCVUO |
2 | ||
| 42311-37150 |
XZU700,710,72#,73#..(DM6,DM7,T3)..DCVUO |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90033-11032 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 90033-11032 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 90033-11032 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-20007 |
XZU710..40T..DCVUO..IV3 塵芥車仕様&ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−13ｲﾝﾁ,最終減速比=5.142 |
6 | ||
| 90179-20007 |
XZU710..40T..DCVUO..IV3 塵芥車仕様&ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−13ｲﾝﾁ,最終減速比=5.142 |
6 | ||
| 90179-20007 |
XZU710..40T..DCVUO..IV3 塵芥車仕様&ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−13ｲﾝﾁ,最終減速比=5.142 |
6 | ||
| 90179-20007 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 90179-20007 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 90179-20007 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02071 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
6 | ||
| 90942-02071 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
6 | ||
| 90942-02071 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
6 | ||
| 90942-02045 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 90942-02045 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 90942-02045 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| SZ311-01049 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| SZ311-01049 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| SZ311-01049 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90179-20007 |
XZU710..40T..DCVUO..IV3 塵芥車仕様&ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−13ｲﾝﾁ,最終減速比=5.142 |
6 | ||
| 90179-20007 |
XZU710..40T..DCVUO..IV3 塵芥車仕様&ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−13ｲﾝﾁ,最終減速比=5.142 |
6 | ||
| 90179-20007 |
XZU710..40T..DCVUO..IV3 塵芥車仕様&ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−13ｲﾝﾁ,最終減速比=5.142 |
6 | ||
| 90179-20007 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 90179-20007 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 90179-20007 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| SZ311-01049 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| SZ311-01049 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| SZ311-01049 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02046 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 90942-02046 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 90942-02046 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
6 | ||
| 90942-02072 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
6 | ||
| 90942-02072 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
6 | ||
| 90942-02072 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
6 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90031-01163 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
10 | ||
| 90031-01163 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
10 | ||
| 90031-01163 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
10 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90033-66030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 90033-66030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 90033-66030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90031-01163 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
10 | ||
| 90031-01163 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
10 | ||
| 90031-01163 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
10 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90033-66030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 90033-66030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 90033-66030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90033-66031 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 90033-66031 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 90033-66031 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 90119-06199 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
6 | ||
| 90119-06199 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
6 | ||
| 90119-06199 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
6 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-39115 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
1 | ||
| 42420-39115 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
1 | ||
| 42420-39115 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
1 | ||
| 42430-39175 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
1 | ||
| 42430-39175 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
1 | ||
| 42430-39175 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 42427-37030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 42427-37030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.1 |
2 | ||
| 42428-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.1 |
2 | ||
| 42428-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.1 |
2 | ||
| 42428-37030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.2 |
2 | ||
| 42428-37030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.2 |
2 | ||
| 42428-37030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.2 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.1 |
2 | ||
| 42428-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.1 |
2 | ||
| 42428-37010 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.1 |
2 | ||
| 42428-37030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.2 |
2 | ||
| 42428-37030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.2 |
2 | ||
| 42428-37030 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO NO.2 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39115 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
1 | ||
| 42430-39115 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
1 | ||
| 42430-39115 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
1 | ||
| 42430-39185 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
1 | ||
| 42430-39185 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
1 | ||
| 42430-39185 |
XZU700,71#,72#,73#..(T3,T4)..(30T,35T,40T)..DCVUO |
1 | ||
| 42431D - DRUM, BRAKE | ||||
| 42431-37101 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
2 | ||
| 42431-37101 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
2 | ||
| 42431-37101 |
XZU710,720..40T..DCVUO..IV3 塵芥車仕様 |
2 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-37020 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
6 | ||
| 42631-37020 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
6 | ||
| 42631-37020 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-37020 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
6 | ||
| 42632-37020 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
6 | ||
| 42632-37020 |
XZU700,71#,72#,73#..(30T,35T,40T)..DCVUO |
6 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37020 |
XZU712..T3..6F..35T..DCRWD..IV3;XZU700,710..(35T,40T)..DCVTO..IV3;XZU712,720..40T..(DCRWD,DCVUO)..IV3;XZU702,710..T3..(35T,40T)..(DCRWD,DCVUO)..IV3 塵芥車仕様 |
2 | ||
| 43517-37020 |
XZU712..T3..6F..35T..DCRWD..IV3;XZU700,710..(35T,40T)..DCVTO..IV3;XZU712,720..40T..(DCRWD,DCVUO)..IV3;XZU702,710..T3..(35T,40T)..(DCRWD,DCVUO)..IV3 塵芥車仕様 |
2 | ||
| 43517-37020 |
XZU712..T3..6F..35T..DCRWD..IV3;XZU700,710..(35T,40T)..DCVTO..IV3;XZU712,720..40T..(DCRWD,DCVUO)..IV3;XZU702,710..T3..(35T,40T)..(DCRWD,DCVUO)..IV3 塵芥車仕様 |
2 | ||
| 43517-37030 |
XZU712..T3..6F..35T..IV3;XZU700,710..(35T,40T)..DCVTO..IV3;XZU712,720..40T..(DCRWD,DCVUO)..IV3;XZU702,710..T3..(35T,40T)..(DCRWD,DCVUO)..IV3 塵芥車仕様 |
2 | ||
| 43517-37030 |
XZU712..T3..6F..35T..IV3;XZU700,710..(35T,40T)..DCVTO..IV3;XZU712,720..40T..(DCRWD,DCVUO)..IV3;XZU702,710..T3..(35T,40T)..(DCRWD,DCVUO)..IV3 塵芥車仕様 |
2 | ||
| 43517-37030 |
XZU712..T3..6F..35T..IV3;XZU700,710..(35T,40T)..DCVTO..IV3;XZU712,720..40T..(DCRWD,DCVUO)..IV3;XZU702,710..T3..(35T,40T)..(DCRWD,DCVUO)..IV3 塵芥車仕様 |
2 | ||
| 43517-37030 |
XZU70#,71#,72#,73#..(T3,T4)..(30T,35T,40T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 43517-37030 |
XZU70#,71#,72#,73#..(T3,T4)..(30T,35T,40T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 43517-37030 |
XZU70#,71#,72#,73#..(T3,T4)..(30T,35T,40T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4103 | ||||
